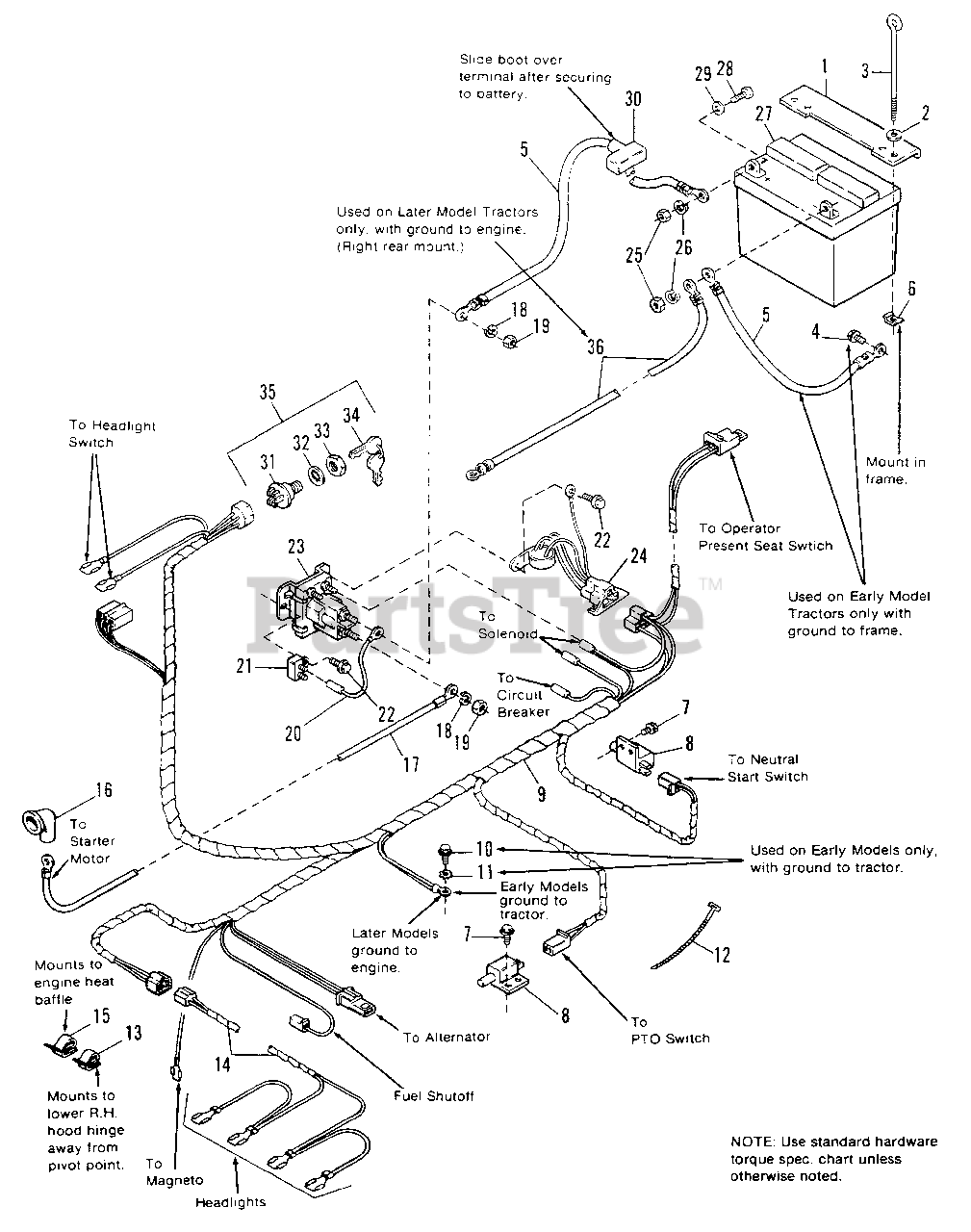

6517 H (1691732) - Simplicity Garden Tractor, 17hp Electrical Group Parts Diagram

Garden Tractor, 17hp

Electrical Group Parts Diagram

  • Title

1

Simplicity 1718596

HOLD DOWN, Battery
(Superseded to 1718596ASM)

$36.99

$

Usually ships in 2-12 days

0

2

Simplicity 1921319SM

WASHER, 1/4
(Superseded to 703332)

$4.49

$

In Stock, Qty 20+

0

3

Simplicity 1700472SM

ROD, Battery Hold Down

$25.99

$

Usually ships in 2-12 days

0

4

Simplicity 2827428

SCREW, Taptite, 1/4-20 x 3/8, Zinc Pltd.

$

$

Not available

5

Simplicity 1603618SM

CABLE, Ground (Qty. 1 on later models)

$11.99

$

In Stock, only 3 left!

0

6

Simplicity 2826022

NUT, Retainer, 1/4-20

$

$

Not available

7

Simplicity 1929477SM

SCREW, Taptite, #10-24 x 1/2

$4.49

$

Usually ships in 2-12 days

0

8

Simplicity 1701521SM

SWITCH, PTO and Neutral
(Superseded to 5022438SM)

$20.99

$

In Stock, Qty 7

0

9

Simplicity 1685379

HARNESS, Wiring (1691263 & 1691468 only)

$

$

Not available

9

Simplicity 1703227

HARNESS, Wiring (1691736 only)

$

$

Not available

10

Simplicity 2827428

SCREW, Taptite, 1/4-20 x 3/8

$

$

Not available

11

Simplicity 921880

WASHER, Ext. Tooth

$

$

Not available

12

Simplicity 2832747SM

TIE, Cable

$3.99

$

Usually ships in 2-12 days

0

13

Simplicity 2830222

CLIP, Wire

$

$

Not available

14

Simplicity 1674358SM

WIRE ASSY., Headlights

$35.99

$

In Stock, Qty 7

0

15

Simplicity 2165073SM

CLIP, Wire

$2.99

$

Usually ships in 2-12 days

0

16

Simplicity 2122023SM

COVER, Terminal

$5.99

$

In Stock, Qty 12

0

17

Simplicity 1701522SM

CABLE

$

$

Not available

18

Simplicity 1917356SM

LOCKWASHER, 5/16
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

19

Simplicity 2820263SM

NUT, Hex, 5/16-24
(Superseded to 703331)

$3.99

$

In Stock, Qty 20+

0

20

Simplicity 1665237SM

WIRE ASSY.

$11.99

$

In Stock, Qty 7

0

21

Simplicity 1665238SM

CIRCUIT BREAKER

$14.99

$

In Stock, Qty 20+

0

22

Simplicity 2827429

SCREW, Taptite, 1/4-20 x 5/8

$

$

Not available

23

Simplicity 1686981SM

SOLENOID
(Superseded to 1686981YP)

$28.99

$

In Stock, Qty 20+

0

24

Simplicity 1686667SM

MODULE, DSI Interiock

$109.99

$

In Stock, only 2 left!

0

25

Simplicity 2816622SM

NUT, Hex, 1/4-20
(Superseded to 703127)

$3.49

$

In Stock, Qty 20+

0

26

Simplicity 2816964SM

LOCKWASHER, 1/4
(Superseded to 704133)

$3.99

$

In Stock, Qty 11

0

27

Simplicity 1685215SM

BATTERY, 39 Amp.

$

$

Not available

28

Simplicity 1923341SM

CAPSCREW, Hex Hd., 1/4-20 x 3/4

$4.49

$

In Stock, Qty 8

0

29

Simplicity 2821319SM

WASHER, 1/4 I.D.
(Superseded to 703332)

$4.49

$

In Stock, Qty 20+

0

30

Simplicity 1677296SM

BOOT, Insulator

$6.49

$

In Stock, Qty 11

0

31

SWITCH (See Ref. No. 35)

$

$

Not available

32

Simplicity 2818906

LOCKWASHER, Internal, 5/8

$

$

Not available

33

Simplicity 2122234SM

NUT, Hex, 5/8-32
(Superseded to 704229)

$3.49

$

In Stock, only 1 left!

0

34

Simplicity 1717163SM

KEYS

$8.99

$

In Stock, Qty 20+

0

35

Simplicity 1686734SM

SWITCH, Ignition (Incl. Ref. Nos. 31, 32, 33 & 34)

$32.99

$

In Stock, Qty 20+

0

36

Simplicity 1703484SM

CABLE, Ground to Engine (Later Models Only)

$

$

Not available
