6516 H (1691628) - Simplicity 48" Garden Tractor, 16hp Frame Group Parts Diagram

48" Garden Tractor, 16hp

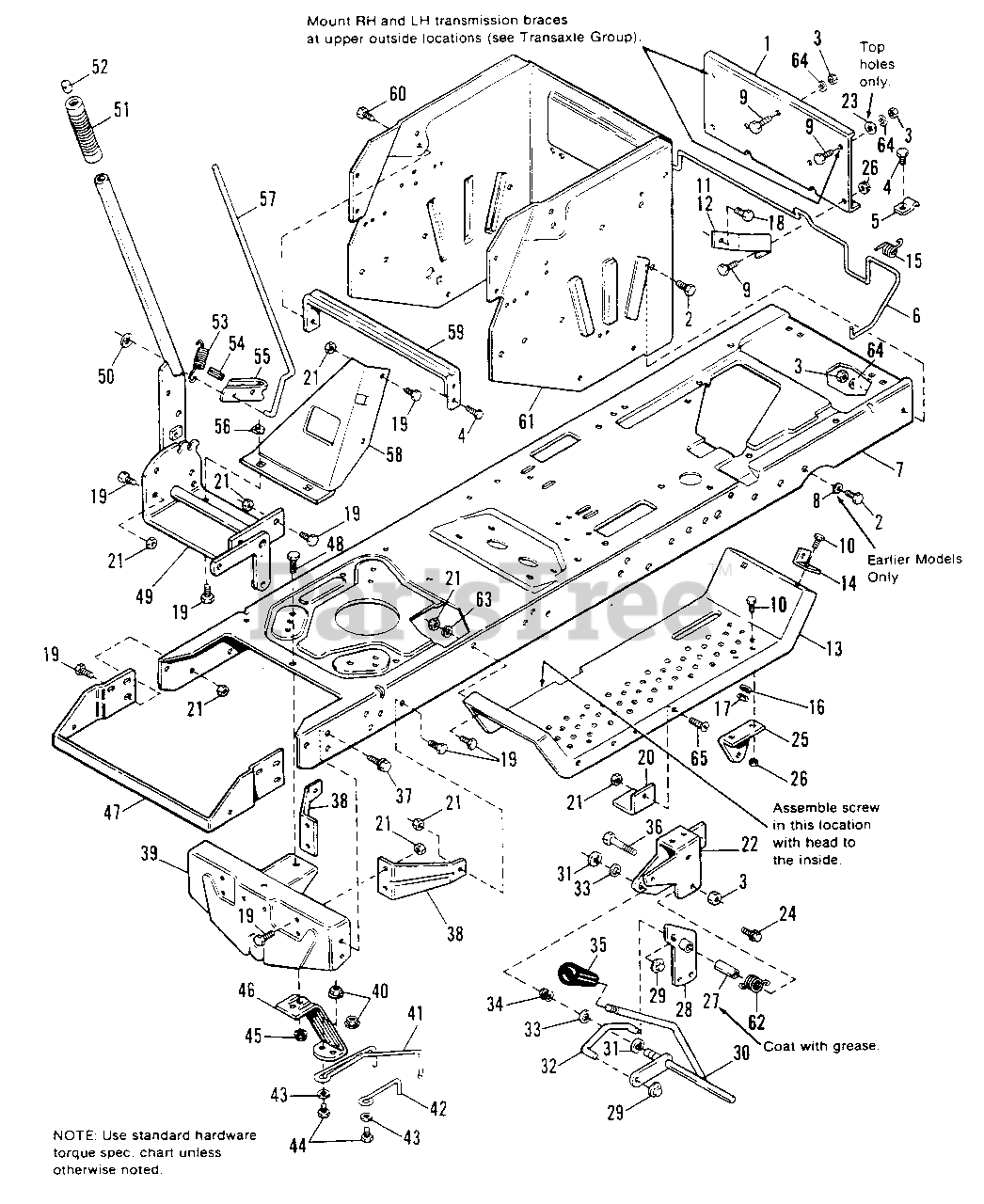

Frame Group Parts Diagram

  • Title

1

Simplicity 1679802

DRAWBAR

$

$

Not available

2

Simplicity 1921210SM

CAPSCREW, 3/8-16 x 1
(Superseded to 703407)

$11.99

$

In Stock, Qty 7

0

3

Simplicity 1916950SM

NUT, Hex, 3/8-16
(Superseded to 703577)

$4.49

$

In Stock, Qty 20+

0

4

Simplicity 1924856SM

SCREW, Taptite, 5/16-18 x 1/2
(Superseded to 703985)

$4.49

$

In Stock, only 3 left!

0

5

Simplicity 1678388

CLIP

$

$

Not available

6

Simplicity 1701268

ROD, Seat Latch

$

$

Not available

7

Simplicity 1702626

FRAME

$

$

Not available

8

Simplicity 2820427SM

LOCKWASHER, 3/8 Ext. Tooth (*Early Models Only)
(Superseded to 703864)

$4.49

$

Usually ships in 2-12 days

0

9

Simplicity 1920415SM

CAPSCREW. 3/8-16 x 1-1/4"
(Superseded to 703871)

$4.99

$

Usually ships in 2-12 days

0

10

Simplicity 1921959SM

CAPSCREW, 1/4-20 x 5/8
(Superseded to 001X38MA)

$4.49

$

In Stock, Qty 18

0

11

Simplicity 1701124

BRACE, Drawbar, L.H.

$

$

Not available

12

Simplicity 1701125

BRACE. Drawbar, R.H.

$

$

Not available

13

Simplicity 1679938

FOOTREST

$

$

Not available

14

Simplicity 1700670

BRACKET, Seat Latch

$

$

Not available

15

Simplicity 1701314

SPRING Torsion

$

$

Not available

16

Simplicity 1921319SM

WASHER, Plain, 1/4 Std.
(Superseded to 703332)

$4.49

$

In Stock, Qty 20+

0

17

Simplicity 1916622SM

NUT, Hex, 1/4-20
(Superseded to 703127)

$3.49

$

In Stock, Qty 20+

0

18

Simplicity 1923683SM

SCREW, Taptite, 3/8-16 x 3/4
(Superseded to 703950)

$5.49

$

In Stock, only 3 left!

0

19

Simplicity 1921332SM

CAPSCREW, 5/16-18 x 3/4
(Superseded to 704287)

$3.99

$

In Stock, Qty 9

0

20

Simplicity 1669168

UP-STOP, Mower

$

$

Not available

21

Simplicity 1917372SM

NUT, Hex, 5/16-18
(Superseded to 7091511SM)

$3.49

$

In Stock, Qty 20+

0

22

Simplicity 1700677

BRACKET, PTO Lever Mtg.

$

$

Not available

23

Simplicity 2831942

PUSHNUT

$

$

Not available

24

Simplicity 1925003SM

SCREW, Taptite, 1/4-20 x 1/2
(Superseded to 704130)

$3.99

$

In Stock, Qty 5

0

25

Simplicity 1654783

SUPPORT, PTO Lever

$

$

Not available

26

Simplicity 1928352SM

NUT, Hex, Whiz Flange, 3/8-16
(Superseded to 703793)

$4.49

$

In Stock, only 3 left!

0

27

Simplicity 1669105SM

SPACER

$13.99

$

In Stock, only 2 left!

0

28

Simplicity 1701431

ARM ASSY, PTO Link

$

$

Not available

29

Simplicity 1960093SM

NUT, Pal, 3/8
(Superseded to 703948)

$4.49

$

In Stock, Qty 17

0

30

Simplicity 1702437

LEVER ASSY., PTO

$

$

Not available

31

Simplicity 2158399SM

RING, Snap
(Superseded to 703976)

$4.49

$

In Stock, Qty 9

0

32

Simplicity 1701434

LINK, PTO

$

$

Not available

33

Simplicity 1960206SM

WASHER

$3.99

$

Usually ships in 2-12 days

0

34

Simplicity 1669197

BUSHING Split (Nylon)

$

$

Not available

35

Simplicity 2172038SM

KNOB
(Superseded to 1732470SM)

$19.99

$

In Stock, Qty 6

0

36

Simplicity 1922130SM

CAPSCREW, 3/8-16 x 2-1/4
(Superseded to 703872)

$4.99

$

In Stock, Qty 20+

0

37

Simplicity 1664847SM

SCREW, Taptite, 5/16-18 x 3/4
(Superseded to 703228)

$4.49

$

In Stock, Qty 20+

0

38

Simplicity 1655076

BRACE, Axle Support

$

$

Not available

39

Simplicity 1663855

SUPPORT ASSY., Axle

$

$

Not available

40

Simplicity 1935048SM

NUT, Hex, Flange Lock, 5/16-18
(Superseded to 704067)

$3.99

$

In Stock, Qty 20+

0

41

Simplicity 1672118SM

STOP, Belt

$9.99

$

Usually ships in 2-12 days

0

42

Simplicity 1665812SM

STOP, Belt

$20.99

$

In Stock, only 1 left!

0

43

Simplicity 1921319SM

WASHER, Plain, 1/4 Std.
(Superseded to 703332)

$4.49

$

In Stock, Qty 20+

0

44

Simplicity 1923325SM

CAPSCREW, 5/16-18 x 7/8
(Superseded to 703408)

$4.99

$

In Stock, Qty 13

0

45

Simplicity 1927557SM

NUT, Whiz Flange, 5/16-18

$4.99

$

Usually ships in 2-12 days

0

46

Simplicity 1669169

SUPPORT, Belt Guide

$

$

Not available

47

Simplicity 1666954

SUPPORT, Hood

$

$

Not available

48

Simplicity 1930595SM

CAPSCREW, Whiz Flange, 5/16-18 x 1-1/4

$3.99

$

In Stock, Qty 5

0

49

Simplicity 1667295SM

LEVER ASSY., Lift

$225.99

$

Usually ships in 2-12 days

0

50

Simplicity 2834953

NUT, Push On

$

$

Not available

51

Simplicity 2156209

GRIP
(Superseded to 1713995SM)

$12.99

$

In Stock, only 1 left!

0

52

Simplicity 1650157SM

BUTTON

$7.49

$

In Stock, only 1 left!

0

53

Simplicity 1667286SM

SPRING

$9.99

$

Usually ships in 2-12 days

0

54

Simplicity 1927609SM

PIN, Spring, 3/8 x 1

$3.49

$

In Stock, Qty 5

0

55

Simplicity 1657648SM

LATCH, Lift Lever

$

$

Not available

56

Simplicity 2816159

NUT, Speed, 5/16-18

$

$

Not available

57

Simplicity 1667290SM

ROD, Latch

$47.99

$

Usually ships in 2-12 days

0

58

Simplicity 1701223

BRACE, Lift Lever

$

$

Not available

59

Simplicity 1654707

BRACE, Seat (Wrapper)

$

$

Not available

60

Simplicity 1960373SM

SCREW, Taptite, 5/16-18 x 1
(Superseded to 704146)

$3.99

$

In Stock, Qty 20+

0

61

Simplicity 1702627

SUPPORT, Axle (Wrapper

$

$

Not available

62

Simplicity 1701429

SPRING, Torsion

$

$

Not available

63

Simplicity 1917356SM

LOCKWASHER, 5/16
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

64

Simplicity 1916965SM

LOCKWASHER, 3/8
(Superseded to 703454)

$3.49

$

In Stock, Qty 15

0

65

Simplicity 1918249SM

SCREW, Slotted, 5/16-18 x 3/4

$4.99

$

Usually ships in 2-12 days

0
