6511 - Troy-Bilt Econo-Horse Rear-Tine Tiller (SN: E0008844 - E0032773) ENGINE PULLEY & BELTS Parts Diagram

Econo-Horse Rear-Tine Tiller

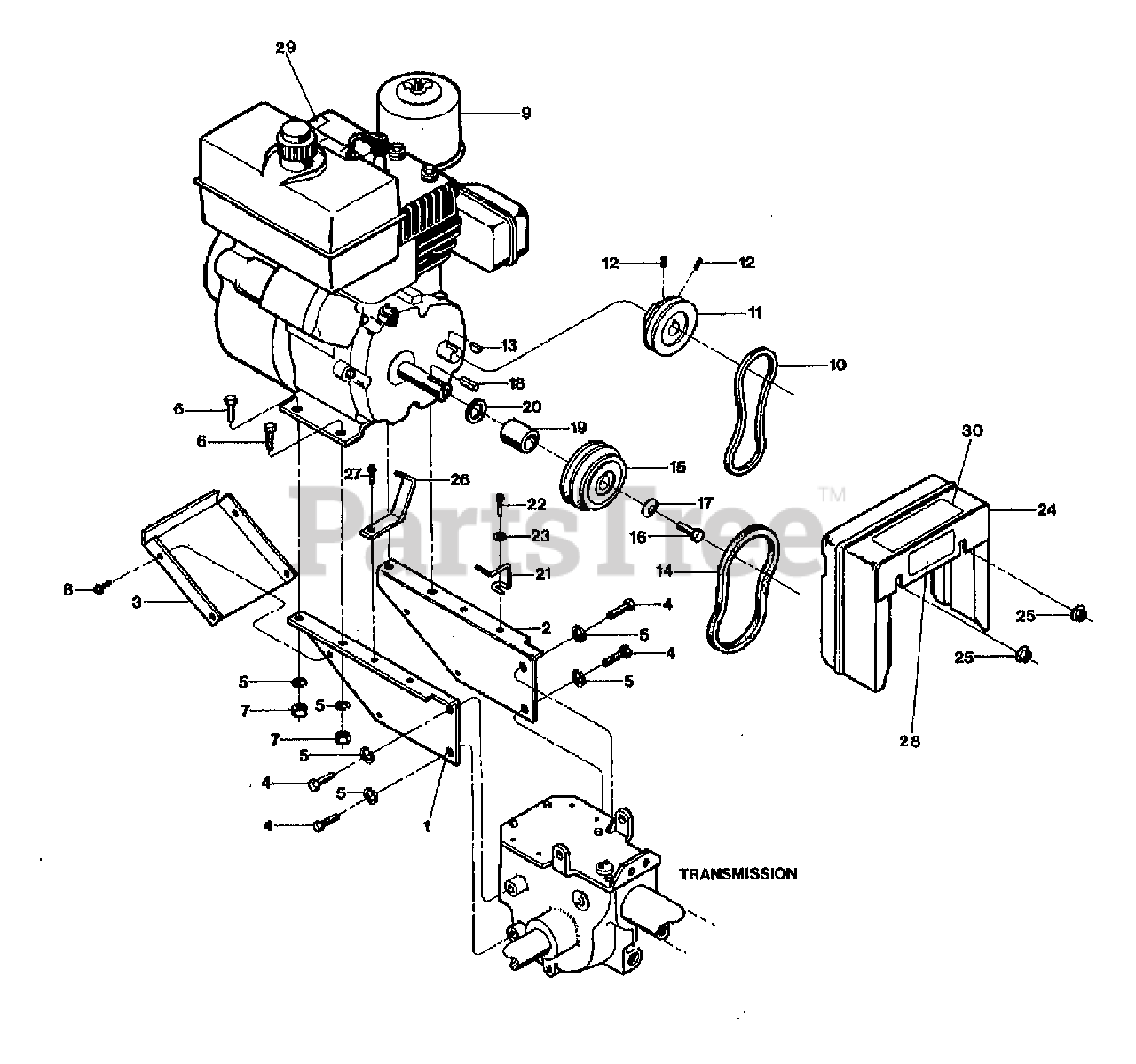

ENGINE PULLEY & BELTS Parts Diagram

  • Title

1

MTD 20754

BRKT-ENG LT P4

$

$

Not available

2

MTD 20755

BRKT-ENG RT PNT

$

$

Not available

3

Troy-Bilt 20673

PAN-ENG BRKT PNT
(Superseded to 786-04080-0638)

$20.99

$

Usually ships in 3-6 days

0

4

Troy-Bilt 9575

SCR-HFLK 5/16-18X.75 ZP

$

$

Currently unavailable

5

Troy-Bilt 9912

WASHER-LK .312 ZP

$

$

Currently unavailable

6

Troy-Bilt 9703

SCR-HHC 5/16-18X.75 GR 5 ZP

$

$

Currently unavailable

7

Troy-Bilt 9801

NUT-HEX 5/16-18 ZP

$

$

Currently unavailable

8

Troy-Bilt 9768

SCR-HH SEMS 10-32 X .5 ZP (W/PERMANET WASHER)

$

$

Currently unavailable

9

0

ENGINE, TECUMSEH, 6HP RECOIL START,

Note: MODEL H60, TYPE 75505N SOLID STATE ELEC. IGN.

$

$

Not available

9

0

ENGINE, TECUMSEH, 6HP RECOIL START,

Note: MODEL H60, TYPE 75506N SOLID STATE ELEC. IGN.

$

$

Not available

10

Troy-Bilt 9022

BELT-V REV DR ECONO (SEE V-BELT BELOW)

$

$

Currently unavailable

11

Troy-Bilt 2477

PULLEY-REV MACH

$

$

Currently unavailable

12

MTD 9561

SCR-SS 1/4-20 X .25 (SECURES REVERSE ENGINE PULLEY)

$

$

Not available

13

MTD 9361

KEY-WOODRUFF #5

$

$

Not available

14

Troy-Bilt 20565

BELT-V GROOVE FWD SMFRAME (SEE V-BELT BELOW)

$

$

Currently unavailable

15

Troy-Bilt 2476

PULLEY-ENGINE MACH

$

$

Currently unavailable

16

Troy-Bilt 9549

SCR-HH 3/8-24X1.0 G5 ZP (SECURES FORWARD ENGINE PULLEY)

$

$

Currently unavailable

17

MTD 9925

WASHER-.994X.413X.145

$

$

Not available

18

Troy-Bilt 9301

KEY-.188 SQX1.0
(Superseded to GW-9301099)

$3.99

$

In Stock, only 3 left!

0

19

Troy-Bilt 50141

SPACER-.937X.755X.938

$

$

Currently unavailable

20

Troy-Bilt 1138-2

SHIM-1.0X.7656X.031
(Superseded to 736-04192)

$6.99

$

In Stock, only 2 left!

0

21

MTD 20555

GUIDE-BELT FWD

$

$

Not available

22

Troy-Bilt 9573

SCR-HWH 1/4-20 X .75 STH
(Superseded to 1754128)

$3.99

$

In Stock, only 2 left!

0

23

Troy-Bilt 9900

WASHER-FLAT 1/4 SAE

$

$

Currently unavailable

24

Troy-Bilt 2605

COVER-W/DECALS-ECONO OPC (INCL. 28 & 30)

$

$

Currently unavailable

25

Troy-Bilt 9848

NUT-HFLK 5/16-18 ZP (WHIZ-STYLE)

$

$

Currently unavailable

26

MTD 20654

GUIDE-BELT REV PNT

$

$

Not available

27

Troy-Bilt 9552

SCR-HWH 1/4-20 X .5 STH
(Superseded to 710-0599)

$4.49

$

In Stock, Qty 20+

0

28

Troy-Bilt 2581

DECAL-BELT CHG ECONO OPC

$

$

Currently unavailable

Troy-Bilt 11019

KIT-BELT ECONO (INCL. #20565 FORWARD & #9022 REVERSE BELTS)

$

$

Currently unavailable

29

Troy-Bilt 20821

DECAL-STARTING STABIL

$

$

Currently unavailable

30

Troy-Bilt 20818

DECAL-BELT COVER OPC
(Superseded to GW-20818)

$30.99

$

Usually ships in 3-6 days

0
