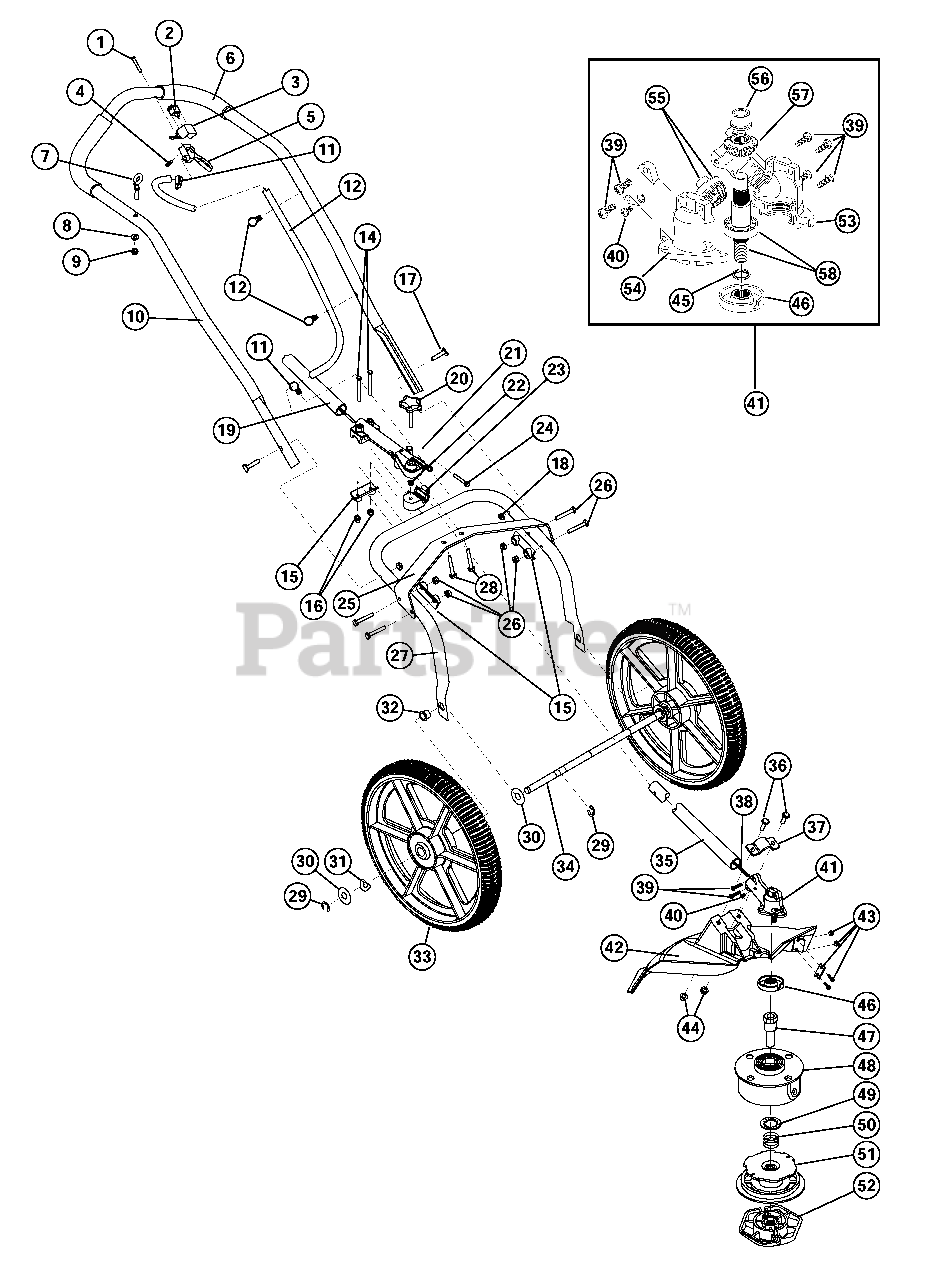

650r (41AN650G034) - Ryobi Walk-Behind Trimmer Boom And Trimmer Parts Diagram

Walk-Behind Trimmer

Boom And Trimmer Parts Diagram

  • Title

1

MTD 753-04185

Trigger Mount Screw

$

$

Not available

2

MTD 791-182405

On/Off Switch 19

$10.99

$

In Stock, Qty 12

0

3

MTD 791-182672

Switch Bracket

$

$

Not available

4

MTD 753-04186

Weldnut

$

$

Not available

5

MTD 753-04187

Throttle Trigger Assembly

$

$

Not available

6

MTD 753-04189

Handlebar Grip

$

$

Not available

7

MTD 753-04190

Rope Guide

$

$

Not available

8

MTD 791-182678

Washer
(Superseded to 4150)

$3.49

$

Usually ships in 3-6 days

0

9

MTD 791-180050

Nut
(Superseded to 712-0324)

$3.99

$

In Stock, Qty 16

0

10

MTD 753-04191

Handlebar

$

$

Not available

11

MTD 791-147346

Cable Tie
(Superseded to 725-0157)

$3.99

$

In Stock, only 2 left!

0

12

MTD 753-04192

Wire Retaining Clip

$

$

Not available

13

MTD 753-04193

Throttle Cable Cover

$

$

Not available

14

MTD 753-04194

Hex Head Cap Screw
(Superseded to 710-1122)

$7.49

$

Usually ships in 3-6 days

0

15

MTD 753-04195

Retaining Clamp

$

$

Not available

16

MTD 791-180050

Nut
(Superseded to 712-0324)

$3.99

$

In Stock, Qty 16

0

17

MTD 753-04196

Carriage Bolt
(Superseded to 9686A-1)

$3.49

$

Usually ships in 3-6 days

0

18

MTD 791-182652

Nut

$

$

Not available

19

MTD 753-04197

Upper Drive Shaft

$

$

Not available

20

MTD 753-04198

Star Knob

$

$

Not available

21

MTD 753-04199

Upper Clamp

$

$

Not available

22

MTD 753-04200

Locknut
(Superseded to 912-0429)

$4.49

$

In Stock, Qty 20+

0

23

MTD 753-04201

Clamp Grip

$

$

Not available

24

MTD 753-04202

Bolt
(Superseded to 710-1026)

$6.99

$

In Stock, Qty 13

0

25

MTD 753-04203

Support Bracket

$

$

Not available

26

MTD 753-04204

Hex Head Cap Screw

$

$

Currently unavailable

27

MTD 753-04205

Lower Handlebar

$

$

Not available

28

MTD 753-04206

Bolt

$

$

Not available

29

MTD 753-04207

E Ring

$

$

Not available

30

MTD 753-04208

Washer
(Superseded to 936-0456)

$4.99

$

In Stock, Qty 9

0

31

MTD 753-04209

Spring Washer
(Superseded to 736-0182)

$4.49

$

In Stock, Qty 7

0

32

MTD 753-04210

Bushing
(Superseded to 741-04009)

$

$

Not available

33

MTD 753-04211

Wheel
(Superseded to 734-1864)

$76.99

$

In Stock, only 1 left!

0

34

MTD 753-04212

Axle

$

$

Not available

35

MTD 753-04213

Lower Drive Shaft Assembly

$

$

Not available

36

MTD 791-182200

Bolt

Note: (includes 44)

$6.99

$

In Stock, only 2 left!

0

37

MTD 753-04214

Boom Mount Bracket

$

$

Not available

38

MTD 791-613300

Drive Shaft

$88.99

$

Usually ships in 3-6 days

0

39

MTD 791-182195

Screw

$7.49

$

In Stock, only 1 left!

0

40

MTD 791-182519

Anti-Rotation Screw

$4.99

$

Usually ships in 3-6 days

0

41

MTD 791-182193

2 Piece Gearbox Assembly

Note: (includes 39, 40 & 45)

$99.99

$

In Stock, only 2 left!

0

42

MTD 753-04215

Guard

$

$

Not available

43

MTD 791-682061

Cutoff Blade Assembly

$14.99

$

In Stock, only 1 left!

0

44

MTD 791-182652

Locknut

$

$

Not available

45

MTD 753-1159

O-Ring

$

$

Not available

46

MTD 791-182196

Spacer

$22.99

$

In Stock, only 1 left!

0

47

MTD 791-612483

Spool Shaft

$55.99

$

In Stock, only 1 left!

0

48

MTD 791-683301

Outer Spool & Eyelet Assembly

$48.99

$

In Stock, Qty 6

0

49

MTD 791-612026

Retainer
(Superseded to 1772)

$6.99

$

In Stock, Qty 12

0

50

MTD 791-6120636B

Spring

$

$

Currently unavailable

51

MTD 791-147495

Inner Reel

$26.99

$

In Stock, Qty 7

0

52

MTD 753-04026

Bump Knob Assembly w/Bolt
(Superseded to 791-180814B)

$21.99

$

In Stock, Qty 20+

0

53

MTD 791-182191

Left Housing

Note: 2 Piece Gearbox Assembly Parts - Item 27

$

$

Not available

54

MTD 791-182192

Right Housing

Note: 2 Piece Gearbox Assembly Parts - Item 27

$

$

Not available

55

MTD 791-182194

Pinion Gear Assembly

Note: 2 Piece Gearbox Assembly Parts - Item 27

$31.99

$

Usually ships in 3-6 days

0

56

MTD 791-182199

Output Shaft Bushing

Note: 2 Piece Gearbox Assembly Parts - Item 27

$

$

Not available

57

MTD 791-182198

Output Shaft Gear

Note: 2 Piece Gearbox Assembly Parts - Item 27

$

$

Not available

58

MTD 791-182197

Output Shaft Assembly

Note: (includes 56 & 57); 2 Piece Gearbox Assembly Parts - Item 27

$

$

Not available

MTD 753-04216

Replacement Line Membrane .105"

Note: Optional Accessories; Parts Not Shown

$

$

Not available

MTD 753-1160

Reel & Line Assembly
(Superseded to 753-1224)

Note: Optional Accessories; Parts Not Shown

$32.99

$

Usually ships in 3-6 days

0

MTD 753-04217

Bump Head Assembly
(Superseded to 791-147498)

Note: (includes 47-52); Optional Accessories; Parts Not Shown

$117.99

$

In Stock, only 1 left!

0
