6505-01 - Briggs & Stratton Vaporizer Kit Vaporizer Kit Parts Diagram

Vaporizer Kit

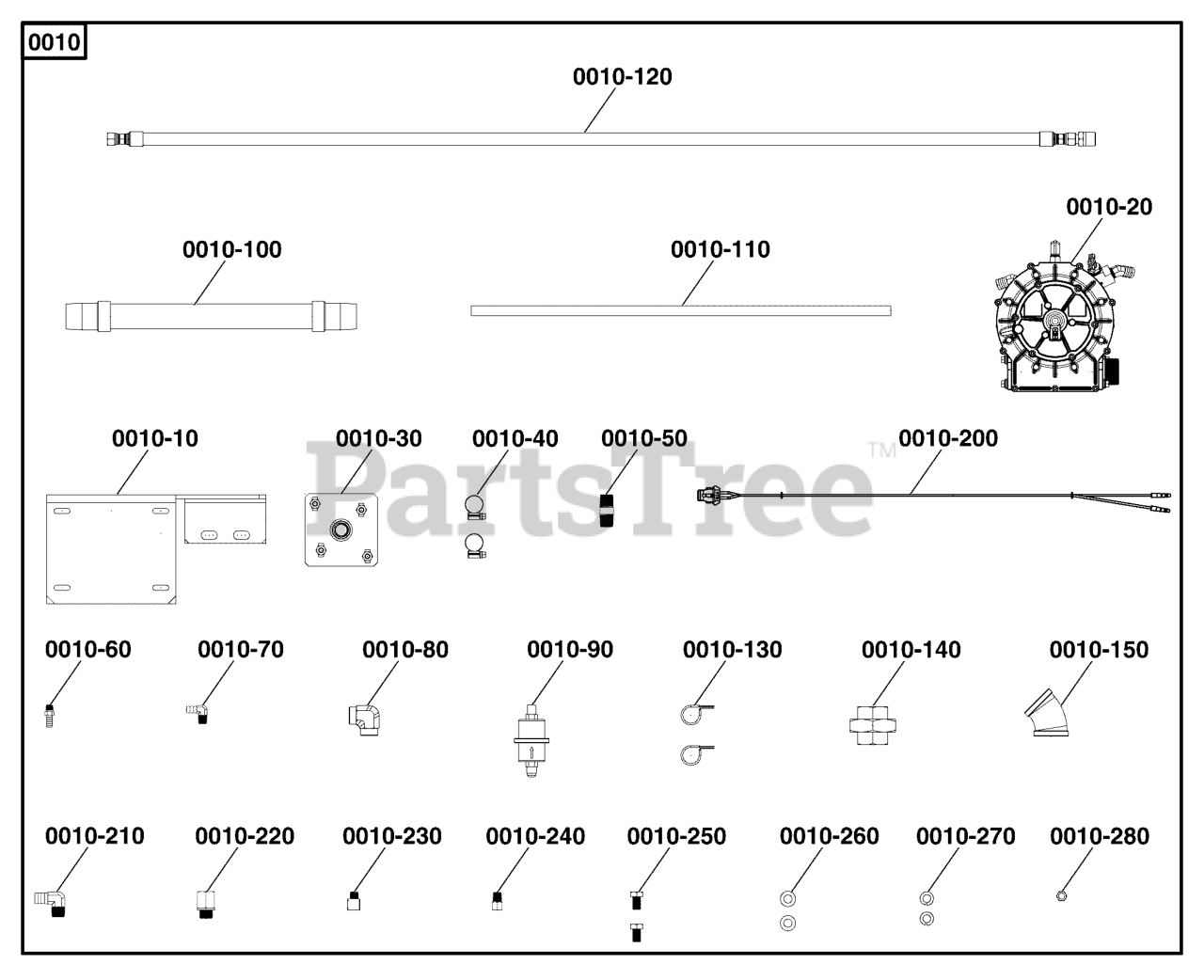

Vaporizer Kit Parts Diagram

  • Title

0010

Briggs & Stratton 6505

KIT, Vaporizer

Note: (Incl. Ref. Nos. 0010-10 thru 0010-280)

$

$

Currently unavailable

0010-10

BRACKET, Mounting

$

$

Not available

0010-20

Briggs & Stratton 771813

VAPORIZER

$3653.99

$

Usually ships in 2-12 days

0

0010-30

COUPLING, 1/2" NPTF, Fuel, LCG

$

$

Not available

0010-40

Briggs & Stratton 771739

CLAMP, Hose

$22.99

$

Usually ships in 2-12 days

0

0010-50

FITTING, Nipple, 1/2" NPTF x 2"

$

$

Not available

0010-60

NIPPLE, Hose, 3/8" x 1/8" NPT

$

$

Not available

0010-70

FITTING, Elbow, 1/4" NPT x 3/8" Barb

$

$

Not available

0010-80

FITTING, Elbow, 1/2" NPTF x 90 Degree

$

$

Not available

0010-90

FILTER, Fuel

$

$

Not available

0010-90

Briggs & Stratton 771740

FILTER, LP Fuel

$70.99

$

Usually ships in 2-12 days

0

0010-100

Briggs & Stratton 771972

HOSE, Flex, Fuel, 1-1/4 NPT X 18" UL

$298.99

$

Usually ships in 2-12 days

0

0010-110

HOSE, Breather, 3/8" ID x 26" (SAE J30R7)

$

$

Not available

0010-120

Briggs & Stratton 771975

HOSE, Fuel Assembly, 60", LP

$295.99

$

Usually ships in 2-12 days

0

0010-130

Briggs & Stratton 80026155

P-CLAMP, Hose, 1" Vinyl Coated

$

$

Currently unavailable

0010-140

FITTING, Union, 1-1/4 NPT

$

$

Not available

0010-150

FITTING, Elbow, 1-1/4 x 45

$

$

Not available

0010-200

Briggs & Stratton 771974

HARNESS, Fuel Pilot Solenoid, LP, LCP

$34.99

$

Usually ships in 2-12 days

0

0010-210

FITTING, Elbow, 90 Degree, 1/4 NPT X 3/8 Barb, Brass

$

$

Not available

0010-220

Briggs & Stratton 771973

FITTING, Adapter, Straight, 1/2 NPT Female X M16 X 1.5 Male with Seal

$45.99

$

Usually ships in 2-12 days

0

0010-230

Briggs & Stratton 80026979

FITTING, Elbow, 90 Degree, 1/4 NPT

$

$

Currently unavailable

0010-240

Briggs & Stratton 80027011

FITTING, Adapter, Female to Male, 1/4" NPT

$

$

Currently unavailable

0010-250

Briggs & Stratton 80080148

SCREW, M12-1.5 X 20

$

$

Currently unavailable

0010-260

Briggs & Stratton 49808

WASHER, M 12 Flat
(Superseded to 49808GS)

$3.99

$

In Stock, only 2 left!

0

0010-270

Briggs & Stratton 197489GS

WASHER

$3.99

$

Usually ships in 2-12 days

0

0010-280

Briggs & Stratton 22241GP

NUT, 3/8-16

$

$

Currently unavailable
