6504-01 - Briggs & Stratton Vaporizer Kit Vaporizer Kit Parts Diagram

Vaporizer Kit

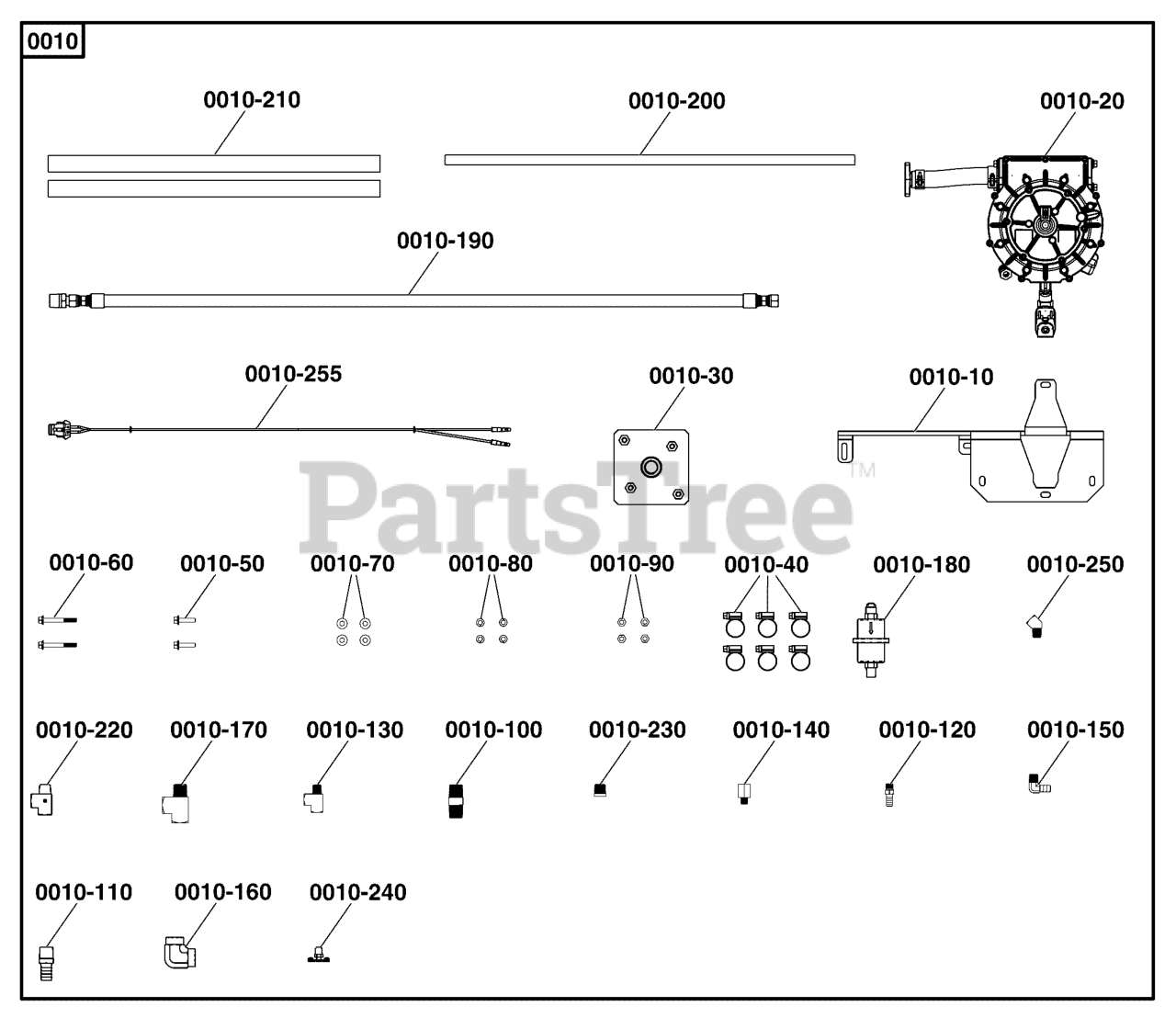

Vaporizer Kit Parts Diagram

  • Title

0010

Briggs & Stratton 6504

KIT, Vaporizer

Note: (Incl. Ref. Nos. 0010-10 thru 0010-255)

$

$

Currently unavailable

0010-10

BRACKET, Mounting

$

$

Not available

0010-20

Briggs & Stratton 80019288

ASSEMBLY, Vaporizer

$

$

Currently unavailable

0010-30

COUPLING, 1/2" NPTF, Fuel, LCG

$

$

Not available

0010-40

CLAMP. Hose, 1", Lined

$

$

Not available

0010-50

SCREW, 1/4"-20 x 1"

$

$

Not available

0010-60

SCREW, 1/4"-20 x 2"

$

$

Not available

0010-70

WASHER, Flat - 1/4" (M6)

$

$

Not available

0010-80

WASHER, Lock, Split, 1/4"

$

$

Not available

0010-90

NUT, Hex, 1/4-20

$

$

Not available

0010-100

FITTING, Nipple, 1/2" NPTF x 2"

$

$

Not available

0010-110

HOSE, Barb, 5/8" BARB, 1/2" MNPT

$

$

Not available

0010-120

NIPPLE, Hose, 3/8" x 1/8" NPT

$

$

Not available

0010-130

FITTING, Tee 1/4" NPT

$

$

Not available

0010-140

FITTING, Adapter, 1/4" x 1/8" NPT

$

$

Not available

0010-150

FITTING, Elbow, 1/4" NPT x 3/8" Barb

$

$

Not available

0010-160

FITTING, Elbow, 1/2" NPTF x 90 Degree

$

$

Not available

0010-170

FITTING, Tee, 1/2" NPT

$

$

Not available

0010-180

FILTER, Fuel

$

$

Not available

0010-190

HOSE, Fuel, 5/16" ID X 45"

$

$

Not available

0010-200

HOSE, Breather, 3/8" ID x 26" (SAE J30R7)

$

$

Not available

0010-210

HOSE, Water 5/8" ID x 20"

$

$

Not available

0010-220

FITTING, Tee, 3/8" NPTF

$

$

Not available

0010-230

BUSHING, 3/8" NPTF - 1/8" NPTF

$

$

Not available

0010-240

FITTING, Petcock, 1/8" NPTF

$

$

Not available

0010-250

FITTING, Elbow, 45 Degree, 1/4" NPT

$

$

Not available

0010-255

HARNESS, Fuel Pilot Solenoid

$

$

Not available
