65022 ES (961430023-00) - Husqvarna 22" Walk-Behind Mower (2007-05) Drive Assembly Parts Diagram

22" Walk-Behind Mower

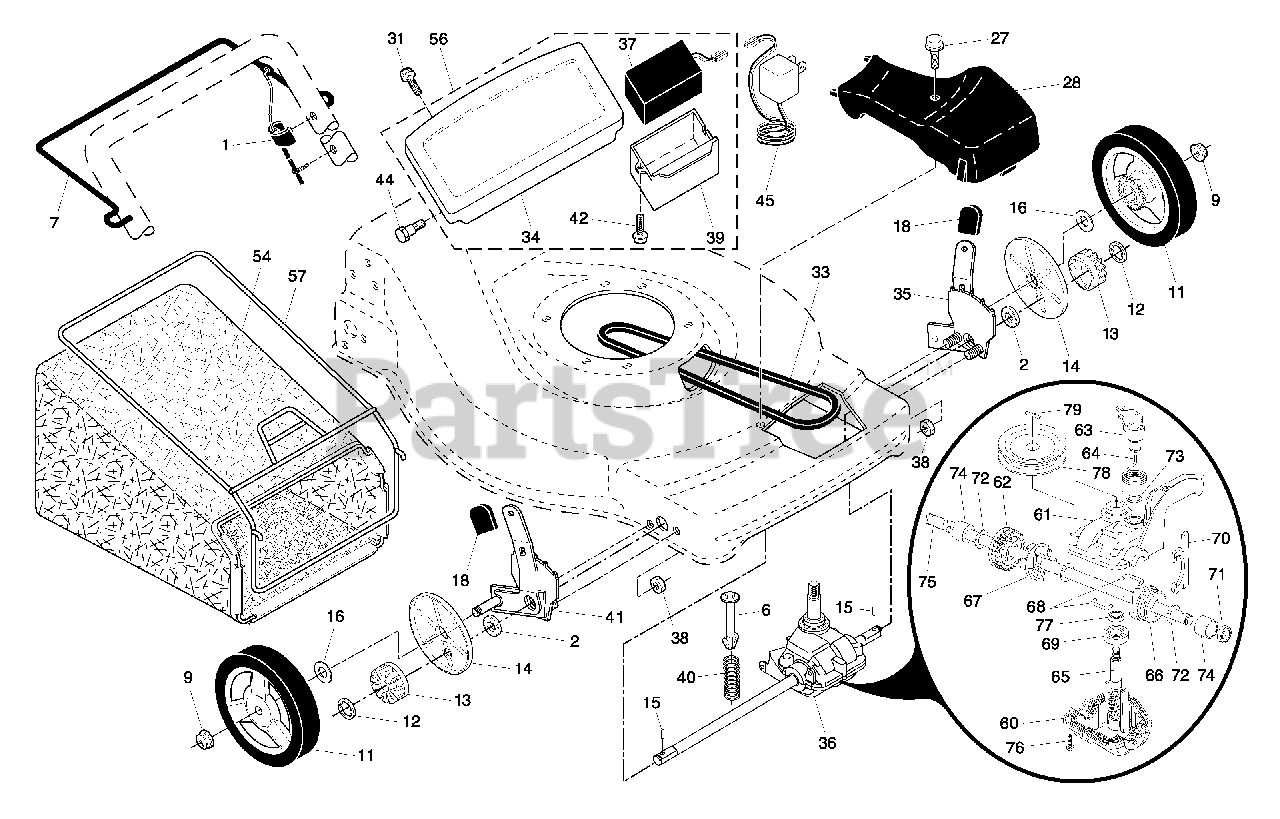

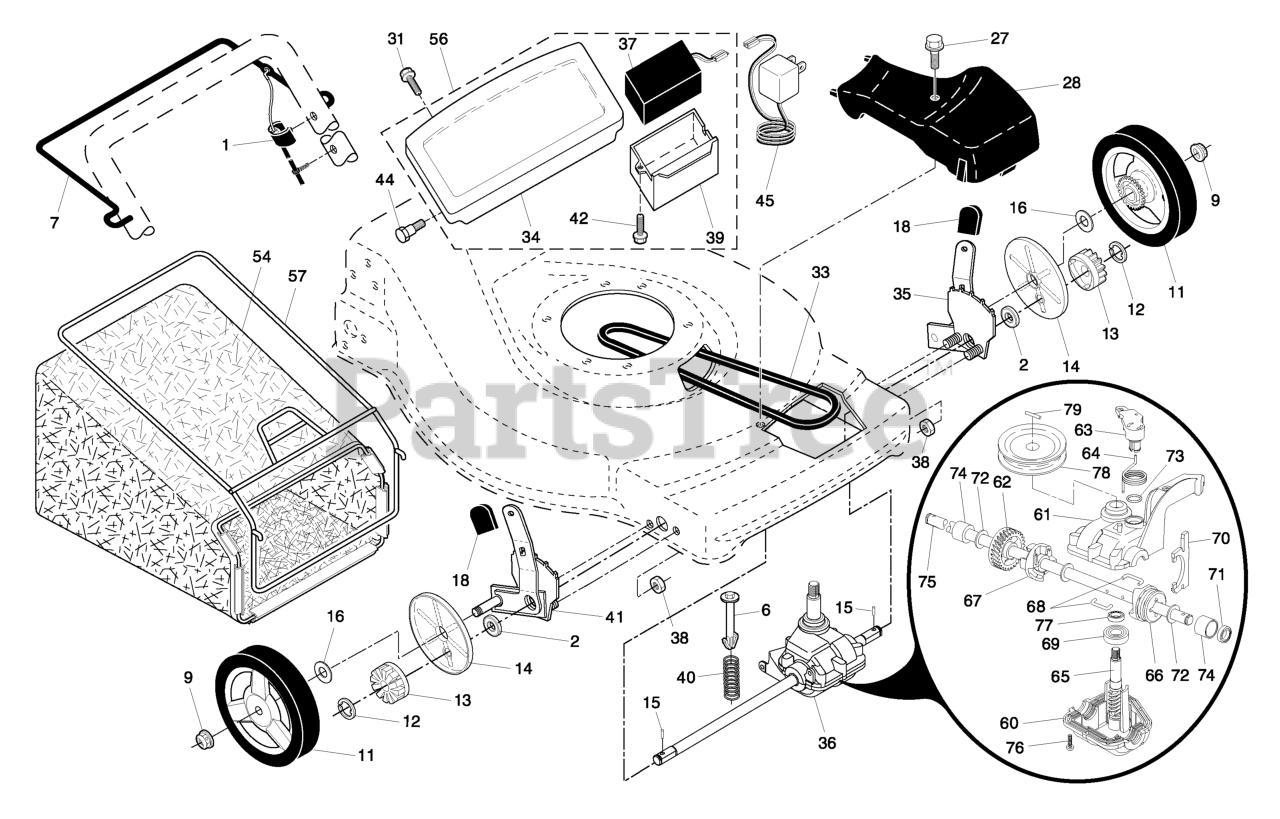

Drive Assembly Parts Diagram

  • Title
1

Husqvarna 532194653

Drive Control Cable

$26.99

$

In Stock, only 1 left!

0

6

Husqvarna 532150495

Retainer, Spring

$7.49

$

In Stock, only 1 left!

0

7

Husqvarna 532199093

Bar, Drive Control

$

$

Not available

9

Husqvarna 532409148

Locknut, Hex
(Superseded to 532409149)

$4.99

$

In Stock, Qty 20+

0

11

Husqvarna 532411081

Wheel & Tire Assembly
(Superseded to 532401274)

$34.99

$

In Stock, Qty 5

0

$3.99

$

Usually ships in 3-10 days

0

13

Husqvarna 532403849

Gear, Pinion

$6.99

$

In Stock, Qty 8

0

14

Husqvarna 532189403

Dust Cover
(Superseded to 581840401)

$6.99

$

In Stock, Qty 5

0

15

Husqvarna 532191017

Pawl, Drive
(Superseded to 532404845)

$5.99

$

In Stock, Qty 5

0

16

Husqvarna 532067725

Washer, Flat 3/8

$7.49

$

In Stock, Qty 20+

0

17

Husqvarna 532191039

Bearing, Wheel Adjuster
(Superseded to 587070202)

$14.99

$

In Stock, Qty 15

0

18

Husqvarna 532196401

Selector Knob

$4.99

$

In Stock, only 4 left!

0

27

Husqvarna 532175262

Pan Head Tapping Screw #10-24 x 2-3/4

$7.49

$

Usually ships in 3-10 days

0

28

Husqvarna 532403342

Drive Cover

$

$

Not available

31

Husqvarna 532141841

Screw, Torx Pan Head #20

$7.49

$

In Stock, only 2 left!

0

33

Husqvarna 532146527

V-Belt
(Superseded to 532157769)

$17.99

$

In Stock, only 2 left!

0

34

Husqvarna 532186153

Trimplate
(Superseded to 532411190)

$37.99

$

Usually ships in 3-10 days

0

35

Husqvarna 532408802

Kit, Wheel Adjuster, LH
(Superseded to 532438452)

Note: (Includes Knob and Bearing)

$36.99

$

Usually ships in 3-10 days

0

36

Husqvarna 532199206

Gear Case Assembly, Complete
(Superseded to 532415226)

$84.99

$

Usually ships in 3-10 days

0

37

Husqvarna 532189589

Battery
(Superseded to 584353901)

$103.99

$

Usually ships in 3-10 days

0

38

Husqvarna 873800400

Locknut, Hex 1/4-20
(Superseded to 582478602)

$2.49

$

In Stock, Qty 20+

0

39

Husqvarna 532186237

Box, Battery

$7.49

$

Usually ships in 3-10 days

0

$6.49

$

In Stock, only 1 left!

0

41

Husqvarna 532408803

Kit, Wheel Adjuster, RH
(Superseded to 532438454)

Note: (Includes Knob and Bearing)

$36.99

$

Usually ships in 3-10 days

0

42

Husqvarna 817411308

Screw, Hex Head #13 x 1/2

$6.49

$

In Stock, only 1 left!

0

44

Husqvarna 532175551

Screw, Shoulder, Hex Head #10-28 x 5/8

$4.99

$

Usually ships in 3-10 days

0

45

Husqvarna 532190097

Charger, Battery
(Superseded to 532428626)

$

$

Not available

54

Husqvarna 532410683

Grassbag Assembly

$72.99

$

Usually ships in 3-10 days

0

56

Husqvarna 532191252

Trimplate / Battery / Battery Box Assembly

$78.99

$

Usually ships in 3-10 days

0

57

Husqvarna 532407454

Frame, Grassbag
(Superseded to 532411952)

$

$

Not available

60

Husqvarna 532183497

Case, Lower

Note: Use Dow Corning #709 to reseal Gear Case Halves.

$15.99

$

In Stock, only 1 left!

0

61

Husqvarna 532183498

Case, Upper

Note: Use Dow Corning #709 to reseal Gear Case Halves.

$15.99

$

Usually ships in 3-10 days

0

62

Husqvarna 532183499

Gear, 27 Teeth

$17.99

$

Usually ships in 3-10 days

0

63

Husqvarna 532183500

Lever, Clutch

$6.49

$

Usually ships in 3-10 days

0

64

Husqvarna 532183501

Spring, Return

$6.49

$

Usually ships in 3-10 days

0

65

Husqvarna 532183502

Shaft, Input

$30.99

$

In Stock, only 1 left!

0

66

Husqvarna 532183503

Dog, Movable

$6.49

$

Usually ships in 3-10 days

0

67

Husqvarna 532183504

Dog, Fixed

$4.99

$

Usually ships in 3-10 days

0

68

Husqvarna 532183505

Wire, Formed

$6.99

$

Usually ships in 3-10 days

0

69

Husqvarna 532183506

Bearing, Ball

$8.99

$

Usually ships in 3-10 days

0

70

Husqvarna 532183507

Fork, Shift

$9.99

$

Usually ships in 3-10 days

0

71

Husqvarna 532183508

Seal, Output Shaft

$11.99

$

In Stock, only 1 left!

0

$6.49

$

Usually ships in 3-10 days

0

73

Husqvarna 532183510

Seal, Case

$6.49

$

Usually ships in 3-10 days

0

74

$5.99

$

Usually ships in 3-10 days

0

75

Husqvarna 532196561

Shaft, Output

$54.99

$

Usually ships in 3-10 days

0

$4.99

$

Usually ships in 3-10 days

0

77

Husqvarna 532183514

Seal, Input Shaft

$7.99

$

In Stock, only 2 left!

0

78

Husqvarna 532199852

Pulley, Drive

$30.99

$

In Stock, only 1 left!

0

79

Husqvarna 532199419

Pin, Retainer

$8.99

$

Usually ships in 3-10 days

0
