65021 MS (31AM2P5B597) - Columbia 21" Snow Thrower (2008) Drive Assembly Parts Diagram

21" Snow Thrower

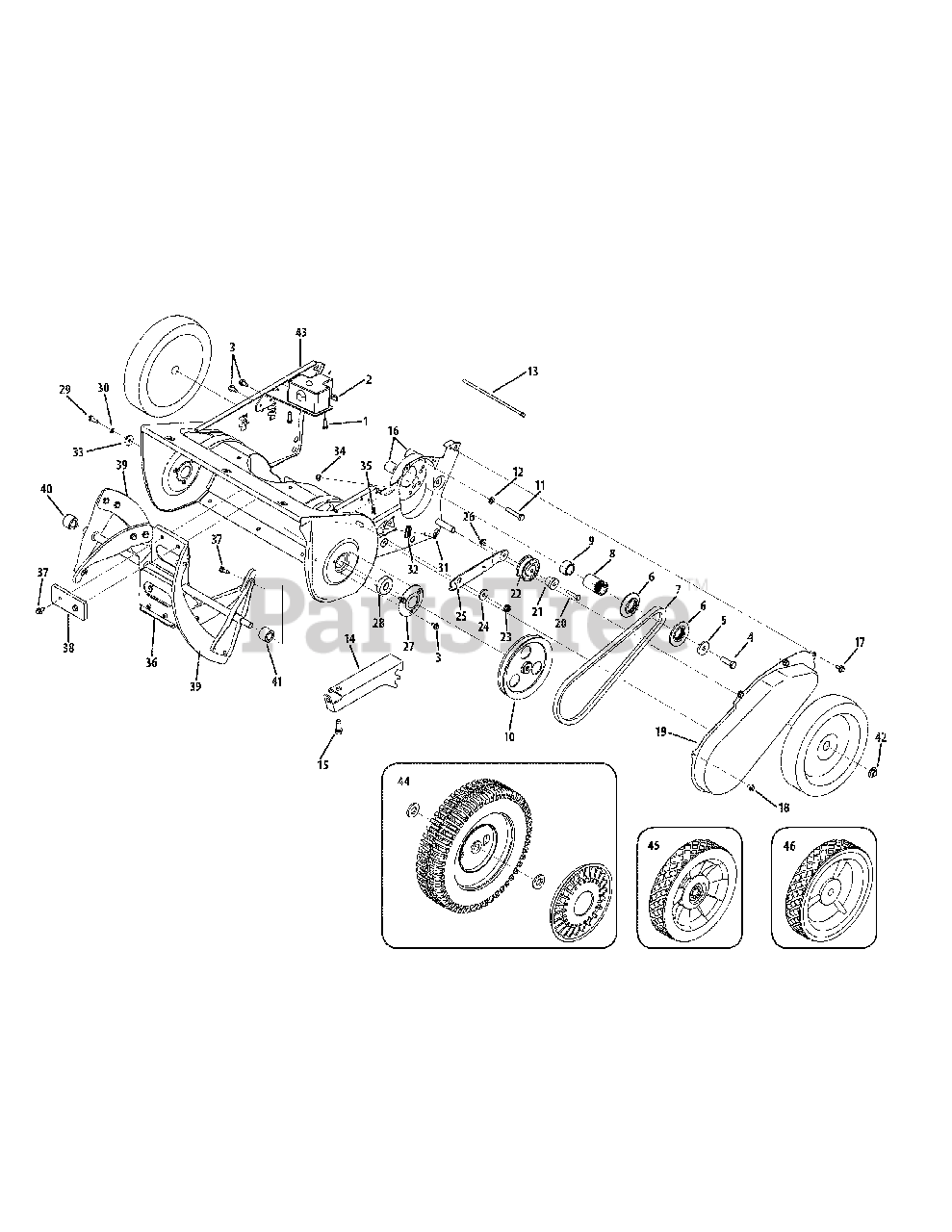

Drive Assembly Parts Diagram

  • Title

1

White Outdoor 710-04373A

Hi-Lo Screw #12-16 x .75

$4.49

$

In Stock, Qty 15

0

2

White Outdoor 790-00335

Electric Start Support Bracket
(Superseded to 790-00335-0637)

Variations

White Outdoor 790-00335-0637

BRACKET-SUPPORT ST - POWDER BLACK (0637)

$

$

Not available

$

$

3

White Outdoor 710-1005

Hex Tap Scr. 1/4-14 x .5" Lg.
(Superseded to 710-0599)

$4.49

$

In Stock, Qty 20+

0

4

White Outdoor 710-0879

Hex Screw 3/8-24 x 1.25

$3.99

$

Usually ships in 3-6 days

0

5

White Outdoor 736-0247

Flat Washer .406 x 1.25 x .157

$9.49

$

In Stock, Qty 15

0

6

White Outdoor 756-04353A

Pulley Half 4L-V x 2.30 OD
(Superseded to 756-04353)

$7.49

$

Usually ships in 3-6 days

0

7

White Outdoor 754-04204

V-Belt
(Superseded to 954-04204)

$23.99

$

In Stock, only 1 left!

0

8

White Outdoor 750-04303

Spacer .875 ID x 1.185 OD

$17.99

$

In Stock, only 1 left!

0

9

White Outdoor 750-05084

Spacer .88 ID x 1.18 OD x .74" Lg.

$

$

Not available

10

White Outdoor 756-04232

V-Pulley 1/2 x 6,0" OD

$60.99

$

In Stock, only 1 left!

0

11

White Outdoor 710-0409

Hex Bolt 5/16-24 x 1.75

$4.99

$

Usually ships in 3-6 days

0

12

White Outdoor 736-0119

Lockwasher 5/16
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

13

White Outdoor 726-0154

Push Mount Tie
(Superseded to 926-0154)

$6.49

$

Usually ships in 3-6 days

0

14

White Outdoor 790-00334

Engine Support Bracket
(Superseded to 790-00334-0637)

Variations

White Outdoor 790-00334-0637

BRACKET-ENGINE SUP - POWDER BLACK (0637)

$

$

Not available

$

$

15

White Outdoor 710-0654A

Hex Wash HD Tap Scr 3/8-16 x .88

$4.49

$

In Stock, only 3 left!

0

16

White Outdoor 750-04297B

Spacer .875 x .320 x 1.10

$4.49

$

Usually ships in 3-6 days

0

17

White Outdoor 710-0896

Hex B-Tap Scr 1/4-28 x .25" Lg

$4.49

$

In Stock, Qty 20+

0

18

White Outdoor 710-0653

Hex Wash HD Tapp Scr 1/4-20 x .375

$4.49

$

In Stock, Qty 13

0

19

White Outdoor 790-00045B

Belt Cover
(Superseded to 790-00045C)

Variations

White Outdoor 790-00045B-0637

Belt Cover, Black - POWDER BLACK (0637)

$57.99

$

Usually ships in 3-6 days

0

White Outdoor 790-00045B-0638

Belt Cover, Red - MTD/TROY-BILT RED (0638)

$57.99

$

Usually ships in 3-6 days

0

White Outdoor 790-00045B-0721

COVER-BELT SINGLE - SEARS RED (0721)

$57.99

$

Usually ships in 3-6 days

0

White Outdoor 790-00045B-0691

COVER-BELT SINGLE - BLACK JACK (0691)

$

$

Not available

White Outdoor 790-00045B-0662

COVER-BELT SINGLE - OYSTER GRAY (0662)

$

$

Not available

White Outdoor 790-00045B-0665

COVER-BELT SINGLE - YARDMAN GREEN (0665)

$

$

Not available

White Outdoor 790-00045B-0684

COVER-BELT SINGLE - ZINC YELLOW (0684)

$

$

Not available

White Outdoor 790-00045B-0709

COVER-BELT SINGLE - MASTERCRAFT GREEN (0709)

$

$

Not available

$46.99

$

Usually ships in 3-6 days

0

20

White Outdoor 710-0106

Hex Screw 1/4-20 x 1.25 Gr. 5

$3.99

$

In Stock, only 2 left!

0

21

White Outdoor 750-04571

Shoul der Spacer

$6.99

$

In Stock, only 3 left!

0

22

White Outdoor 684-04168

Idler Pulley (1/4" hole)

$38.99

$

Usually ships in 3-6 days

0

23

White Outdoor 712-04063

Flange Locknut 5/16-18 Gr. F, Nylon

$3.99

$

In Stock, Qty 20+

0

24

White Outdoor 748-0234

Shoulder Spacer .25 Thk.

$4.49

$

Usually ships in 3-6 days

0

25

White Outdoor 790-00238A

Idler Bracket
(Superseded to 790-00238A-0637)

Variations

White Outdoor 790-00238A-0637

Idler Bracket with Brake - POWDER BLACK (0637)

$10.99

$

Usually ships in 3-6 days

0

$10.99

$

Usually ships in 3-6 days

0

26

White Outdoor 712-04064

Flange Locknut 1/4-20 Gr. F, Nylon

$3.99

$

In Stock, Qty 20+

0

27

White Outdoor 790-00249

Bearing Cup
(Superseded to 790-00249-0637)

Variations

White Outdoor 790-00249-0637

CUP:BEARING:SINGLE - POWDER BLACK (0637)

$18.99

$

Usually ships in 3-6 days

0

$18.99

$

Usually ships in 3-6 days

0

28

White Outdoor 741-04188A

Ball Bearing .625 x 37 x 12.63

$12.99

$

In Stock, only 2 left!

0

29

White Outdoor 710-0642

Thd Forming Scr. 1/4-20 x .75 Lg.

$4.49

$

In Stock, Qty 20+

0

30

White Outdoor 736-0329

L-Wash 1/4 ID
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 11

0

31

White Outdoor 738-0924A

Hex Shld.Scr.1/4-28 x .375

$6.99

$

In Stock, Qty 5

0

32

White Outdoor 756-0625

Cable Guide Roller

$9.49

$

In Stock, Qty 16

0

33

White Outdoor 736-0176

Flat Washer .25 ID x .93 OD x .125

$4.99

$

In Stock, Qty 6

0

34

White Outdoor 712-0896

Hex Ins Jam L-Nut 1/4-28

$4.99

$

In Stock, Qty 6

0

35

White Outdoor 732-0357A

Extension Spring .33 OD x 1.12 Lg.

$4.49

$

In Stock, only 3 left!

0

36

White Outdoor 684-04253

Auger Assem bly
(Superseded to 984-04253-0637)

Variations

White Outdoor 684-04253-0637

Auger Assembly, 21" Black - POWDER BLACK (0637)

$160.99

$

Usually ships in 3-6 days

0

$160.99

$

Usually ships in 3-6 days

0

37

White Outdoor 710-0896

Hex B-Tap Scr 1/4-28 x .25" Lg

$4.49

$

In Stock, Qty 20+

0

38

White Outdoor 735-04033

Rubber Paddle

$8.49

$

In Stock, Qty 20+

0

39

White Outdoor 735-04032

Rubber Spiral-Crescent

$18.99

$

In Stock, Qty 20+

0

40

White Outdoor 750-04758

Auger Spacer RH

$6.49

$

In Stock, Qty 9

0

41

White Outdoor 750-04757

Auger Spacer LH

$8.49

$

Usually ships in 3-6 days

0

42

White Outdoor 726-0299

Push Cap x 1/2" Rod

$8.49

$

In Stock, Qty 20+

0

43

White Outdoor 684-04315

Auger Housing

Variations

White Outdoor 684-04315-0638

HOUSING ASSY-AUGER - MTD/TROY-BILT RED (0638)

$

$

Not available

White Outdoor 684-04315-0662

HOUSING ASSY-AUGER - OYSTER GRAY (0662)

$

$

Not available

White Outdoor 684-04315-0665

HOUSING ASSY-AUGER - YARDMAN GREEN (0665)

$

$

Not available

White Outdoor 684-04315-0667

HOUSING ASSY-AUGER - MIDNIGHT BLUE (0667)

$

$

Not available

White Outdoor 684-04315-0691

HOUSING ASSY-AUGER - BLACK JACK (0691)

$

$

Not available

White Outdoor 684-04315-0709

HOUSING ASSY-AUGER - MASTERCRAFT GREEN (0709)

$

$

Not available

White Outdoor 684-04315-0729

HOUSING ASSY-AUGER - STORM GRAY (0729)

$

$

Not available

$132.99

$

Usually ships in 3-6 days

0

43

White Outdoor 684-04314

Auger Housing

Variations

White Outdoor 684-04314-0638

HOUSING ASSY-AUGER - MTD/TROY-BILT RED (0638)

$169.99

$

Usually ships in 3-6 days

0

White Outdoor 684-04314-0606

HOUSING ASSY-AUGER - MAJESTIC ORANGE (0606)

$

$

Not available

White Outdoor 684-04314-0662

HOUSING ASSY-AUGER - OYSTER GRAY (0662)

$

$

Not available

White Outdoor 684-04314-0668

HOUSING ASSY-AUGER - MOSS GREEN (0668)

$

$

Not available

White Outdoor 684-04314-0689

HOUSING ASSY-AUGER - POLO GREEN (0689)

$

$

Not available

White Outdoor 684-04314-0721

HOUSING ASSY-AUGER - SEARS RED (0721)

$

$

Not available

White Outdoor 684-04314-4044

HOUSING ASSY-AUGER - CRAFTSMAN RED (4044)

$

$

Not available

$147.99

$

Usually ships in 3-6 days

0

44

White Outdoor 734-2010

Wheel, 9 x 2.125 dia. Lug
(Superseded to 734-2010B)

$51.99

$

In Stock, Qty 20+

0

44

White Outdoor 731-0981A

Hub Cap
(Superseded to 731-0981C)

$10.99

$

Usually ships in 3-6 days

0

44

White Outdoor 736-0326

Flat Washer .510 ID x 1.0 OD x .125

$4.49

$

In Stock, only 4 left!

0

45

White Outdoor 734-04063

Wheel, 7.0 x 1.5
(Superseded to 734-04063B)

$18.99

$

In Stock, only 3 left!

0

46

White Outdoor 734-04070

Wheel, 7.0 x 1.61

$18.99

$

Usually ships in 3-6 days

0
