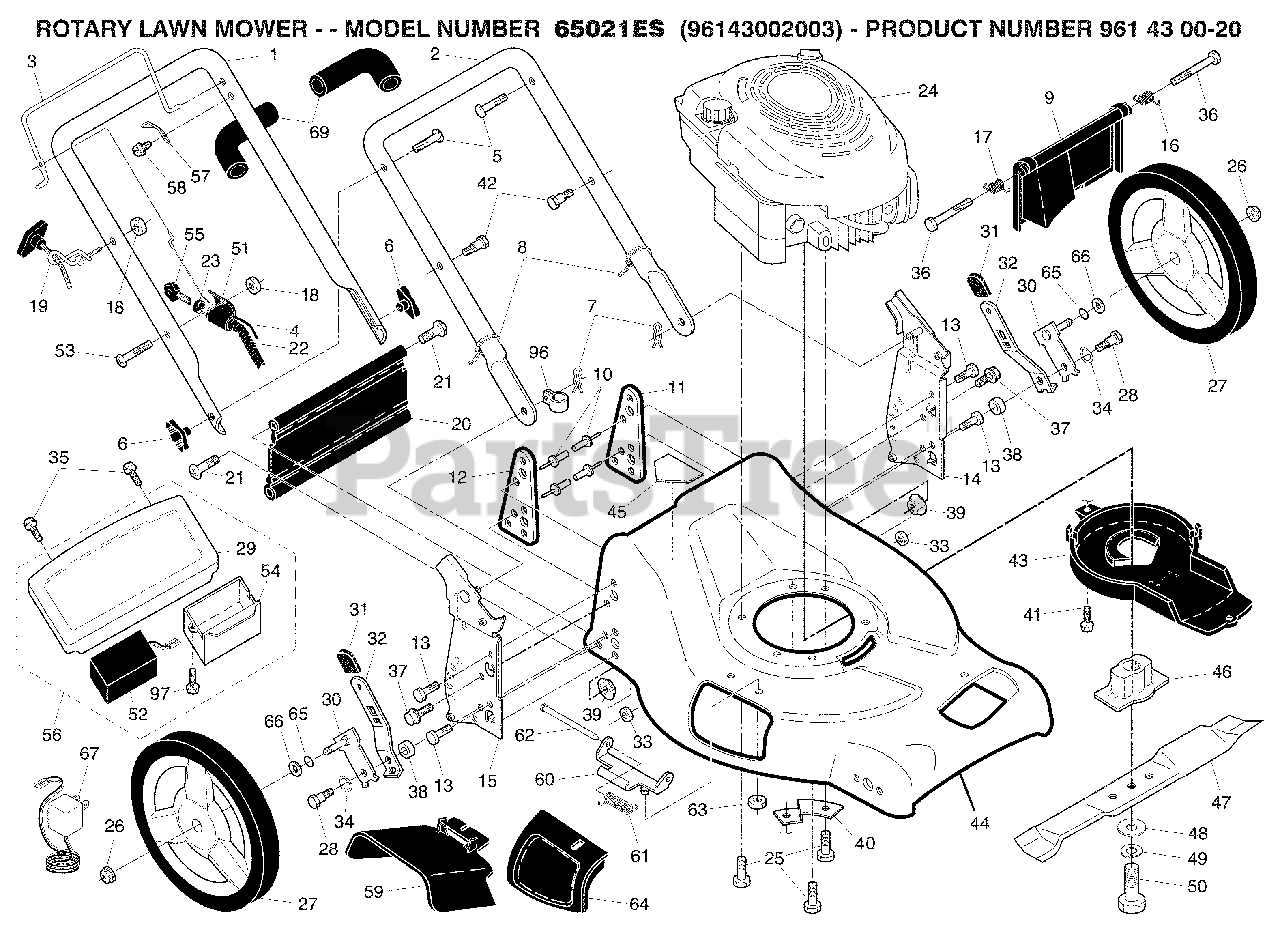

65021 ES (961430020-03) - Husqvarna 21" Walk-Behind Mower (2008-05) Drive Parts Diagram

21" Walk-Behind Mower

Drive Parts Diagram

  • Title

1

Husqvarna 532196403

Upper Handle
(Superseded to 532427658)

Note: (Includes Foam Grip)

$60.99

$

In Stock, only 1 left!

0

2

Husqvarna 532411702

Lower Handle

$24.99

$

Usually ships in 3-10 days

0

3

Husqvarna 532197019

Control Bar

$

$

Not available

4

Husqvarna 532401994

Cable, Motor Zone Control

$30.99

$

In Stock, only 1 left!

0

5

Husqvarna 532191574

Handle Bolt

$6.99

$

In Stock, only 4 left!

0

6

Husqvarna 532191856

Handle Knob
(Superseded to 532189713)

$9.49

$

In Stock, Qty 18

0

7

Husqvarna 532051793

Hairpin Cotter

$7.49

$

Usually ships in 3-10 days

0

8

Husqvarna 532066426

Wire Tie
(Superseded to 532124756)

$9.49

$

Usually ships in 3-10 days

0

9

Husqvarna 532406985

Rear Door Assembly
(Superseded to 532401812)

$34.99

$

Usually ships in 3-10 days

0

10

Husqvarna 532128415

Pop Rivet

$4.99

$

Usually ships in 3-10 days

0

11

Husqvarna 532410540

Support Bracket, LH
(Superseded to 532406573)

$7.49

$

Usually ships in 3-10 days

0

12

Husqvarna 532410542

Support Bracket, RH

$7.49

$

Usually ships in 3-10 days

0

13

Husqvarna 817060410

Screw 1/4-20 x 5/8

$7.49

$

Usually ships in 3-10 days

0

14

Husqvarna 532196037

Handle Bracket Assembly, LH
(Superseded to 532434513)

$13.99

$

Usually ships in 3-10 days

0

15

Husqvarna 532196036

Handle Bracket Assembly, RH
(Superseded to 532434512)

$14.99

$

Usually ships in 3-10 days

0

16

Husqvarna 532405417

Spring, Rear Door, LH

$9.49

$

Usually ships in 3-10 days

0

17

Husqvarna 532405418

Spring, Rear Door, RH

$4.99

$

Usually ships in 3-10 days

0

18

Husqvarna 532132004

Keps Locknut 1/4-20
(Superseded to 582478602)

$2.49

$

In Stock, Qty 20+

0

19

Husqvarna 532194788

Rope Guide
(Superseded to 586122501)

$18.99

$

In Stock, Qty 5

0

20

Husqvarna 532413159

Rear Skirt

$17.99

$

In Stock, only 3 left!

0

21

Husqvarna 532088652

Screw

$7.49

$

In Stock, only 2 left!

0

22

Husqvarna 532189685

Wiring Harness
(Superseded to 532409567)

$66.99

$

Usually ships in 3-10 days

0

23

Husqvarna 532194848

Nut, Cap

$7.49

$

Usually ships in 3-10 days

0

24

Engine, Briggs & Stratton, Model Number 124T05 (for engine service and replacement parts, call Briggs & Stratton at 1-800-233-3723)

$

$

Not available

25

Husqvarna 532150406

Hex Head Thread Rolling Screw 3/8-16 x 1-1/8

$7.49

$

Usually ships in 3-10 days

0

26

Husqvarna 532409149

Hex Flange Nut

$4.99

$

In Stock, Qty 20+

0

27

Husqvarna 532410815

Wheel & Tire Assembly, Rear
(Superseded to 585911001)

$26.99

$

In Stock, Qty 6

0

28

Husqvarna 532401638

Shoulder Bolt 5/16-18 x .33
(Superseded to 596203801)

$4.99

$

In Stock, Qty 8

0

29

Husqvarna 532411190

Trim Panel

$37.99

$

Usually ships in 3-10 days

0

30

Husqvarna 532413141

Axle Arm Assembly

$7.49

$

In Stock, only 3 left!

0

31

Husqvarna 532196401

Selector Knob

$4.99

$

In Stock, only 4 left!

0

32

Husqvarna 532409889

Selector Spring
(Superseded to 532401626)

$4.99

$

In Stock, only 2 left!

0

33

Husqvarna 873800500

Nut, Hex 5/16-18

$3.99

$

Usually ships in 3-10 days

0

34

Husqvarna 532401630

Washer, Curved, Cylindrical

$4.99

$

In Stock, only 3 left!

0

35

Husqvarna 532141841

Screw

$7.49

$

In Stock, only 2 left!

0

36

Husqvarna 532184193

Bolt

$

$

Not available

37

Husqvarna 874780512

Bolt
(Superseded to 596030501)

$4.99

$

In Stock, Qty 20+

0

38

Husqvarna 532401629

Spacer

$6.49

$

In Stock, only 4 left!

0

40

Husqvarna 532190939

Mounting Bracket, Debris Shield
(Superseded to 532188839)

$6.49

$

Usually ships in 3-10 days

0

41

Husqvarna 532192325

Screw

$6.49

$

Usually ships in 3-10 days

0

42

Husqvarna 532175551

Screw

$4.99

$

Usually ships in 3-10 days

0

43

Husqvarna 532405844

Debris Shield
(Superseded to 532443950)

$

$

Not available

44

Husqvarna 532417807

Kit, Lawn Mower Housing

Note: (Includes Key Numbers 10, 11, 12 and 45)

$169.99

$

Usually ships in 3-10 days

0

45

Husqvarna 532404763

Danger Decal
(Superseded to 581579101)

$7.49

$

Usually ships in 3-10 days

0

46

Husqvarna 532194037

Blade Adapter
(Superseded to 532443950)

$

$

Not available

47

Husqvarna 532406712

Blade, 21"
(Superseded to 594893001)

$20.99

$

In Stock, only 2 left!

0

48

Husqvarna 532851074

Hardened Washer

$4.99

$

In Stock, only 4 left!

0

49

Husqvarna 532850263

Helical Washer 3/8-24 x 1-3/8 Grade 8
(Superseded to 810040600)

$4.99

$

In Stock, Qty 20+

0

50

Husqvarna 532851084

Hex Head Machine Screw 3/8-24 x 1-3/8 Grade 8
(Superseded to 532435345)

$4.99

$

In Stock, Qty 20+

0

51

Husqvarna 532189686

Key Start Switch

Note: (Includes Key)

$47.99

$

In Stock, only 1 left!

0

52

Husqvarna 532189589

Battery
(Superseded to 584353901)

$103.99

$

Usually ships in 3-10 days

0

53

Husqvarna 532186159

Screw

$4.99

$

Usually ships in 3-10 days

0

54

Husqvarna 532186237

Battery Box

$7.49

$

Usually ships in 3-10 days

0

55

Husqvarna 532180331

Key

$8.99

$

In Stock, Qty 10

0

56

Husqvarna 532191252

Trim Panel / Battery / Battery Box Assembly

$78.99

$

Usually ships in 3-10 days

0

57

Husqvarna 532125162

Upstop Bracket
(Superseded to 532850733)

$7.49

$

In Stock, only 1 left!

0

58

Husqvarna 532750634

Screw

$6.49

$

In Stock, Qty 5

0

59

Husqvarna 532185582

Discharge Deflector
(Superseded to 532175071)

$20.99

$

Usually ships in 3-10 days

0

60

Husqvarna 532175735

Hinge Bracket

$

$

Not available

61

Husqvarna 532193000

Spring

$7.49

$

In Stock, only 3 left!

0

62

Husqvarna 532175650

Hinge Rod

$7.49

$

In Stock, Qty 10

0

63

Husqvarna 873800400

Nut, Hex
(Superseded to 582478602)

$2.49

$

In Stock, Qty 20+

0

64

Husqvarna 532185576

Mulcher Door

$14.99

$

Usually ships in 3-10 days

0

65

Husqvarna 532197480

O-Ring

$7.49

$

Usually ships in 3-10 days

0

66

Husqvarna 532088348

Washer, Flat 1/2

$7.49

$

In Stock, Qty 6

0

67

Husqvarna 532190097

Charger, Battery
(Superseded to 532428626)

$

$

Not available

69

Husqvarna 532182748

Grip, Foam

$

$

Not available

96

Husqvarna 532197991

Clip, Cable

$7.49

$

In Stock, Qty 6

0

97

Husqvarna 817411308

Screw

$6.49

$

In Stock, only 1 left!

0

Husqvarna 532404764

Decal, Warning
(Superseded to 581579101)

Note: (not shown)

$7.49

$

Usually ships in 3-10 days

0
