65021 CHV (961430019-00) - Husqvarna 21" Walk-Behind Mower (2006-12) Drive Assembly Parts Diagram

21" Walk-Behind Mower

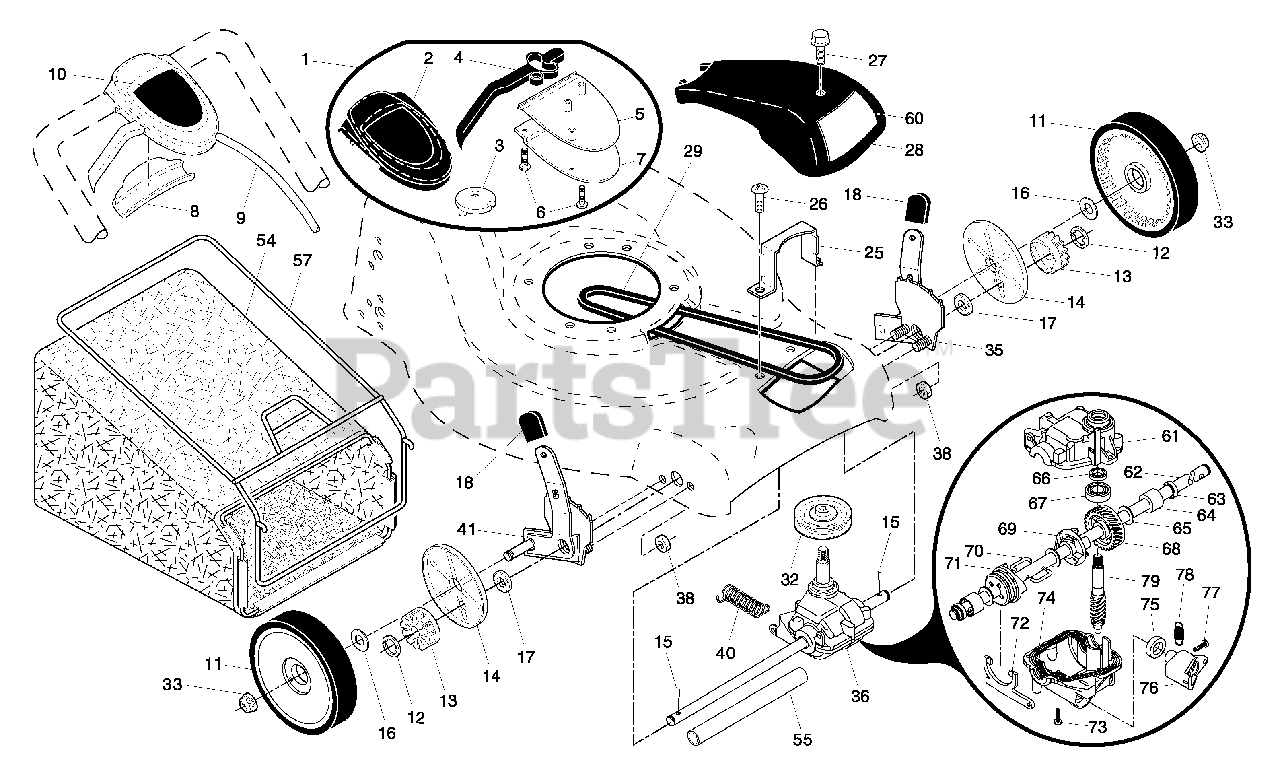

Drive Assembly Parts Diagram

  • Title
1

Husqvarna 532196270

Drive Control Assembly

$66.99

$

Usually ships in 3-10 days

0

2

Husqvarna 532195761

Cover, Drive Control, Upper
(Superseded to 532414555)

$

$

Not available

$9.99

$

Usually ships in 3-10 days

0

4

Husqvarna 532190039

Lever, Drive Control
(Superseded to 532425583)

$26.99

$

Usually ships in 3-10 days

0

5

Husqvarna 532195762

Cover, Drive Control, Lower
(Superseded to 532414555)

$

$

Not available

$7.49

$

In Stock, Qty 6

0

7

Husqvarna 532400723

Mounting Bracket, Drive Control

$

$

Not available

8

Husqvarna 532186297

Cap, Drive Control

$7.49

$

Usually ships in 3-10 days

0

9

Husqvarna 532196180

Cable, Drive

$

$

Not available

10

Husqvarna 532189074

Decal, Drive Cover

$

$

Not available

11

Husqvarna 532411081

Wheel & Tire Assembly
(Superseded to 532401274)

$34.99

$

In Stock, Qty 5

0

$3.99

$

Usually ships in 3-10 days

0

$6.99

$

In Stock, Qty 8

0

14

Husqvarna 532189403

Dust Cover
(Superseded to 581840401)

$6.99

$

In Stock, Qty 5

0

15

Husqvarna 532191017

Pawl, Drive
(Superseded to 532404845)

$5.99

$

In Stock, Qty 5

0

16

Husqvarna 532067725

Washer 1/2 x 1-1/2 x .134

$7.49

$

In Stock, Qty 20+

0

17

Husqvarna 532191039

Bearing, Wheel Adjuster
(Superseded to 587070202)

$14.99

$

In Stock, Qty 15

0

18

Husqvarna 532185574

Selector Knob

$6.99

$

In Stock, Qty 8

0

25

Husqvarna 532199089

Belt Keeper

$4.99

$

Usually ships in 3-10 days

0

26

Husqvarna 532150078

Screw
(Superseded to 874780512)

$4.99

$

In Stock, Qty 20+

0

27

Husqvarna 532175262

Pan Head Tapping Screw #10-24 x 2-3/4

$7.49

$

Usually ships in 3-10 days

0

28

Husqvarna 532185715

Drive Cover

$15.99

$

Usually ships in 3-10 days

0

$20.99

$

Usually ships in 3-10 days

0

32

Husqvarna 532194018

Drive Pulley
(Superseded to 532443262)

$13.99

$

In Stock, only 1 left!

0

33

Husqvarna 532083923

Locknut, Hex
(Superseded to 532409149)

$4.99

$

In Stock, Qty 20+

0

35

Husqvarna 532409097

Kit, Wheel Adjuster, LH
(Superseded to 581497908)

Note: (Includes Knob and Bearing)

$22.99

$

In Stock, Qty 8

0

36

Husqvarna 532188296

Gearcase Assembly, Complete

$109.99

$

In Stock, only 1 left!

0

38

Husqvarna 873800400

Locknut, Hex 1/4-20
(Superseded to 582478602)

$2.49

$

In Stock, Qty 20+

0

$5.99

$

Usually ships in 3-10 days

0

41

Husqvarna 532409098

Kit, Wheel Adjuster, RH

Note: (Includes Knob and Bearing)

$

$

Not available

54

Husqvarna 532401190

Grassbag Assembly
(Superseded to 580953406)

$62.99

$

In Stock, only 1 left!

0

55

Husqvarna 532175739

Driveshaft Cover

$

$

Not available

57

Husqvarna 532401802

Frame, Grassbag
(Superseded to 532411950)

$

$

Not available

61

Husqvarna 532196886

Case, Upper

$15.99

$

In Stock, only 1 left!

0

62

Husqvarna 532196885

Shaft, Output

$54.99

$

Usually ships in 3-10 days

0

63

Husqvarna 532183508

Seal, Output Shaft

$11.99

$

In Stock, only 1 left!

0

64

$5.99

$

Usually ships in 3-10 days

0

$6.49

$

Usually ships in 3-10 days

0

66

Husqvarna 532183514

Seal, Worm Shaft

$7.99

$

In Stock, only 2 left!

0

67

Husqvarna 532183506

Bearing, Ball

$8.99

$

Usually ships in 3-10 days

0

68

Husqvarna 532183499

Gear, 27 Teeth

$17.99

$

Usually ships in 3-10 days

0

69

Husqvarna 532196884

Fixed Dog Clutch

$4.99

$

Usually ships in 3-10 days

0

70

$6.99

$

Usually ships in 3-10 days

0

71

Husqvarna 532196883

Movable Dog Clutch

$6.49

$

Usually ships in 3-10 days

0

$7.49

$

Usually ships in 3-10 days

0

73

Husqvarna 532183513

Screw, Case

$4.99

$

Usually ships in 3-10 days

0

74

Husqvarna 532196881

Case, Lower

$15.99

$

In Stock, only 1 left!

0

75

Husqvarna 532196880

Seal, Lever

$6.49

$

In Stock, only 1 left!

0

$6.99

$

In Stock, only 1 left!

0

77

Husqvarna 532196878

Screw, Lever

$8.99

$

Usually ships in 3-10 days

0

$5.99

$

Usually ships in 3-10 days

0

79

Husqvarna 532183502

Shaft, Worm

$30.99

$

In Stock, only 1 left!

0
