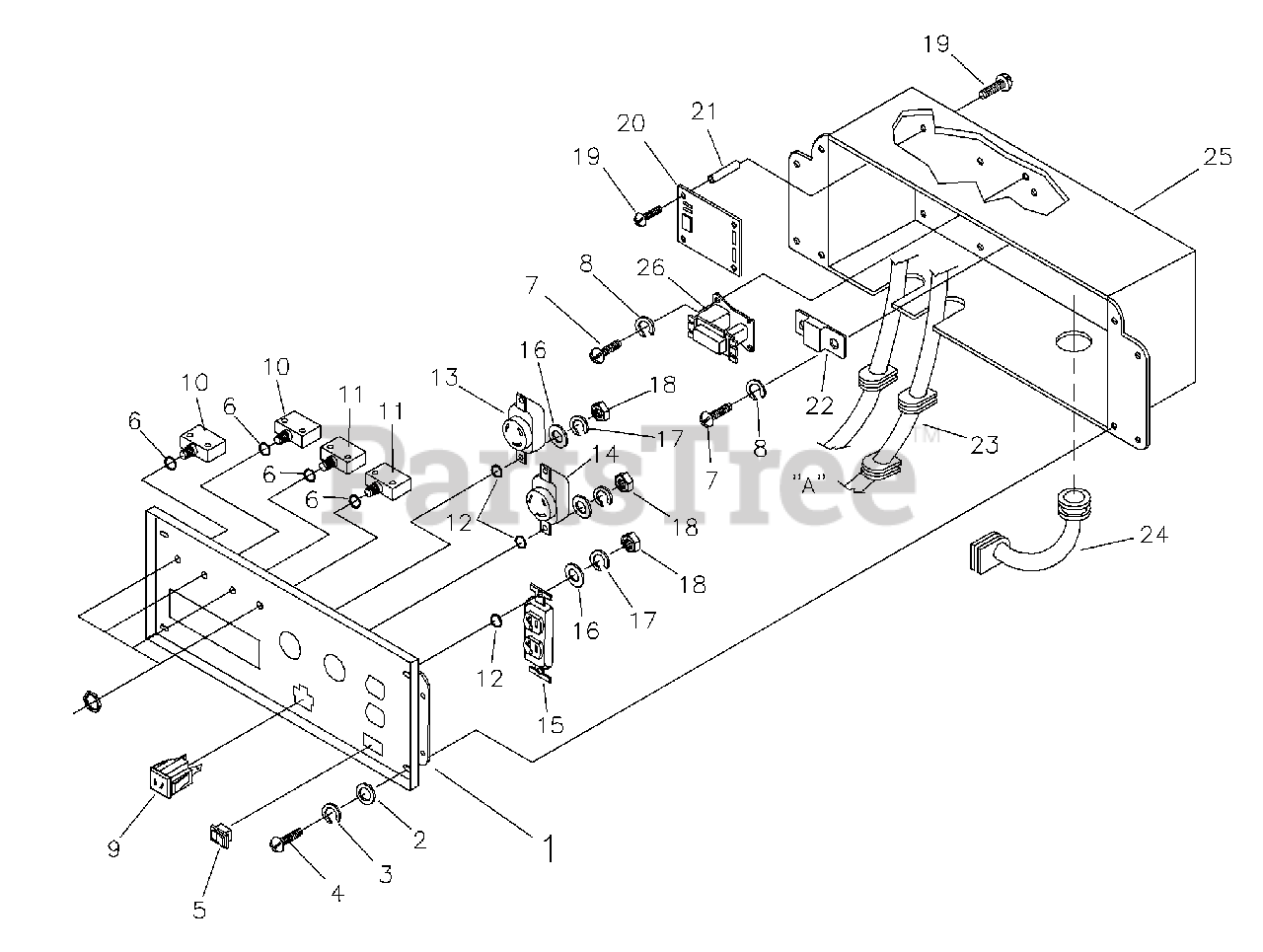

6500GCXe (1789-0) - Generac 6,500 Watt Portable Generator Control Box Parts Diagram

6,500 Watt Portable Generator

Control Box Parts Diagram

  • Title

1

Briggs & Stratton A92070GS

PANEL, Control

$22.99

$

Usually ships in 2-12 days

0

2

Briggs & Stratton 23897GS

WASHER

$2.99

$

Usually ships in 2-12 days

0

3

Briggs & Stratton 49226GS

WASHER, Lock

$2.99

$

Usually ships in 2-12 days

0

4

Briggs & Stratton 91526GS

SCREW

$3.99

$

Usually ships in 2-12 days

0

5

Briggs & Stratton 82538GS

SWITCH, Idle Control

$6.99

$

Usually ships in 2-12 days

0

6

Briggs & Stratton 82881GS

WASHER, Lock

$1.99

$

Usually ships in 2-12 days

0

7

Briggs & Stratton 43181GS

SCREW

$3.49

$

Usually ships in 2-12 days

0

8

Briggs & Stratton 43182GS

WASHER, Lock

$3.99

$

Usually ships in 2-12 days

0

9

Briggs & Stratton 90418GS

OUTLET, 12V

$

$

Not available

10

Briggs & Stratton 75207AGS

BREAKER, Circuit, 30A
(Superseded to 706178)

$34.99

$

In Stock, only 1 left!

0

11

Briggs & Stratton 75207DGS

BREAKER, Circuit, 15A

$13.99

$

Usually ships in 2-12 days

0

12

Briggs & Stratton 23365GS

WASHER, Shakeproof

$2.99

$

Usually ships in 2-12 days

0

13

Briggs & Stratton 68868GS

OUTLET, 120 V, 30 A, Locking
(Superseded to 705932)

$37.99

$

Usually ships in 2-12 days

0

14

Briggs & Stratton 43437GS

OUTLET, 120/240V, 30A, Locking

$17.99

$

Usually ships in 2-12 days

0

15

Briggs & Stratton 63025GS

OUTLET, Duplex, 120 V, 15 A

$12.99

$

Usually ships in 2-12 days

0

16

Briggs & Stratton 43180GS

WASHER

$4.49

$

Usually ships in 2-12 days

0

17

Briggs & Stratton 22264GS

WASHER, Lock

$2.99

$

Usually ships in 2-12 days

0

18

Briggs & Stratton 51715GS

NUT

$2.99

$

Usually ships in 2-12 days

0

19

Briggs & Stratton 64526GS

SCREW

$2.49

$

Usually ships in 2-12 days

0

20

Briggs & Stratton 83970GS

BOARD, Control, System

$

$

Not available

21

Briggs & Stratton 64525GS

STAND-OFF

$5.49

$

Usually ships in 2-12 days

0

22

Briggs & Stratton 87962GS

BREAKER, Circuit, 12 V, 10 A

$29.99

$

Usually ships in 2-12 days

0

23

Briggs & Stratton 84335GS

ASSY,Wire

$39.99

$

Usually ships in 2-12 days

0

24

Briggs & Stratton 84134GS

GROMMET, Rubber Connector

$5.99

$

Usually ships in 2-12 days

0

25

Briggs & Stratton B92069GS

BOX, Control Panel

$192.99

$

Usually ships in 2-12 days

0

26

Briggs & Stratton 84028GS

TRANSFORMER, Idle Control

$47.99

$

In Stock, only 1 left!

0
