6500E (0068651) - Generac HomeLink Portable Generator (SN: 9752071 - 9752071) (2015) EV HL6500E (0L2497) Parts Diagram

HomeLink Portable Generator

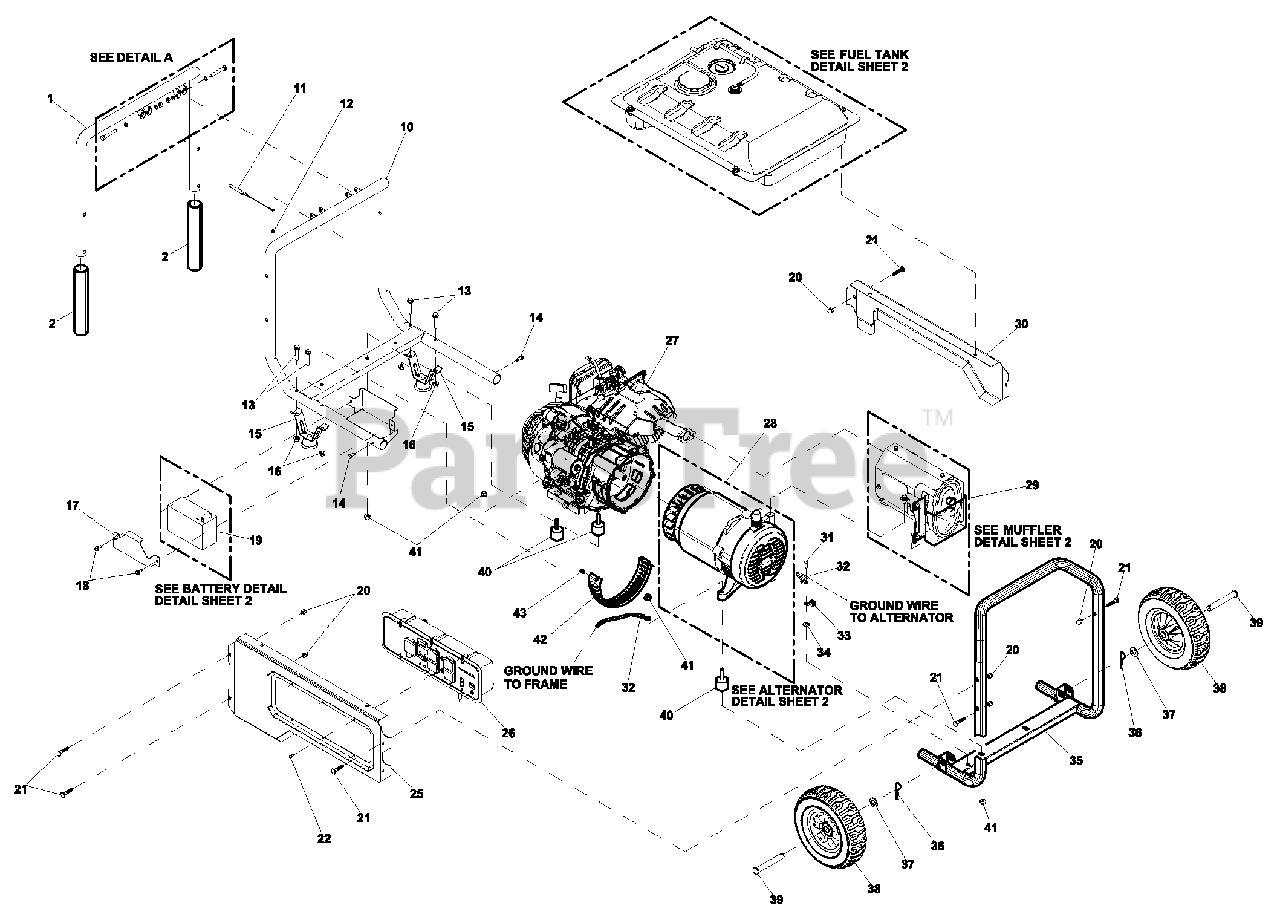

EV HL6500E (0L2497) Parts Diagram

  • Title

1

0K2864

HANDLE

$

$

Not available

2

Generac 0J2593

HANDLE GRIP

$9.99

$

Usually ships in 2-12 days

0

10

0K2197A

CRADLE 389CC ENG

$

$

Not available

11

Generac 0K3399

PIN QUICK RELEASE

$12.99

$

Usually ships in 2-12 days

0

12

Generac 045764

SCREW HHTT M4-0.7 X 8 ZP
(Superseded to G045764)

$0.99

$

In Stock, only 1 left!

0

13

Generac 0H1779

SCREW HHFC M8-1.25 X 45

$1.99

$

In Stock, Qty 7

0

14

0L2176

SCREW HHSD PREMIUM 1/4-14X1 BZ

$

$

Not available

15

0K3242

FOOT ASSY

$

$

Not available

16

Generac 0J9125

NUT HEX FL WHIZ M8-1.25

$0.99

$

In Stock, Qty 5

0

17

0J6418

BRACKET BATTERY HOLD DOWN

$

$

Not available

18

Generac 0G0926

SCREW HHFCS M6-1 X 16 G8.8

$0.99

$

In Stock, Qty 6

0

19

Generac 0G9449

BATTERY 12V10AH SEALED

$79.99

$

Usually ships in 2-12 days

0

20

Generac 0H1782

CAP NUT M8-1.25 BLACK ZINC

$1.99

$

In Stock, Qty 5

0

21

Generac 0K2857

CURVE HD SQ NECK M8-1.25X41LNG

$0.99

$

Usually ships in 2-12 days

0

22

Generac 0K3130

SCREW PPPH M5-0.8 X 16 BZC

$0.99

$

In Stock, only 4 left!

0

25

0K2150A

SIDE PANEL CONTROL

$

$

Not available

26

Generac 0K2144A

CONTROL PNL ASSY

$518.99

$

Usually ships in 2-12 days

0

27

0G8442J

ENGINE 389 ES W/O MFLR EPA PH3

$

$

Not available

28

Generac 0L0608

ALT 6500W CU-AL BRUSH TYPE

$1207.99

$

Usually ships in 2-12 days

0

29

Generac 0H9763A

ASSY MUFFLR GP5.5-6.5KW

$91.99

$

Usually ships in 2-12 days

0

30

0K2858

SIDE PANEL, EXHAUST,

$

$

Not available

31

Generac 0G3110

SCREW HHTT M6-1.0 X 20 ZINC

$0.99

$

Usually ships in 2-12 days

0

32

Generac 0742600186

GROUND WIRE BRG CAR-LUG 4KW

$

$

Not available

33

Generac 055414

LUG SLDLSS #2-#8 X 17/64 CU
(Superseded to G055414)

$5.49

$

In Stock, only 2 left!

0

34

Generac 0A1658

WASHER LOCK SPECIAL 1/4"

$15.99

$

Usually ships in 2-12 days

0

35

0K2988A

CRADLE 389CC ALT

$

$

Not available

36

Generac 0H3443

COTTER HAIRPIN 2.56 X .80

$1.99

$

In Stock, Qty 5

0

37

Generac 0A1646

WASHER FLAT M16

$1.49

$

Usually ships in 2-12 days

0

38

Generac 0H9589B

WHEEL 10"D X 3" NVR FLT

$42.99

$

Usually ships in 2-12 days

0

39

Generac 0J9808

AXLE PIN 5/8"X4 1/2",3/4" HEAD

$10.99

$

Usually ships in 2-12 days

0

40

Generac 0H2043

VIB MOUNT 35 X 12 X M8-1.25

$4.49

$

In Stock, Qty 5

0

41

Generac 067989

NUT HEX FL WHIZ M8-1.25
(Superseded to G067989)

$2.49

$

In Stock, only 4 left!

0

42

Generac 0J6460

SCROLL ALTERNATOR

$6.49

$

In Stock, only 1 left!

0

43

Generac 045770

SCREW HHC M5-0.8 X 10 C8.8
(Superseded to G045770)

Note: ON INDUSTRIAL 990/760 ENGINES USE 0E9210

$0.99

$

In Stock, only 1 left!

0
