6500E (0068650) - Generac HomeLink Portable Generator (SN: 9657055 - 9657153) (2015) EV HL6500E (0L2497) Parts Diagram

HomeLink Portable Generator

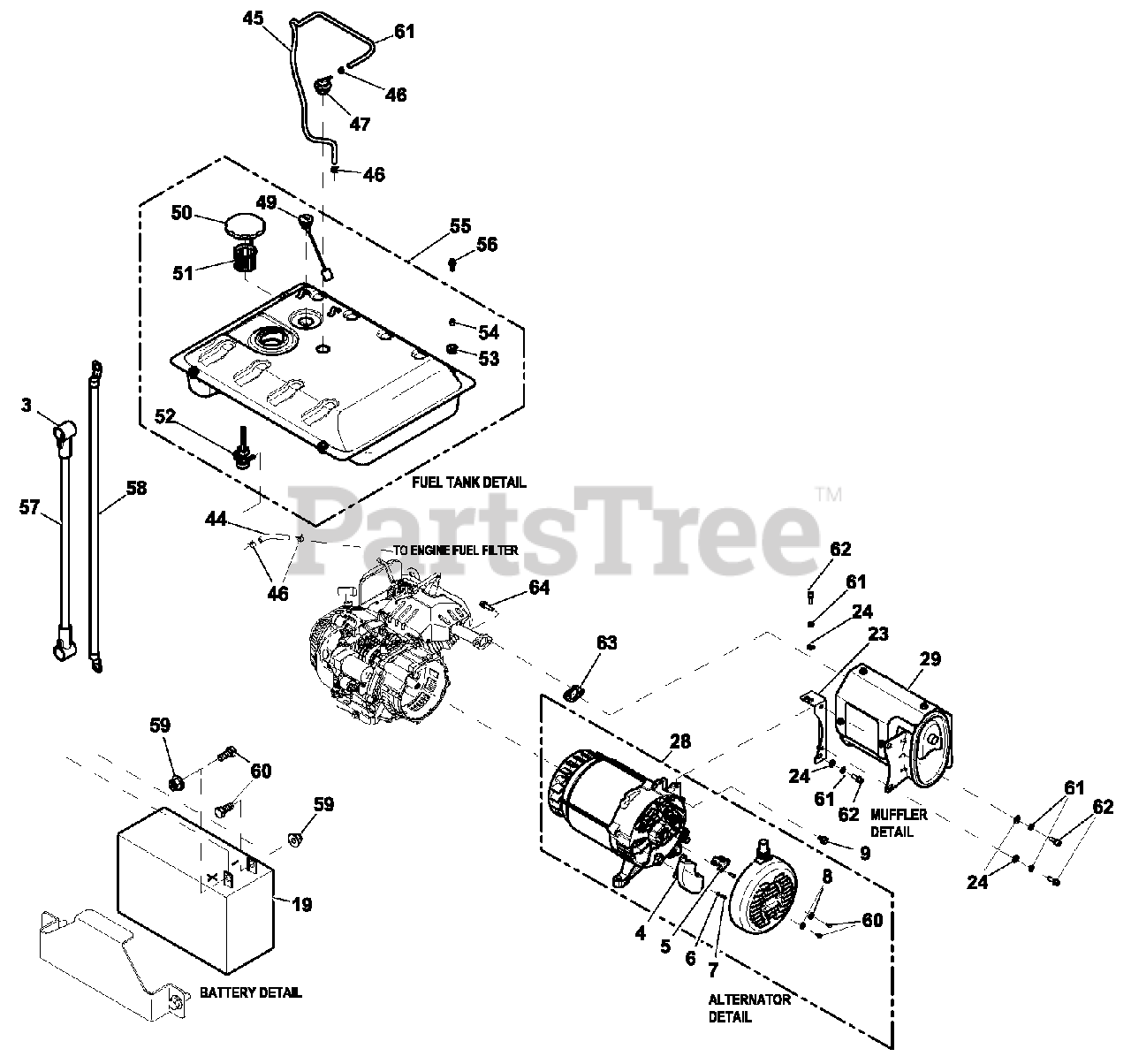

EV HL6500E (0L2497) Parts Diagram

  • Title

3

Generac 0G6392

BOOT, VINYL STARTER-SOLENOID

$0.99

$

Usually ships in 2-12 days

0

4

Generac 0H2579B

AVR 5.5-7.5KW ALT

$66.99

$

In Stock, only 2 left!

0

5

Generac 0H0919

ASSEMBLY,BRUSH

$4.99

$

In Stock, only 2 left!

0

6

Generac 051713

WASHER FLAT M5
(Superseded to G051713)

$0.99

$

In Stock, only 2 left!

0

7

Generac 049815

SCREW HHC M5-0.8 X 16 G8.8

$

$

Not available

8

Generac 049226

WASHER LOCK M5
(Superseded to G049226)

$0.99

$

In Stock, Qty 10

0

9

Generac 0G0919

SCREW HHFCS M6-1 X 12 G8.8

$0.99

$

Usually ships in 2-12 days

0

19

Generac 0G9449

BATTERY 12V10AH SEALED

$79.99

$

In Stock, only 1 left!

0

23

Generac 0G8542

BRACKET, MUFFLER 389CC

$16.99

$

Usually ships in 2-12 days

0

24

Generac 022145

WASHER FLAT 5/16-M8 ZINC
(Superseded to G022145)

$0.99

$

In Stock, Qty 10

0

28

Generac 0L0608

ALT 6500W CU-AL BRUSH TYPE

$1207.99

$

Usually ships in 2-12 days

0

29

Generac 0H9763A

ASSY MUFFLR GP5.5-6.5KW

$91.99

$

Usually ships in 2-12 days

0

44

Generac 0G9757A

FUEL HOSE 4 ID X 8.5OD X 55MM

$6.49

$

In Stock, only 3 left!

0

45

Generac 0K2925

HOSE FORMED ROV-AIRBOX 420CC

$9.49

$

Usually ships in 2-12 days

0

46

Generac 048031G

CLAMP HOSE BAND .41

$0.99

$

In Stock, Qty 5

0

47

Generac 0J7921

ASSEMBLY ROV
(Superseded to 0J7921A)

$16.99

$

In Stock, only 1 left!

0

50

Generac 0H0958A

ASSY GAS CAP SEALED - BLACK

$24.99

$

In Stock, only 2 left!

0

51

Generac 0H1326

STRAINER, FUEL CAP

$4.99

$

In Stock, only 3 left!

0

52

Generac 0J0974

VALVE, FUEL SHUT OFF

$21.99

$

Usually ships in 2-12 days

0

53

Generac 0H1411B

RUBBER MOUNT,10.3 ID X 11 HGT

$2.99

$

Usually ships in 2-12 days

0

54

Generac 0H1610A

ANTI-CRUSH 10.8OD 9ID 10LG

$1.49

$

In Stock, Qty 10

0

55

Generac 0H7591B

FUEL TANK ASSY 8 GAL

$220.99

$

Usually ships in 2-12 days

0

56

Generac 0G5445

SCREW HHFC M8-1.25 X 20 W/M10

$1.49

$

In Stock, only 2 left!

0

57

0742600198

WIRE ASSY 8GA 11" RED

$

$

Not available

58

0742600199

WIRE ASSY 8GA 17" BLACK

$

$

Not available

59

Generac 0H3535

NUT FLANGE M5-0.8 NYLOCK

$0.99

$

Usually ships in 2-12 days

0

60

Generac 052618

SCREW HHC M5-0.8 X 12 C8.8
(Superseded to G052618)

$0.99

$

Usually ships in 2-12 days

0

61

Generac 022129

WASHER LOCK M8-5/16
(Superseded to G022129)

$2.49

$

In Stock, Qty 5

0

62

Generac 042909

SCREW HHC M8-1.25 X 30 C8.8
(Superseded to G042909)

$0.99

$

In Stock, only 4 left!

0

63

Generac 0G9028

GASKET, EXHAUST, 389CC

$2.99

$

Usually ships in 2-12 days

0

64

Generac 039253

SCREW HHC M8-1.25 X 20 C8.8
(Superseded to G039253)

$2.99

$

In Stock, only 2 left!

0
