6500 - Weed Eater String Trimmer SHOVEL ASSEMBLY Parts Diagram

String Trimmer

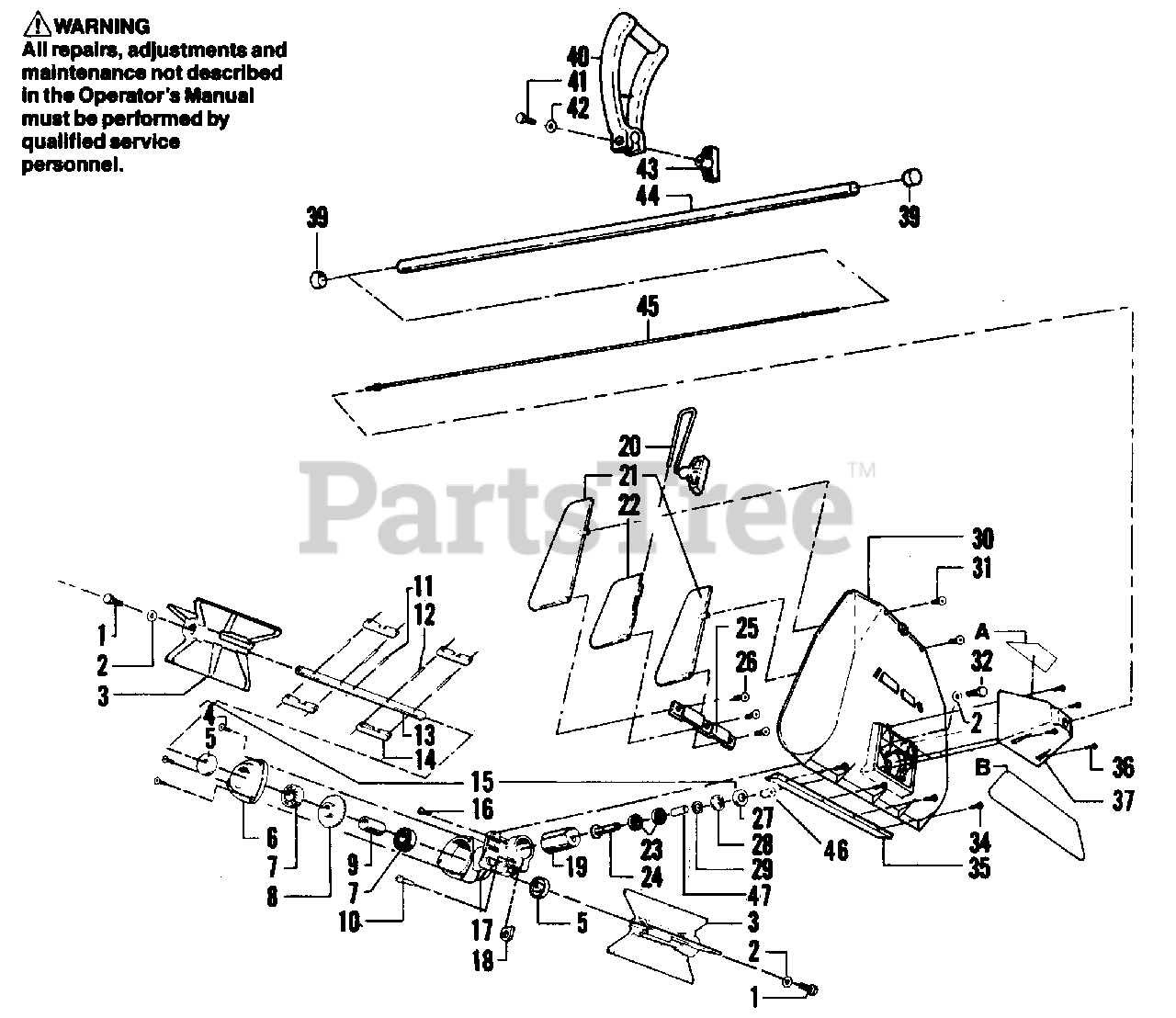

SHOVEL ASSEMBLY Parts Diagram

  • Title

1

Poulan 530015426

Screw - Impeller - 1/4 - 20 x 1/2 - Hex Hd.

$2.49

$

Usually ships in 3-10 days

0

2

Poulan 530001503

Washer - Impeller & Gear Box Mounting

$

$

Not available

3

Poulan 530093883

Impeller

$3.99

$

Usually ships in 3-10 days

0

4

Poulan 530093865

Screw - Gear Housing

$

$

Not available

5

Poulan 530093119

Oil Seal - Double Lip

$

$

Not available

6

Poulan 530093864

Gear Housing Cover

$

$

Not available

7

Poulan 530093118

Bearing - Shaft

$

$

Not available

8

Poulan 530093867

Gear - Spiral Bevel

$

$

Not available

9

Poulan 530093807

Collar - Shaft

$

$

Not available

10

Poulan 530015239

Screw - Pinch Clamp - 1/4 - 20 x 1/2 - Hd.

$2.49

$

Usually ships in 3-10 days

0

11

Poulan 501093124

Pin Spiral - Gear

$

$

Not available

11

Poulan 530093124

Pin Spiral - Gear

$

$

Not available

12

Poulan 530093034

Pin - Spiral - Brace

$

$

Not available

13

Poulan 530093117

Output Shaft

$

$

Not available

14

Poulan 530093036

Brace - Impeller

$

$

Not available

15

Poulan 530093861

Gear Box Assembly (Inc. #4-10, 16-19, 23, 24 & 27-29)

$

$

Not available

16

Poulan 530015216

Screw - Index 10 - 24 x 7/16

$

$

Not available

17

Poulan 530093866

Gear Housing

$

$

Not available

18

Poulan 530092308

Washer - Fiber Filler

$

$

Not available

19

Poulan 530093863

Sleeve

$

$

Not available

20

Poulan 530093111

Activating Rod Assembly

$

$

Not available

21

Poulan 530092566

Vane - Outboard

$4.99

$

Usually ships in 3-10 days

0

22

Poulan 530092567

Vane - Center

$

$

Not available

23

Poulan 530010722

Bearing - Pinion

$

$

Not available

24

Poulan 530093868

Pinion Gear - Forged Bevel

$

$

Not available

25

Poulan 093037

Tie - Bar - Vane (obsolete)

Note: (obsolete)

$

$

Not available

26

Poulan 530015481

Screw - Vane Tie Bar - 8 - 16 Soc. Hd.

$

$

Not available

27

Poulan 530093129

Oil Seal - Single Lip

$

$

Not available

28

Poulan 530091574

Retaining Ring

$

$

Not available

29

Poulan 530091573

Retaining Ring - Pinion

$

$

Not available

30

Poulan 530092578

Housing -Impeller

$

$

Not available

31

Poulan 530015481

Screw - Vane - 18 - 16 Socket Hd.

$

$

Not available

32

Poulan 530015448

Screw - Gear Box Mounting

$

$

Not available

34

Poulan 530015451

Screw - Scraper Bar - 8 - 12 x 3/4 - Fil Hd.

$

$

Not available

35

Poulan 530093029

Scraper Bar

$

$

Not available

36

Poulan 530015451

Screw - Rear Cover - 8 - 12 x 3/4 - Fil Hd.

$

$

Not available

37

Poulan 530092563

Cover - Rear

$

$

Not available

39

Poulan 530092192

Cap - Drive Shaft Housing

$0.99

$

Usually ships in 3-10 days

0

40

Poulan 530093729

Assist Handle

$

$

Not available

41

Poulan 530092061

Screw - Assist Handle

$

$

Not available

42

Poulan 530092062

Washer - Assist Handle

$3.99

$

Usually ships in 3-10 days

0

43

Poulan 530092059

Knob - Assist Handle

$9.99

$

Usually ships in 3-10 days

0

44

Poulan 530093797

Drive Shaft Housing (Inc. #45)

$

$

Not available

45

Poulan 530092554

Drive Shaft

$

$

Not available

46

Poulan 530093875

Plug - Grease

Note: It is recommended that Grease Plug 193875 be serviced only by an authorized service dealer.

$

$

Not available

47

Poulan 530093128

Collar Pinion

$

$

Not available

A

Poulan 530025162

Decal - Weed Eater - Rear Cover

$

$

Not available

B

Poulan 530025163

Decal - Directional Control

$

$

Not available

Carton (Not Available)

$

$

Not available

Poulan 530064507

Operator's Manual Model 6000

$

$

Not available

Poulan 530064507

Operator's Manual Model 6500

$

$

Not available
