650 - Weed Eater String Trimmer DRIVE SHAFT & CUTTING HEAD Parts Diagram

String Trimmer

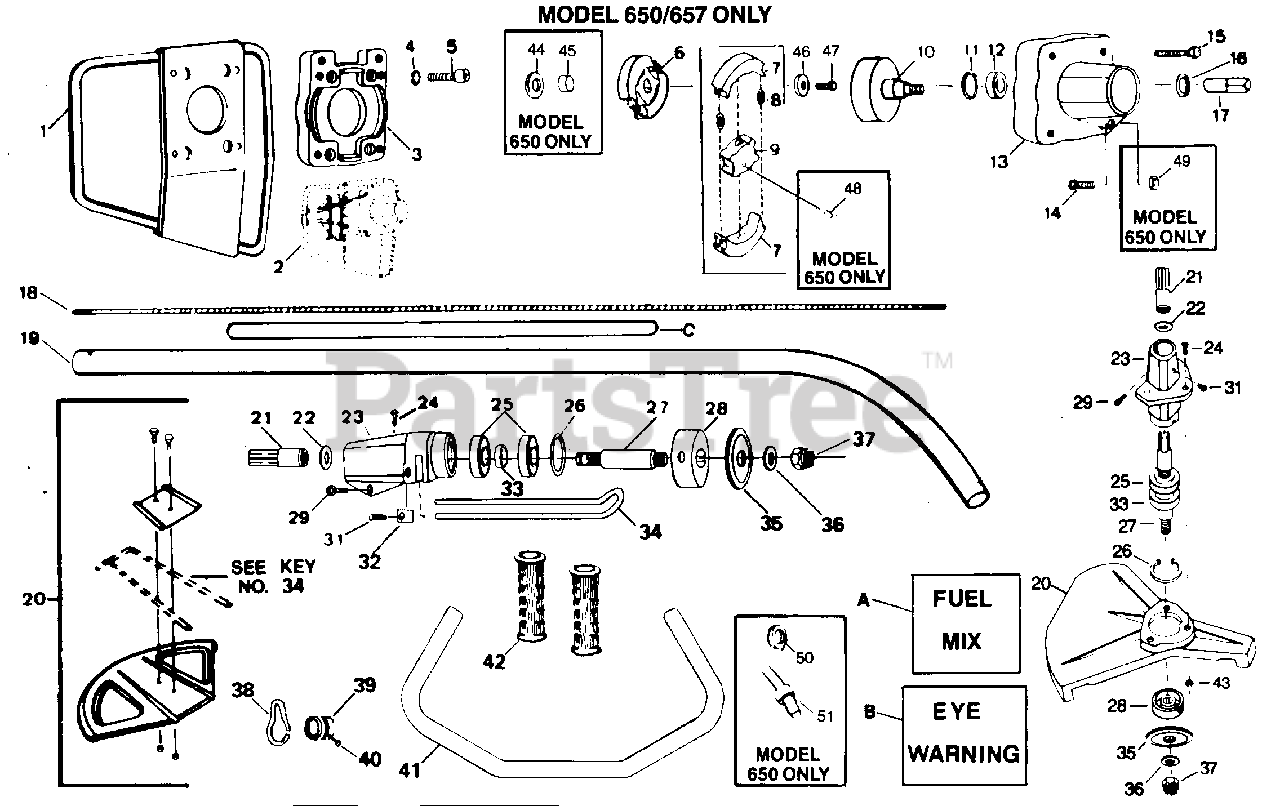

DRIVE SHAFT & CUTTING HEAD Parts Diagram

  • Title

1

Poulan 530092741

Motor Leg

$

$

Not available

2

Poulan 530092742

Muffler Guard

$

$

Not available

3

Poulan 530092743

Plate Adaptor Engine

$

$

Not available

4

Poulan 530091458

Washer, Lock 9/16" O.D. 5/16" I.D.

$

$

Not available

5

Poulan 530092745

Screw, Socket Hd. #5/16 - 18 x 3/4"

$

$

Not available

6

Clutch Assembly

$

$

Not available

6

Poulan 530092816

Model 657

$

$

Not available

6

Poulan 530092759

Model 650

$

$

Not available

7

Poulan 530093131

Shoe, Clutch

$

$

Not available

8

Poulan 530092762

Spring, Clutch, Yellow

$

$

Not available

9

Rotor Hub, w/Integral Keepers

$

$

Not available

9

Poulan 530092817

Model 657

$

$

Not available

9

Poulan 530092763

Model 650

$

$

Not available

10

Poulan 530092767

Drum & Arbor

$

$

Not available

11

Poulan 530092768

Retaining Ring

$

$

Not available

12

Poulan 530092769

Bearing

$

$

Not available

13

Poulan 530092771

Housing, Clutch w/Bearing/Get. Ring

$

$

Not available

14

Screw, Allen Hd #5/16 x 1"

$

$

Not available

14

Poulan 530092794

Model 657

$

$

Not available

14

Poulan 530092772

Model 650

$

$

Not available

15

Poulan 530092775

Screw, Hex Hd #1/4 - 20 x 2"

$

$

Not available

16

Poulan 530092773

Washer, Drive Shaft, Upper & Lower

$6.49

$

Usually ships in 3-10 days

0

17

Poulan 530092774

Coupling Squared

$

$

Not available

18

Flexible Drive Shaft

$

$

Not available

18

Poulan 530092776

Previous Style

$

$

Not available

18

Poulan 530094500

Current Style

$

$

Not available

19

Drive Shaft Housing

$

$

Not available

19

Poulan 530092778

Previous Style

$

$

Not available

19

Poulan 530094501

Current Style

$97.99

$

Usually ships in 3-10 days

0

20

Shield Kit

$

$

Not available

20

Poulan 530092937

Previous Style (#34 not included)

$

$

Not available

20

Poulan 530094504

Current Style

$72.99

$

Usually ships in 3-10 days

0

21

Poulan 530092774

Coupling Squared

$

$

Not available

22

Poulan 530092773

Washer, Upper & Lower Drive Shaft

$6.49

$

Usually ships in 3-10 days

0

23

Lower Housing (Incl.#21, 22, 25, 26, 27 & 33)

$

$

Not available

23

Poulan 530092793

Previous Style

$

$

Not available

23

Poulan 530094503

Current Style

$

$

Not available

24

Screw

$

$

Not available

24

Poulan 530092787

Previous Style

$2.49

$

Usually ships in 3-10 days

0

24

Poulan 530094505

Current Style

$3.99

$

Usually ships in 3-10 days

0

25

Poulan 530092769

Bearing, Ball

$

$

Not available

26

Poulan 530092768

Retaining Ring

$

$

Not available

27

Poulan 530092799

Arbor Shaft

$20.99

$

Usually ships in 3-10 days

0

28

Poulan 530092801

Cup Washer, Arbor, Keyed

$

$

Not available

29

Poulan 530092794

Screw, Soc. Hd. #5/16 - 18 x 1"

$

$

Not available

31

Poulan 530092795

Screw #1/4 - 20 x 1/2"

$

$

Not available

32

Poulan 530092796

Washer - Previous Style

$2.49

$

Usually ships in 3-10 days

0

33

Poulan 530092798

Spacer

$

$

Not available

34

Poulan 530092797

Lower Head Support Brace - Previous Style

$

$

Not available

35

Poulan 530093137

Washer, Lower Arbor

$

$

Not available

36

Washer

$

$

Not available

36

Poulan 530093153

Previous Style

$14.99

$

Usually ships in 3-10 days

0

36

Poulan 530092773

Current Style

$6.49

$

Usually ships in 3-10 days

0

37

Poulan 530093139

Nut, Hex #7/16 - 20

$4.99

$

Usually ships in 3-10 days

0

38

Poulan 110092781

GASKET

$2.49

$

Usually ships in 3-10 days

0

Poulan 530092781

Swivel Hook Wire

$

$

Not available

39

Poulan 530092782

Collar, Swivel

$

$

Not available

40

Poulan 530092821

Screw, Set Thumb

$3.99

$

Usually ships in 3-10 days

0

41

Poulan 530092784

Handlebar

$

$

Not available

42

Grip, Handlebar

$

$

Not available

42

Poulan 530091402

Model 657

$

$

Not available

42

Poulan 530092783

Model 650

$

$

Not available

43

Poulan 530094506

Nut - 10-32-Current Style

$3.99

$

Usually ships in 3-10 days

0

44

Poulan 530092757

Washer

$

$

Not available

45

Poulan 530092758

Spacer

$

$

Not available

46

Poulan 530092765

Washer

$

$

Not available

47

Poulan 530092766

Screw

$

$

Not available

48

Poulan 530092764

Woodruff Key

$

$

Not available

49

Poulan 530001615

Lock Nut

$

$

Not available

50

Poulan 530092792

Pilot Washer

$

$

Not available

51

Poulan 530092777

Grommet - Drive Shaft

$

$

Not available

A

Poulan 530092749

Decal - Fuel Mix

$

$

Not available

B

Poulan 530092791

Decal - Choke/Eye Warning

$

$

Not available

C

Poulan 530092819

Decal-Safety Label

$

$

Not available
