650 RTT (954329172-A) - Husqvarna Rear-Tine Tiller (2003-01) Tine Assembly Parts Diagram

Rear-Tine Tiller

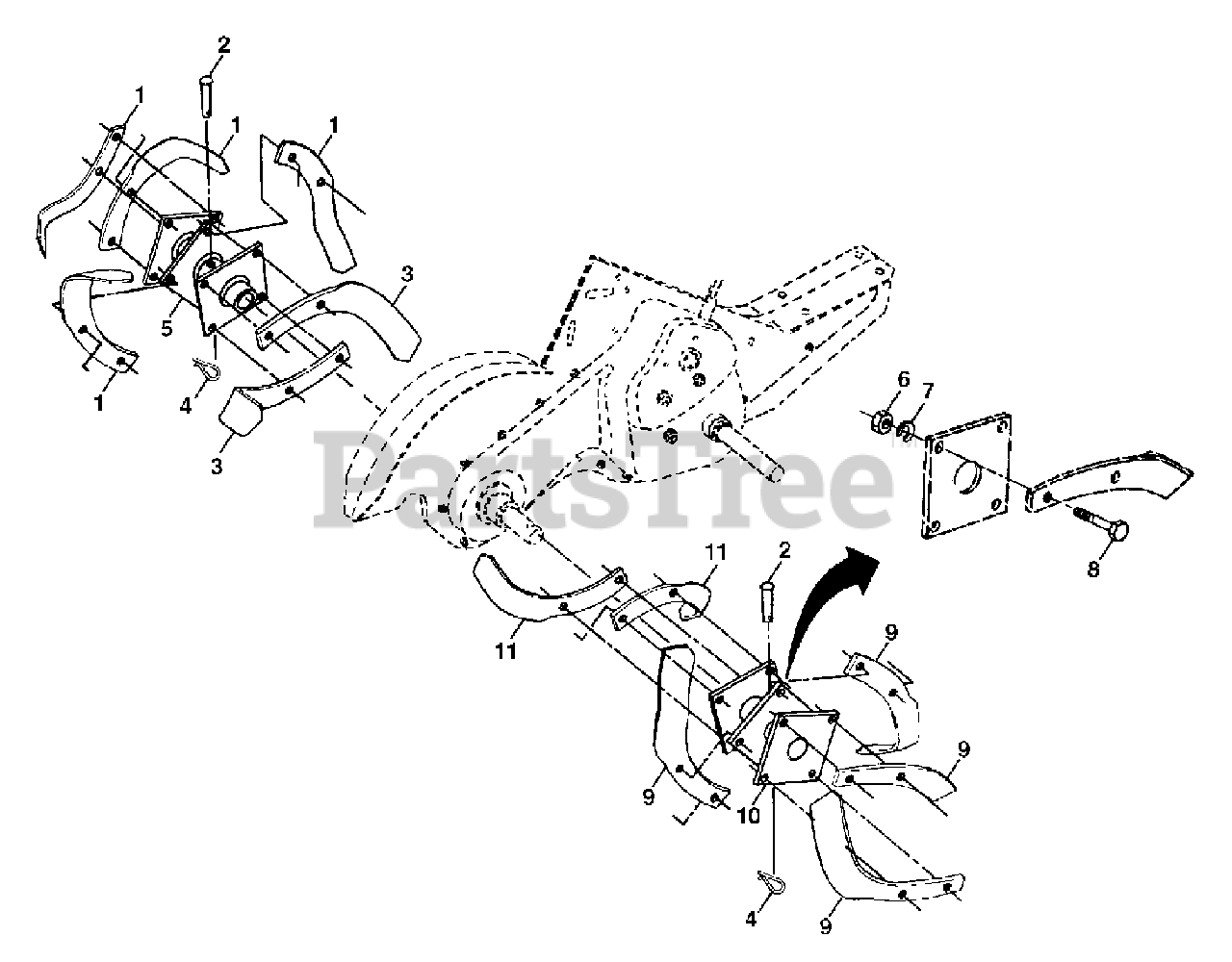

Tine Assembly Parts Diagram

  • Title
1

Husqvarna 532004459

Tine, Outer, L.H.
(Superseded to 532006554)

$

$

Not available

2

Husqvarna 532132673

Clevis Pin

$4.99

$

In Stock, Qty 20+

0

3

Husqvarna 532006554

Tine, Inner, L.H.

$

$

Not available

4

Husqvarna 532124660

Retainer, Spring Zinc
(Superseded to 532003146)

$3.99

$

In Stock, Qty 20+

0

5

Husqvarna 532132727

Assembly, Hub and Plate, L.H.

$79.99

$

Usually ships in 3-10 days

0

6

Husqvarna 873610600

Nut, Hex 3/8-24
(Superseded to 873800600)

$3.99

$

Usually ships in 3-10 days

0

7

Husqvarna 810040600

Washer, Lock 3/8
(Superseded to 596238701)

$4.99

$

In Stock, Qty 19

0

8

Husqvarna 874610616

Bolt, Hex 3/8-24 x 1

$7.49

$

In Stock, Qty 20+

0

9

Husqvarna 532004460

Tine, Outer, R.H.
(Superseded to 532006555)

$

$

Not available

10

Husqvarna 532132728

Assembly, Hub and Plate, R.H.
(Superseded to 581813701)

$72.99

$

Usually ships in 3-10 days

0

11

Husqvarna 532006555

Tine, Inner, R.H.

$

$

Not available
