650 RTT (954329172-A) - Husqvarna Rear-Tine Tiller (2003-01) Handle Assembly Parts Diagram

Rear-Tine Tiller

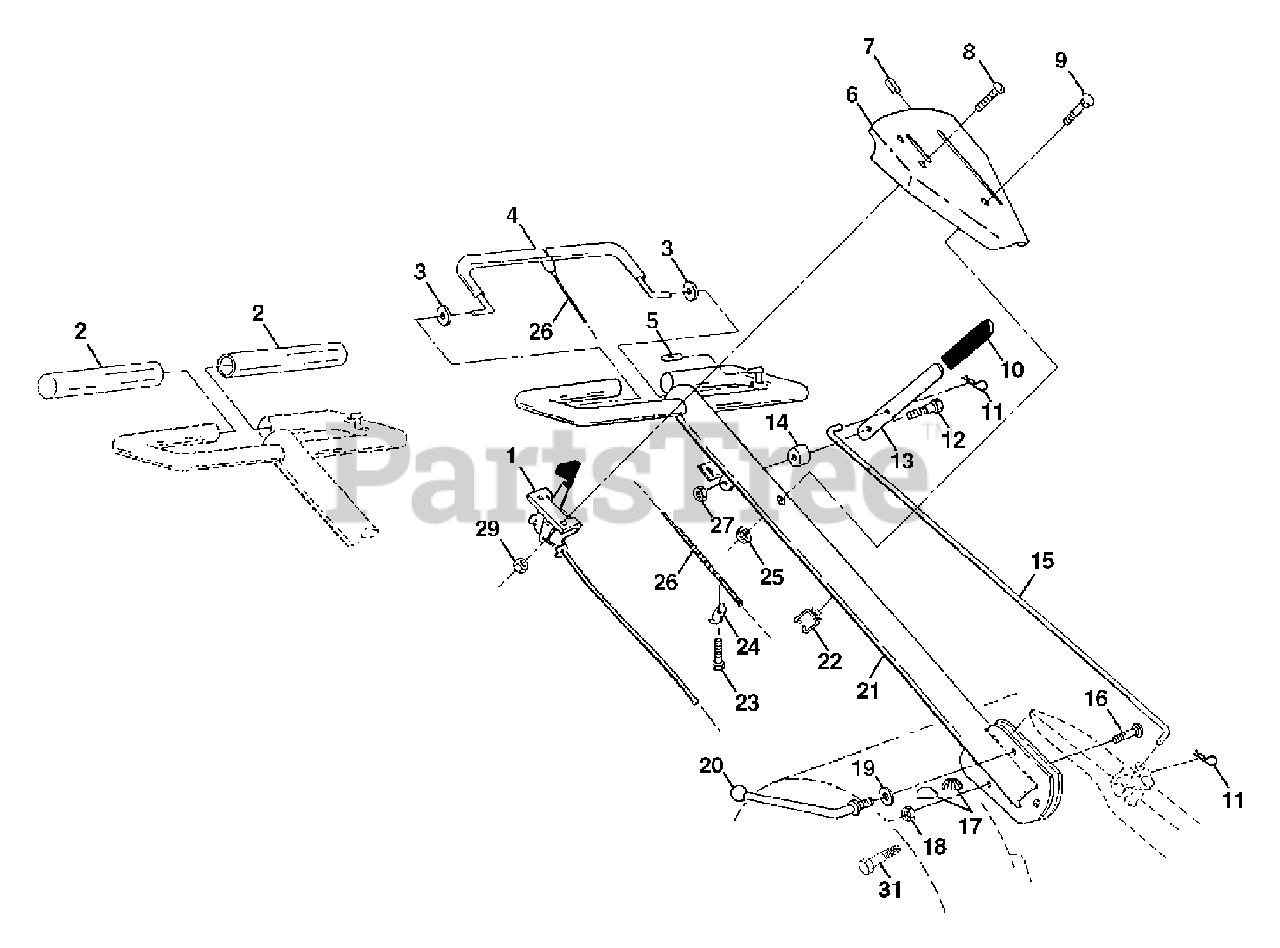

Handle Assembly Parts Diagram

  • Title
1

Husqvarna 532180634

Control, Throttle

$

$

Not available

2

Husqvarna 532141406

Grip, Handle

$9.49

$

In Stock, only 3 left!

0

3

Husqvarna 532110673

Grommet Handle

$6.49

$

Usually ships in 3-10 days

0

4

Husqvarna 532127254

Bar Assembly, Control

$22.99

$

Usually ships in 3-10 days

0

5

$6.49

$

Usually ships in 3-10 days

0

6

Husqvarna 532186561

Panel, Control
(Superseded to 532188403)

$

$

Not available

7

Husqvarna 532110641

Bushing Split
(Superseded to 583660601)

$4.99

$

Usually ships in 3-10 days

0

8

Husqvarna 871191008

Screw, Truss Hd. #10-24 Unc x 1/2

$6.49

$

Usually ships in 3-10 days

0

9

Husqvarna 872010520

Bolt 5/16-18 x 2.50

$6.49

$

Usually ships in 3-10 days

0

10

Husqvarna 532110646

Grip, Handle
(Superseded to 532124797)

$11.99

$

Usually ships in 3-10 days

0

11

Husqvarna 532124788

Clip, Hairpin
(Superseded to 532004497)

$9.99

$

In Stock, Qty 12

0

12

Husqvarna 532081328

Bolt, Shoulder

$6.49

$

In Stock, only 1 left!

0

13

Husqvarna 532110741

Handle, Shift

$4.99

$

Usually ships in 3-10 days

0

14

Husqvarna 532109313

Grommet, Rubber

$7.49

$

Usually ships in 3-10 days

0

15

Husqvarna 532110702

Rod, Shift

$20.99

$

Usually ships in 3-10 days

0

16

Husqvarna 872110608

Bolt, Carriage 3/8-16 x 1 Gr. 5
(Superseded to 596728201)

$4.99

$

Usually ships in 3-10 days

0

17

Husqvarna 532109229

Lock, Handle

$7.49

$

In Stock, only 3 left!

0

18

Husqvarna 873680600

Nut, Crownlock 3/8-16 Unc

$3.99

$

Usually ships in 3-10 days

0

19

Husqvarna 819131611

Washer 13/32 x 1 x 11 Ga.
(Superseded to 819131612)

$6.49

$

Usually ships in 3-10 days

0

20

Husqvarna 532109228

Lever, Lock, Handle

$13.99

$

In Stock, only 1 left!

0

21

Husqvarna 532186565

Handle
(Superseded to 581813801)

$

$

Not available

22

Husqvarna 532165197

Clip Cable

$4.99

$

Usually ships in 3-10 days

0

23

Husqvarna 532086777

Screw, Hex Washer Hd. Slotted #10-24 x 1/2
(Superseded to 817021008)

$4.99

$

In Stock, Qty 14

0

$6.49

$

In Stock, only 4 left!

0

25

Husqvarna 873930500

Nut Lock Hex Flange

$7.49

$

In Stock, only 1 left!

0

26

Husqvarna 532110675

Cable, Clutch

$18.99

$

Usually ships in 3-10 days

0

27

Husqvarna 873900400

Nut Hex Flange 1/4-20 Unc
(Superseded to 873680400)

$4.99

$

In Stock, Qty 16

0

29

Husqvarna 873731000

Nut, Keps #10-24 Unc
(Superseded to 873271000)

$2.99

$

Usually ships in 3-10 days

0

31

Husqvarna 532150696

Bolt, Pivot

$7.49

$

In Stock, only 3 left!

0
