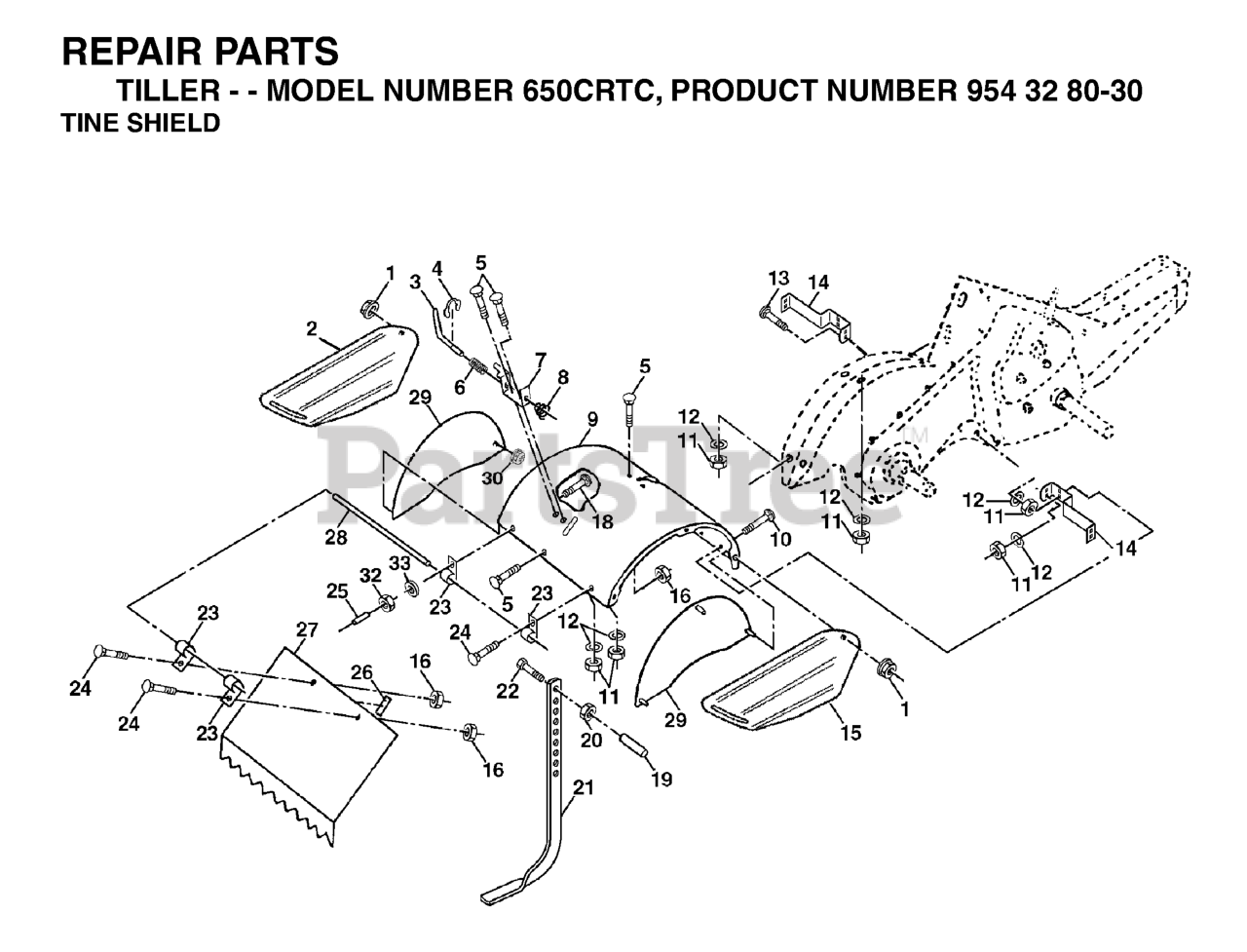

650 CRT (954328030) - Husqvarna Rear-Tine Tiller (2002-11) TINE SHIELD Parts Diagram

Rear-Tine Tiller

TINE SHIELD Parts Diagram

  • Title
5

Husqvarna 532180847

BOLT, RDHD SQNK 5/16-18 X 3/4
(Superseded to 595901601)

$3.99

$

In Stock, Qty 20+

0

$6.49

$

Usually ships in 3-10 days

0

$2.99

$

Usually ships in 3-10 days

0

15

Husqvarna 532162953

SIDE SHIELD RH
(Superseded to 532440450)

$20.99

$

Usually ships in 3-10 days

0

3

Husqvarna 532008393

STAKE PIN TI

$31.99

$

Usually ships in 3-10 days

0

8

Husqvarna 532109230

SPRING CRT

$6.49

$

In Stock, Qty 10

0

25

Husqvarna 532124717

VINYL CAP TI
(Superseded to 532006712)

$6.49

$

Usually ships in 3-10 days

0

21

Husqvarna 532102156

STAKE.DEPTH.16.CRT.BLACK

$28.99

$

Usually ships in 3-10 days

0

4

Husqvarna 812000035

RING, KLIP

$7.49

$

In Stock, Qty 9

0

20

Husqvarna 873220600

NUT.HEX.3/8-16UNC

$6.49

$

In Stock, only 2 left!

0

$6.49

$

Usually ships in 3-10 days

0

9

Husqvarna 532142292

SHIELD
(Superseded to 532446201)

$125.99

$

Usually ships in 3-10 days

0

19

$

$

Not available

27

Husqvarna 532125016

SHIELD LEVELING
(Superseded to 532440448)

$79.99

$

Usually ships in 3-10 days

0

1

Husqvarna 873900500

NUT LOCK HEX FLANGE 5/16-18
(Superseded to 583612701)

$

$

Not available

32

Husqvarna 873220400

NUT
(Superseded to 532050675)

$6.49

$

In Stock, only 1 left!

0

12

Husqvarna 810040500

WASHER.LOCK.HVY.HLCL.SPR.5/16
(Superseded to 596238801)

$3.99

$

In Stock, only 2 left!

0

2

Husqvarna 532162952

SHIELD
(Superseded to 532440452)

$20.99

$

Usually ships in 3-10 days

0

$6.49

$

Usually ships in 3-10 days

0

7

Husqvarna 532008392

BRACKET.LATCH.STAKE.3.20.BLACK

$5.99

$

Usually ships in 3-10 days

0

6

$9.49

$

Usually ships in 3-10 days

0

28

Husqvarna 532120588

PIN.HINGE.TILLER

$7.99

$

Usually ships in 3-10 days

0

14

Husqvarna 532124311

BRACKET.TINE.SHIELD.TILLER.BLA
(Superseded to 581813501)

$13.99

$

Usually ships in 3-10 days

0

22

Husqvarna 874930632

BOLT.375-16

$6.99

$

In Stock, only 2 left!

0

30

Husqvarna 873970500

LOCKNUT-FLANGE 5/16-18
(Superseded to 873680500)

$3.99

$

Usually ships in 3-10 days

0

26

Husqvarna 532109227

PAD IDLER TI

$4.99

$

In Stock, Qty 20+

0

13

Husqvarna 872110510

BOLT.CARRIAGE.5/16-18

$7.49

$

In Stock, Qty 20+

0

29

Husqvarna 532142293

SIDE SHIELD
(Superseded to 585414301)

$

$

Not available

16

Husqvarna 873900400

NUT T
(Superseded to 873680400)

$4.99

$

In Stock, Qty 15

0

33

Husqvarna 810040400

LOCKWASHER
(Superseded to 596029801)

$3.99

$

In Stock, only 2 left!

0

23

$6.49

$

In Stock, only 1 left!

0
