650 C (246-650C100) - Cub Cadet Shredder Engine (1996) Carburetor Assembly Parts Diagram

Shredder Engine

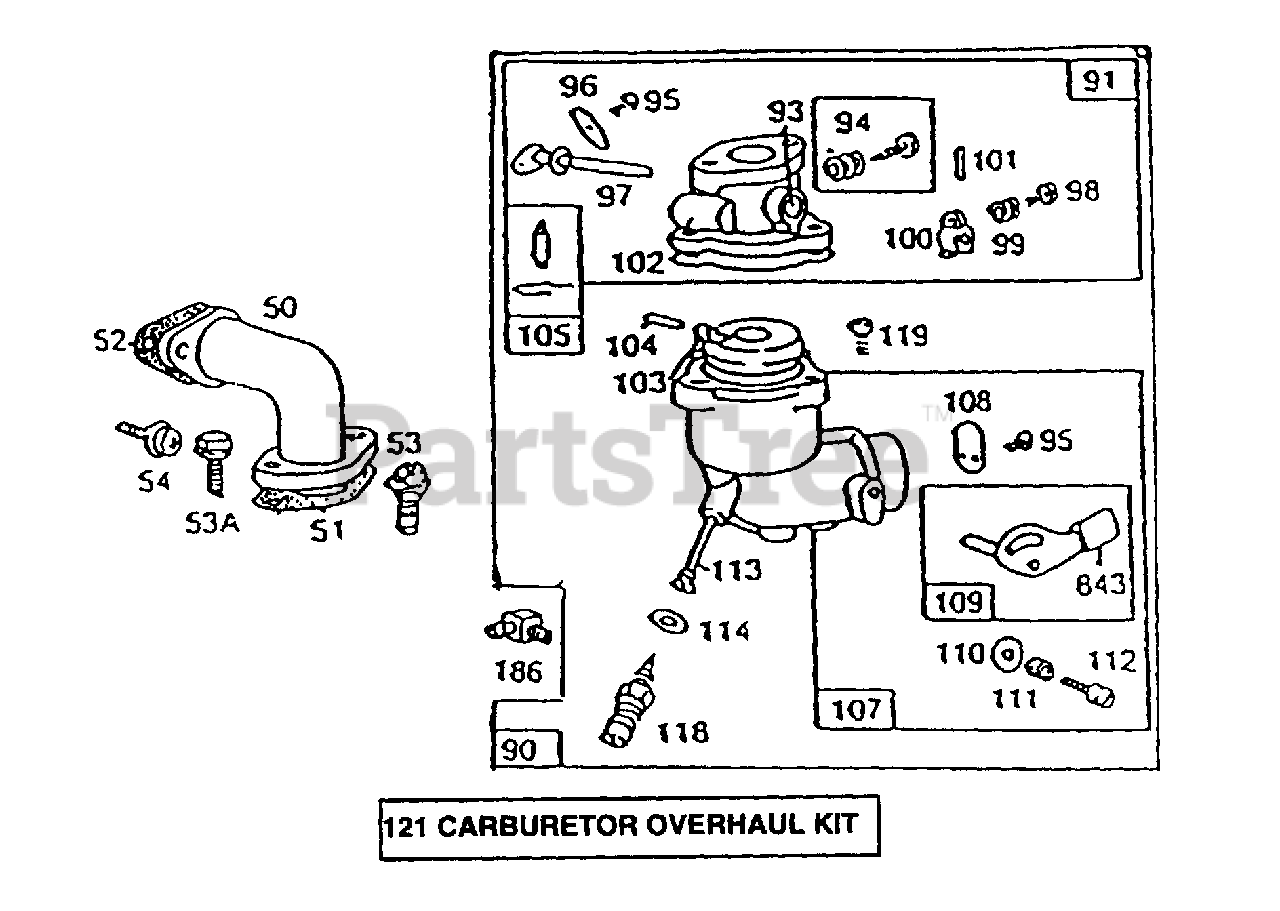

Carburetor Assembly Parts Diagram

  • Title

50

Cub Cadet BS-212488

Elbow - Intake

$

$

Not available

51

Cub Cadet BS-270684

Gasket - Carb. Mtg.

Note: Included in Gasket Set - Part No. BS-299577.

$4.99

$

In Stock, Qty 9

0

52

Cub Cadet BS-27828

Gasket - Intake Elbow Mounting
(Superseded to BS-27828S)

Note: Included in Gasket Set - Part No. BS-299577.

$4.99

$

In Stock, Qty 6

0

53

Cub Cadet BS-93956

Screw - Shoulder

$

$

Not available

53A

Cub Cadet BS-93357

Screw - Carburetor Mounting Sem

$

$

Not available

54

Cub Cadet BS-93208

Screw - Intake Elbow

$8.49

$

In Stock, only 3 left!

0

90

Cub Cadet BS-390323

Carburetor Assembly

$

$

Not available

91

Cub Cadet BS-399443

Body Assembly - Upper Carburetor

$128.99

$

Usually ships in 2-12 days

0

93

Cub Cadet BS-23108

Bushing - Throttle Shaft

$

$

Not available

94

Cub Cadet BS-292681

Valve Assembly - Carburetor Idle

Note: Included in Carburetor Overhaul Kit - Part No. BS-398235

$11.99

$

In Stock, only 1 left!

0

95

Cub Cadet BS-93499

Screw - Throttle and Choke Valve Mtg. Sem
(Superseded to BS-691437)

$3.99

$

In Stock, only 3 left!

0

96

Cub Cadet BS-223370

Valve - Throttle

$

$

Currently unavailable

97

Cub Cadet BS-298826

Shaft and Lever - Throttle

$30.99

$

Usually ships in 2-12 days

0

98

Cub Cadet BS-91920

Screw - Fil. Hd.

$

$

Currently unavailable

99

Cub Cadet BS-26157

Spring - Throttle Adj.
(Superseded to BS-691591)

$8.99

$

Usually ships in 2-12 days

0

100

Cub Cadet BS-212904

Stop - Throttle

$

$

Not available

101

Cub Cadet BS-93043

Pin - Throttle Stop

$

$

Not available

102

Cub Cadet BS-27918

Gasket - Carb. Body

Note: Included in Carburetor Overhaul Kit - Part No. BS-398235

$4.49

$

In Stock, Qty 12

0

103

Cub Cadet BS-99333

Float - Carburetor

$13.99

$

In Stock, only 1 left!

0

104

Cub Cadet BS-230896

Pin - Float Hinge

Note: Included in Carburetor Overhaul Kit - Part No. BS-398235

$

$

Not available

105

Cub Cadet BS-394681

Valve - Fuel Inlet

Note: Included in Carburetor Overhaul Kit - Part No. BS-398235

$7.99

$

In Stock, only 3 left!

0

107

Cub Cadet BS-399442

Body Assembly - Lower Carburetor

$128.99

$

Usually ships in 2-12 days

0

108

Cub Cadet BS-62872

Valve - Choke

$

$

Currently unavailable

109

Cub Cadet BS-391987

Shaft and Lever - Choke

$9.99

$

Usually ships in 2-12 days

0

110

Cub Cadet BS-222712

Washer - Choke Lever

$

$

Currently unavailable

111

Cub Cadet BS-26155

Spring - Choke Lever

$

$

Not available

112

Cub Cadet BS-23123

Screw - Choke Lever

$

$

Currently unavailable

113

Cub Cadet BS-398202

Nozzle - Carburetor

Note: Included in Carburetor Overhaul Kit - Part No. BS-398235

$29.99

$

In Stock, only 2 left!

0

114

Cub Cadet BS-68667

Gasket - Nozzle

Note: Included in Carburetor Overhaul Kit - Part No. BS-398235

$

$

Currently unavailable

118

Cub Cadet BS-99525

Valve - Needle
(Superseded to BS-99525S)

Note: Included in Carburetor Overhaul Kit - Part No. BS-398235

$12.99

$

In Stock, only 1 left!

0

Cub Cadet BS-22235

Washer - Brass

$

$

Not available

Cub Cadet BS-26336

Spring

$

$

Not available

Cub Cadet BS-65978

O-Ring

$5.99

$

In Stock, only 3 left!

0

Cub Cadet BS-394033

Valve - Needle

$5.49

$

Usually ships in 2-12 days

0

119

Cub Cadet BS-94152

Screw - Hex Hd. Sem

$

$

Not available

121

Cub Cadet BS-398235

Carburetor Overhaul Kit
(Superseded to BS-394693)

Note: Includes items 94, 102, 104, 105, 113, 114 & 118

$31.99

$

In Stock, Qty 20+

0

186

Cub Cadet BS-67218

Connector - Fuel Pipe

$

$

Not available

843

Cub Cadet BS-280149

Sleeve - Choke Lever
(Superseded to BS-691895)

$4.99

$

In Stock, only 1 left!

0

Cub Cadet BS-299577

Gasket Set

Note: Includes items 51 & 52

$35.99

$

In Stock, Qty 11

0
