650 C (244-650C110) - Cub Cadet Shredder (1994) B&S 8 HP Upper Carburetor Body Ass'y & Carburetor Overhaul Kit Parts Diagram

Shredder

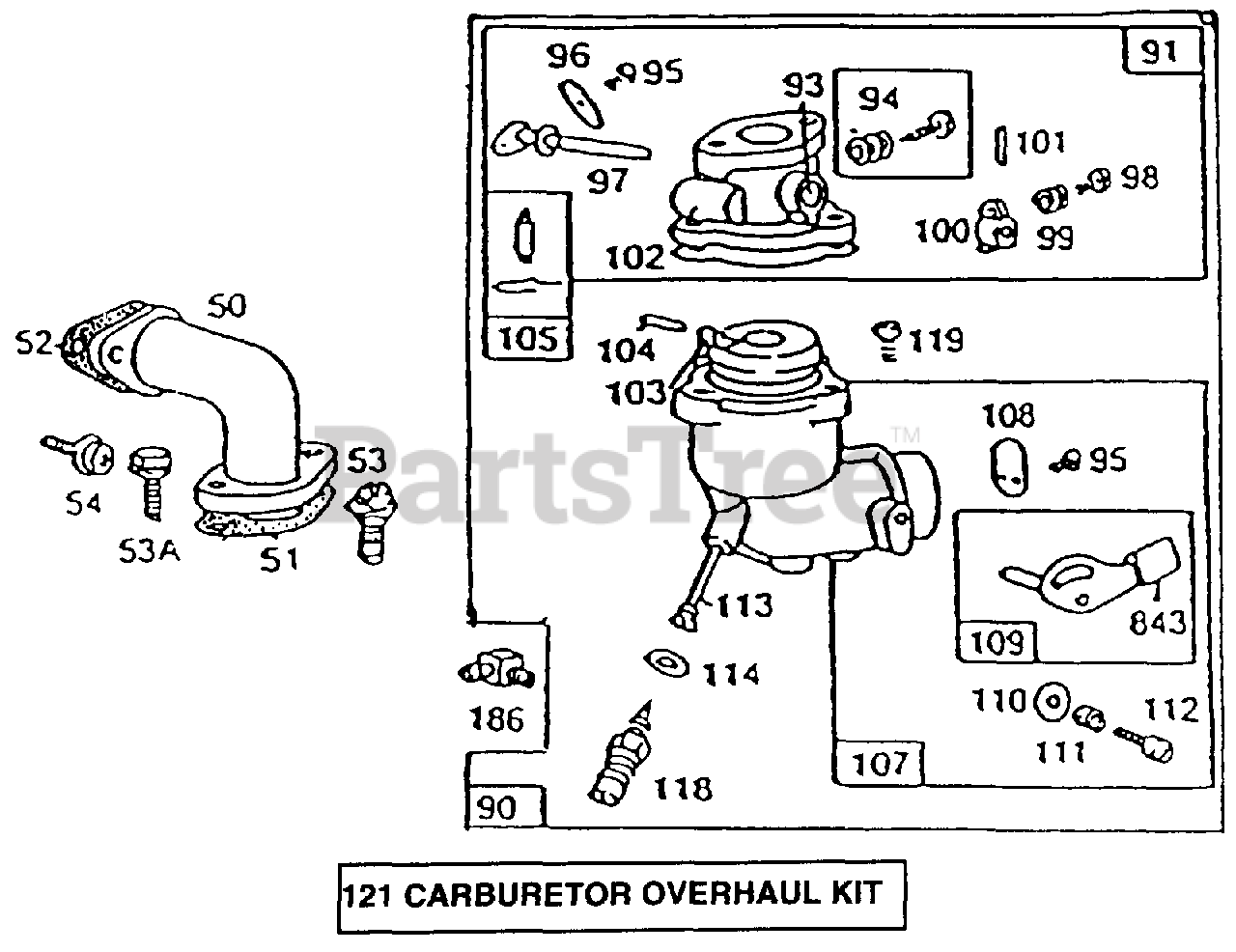

B&S 8 HP Upper Carburetor Body Ass'y & Carburetor Overhaul Kit Parts Diagram

  • Title

50

Cub Cadet BS-212488

Elbow--Intake

$

$

Not available

51

Cub Cadet BS-270684

Gasket--Carb. Mtg.

Note: Included in Gasket Set Part No. BS-299577.

$4.99

$

In Stock, Qty 11

0

52

Cub Cadet BS-27828

Gasket--Intake Elbow Mounting
(Superseded to BS-27828S)

Note: Included in Gasket Set Part No. BS-299577.

$4.99

$

In Stock, Qty 10

0

53

Cub Cadet BS-93956

Screw--Shoulder

$

$

Not available

53A

Cub Cadet BS-93357

Screw--Carburetor Mounting Sem

$

$

Not available

54

Cub Cadet BS-93208

Screw--Intake Elbow

$8.49

$

In Stock, only 1 left!

0

90

Cub Cadet BS-390323

Carburetor Assembly

$

$

Not available

91

Cub Cadet BS-399443

Body Assembly--Upper Carburetor

$128.99

$

Usually ships in 2-12 days

0

93

Cub Cadet BS-23108

Bushing--Throttle Shaft

$

$

Not available

94

Cub Cadet BS-292681

Valve Assembly Carburetor Idle

Note: Included in Carburetor Overhaul Kit--Part No. BS-398235.

$11.99

$

In Stock, only 1 left!

0

95

Cub Cadet BS-93499

Screw--Throttle and Choke Valve Mtg. Sem
(Superseded to BS-691437)

$3.99

$

In Stock, only 3 left!

0

96

Cub Cadet BS-223370

Valve Throttle

$

$

Currently unavailable

97

Cub Cadet BS-298826

Shaft and Lever--Throttle

$30.99

$

Usually ships in 2-12 days

0

98

Cub Cadet BS-91920

Screw--Fil. Hd.

$

$

Currently unavailable

99

Cub Cadet BS-26157

Spring--Throttle Adj.
(Superseded to BS-691591)

$8.99

$

Usually ships in 2-12 days

0

100

Cub Cadet BS-212904

Stop Throttle

$

$

Not available

101

Cub Cadet BS-93043

Pin--Throttle Stop

$

$

Not available

102

Cub Cadet BS-27918

Gasket--Carb. Body

Note: Included in Carburetor Overhaul Kit--Part No. BS-398235.

$4.49

$

In Stock, Qty 16

0

103

Cub Cadet BS-99333

Float--Carburetor

$13.99

$

In Stock, only 1 left!

0

104

Cub Cadet BS-230896

Pin Float Hinge

Note: Included in Carburetor Overhaul Kit--Part No. BS-398235.

$

$

Not available

105

Cub Cadet BS-394681

Valve Fuel Inlet

Note: Included in Carburetor Overhaul Kit--Part No. BS-398235.

$7.99

$

In Stock, only 1 left!

0

107

Cub Cadet BS-399442

Body Assembly--Lower Carburetor

$128.99

$

Usually ships in 2-12 days

0

108

Cub Cadet BS-62872

Valve Choke

$

$

Currently unavailable

109

Cub Cadet BS-391987

Shaft and Lever--Choke

$9.99

$

Usually ships in 2-12 days

0

110

Cub Cadet BS-222712

Washer--Choke Lever

$

$

Currently unavailable

111

Cub Cadet BS-26155

Spring--Choke Lever

$

$

Not available

112

Cub Cadet BS-23123

Screw--Choke Lever

$

$

Currently unavailable

113

Cub Cadet BS-398202

Nozzle Carburetor

Note: Included in Carburetor Overhaul Kit--Part No. BS-398235.

$29.99

$

In Stock, only 2 left!

0

114

Cub Cadet BS-68667

Gasket--Nozzle

Note: Included in Carburetor Overhaul Kit--Part No. BS-398235.

$

$

Currently unavailable

118

Cub Cadet BS-99525

Valve Needle
(Superseded to BS-99525S)

Note: Included in Carburetor Overhaul Kit--Part No. BS-398235.

$12.99

$

In Stock, only 1 left!

0

Cub Cadet BS-22235

Washer--Brass

$

$

Not available

Cub Cadet BS-26336

Spring

$

$

Not available

Cub Cadet BS-65978

O-Ring

$5.99

$

In Stock, only 4 left!

0

Cub Cadet BS-394033

Valve Needle

$5.49

$

Usually ships in 2-12 days

0

119

Cub Cadet BS-94152

Screw--Hex Hd Sem

$

$

Not available

121

Cub Cadet BS-398235

Carburetor Overhaul Kit
(Superseded to BS-394693)

$31.99

$

In Stock, Qty 20+

0

186

Cub Cadet BS-67218

Connector--Fuel Pipe

$

$

Not available

843

Cub Cadet BS-280149

Sleeve Choke Lever
(Superseded to BS-691895)

$4.99

$

In Stock, only 1 left!

0
