650 C (244-650C110) - Cub Cadet Shredder (1994) B&S 8 HP Rewind Starter Ass'y & Clutch Ass'y Parts Diagram

Shredder

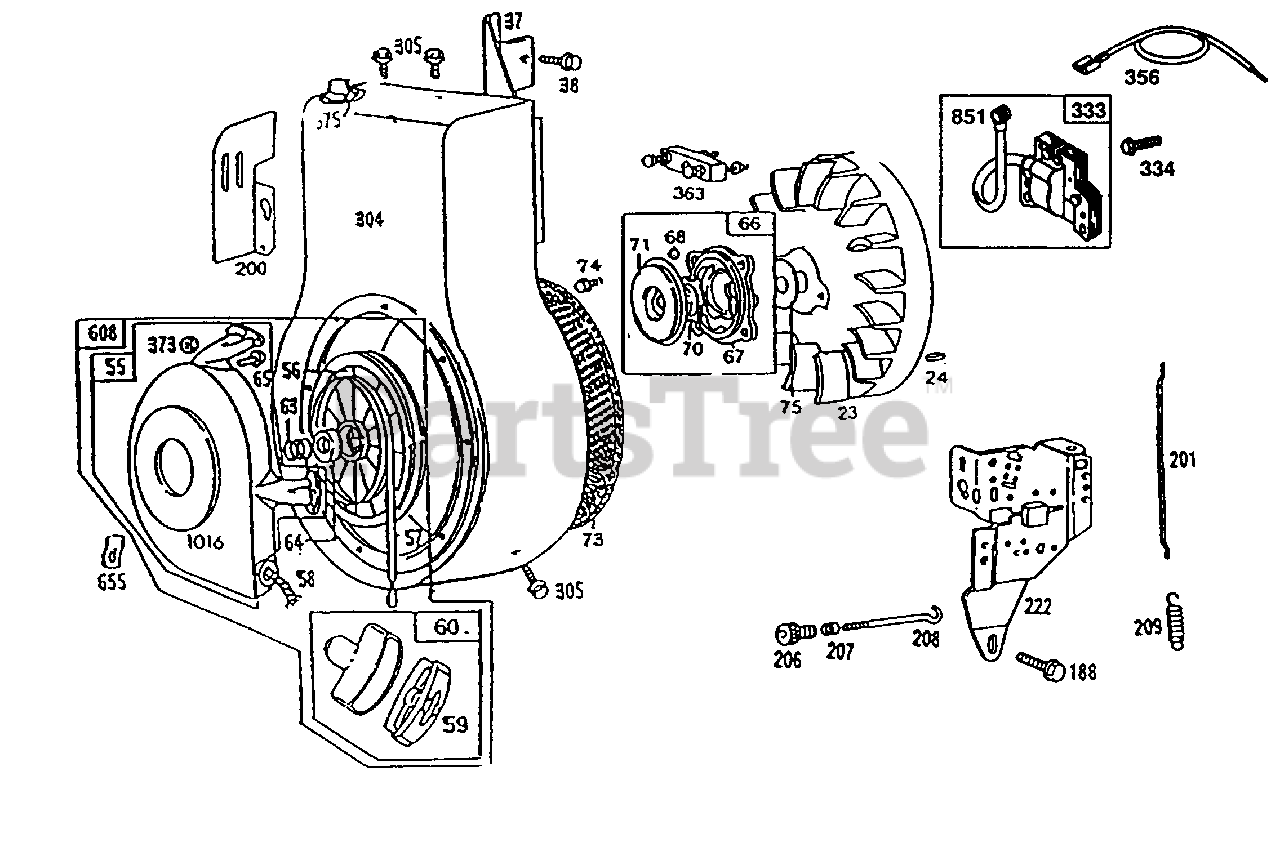

B&S 8 HP Rewind Starter Ass'y & Clutch Ass'y Parts Diagram

  • Title

23

Cub Cadet BS-298260

Flywheel--Magneto

$

$

Not available

24

Cub Cadet BS-222698

Key--Flywheel
(Superseded to BS-222698S)

$2.99

$

In Stock, Qty 20+

0

37

Cub Cadet BS-222475

Guard--Flywheel

$

$

Not available

38

Cub Cadet BS-93777

Screw--Sem

$

$

Currently unavailable

55

Cub Cadet BS-393576

Hsg.--Rewind Starter

$85.99

$

Usually ships in 2-12 days

0

56

Cub Cadet BS-295871

Pulley Rewind Starter

Note: Includes 63" Rope.

$14.99

$

In Stock, Qty 20+

0

57

Cub Cadet BS-490179

Spring--Rewind Starter

$

$

Not available

58

Cub Cadet BS-66884

Rope Rewind Starter
(Superseded to BS-692188)

$8.49

$

Usually ships in 2-12 days

0

59

Cub Cadet BS-490653

Insert--Starter Handle

$5.49

$

In Stock, Qty 12

0

60

Cub Cadet BS-490652

Handle Rew. Starter

$5.49

$

In Stock, Qty 10

0

63

Cub Cadet BS-260414

Spring--Ratchet

$

$

Not available

64

Cub Cadet BS-230543

Adapter--Ratchet Spg.
(Superseded to BS-691920)

$11.99

$

In Stock, Qty 5

0

65

Cub Cadet BS-94128

Screw--Rewind Starter Housing Mounting
(Superseded to BS-690837)

$3.49

$

In Stock, Qty 20+

0

66

Cub Cadet BS-399671

Clutch Assembly--Rewind Starter

$34.99

$

In Stock, Qty 20+

0

67

Cub Cadet BS-394897

Housing Rewind Starter Clutch

$36.99

$

In Stock, only 1 left!

0

68

Cub Cadet BS-63770

Ball--Clutch

$

$

Not available

70

Cub Cadet BS-298799

Ratchet--Rewind Starter Clutch
(Superseded to BS-691945)

$17.99

$

In Stock, only 1 left!

0

71

Cub Cadet BS-394506

Washer--Clutch Ret.

$

$

Not available

73

Cub Cadet BS-221796

Screen--Rew. Starter

$

$

Not available

74

Cub Cadet BS-93758

Screw--Sem

$

$

Not available

75

Cub Cadet BS-224061

Washer--Spring

$

$

Not available

188

Cub Cadet BS-93535

Screw--Sem

$

$

Not available

200

Cub Cadet BS-221760

Guide Air

$

$

Not available

201

Cub Cadet BS-260872

Link--Governor

$

$

Not available

206

Cub Cadet BS-231266

Nut Gov. Control Rod
(Superseded to BS-691771)

$37.99

$

Usually ships in 2-12 days

0

207

Cub Cadet BS-26855

Spring--Governor Control Rod

$

$

Not available

208

Cub Cadet BS-261959

Rod--Governor Control

$4.49

$

Usually ships in 2-12 days

0

209

Cub Cadet BS-260695

Spring Governor
(Superseded to BS-796260)

$4.99

$

In Stock, Qty 13

0

222

Cub Cadet BS-399151

Plate Gov. Control

$

$

Not available

304

Cub Cadet BS-491596

Housing--Blower

$

$

Not available

305

Cub Cadet BS-94608

Screw--Sem
(Superseded to BS-692198)

$5.99

$

In Stock, Qty 11

0

333

Cub Cadet BS-398811

Armature Magneto

$63.99

$

In Stock, Qty 17

0

334

Cub Cadet BS-93381

Screw Armature Mtg.

$

$

Not available

356

Cub Cadet BS-398874

Wire Ground

$

$

Currently unavailable

363

Cub Cadet BS-19203

Puller--Flywheel

$23.99

$

In Stock, only 1 left!

0

373

Cub Cadet BS-92987

Nut--Hex
(Superseded to 712-0349)

$4.99

$

In Stock, Qty 5

0

575

Cub Cadet BS-396691

Switch--Rotary Stop
(Superseded to BS-692309)

$20.99

$

In Stock, only 1 left!

0

608

Cub Cadet BS-390391

Starter Ass'y. Rewind
(Superseded to BS-693900)

$131.99

$

In Stock, Qty 10

0

655

Cub Cadet BS-222598

Anchor--Spring

$

$

Not available

851

Cub Cadet BS-221798

Terminal--Ignition Cable
(Superseded to BS-493880S)

$3.49

$

In Stock, Qty 20+

0

1016

Cub Cadet BS-490817

Spacer

$9.49

$

In Stock, Qty 5

0
