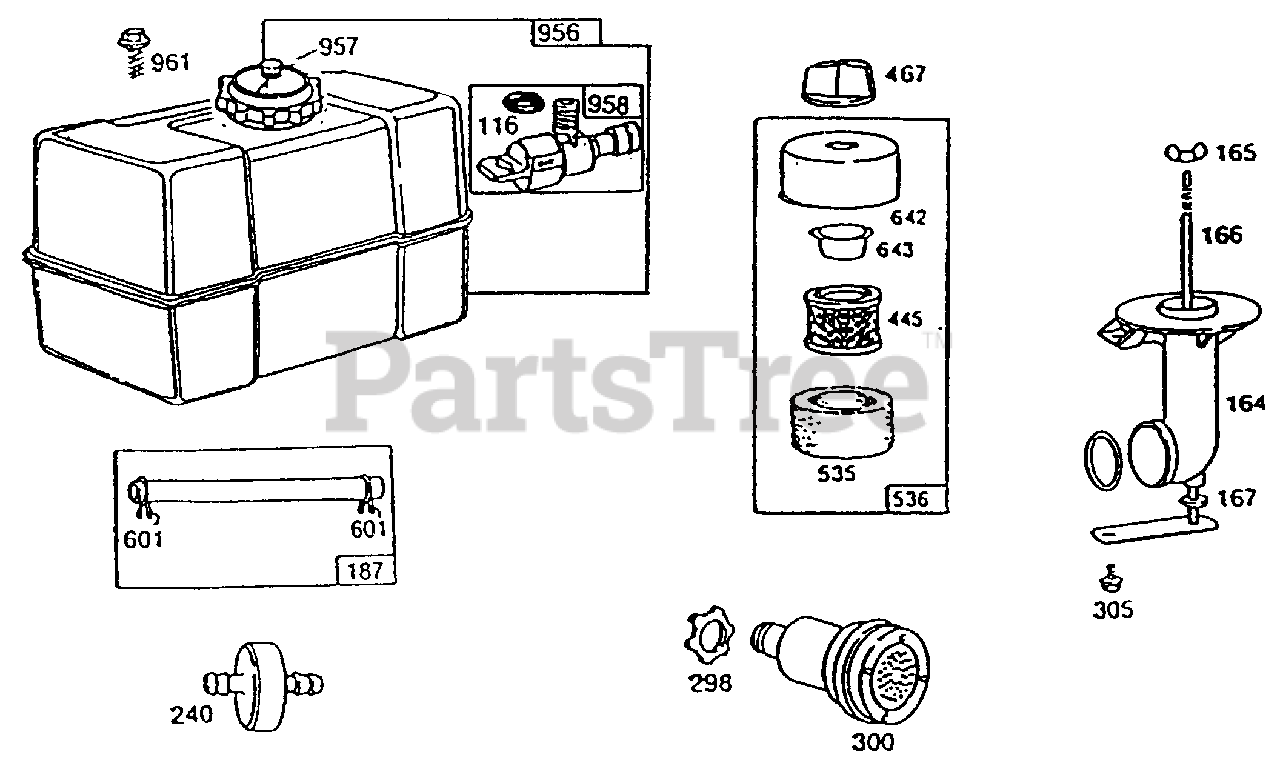

650 C (244-650C110) - Cub Cadet Shredder (1994) B&S 8 HP Fuel Tank Ass'y & Air Cleaner Ass'y Parts Diagram

Shredder

B&S 8 HP Fuel Tank Ass'y & Air Cleaner Ass'y Parts Diagram

  • Title

116

Cub Cadet BS-280203

O-Ring - Fuel Valve

$

$

Not available

164

Cub Cadet BS-398592

Pipe Assembly- Air Cleaner

Note: Uses BS-271265 O-Ring

$45.99

$

In Stock, only 3 left!

0

165

Cub Cadet BS-94289

Nut- Wing

$

$

Not available

166

Cub Cadet BS-392105

Stud- Air Cleaner

$25.99

$

Usually ships in 2-12 days

0

167

Cub Cadet BS-65978

Seal Air Cleaner Stud

$5.99

$

In Stock, only 3 left!

0

187

Cub Cadet BS-296004

Pipe Fuel
(Superseded to BS-791745)

Note: (23" Long, Cut to Suit)

$10.99

$

In Stock, Qty 20+

0

?188

Cub Cadet BS-93535

Screw - Sem

$

$

Not available

240

Cub Cadet BS-298090

Filter- Fuel
(Superseded to BS-298090S)

$5.49

$

In Stock, Qty 20+

0

298

Cub Cadet BS-261409

Lock Nut- Muffler

$

$

Not available

300

Cub Cadet BS-393010

Muffler- Exhaust
(Superseded to BS-393010S)

$22.99

$

In Stock, Qty 6

0

305

Cub Cadet BS-94608

Screw--Sem
(Superseded to BS-692198)

$5.99

$

In Stock, Qty 20+

0

445

Cub Cadet BS-393957

Cartridge Air Cleaner
(Superseded to BS-393957S)

$18.99

$

Usually ships in 2-12 days

0

467

Cub Cadet BS-493903

Knob--Air Cleaner
(Superseded to BS-691668)

$5.49

$

Usually ships in 2-12 days

0

535

Cub Cadet BS-271794

Element--Air Cleaner
(Superseded to BS-271794S)

$4.99

$

In Stock, only 2 left!

0

536

Cub Cadet BS-391063

Cleaner Ass'y.--Air

$

$

Not available

601

Cub Cadet BS-93053

Clamp Fuel Pipe
(Superseded to BS-791850)

$3.49

$

In Stock, Qty 20+

0

642

Cub Cadet BS-224844

Cover--Air Cleaner

$

$

Not available

643

Cub Cadet BS-222272

Cup--Air Cleaner
(Superseded to BS-691730)

$10.99

$

Usually ships in 2-12 days

0

956

Cub Cadet BS-493337

Tank Assembly--Fuel
(Superseded to BS-691993)

$159.99

$

In Stock, Qty 10

0

957

Cub Cadet BS-493988

Cap--Fuel Tank
(Superseded to BS-795027)

$10.99

$

In Stock, Qty 20+

0

958

Cub Cadet BS-399517

Valve Ass'y.--Fuel Shut-Off
(Superseded to BS-698182)

$

$

Not available

961

Cub Cadet BS-94095

Screw--Tank Mounting

$

$

Not available

Cub Cadet BS-271265

O-Ring

$5.99

$

In Stock, Qty 8

0
