650 C (244-650C100) - Cub Cadet Shredder Engine (1995) Carburetor Overhaul Kit Parts Diagram

Shredder Engine

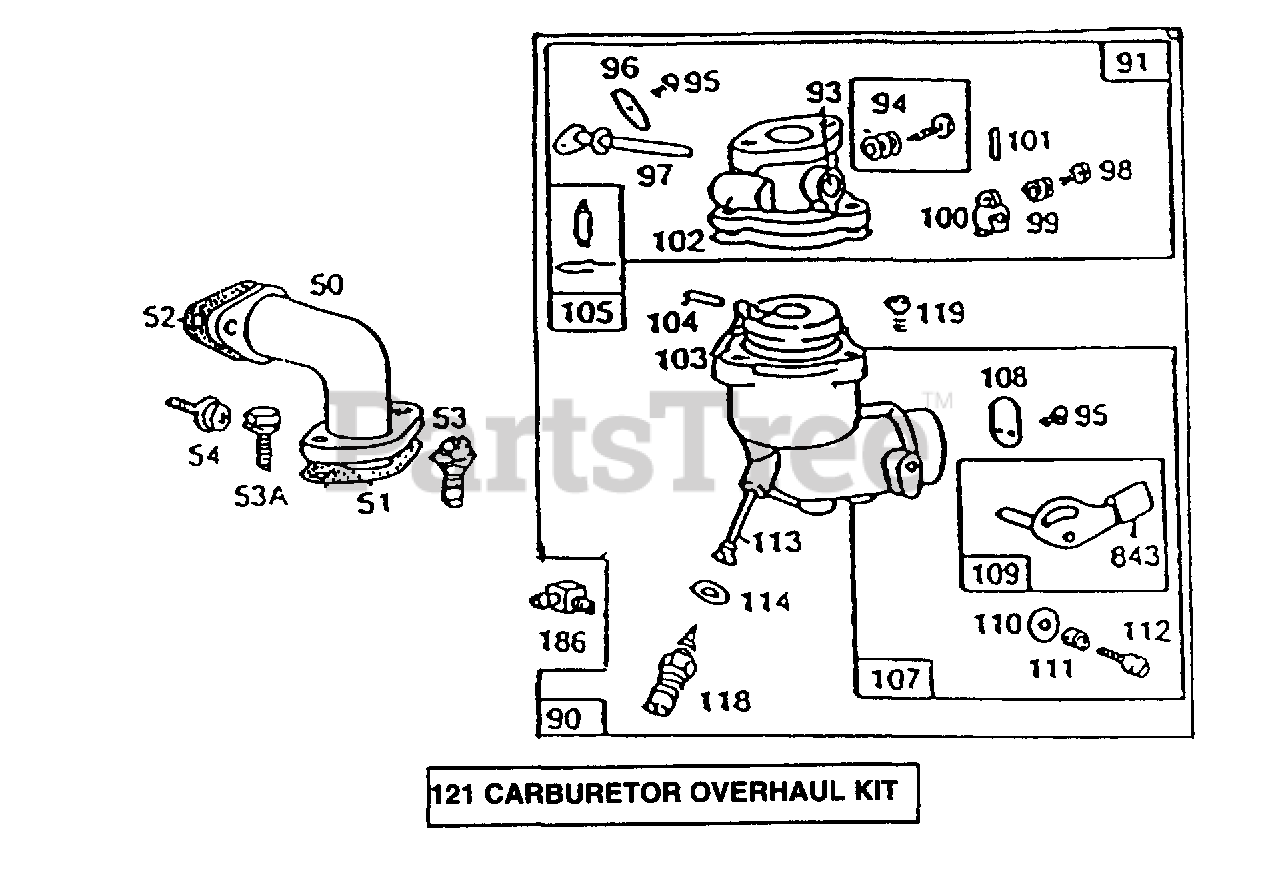

Carburetor Overhaul Kit Parts Diagram

  • Title

50

Cub Cadet BS-212488

Elbow -- Intake

$

$

Not available

51

Cub Cadet BS-270684

Gasket -- Carb. Mtg.

Note: Included in Gasket Set-- Part No. BS-299577

$4.99

$

In Stock, Qty 8

0

52

Cub Cadet BS-27828

Gasket -- Intake Elbow Mounting
(Superseded to BS-27828S)

Note: Included in Gasket Set-- Part No. BS-299577

$4.99

$

In Stock, Qty 6

0

53

Cub Cadet BS-93956

Screw -- Shoulder

$

$

Not available

53A

Cub Cadet BS-93357

Screw -- Carburetor Mounting Sem

$

$

Not available

54

Cub Cadet BS-93208

Screw -- Intake Elbow

$8.49

$

In Stock, only 1 left!

0

90

Cub Cadet BS-390323

Carburetor Assembly

$

$

Not available

91

Cub Cadet BS-399443

Body Assembly -- Upper Carburetor

$128.99

$

Usually ships in 2-12 days

0

93

Cub Cadet BS-23108

Bushing -- Throttle Shaft

$

$

Not available

94

Cub Cadet BS-292681

Valve Assembly -- Carburetor Idle

$11.99

$

In Stock, only 1 left!

0

95

Cub Cadet BS-93499

Screw -- Throttle and Choke Valve Mtg. Sem
(Superseded to BS-691437)

$3.99

$

In Stock, only 3 left!

0

96

Cub Cadet BS-223370

Valve -- Throttle

$

$

Currently unavailable

97

Cub Cadet BS-298826

Shaft and Lever -- Throttle

$30.99

$

Usually ships in 2-12 days

0

98

Cub Cadet BS-91920

Screw -- Fil. Hd.

$

$

Currently unavailable

99

Cub Cadet BS-26157

Spring -- Throttle Adj.
(Superseded to BS-691591)

$8.99

$

Usually ships in 2-12 days

0

100

Cub Cadet BS-212904

Stop -- Throttle

$

$

Not available

101

Cub Cadet BS-93043

Pin -- Throttle Stop

$

$

Not available

102

Cub Cadet BS-27918

Gasket -- Carb. Body

Note: Included in Carburetor Overhaul Kit-- Part No. BS-398235

$4.49

$

In Stock, Qty 14

0

103

Cub Cadet BS-99333

Float -- Carburetor

$13.99

$

In Stock, only 1 left!

0

104

Cub Cadet BS-230896

Pin -- Float Hinge

Note: Included in Carburetor Overhaul Kit-- Part No. BS-398235

$

$

Not available

105

Cub Cadet BS-394681

Valve -- Fuel Inlet

Note: Included in Carburetor Overhaul Kit-- Part No. BS-398235

$7.99

$

In Stock, only 1 left!

0

107

Cub Cadet BS-399442

Body Assembly -- Lower Carburetor

$128.99

$

Usually ships in 2-12 days

0

108

Cub Cadet BS-62872

Valve -- Choke

$

$

Currently unavailable

109

Cub Cadet BS-391987

Shaft and Lever -- Choke

$9.99

$

Usually ships in 2-12 days

0

110

Cub Cadet BS-222712

Washer -- Choke Lever

$

$

Currently unavailable

111

Cub Cadet BS-26155

Spring -- Choke Lever

$

$

Not available

112

Cub Cadet BS-23123

Screw -- Choke Lever

$

$

Currently unavailable

113

Cub Cadet BS-398202

Nozzle -- Carburetor

Note: Included in Carburetor Overhaul Kit-- Part No. BS-398235

$29.99

$

In Stock, only 2 left!

0

114

Cub Cadet BS-68667

Gasket -- Nozzle

Note: Included in Carburetor Overhaul Kit-- Part No. BS-398235

$

$

Currently unavailable

118

Cub Cadet BS-99525

Valve -- Needle
(Superseded to BS-99525S)

Note: Includes: BS-22235 Washer -- Brass BS-26336 Spring BS-65978 0-Ring BS-394033 Valve -- Needle ; Included in Carburetor Overhaul Kit-- Part No. BS-398235

$12.99

$

In Stock, only 1 left!

0

119

Cub Cadet BS-94152

Screw -- Hex Hd. Sem

$

$

Not available

121

Cub Cadet BS-398235

Carburetor Overhaul Kit
(Superseded to BS-394693)

$31.99

$

In Stock, Qty 20+

0

186

Cub Cadet BS-67218

Connector -- Fuel Pipe

$

$

Not available

843

Cub Cadet BS-280149

Sleeve -- Choke Lever
(Superseded to BS-691895)

$4.99

$

In Stock, only 1 left!
