650 C (244-650C100) - Cub Cadet Shredder (1995) Shredder Parts Diagram

Shredder

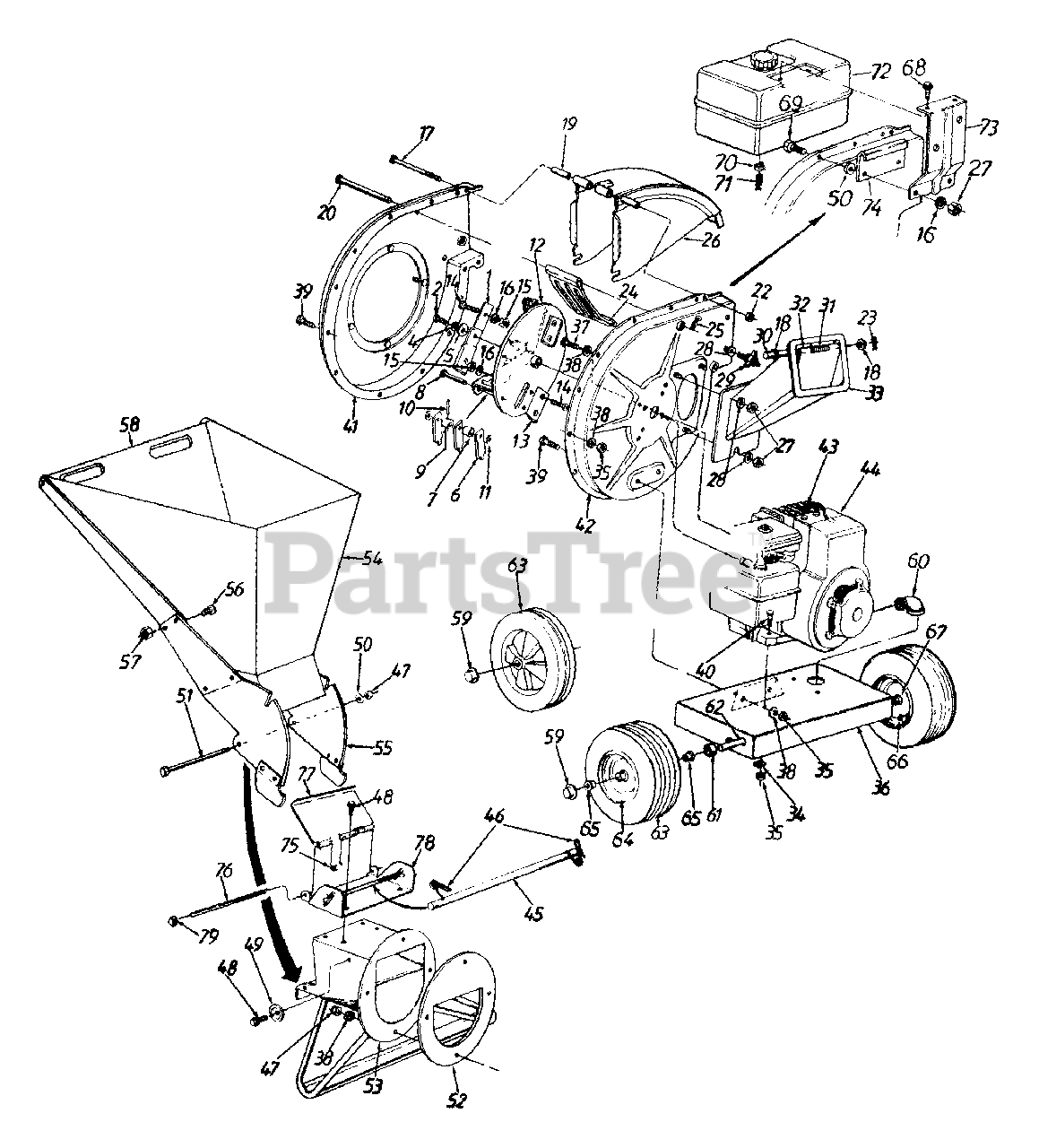

Shredder Parts Diagram

  • Title

1

Cub Cadet 742-0571

Blade
(Superseded to 942-0571)

$37.99

$

In Stock, Qty 10

0

2

Cub Cadet 710-1254

Hex Patch Bolt 3/8-24 x 2.25" (Gr. 8)

$7.99

$

In Stock, Qty 8

0

4

Cub Cadet 736-0217

L-Wash. 3/8" I.D. H.D.

$4.49

$

In Stock, Qty 8

0

5

Cub Cadet 736-0247

FI-Wash..406" I.D. x 1.25" O.D. Hdn.

$9.49

$

In Stock, Qty 14

0

6

Cub Cadet 11459B

Flail
(Superseded to 91459B)

$21.99

$

In Stock, Qty 20+

0

7

Cub Cadet 711-0564

Flail Spacer
(Superseded to 911-0564)

$16.99

$

In Stock, only 2 left!

0

8

Cub Cadet 711-0833A

Clevis Pin .496" Dia.
(Superseded to 911-0833B)

$12.99

$

In Stock, Qty 5

0

9

Cub Cadet 711-0834

Flail Spacer w/.160" Dia. Hole
(Superseded to 911-0834A)

$

$

Not available

10

Cub Cadet 715-0249

Spring Roll Pin 1.12" Lg.
(Superseded to 915-0249)

$6.99

$

In Stock, only 2 left!

0

11

Cub Cadet 736-0192

FI-Wash .531" I.D. x .94" O.D.

$4.49

$

In Stock, Qty 18

0

12

Cub Cadet 681-0030

Impeller Ass'y. Comp.
(Superseded to 981-04096)

Note: (Incl. Ref. 1, 6, 7, 8, 9, 10, 11, 12, 13, 14)

$600.99

$

Usually ships in 3-6 days

0

13

Cub Cadet 742-0544

Chipper Blade
(Superseded to 942-0544B)

$89.99

$

In Stock, Qty 7

0

14

Cub Cadet 710-1054

Flat Hd. Scr. 5/16-24 x .75" Lg.

$4.49

$

In Stock, Qty 20+

0

15

Cub Cadet 712-0411

Hex Top L-Nut 5/16-24 (Gr. 5)

$4.49

$

In Stock, Qty 20+

0

16

Cub Cadet 736-0119

L-Wash. 5/16" I.D.
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

17

Cub Cadet 710-0825

Hex Bolt 1/4-20 x 3.75" Lg.

$5.49

$

In Stock, only 3 left!

0

18

Cub Cadet 736-0142

FI-Wash .281" I.D. x .5" O.D.

$4.99

$

In Stock, Qty 20+

0

19

Cub Cadet 750-0793

Chute Hinge Spacer 1.66" Ig.
(Superseded to 950-0793)

$3.99

$

In Stock, Qty 12

0

20

Cub Cadet 711-0835

Clevis Pin .5" Dia. x 4.62" Lg.
(Superseded to 911-0835)

$12.99

$

In Stock, only 3 left!

0

22

Cub Cadet 712-0291

Hex Ctr. L-Nut 1/4-20 Thd.

$4.49

$

In Stock, Qty 8

0

23

Cub Cadet 714-3010

Cotter Pin

$4.99

$

In Stock, only 1 left!

0

24

Cub Cadet 781-0457

Shredder Screen
(Superseded to 781-0457-0637)

Variations

Cub Cadet 781-0457-0637

Shredder Screen, Black - POWDER BLACK (0637)

$41.99

$

In Stock, Qty 11

0

$41.99

$

In Stock, Qty 11

0

25

Cub Cadet 714-0149B

Internal Cotter Pin 3/8" Dia.

$4.49

$

In Stock, Qty 18

0

26

Cub Cadet 781-0480

Chute Deflector Ass'y.
(Superseded to 681-0094A)

Variations

Cub Cadet 781-0480-0480

USE 681-0094A-0637 CHUTE-DISC - BRILLIANT GREEN (0480)

$129.99

$

Usually ships in 3-6 days

0

Cub Cadet 781-0480-0483

USE 681-0094A-0637 CHUTE-DISC - CHARCOAL GRAY (0483)

$129.99

$

Usually ships in 3-6 days

0

Cub Cadet 781-0480-0637

USE 681-0094A-0637 CHUTE-DISC - POWDER BLACK (0637)

$129.99

$

Usually ships in 3-6 days

0

Cub Cadet 781-0480-0638

Discharge Chute - MTD/TROY-BILT RED (0638)

$129.99

$

Usually ships in 3-6 days

0

Cub Cadet 781-0480-0662

USE 681-0094A-0637 CHUTE-DISC - OYSTER GRAY (0662)

$129.99

$

Usually ships in 3-6 days

0

Cub Cadet 781-0480-0665

USE 681-0094-0665 CHUTE ASSY- - YARDMAN GREEN (0665)

$129.99

$

Usually ships in 3-6 days

0

Cub Cadet 781-0480-0498

DISCHARGE CHUTE ASSEMBLY - OLD CUB YELLOW (0498)

$

$

Not available

Cub Cadet 781-0480-0686

DISCHARGE CHUTE ASSEMBLY - SIMPLICITY ORANGE (0686)

$

$

Not available

$135.99

$

Usually ships in 3-6 days

0

27

Cub Cadet 712-3010

Hex Nut 5/16-18 Thd. (Gr. 5)

$4.49

$

In Stock, Qty 20+

0

28

Cub Cadet 736-0242

Bell-Wash. .345" I.D. x.88"

$4.49

$

In Stock, Qty 20+

0

29

Cub Cadet 720-0170

Hand Knob

$11.99

$

In Stock, only 2 left!

0

30

Cub Cadet 747-0744A

Chipper Door Rod

$

$

Not available

31

Cub Cadet 732-0542

Torsion Spring 1.14" Lg.
(Superseded to 932-0542)

$

$

Not available

32

Cub Cadet 781-0489

Chipper Door

Variations

Cub Cadet 781-0489-0483

DOOR - CHARCOAL GRAY (0483)

$

$

Not available

Cub Cadet 781-0489-0498

DOOR - OLD CUB YELLOW (0498)

$

$

Not available

Cub Cadet 781-0489-0629

DOOR - SILVER FLAKE (0629)

$

$

Not available

Cub Cadet 781-0489-0637

DOOR-CHIPP - POWDER BLACK (0637)

$

$

Not available

Cub Cadet 781-0489-0638

DOOR - MTD/TROY-BILT RED (0638)

$

$

Not available

Cub Cadet 781-0489-0662

DOOR - OYSTER GRAY (0662)

$

$

Not available

Cub Cadet 781-0489-0665

DOOR - YARDMAN GREEN (0665)

$

$

Not available

$

$

33

Cub Cadet 781-0475

Chipper Chute Ass'y.

Variations

Cub Cadet 781-0475-0480

CHIPPER CHUTE - BRILLIANT GREEN (0480)

$

$

Not available

Cub Cadet 781-0475-0483

CHIPPER CHUTE - CHARCOAL GRAY (0483)

$

$

Not available

Cub Cadet 781-0475-0498

CHIPPER CHUTE - OLD CUB YELLOW (0498)

$

$

Not available

Cub Cadet 781-0475-0629

CHIPPER CHUTE - SILVER FLAKE (0629)

$

$

Not available

Cub Cadet 781-0475-0637

CHIPPER CHUTE - POWDER BLACK (0637)

$

$

Not available

Cub Cadet 781-0475-0638

CHIPPER CHUTE - MTD/TROY-BILT RED (0638)

$

$

Not available

Cub Cadet 781-0475-0648

CHIPPER CHUTE - TECH GRAY (0648)

$

$

Not available

Cub Cadet 781-0475-0650

CHIPPER CHUTE - RED METALLIC (0650)

$

$

Not available

Cub Cadet 781-0475-0662

CHIPPER CHUTE - OYSTER GRAY (0662)

$

$

Not available

Cub Cadet 781-0475-0665

CHIPPER CHUTE - YARDMAN GREEN (0665)

$

$

Not available

Cub Cadet 781-0475-0667

CHIPPER CHUTE - MIDNIGHT BLUE (0667)

$

$

Not available

Cub Cadet 781-0475-0674

CHIPPER CHUTE - YARDMAN YELLOW (0674)

$

$

Not available

$

$

34

Cub Cadet 736-0170

Spec. L-Wash. 5/16" I.D.

$5.99

$

Usually ships in 3-6 days

0

35

Cub Cadet 712-3010

Hex Nut 5/16-18 Thd. (Gr. 5)

$4.49

$

In Stock, Qty 20+

0

36

Cub Cadet 781-0459A

Shredder Frame

Variations

Cub Cadet 781-0459A-0483

SHREDDER FRAME - CHARCOAL GRAY (0483)

$

$

Not available

Cub Cadet 781-0459A-0498

SHREDDER FRAME - OLD CUB YELLOW (0498)

$

$

Not available

Cub Cadet 781-0459A-0638

SHREDDER FRAME - MTD/TROY-BILT RED (0638)

$

$

Not available

Cub Cadet 781-0459A-0662

SHREDDER FRAME - OYSTER GRAY (0662)

$

$

Not available

$

$

37

Cub Cadet 710-0157

Hex Bolt 5/16-24 x .75" Lg.

$4.49

$

In Stock, Qty 18

0

38

Cub Cadet 736-0119

L-Wash. 5/16" I.D.
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

39

Cub Cadet 710-3008

Hex Bolt 5/16-18 x .75" Lg. (Gr. 5)

$4.49

$

In Stock, Qty 20+

0

40

Cub Cadet 710-0380

Hex Bolt 5/16-18 x 1.75" Lg.
(Superseded to 710-3180)

$5.49

$

In Stock, Qty 11

0

41

Cub Cadet 681-0004

Flail Housing Ass'y. - L.H.
(Superseded to 681-0004A)

Variations

Cub Cadet 681-0004-0498

USE 681-0004A-0498 HOUSING AS - OLD CUB YELLOW (0498)

$236.99

$

Usually ships in 3-6 days

0

Cub Cadet 681-0004-0637

USE 681-0004A-0637 HOUSING AS - POWDER BLACK (0637)

$236.99

$

Usually ships in 3-6 days

0

Cub Cadet 681-0004-0638

USE 681-0004A-0638 HOUSING AS - MTD/TROY-BILT RED (0638)

$236.99

$

Usually ships in 3-6 days

0

Cub Cadet 681-0004-0483

USE 681-0004A-0483 HOUSING AS - CHARCOAL GRAY (0483)

$219.99

$

Usually ships in 3-6 days

0

Cub Cadet 681-0004-0662

USE 681-0004A-0662 HOUSING AS - OYSTER GRAY (0662)

$191.99

$

Usually ships in 3-6 days

0

Cub Cadet 681-0004-0665

USE 681-0004A-0665 HOUSING AS - YARDMAN GREEN (0665)

$191.99

$

Usually ships in 3-6 days

0

Cub Cadet 681-0004-0689

USE 681-0004A-0689 HOUSING AS - POLO GREEN (0689)

$219.99

$

Usually ships in 3-6 days

0

$191.99

$

Usually ships in 3-6 days

0

42

Cub Cadet 781-0474A

Flail Housing Ass'y. - R.H.

Variations

Cub Cadet 781-0474A-0480

HOUSING ASSEMBLY-FLAILBRILLIANT - BRILLIANT GREEN (0480)

$

$

Not available

Cub Cadet 781-0474A-0483

HOUSING ASSEMBLY-FLAIL - CHARCOAL GRAY (0483)

$

$

Not available

Cub Cadet 781-0474A-0498

HOUSING ASSEMBLY-FLAIL(CUB YELLOW) - OLD CUB YELLOW (0498)

$

$

Not available

Cub Cadet 781-0474A-0629

HOUSING ASSEMBLY-FLAIL(SILVER FLAKE) - SILVER FLAKE (0629)

$

$

Not available

Cub Cadet 781-0474A-0637

HOUSING ASSEMBLY-FLAIL(POWDER BLACK) - POWDER BLACK (0637)

$

$

Not available

Cub Cadet 781-0474A-0638

HOUSING ASSEMBLY-FLAIL(MTD RED) - MTD/TROY-BILT RED (0638)

$

$

Not available

Cub Cadet 781-0474A-0648

HOUSING ASSEMBLY-FLAIL(TECH GRAY) - TECH GRAY (0648)

$

$

Not available

Cub Cadet 781-0474A-0662

HOUSING ASSEMBLY-FLAIL(OYSTER GRAY) - OYSTER GRAY (0662)

$

$

Not available

Cub Cadet 781-0474A-0665

HOUSING ASSEMBLY-FLAIL(YARD-MAN GREEN) - YARDMAN GREEN (0665)

$

$

Not available

Cub Cadet 781-0474A-0674

HOUSING ASSEMBLY-FLAIL(YARD-MAN YELLOW) - YARDMAN YELLOW (0674)

$

$

Not available

$

$

43

Cub Cadet 735-0639

Spark Plug Boot

Note: (Optional)

$

$

Not available

44

Engine

$

$

Not available

45

Cub Cadet 747-0531A

Release Bar

$

$

Not available

46

Cub Cadet 732-0546

Torsion Spring 1.06" Lg.
(Superseded to 932-0546)

$4.99

$

Usually ships in 3-6 days

0

47

Cub Cadet 712-0429

Elastic Lock Nut 5/16-18 Thd.

$4.49

$

In Stock, Qty 20+

0

48

Cub Cadet 710-0601

Hex Wash. Hd. Self-Tap Scr. 5/16-18 x .75" Lg.
(Superseded to 710-1260A)

$3.99

$

In Stock, Qty 20+

0

49

Cub Cadet 11480

Stop Washer

$

$

Not available

50

Cub Cadet 736-0264

Fl-Wash. 5/16" I.D.

$6.99

$

In Stock, only 1 left!

0

51

Cub Cadet 710-0542

Hex Bolt 5/16-18 x 8.38" Lg.

$

$

Not available

52

Cub Cadet 781-0487B

Back-Up Plate

Variations

Cub Cadet 781-0487B-0637

PLATE-BACK-UP (POWDER BLACK) - POWDER BLACK (0637)

$

$

Not available

Cub Cadet 781-0487B-0638

BACK PLATE - MTD/TROY-BILT RED (0638)

$

$

Not available

$

$

53

Cub Cadet 16522B

Inlet Guide Ass'y.

Variations

Cub Cadet 16522B-0483

GUIDE ASSEMBLY-INLET - CHARCOAL GRAY (0483)

$

$

Not available

Cub Cadet 16522B-0498

GUIDE ASSEMBLY-INLET (CUB YELLOW) - OLD CUB YELLOW (0498)

$

$

Not available

Cub Cadet 16522B-0637

GUIDE ASSEMBLY-INLET - POWDER BLACK (0637)

$

$

Not available

Cub Cadet 16522B-0638

GUIDE ASSEMBLY-INLET - MTD/TROY-BILT RED (0638)

$

$

Not available

Cub Cadet 16522B-0662

GUIDE ASSEMBLY-INLET (OYSTER GRAY) - OYSTER GRAY (0662)

$

$

Not available

$

$

54

Cub Cadet 781-0494

Pivot Hopper Hood

Variations

Cub Cadet 781-0494-0483

HOOD-PIVOT HOPPER CHARCOAL - CHARCOAL GRAY (0483)

$

$

Not available

Cub Cadet 781-0494-0498

HOOD-PIVOT HOPPER (CUB YELLOW) - OLD CUB YELLOW (0498)

$

$

Not available

Cub Cadet 781-0494-0499

HOOD-PIVOT HOPPER (CUB BEIGE) - CUB BEIGE (0499)

$

$

Not available

Cub Cadet 781-0494-0638

HOOD-PIVOT HOPPER (MTD RED) - MTD/TROY-BILT RED (0638)

$

$

Not available

Cub Cadet 781-0494-0662

HOOD-PIVOT HOPPER (OYSTER GRAY) - OYSTER GRAY (0662)

$

$

Not available

$

$

55

Cub Cadet 16524B

Upper Guide Ass'y.

Variations

Cub Cadet 16524B-0483

GUIDE ASSEMBLY-UPR CHARCOAL - CHARCOAL GRAY (0483)

$

$

Not available

Cub Cadet 16524B-0498

GUIDE ASSEMBLY-UPR (CUB YELLOW) - OLD CUB YELLOW (0498)

$

$

Not available

Cub Cadet 16524B-0638

GUIDE ASSEMBLY-UPR (MTD RED) - MTD/TROY-BILT RED (0638)

$

$

Not available

Cub Cadet 16524B-0648

GUIDE ASSEMBLY-UPR (TECH GRAY) - TECH GRAY (0648)

$

$

Not available

Cub Cadet 16524B-0662

GUIDE ASSEMBLY-UPR (OYSTER GRAY) - OYSTER GRAY (0662)

$

$

Not available

$

$

56

Cub Cadet 710-0286

Truss Mach. Scr. 1/4-20 x .5"

$4.49

$

Usually ships in 3-6 days

0

57

Cub Cadet 712-0107

Hex L-Nut 1/4-20 Thd.
(Superseded to 912-0107)

$4.99

$

In Stock, only 1 left!

0

58

Cub Cadet 11461B

Upper Leaf Ramp Section

Variations

Cub Cadet 11461B-0483

RAMP SECTI - CHARCOAL GRAY (0483)

$

$

Not available

Cub Cadet 11461B-0498

RAMP SECTI - OLD CUB YELLOW (0498)

$

$

Not available

Cub Cadet 11461B-0629

RAMP SECTI - SILVER FLAKE (0629)

$

$

Not available

Cub Cadet 11461B-0638

RAMP SECTI - MTD/TROY-BILT RED (0638)

$

$

Not available

Cub Cadet 11461B-0662

RAMP SECTI - OYSTER GRAY (0662)

$

$

Not available

$

$

59

Cub Cadet 726-0214

Push Cap 5/8" Dia. Rod

$10.99

$

Usually ships in 3-6 days

0

60

Cub Cadet 737-0125

Drain Elbow

$

$

Not available

61

Cub Cadet 750-0786

Spacer .64" I.D. x .38" Lg.
(Superseded to 950-0786)

$7.49

$

Usually ships in 3-6 days

0

62

Cub Cadet 738-0813

Shredder Axle

$52.99

$

Usually ships in 3-6 days

0

63

Cub Cadet 734-1597

Wheel Ass'y. Comp.
(Superseded to 934-04009)

Variations

Cub Cadet 734-1597-0911

Wheel Assembly Complete, 10 - Carlisle Gray (0911)

$122.99

$

Usually ships in 3-6 days

0

Cub Cadet 734-1597-0931

Wheel Assembly Complete, 10 - Carlisle Beige (0931)

$122.99

$

Usually ships in 3-6 days

0

Cub Cadet 734-1597-0941

Wheel Assembly Complete, 10 - Carlisle Yellow (0941)

$122.99

$

Usually ships in 3-6 days

0

$122.99

$

Usually ships in 3-6 days

0

64

Cub Cadet 734-1455A

Rim Only

Variations

Cub Cadet 734-1455A-0499

RIM ASSEMBLY: BEIGE - CUB BEIGE (0499)

$

$

Not available

Cub Cadet 734-1455A-0629

RIM - SILVER FLAKE (0629)

$

$

Not available

Cub Cadet 734-1455A-0662

RIM - OYSTER GRAY (0662)

$

$

Not available

Cub Cadet 734-1455A-0674

RIM - YARDMAN YELLOW (0674)

$

$

Not available

$

$

65

Cub Cadet 741-0487A

Flange Bearing .632" I.D.
(Superseded to 741-0487C)

$7.49

$

Usually ships in 3-6 days

0

66

Cub Cadet 734-0255

Air Valve
(Superseded to 934-0255)

$4.49

$

In Stock, Qty 20+

0

67

Cub Cadet 737-0211

Grease Fitting
(Superseded to 737-0211A)

$10.99

$

Usually ships in 3-6 days

0

68

Cub Cadet 710-0895

Hex Hi-Low Scr. 1/4" x .75" Lg.

$6.49

$

Usually ships in 3-6 days

0

69

Cub Cadet 710-3038

Hex Bolt 5/16-18 x .88" Lg.

$4.99

$

In Stock, only 3 left!

0

70

Cub Cadet 726-0205

Hose Clamp

$3.99

$

In Stock, Qty 18

0

71

Cub Cadet 751-0535-7

Fuel Line - 7" Lg.
(Superseded to 751-10349-13)

$17.99

$

In Stock, only 3 left!

0

72

Cub Cadet 751-0570

Fuel Tank Ass'y. Comp.
(Superseded to BS-691993)

$166.99

$

In Stock, Qty 10

0

73

Cub Cadet 781-0497

Fuel Tank Mtg. Brkt.

Variations

Cub Cadet 781-0497-0483

BRACKET-TANK MTG - CHARCOAL GRAY (0483)

$

$

Not available

Cub Cadet 781-0497-0637

BRACKET-TANK MTG - POWDER BLACK (0637)

$

$

Not available

Cub Cadet 781-0497-0638

BRACKET-TANK MTG - MTD/TROY-BILT RED (0638)

$

$

Not available

$

$

74

Cub Cadet 781-0498

Fuel Tank Support Brkt.
(Superseded to 781-0498-0638)

Variations

Cub Cadet 781-0498-0483

USE 781-0498-0638 BRACKET-TAN - CHARCOAL GRAY (0483)

$

$

Not available

Cub Cadet 781-0498-0637

USE 781-0498-0638 BRACKET-TAN - POWDER BLACK (0637)

$

$

Not available

Cub Cadet 781-0498-0638

BRACKET-TANK SUPPO - MTD/TROY-BILT RED (0638)

$

$

Not available

$

$

75

Cub Cadet 732-0629

Torsion Spring
(Superseded to 932-0629)

$

$

Not available

76

Cub Cadet 747-0747

Hopper Door Rod

$

$

Not available

77

Cub Cadet 781-0492

Hopper-Pivot Door
(Superseded to 781-0492A)

Variations

Cub Cadet 781-0492-0483

DOOR-HOPPER PIVOT CHARCOAL - CHARCOAL GRAY (0483)

$

$

Not available

Cub Cadet 781-0492-0498

DOOR-HOPPER PIVOT (CUB YELLOW) - OLD CUB YELLOW (0498)

$

$

Not available

Cub Cadet 781-0492-0637

HOPPER PIVOT DOOR (POWDER BLACK) - POWDER BLACK (0637)

$

$

Not available

Cub Cadet 781-0492-0638

HOPPER PIVOT DOOR - MTD/TROY-BILT RED (0638)

$

$

Not available

Cub Cadet 781-0492-0648

DOOR-HOPPER PIVOT (TECH GRAY) - TECH GRAY (0648)

$

$

Not available

Cub Cadet 781-0492-0662

HOPPER PIVOT DOOR - OYSTER GRAY (0662)

$

$

Not available

$

$

78

Cub Cadet 781-0493

Hopper Lockout Brkt.

Variations

Cub Cadet 781-0493-0483

BRACKET-HOPPER CHARCOAL - CHARCOAL GRAY (0483)

$

$

Not available

Cub Cadet 781-0493-0498

BRACKET-HOPPER (CUB YELLOW) - OLD CUB YELLOW (0498)

$

$

Not available

Cub Cadet 781-0493-0637

BRACKET-HOPPER (POWDER BLACK) - POWDER BLACK (0637)

$

$

Not available

Cub Cadet 781-0493-0638

BRACKET-HOPPER (MTD RED) - MTD/TROY-BILT RED (0638)

$

$

Not available

Cub Cadet 781-0493-0662

BRACKET-HOPPER (OYSTER GRAY) - OYSTER GRAY (0662)

$

$

Not available

$

$

79

Cub Cadet 726-0106

Cap Speed Nut 1/4" Rod

$3.99

$

Usually ships in 3-6 days

0

Cub Cadet 764-0199A

Bag
(Superseded to 964-04022)

Note: (Not Shown)

$74.99

$

Usually ships in 3-6 days

0

Cub Cadet 723-0400

Safety Glasses

Note: (Not Shown)

$26.99

$

Usually ships in 3-6 days

0
