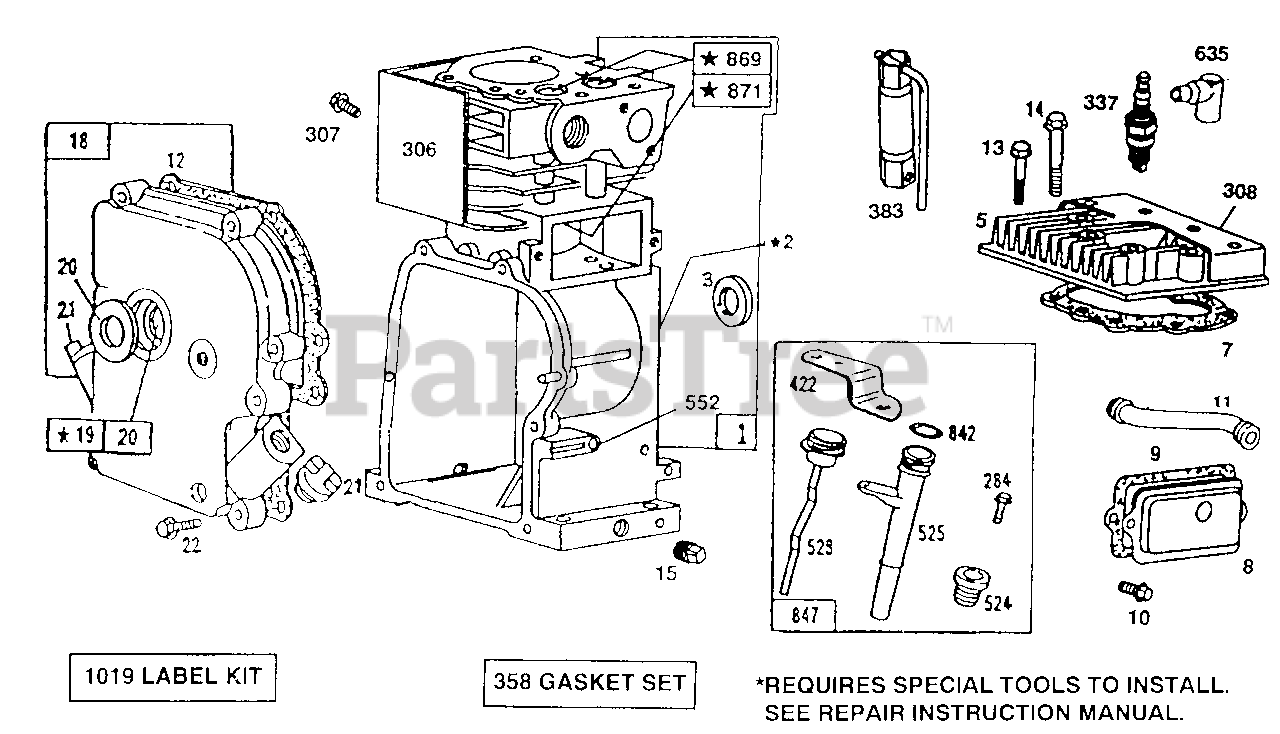

650 C (244-650C100) - Cub Cadet Shredder (1994) B&S 8 HP Cylinder Ass'y, Crankcase Cover Ass'y, Gasket Set Parts Diagram

Shredder

B&S 8 HP Cylinder Ass'y, Crankcase Cover Ass'y, Gasket Set Parts Diagram

  • Title

1

Cub Cadet BS-495631

Cylinder Assembly

$

$

Currently unavailable

2

Cub Cadet BS-495657

Bushing--Cyl.

$

$

Not available

3

Cub Cadet BS-391086

Seal--Oil
(Superseded to BS-391086S)

$6.49

$

In Stock, Qty 20+

0

5

Cub Cadet BS-214015

Head--Cylinder
(Superseded to BS-691715)

$95.99

$

Usually ships in 2-12 days

0

7

Cub Cadet BS-272163

Gasket--Cylinder Hd.
(Superseded to BS-272163S)

$7.99

$

In Stock, Qty 20+

0

8

Cub Cadet BS-390321

Breather Assembly

$

$

Not available

9

Cub Cadet BS-27803

Gasket--Valve cover
(Superseded to BS-27803S)

$4.49

$

In Stock, Qty 20+

0

10

Cub Cadet BS-94621

Screw--Sem
(Superseded to BS-691666)

$3.99

$

In Stock, Qty 5

0

11

Cub Cadet BS-280267

Tube--Breather

$12.99

$

In Stock, only 1 left!

0

12

Cub Cadet BS-271701

Gasket--Crankcase Cover (1/64" Thick)
(Superseded to BS-692221)

$8.99

$

In Stock, Qty 9

0

Cub Cadet BS-27876

Gasket--Crankcase Cover (.005" Thick)

$

$

Not available

Cub Cadet BS-27877

Gasket--Crankcase Cover (.009" Thick)

$10.99

$

In Stock, only 3 left!

0

13

Cub Cadet BS-27877

Screw--Cylinder Head (3-9/16" Long)

$10.99

$

In Stock, only 3 left!

0

14

Cub Cadet BS-94565

Screw--Cyl. Hd. (3" Long)
(Superseded to BS-592244)

$3.49

$

In Stock, Qty 20+

0

15

Cub Cadet BS-94239

Plug--Oil Drain
(Superseded to BS-690946)

$5.99

$

In Stock, Qty 14

0

Cub Cadet BS-94613

Plug--Pipe (Flush)
(Superseded to BS-691680)

$5.99

$

In Stock, only 1 left!

0

18

Cub Cadet BS-399898

Cover Ass'y.--Crkcse.

$

$

Not available

19

Cub Cadet BS-295964

Bushing--Crkcse.

$35.99

$

Usually ships in 2-12 days

0

20

Cub Cadet BS-391086

Seal--Oil
(Superseded to BS-391086S)

$6.49

$

In Stock, Qty 20+

0

21

Cub Cadet BS-66768

Plug--Oil Filler
(Superseded to BS-281658S)

$4.49

$

In Stock, Qty 20+

0

22

Cub Cadet BS-93585

Screw--Crkcse. Cover

$

$

Not available

284

UNKNOWN

$

$

Not available

306

Cub Cadet BS-223374

Shield--Cylinder

$

$

Not available

307

Cub Cadet BS-93949

Screw--Cyl. Shield

$

$

Not available

308

Cub Cadet BS-222636

Cover--Cylinder Head

$

$

Currently unavailable

337

Cub Cadet 759-3338

Plug--Spark

$3.49

$

In Stock, Qty 20+

0

358

Cub Cadet BS-299577

Gasket Set

$35.99

$

In Stock, Qty 11

0

383

Cub Cadet BS-89838

Wrench--Spark Plug
(Superseded to BS-89838S)

$6.49

$

In Stock, only 4 left!

0

422

Cub Cadet BS-223375

Bracket--Oil Fill

$

$

Currently unavailable

523

Cub Cadet BS-396987

Cap and Dipstick--Oil Filler

$

$

Not available

524

Cub Cadet BS-68838

Seal--Filler Tube
(Superseded to BS-281370S)

$8.49

$

In Stock, Qty 20+

0

525

Cub Cadet BS-280220

Tube--Oil Fill

$

$

Not available

552

Cub Cadet BS-491893

Bushing--Gov. Crank

$

$

Currently unavailable

635

Cub Cadet BS-66538

Elbow--Spark Plug
(Superseded to BS-66538S)

$3.99

$

In Stock, Qty 12

0

842

Cub Cadet BS-271170

Seal--Tube

$4.49

$

Usually ships in 2-12 days

0

847

Cub Cadet BS-399901

Dipstick and Tube Ass'y.

$

$

Not available

869

Cub Cadet BS-211661

Seat--Int. and Ex. Vlv.

$

$

Not available

871

Cub Cadet BS-231218

Guide--Ex. and Int. Vlv.

Note: For Options See Repair Manual

$14.99

$

In Stock, Qty 7

0

1019

Cub Cadet BS-491181

Label Kit

$40.99

$

Usually ships in 2-12 days

0
