650 (249-650-100) - Cub Cadet Shredder Engine (1989) B&S 5 HP 130212-3112-01 Part 2 Parts Diagram

Shredder Engine

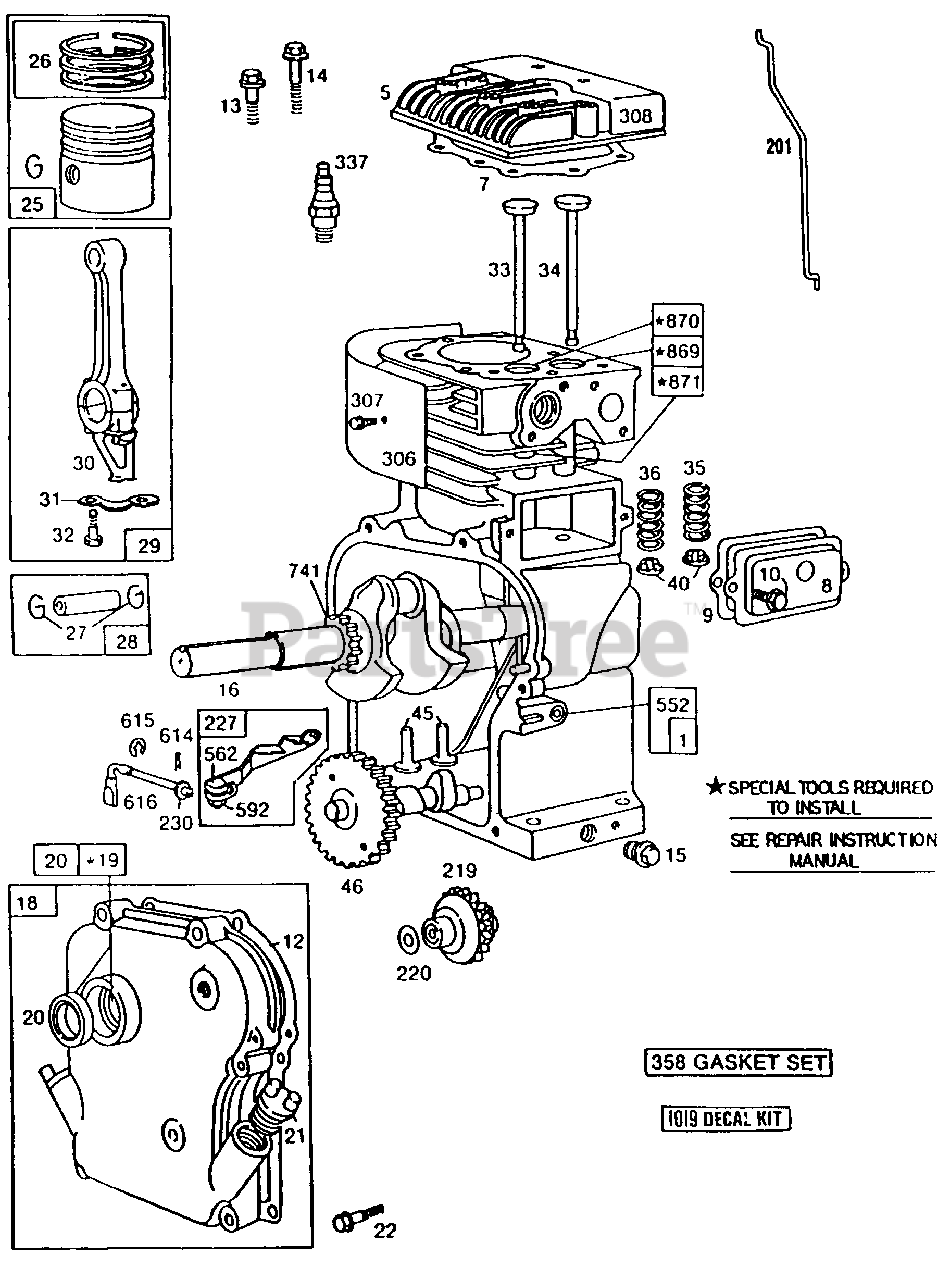

B&S 5 HP 130212-3112-01 Part 2 Parts Diagram

  • Title

1

Cub Cadet BS-395990

Cylinder Assembly

$

$

Not available

5

Cub Cadet BS-211542

Head Cylinder

$

$

Not available

7

Cub Cadet BS-270383

Gasket Cylinder Head

Note: (Included in Gasket Set - Part No. 397145)

$

$

Not available

8

Cub Cadet BS-294178

Breather Valve Chamber
(Superseded to BS-791779)

$15.99

$

Usually ships in 2-12 days

0

9

Cub Cadet BS-27549

Gasket Valve Cover

Note: (Included in Gasket Set - Part No. 397145)

$

$

Not available

10

Cub Cadet BS-93394

Screw Breather Mtg. Sem
(Superseded to BS-691666)

$3.99

$

In Stock, Qty 5

0

12

Cub Cadet BS-270080

Gasket Crankcase .015" Thick

Note: (Standard)

$

$

Not available

Cub Cadet BS-270125

Gasket Crankcase .005" Thick

Note: (Included in Gasket Set - Part No. 397145)

$9.99

$

Usually ships in 2-12 days

0

Cub Cadet BS-270126

Gasket Crankcase .009" Thick

Note: (Included in Gasket Set - Part No. 397145)

$8.49

$

In Stock, only 2 left!

0

13

Cub Cadet BS-93368

Screw Cylinder Head (2-3/32" Long)
(Superseded to BS-691640)

$3.49

$

In Stock, Qty 11

0

14

Cub Cadet BS-93369

Screw Cylinder Head (2-15/32" Long)

$

$

Not available

15

Cub Cadet BS-91249

Plug Pipe, 1/4" Std. Square Head
(Superseded to BS-691686)

$5.49

$

In Stock, only 1 left!

0

16

Cub Cadet BS-397098

Crankshaft

$

$

Not available

18

Cub Cadet BS-298517

Cover Ass'y. Crankcase

$

$

Not available

19

Cub Cadet BS-297603

Bushing Crankcase Cover

$

$

Not available

20

Cub Cadet BS-298504

Seal Oil
(Superseded to BS-495307S)

$8.99

$

In Stock, only 1 left!

0

21

Cub Cadet BS-66768

Plug Oil Filler
(Superseded to BS-281658S)

$4.49

$

In Stock, Qty 20+

0

22

Cub Cadet BS-93032

Screw Crankcase Cover Mounting Sem

$

$

Not available

25

Cub Cadet BS-298904

Piston Ass'y. Standard

$82.99

$

Usually ships in 2-12 days

0

Cub Cadet BS-298905

Piston Ass'y. .010" O.S.

$50.99

$

Usually ships in 2-12 days

0

Cub Cadet BS-298906

Piston Ass'y. .020" O.S.

$

$

Not available

Cub Cadet BS-298907

Piston Ass'y. .030" O.S.

$

$

Not available

26

Cub Cadet BS-298982

Ring Set Standard Piston

$48.99

$

In Stock, Qty 8

0

Cub Cadet BS-298983

Ring Set .010" O.S. Piston

$

$

Not available

Cub Cadet BS-298984

Ring Set .020" O.S. Piston

$35.99

$

Usually ships in 2-12 days

0

Cub Cadet BS-298985

Ring Set .030" O.S. Piston

$23.99

$

Usually ships in 2-12 days

0

27

Cub Cadet BS-26026

Lock Piston Pin

$

$

Not available

28

Cub Cadet BS-298909

Pin Ass'y. Piston Standard

$8.99

$

In Stock, only 2 left!

0

Cub Cadet BS-298908

Pin Ass'y. Piston .005" O.S.

$4.99

$

Usually ships in 2-12 days

0

29

Cub Cadet BS-299430

Rod Ass'y. Connecting

$40.99

$

In Stock, only 1 left!

0

30

Cub Cadet BS-221890

Dipper Connecting Rod
(Superseded to BS-691759)

$8.49

$

Usually ships in 2-12 days

0

31

Cub Cadet BS-221876

Lock Conn. Rod Screw

$4.99

$

Usually ships in 2-12 days

0

32

Cub Cadet BS-92296

Screw Connecting Rod

$

$

Not available

33

Cub Cadet BS-211119

Valve Exhaust
(Superseded to BS-211119S)

$

$

Not available

34

Cub Cadet BS-261044

Valve Intake
(Superseded to BS-261044S)

$

$

Not available

35

Cub Cadet BS-260552

Spring Intake Valve

$5.49

$

In Stock, only 1 left!

0

36

Cub Cadet BS-26478

Spring Exhaust Valve

$6.49

$

In Stock, only 1 left!

0

40

Cub Cadet BS-93312

Retainer Valve Spring
(Superseded to BS-692194)

$5.99

$

In Stock, Qty 9

0

45

Cub Cadet BS-260642

Tappet Valve

$

$

Not available

46

Cub Cadet BS-212733

Gear Cam

$

$

Not available

201

Cub Cadet BS-262280

Link Governor

$

$

Not available

219

Cub Cadet BS-391737

Gear Governor

$38.99

$

In Stock, only 2 left!

0

220

Cub Cadet BS-221551

Washer Thrust
(Superseded to BS-691724)

$5.49

$

In Stock, only 2 left!

0

227

Cub Cadet BS-490374

Lever Ass'y. Governor

$

$

Not available

230

Cub Cadet BS-222450

Washer Governor Lever
(Superseded to BS-691691)

$3.99

$

In Stock, Qty 5

0

306

Cub Cadet BS-221511

Shield Cylinder

$

$

Currently unavailable

307

Cub Cadet BS-93490

Screw Cylinder Shield Mounting Sem
(Superseded to BS-691660)

$3.99

$

In Stock, Qty 8

0

308

Cub Cadet BS-221512

Cover Cylinder Head

$28.99

$

In Stock, only 1 left!

0

337

Cub Cadet 759-3331

Plug Spark 1 1/2" High 37-42 M.M.

$4.99

$

In Stock, only 2 left!

0

358

Cub Cadet BS-397145

Gasket Set
(Superseded to BS-495603)

$32.99

$

In Stock, Qty 20+

0

552

Cub Cadet BS-231079

Bushing Governor Crank (1/4" I.D.)

$

$

Not available

562

Cub Cadet BS-92613

Bolt Governor Lever

$

$

Not available

592

Cub Cadet BS-231082

Nut Hex. 10-24

$

$

Not available

614

Cub Cadet BS-93306

Cotter Hairpin

$

$

Not available

615

Cub Cadet BS-93307

Retainer E-Ring

$5.99

$

In Stock, only 3 left!

0

616

Cub Cadet BS-231077

Crank Governor (1/4" Dia.)

$

$

Currently unavailable

741

Cub Cadet BS-261696

Gear Timing

$52.99

$

Usually ships in 2-12 days

0

869

Cub Cadet BS-211787

Seat Intake Valve

Note: (Standard)

$

$

Not available

870

Cub Cadet BS-211172

Seat Exhaust Valve

Note: (Standard)

$

$

Not available

871

Cub Cadet BS-231348

Guide Exhaust Valve

$31.99

$

Usually ships in 2-12 days

0

1019

Cub Cadet BS-491100

Decal (Label) Kit

$34.99

$

Usually ships in 2-12 days

0
