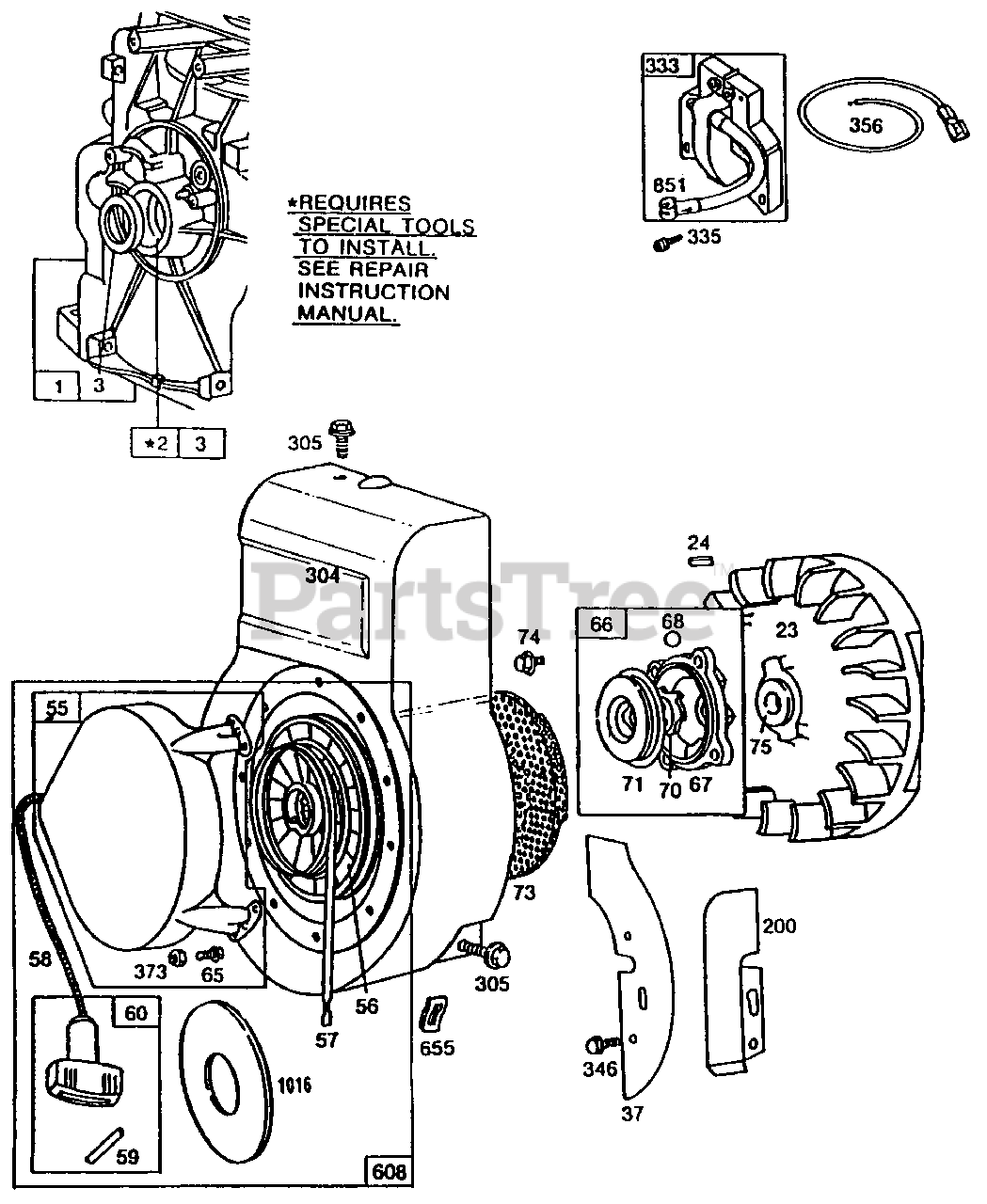

650 (249-650-100) - Cub Cadet Shredder Engine (1989) B&S 5 HP 130212-3112-01 Part 1 Parts Diagram

Shredder Engine

B&S 5 HP 130212-3112-01 Part 1 Parts Diagram

  • Title
1

Cub Cadet BS-395990

Cylinder Assembly

$

$

Not available

2

Cub Cadet BS-297565

Bushing Cylinder

$20.99

$

Usually ships in 2-12 days

0

3

Cub Cadet BS-299819

Seal Oil
(Superseded to BS-299819S)

$5.49

$

In Stock, Qty 17

0

23

Cub Cadet BS-399673

Flywheel Magneto

$76.99

$

Usually ships in 2-12 days

0

24

Cub Cadet BS-222698

Key Flywheel
(Superseded to BS-222698S)

$2.99

$

In Stock, Qty 20+

0

37

Cub Cadet BS-222443

Guard Flywheel

$

$

Not available

55

Cub Cadet BS-299431

Housing Rewind Starter

$

$

Not available

56

Cub Cadet BS-295871

Pulley Rewind Starter

$14.99

$

In Stock, Qty 20+

0

57

Cub Cadet BS-490179

Spring Rewind Starter

$

$

Not available

58

Cub Cadet BS-66884

Rope Rewind Starter 63" Long
(Superseded to BS-692188)

$8.49

$

In Stock, only 1 left!

0

59

Cub Cadet BS-230228

Pin Starer Grip

$

$

Not available

60

Cub Cadet BS-66728

Grip Starer Rope
(Superseded to BS-490652)

$5.49

$

In Stock, Qty 12

0

65

Cub Cadet BS-94128

Screw Stamped Steel Housing Mtg. Sem
(Superseded to BS-690837)

$3.49

$

In Stock, Qty 20+

0

66

Cub Cadet BS-399671

Clutch Ass'y. Rewind Starter

$34.99

$

In Stock, Qty 20+

0

67

Cub Cadet BS-394897

Housing Starter Clutch

$36.99

$

In Stock, only 1 left!

0

68

Cub Cadet BS-63770

Ball Clutch

$

$

Not available

70

Cub Cadet BS-298799

Ratchet Rewind Starter
(Superseded to BS-691945)

$17.99

$

In Stock, only 1 left!

0

71

Cub Cadet BS-394506

Washer Clutch Retainer

$

$

Not available

73

Cub Cadet BS-221923

Screen Starter Pulley

$

$

Not available

74

Cub Cadet BS-93490

Screw Sem
(Superseded to BS-691660)

$3.99

$

In Stock, Qty 8

0

75

Cub Cadet BS-220865

Washer Spring

$

$

Currently unavailable

200

$

$

Not available

304

Cub Cadet BS-490169

Housing Blower

$

$

Not available

305

Cub Cadet BS-93158

Screw Blower Housing Mounting

$

$

Not available

333

Cub Cadet BS-397358

Armature Assembly

$53.99

$

In Stock, Qty 20+

0

335

Cub Cadet BS-93414

Screw Armature Mtg. Sem

$

$

Not available

346

Cub Cadet BS-93705

Screw Sem
(Superseded to BS-690661)

$3.49

$

In Stock, Qty 9

0

356

Cub Cadet BS-398808

Wire Ground

$11.99

$

In Stock, only 1 left!

0

373

Cub Cadet BS-92987

Nut Hex
(Superseded to 712-0349)

$4.99

$

In Stock, Qty 5

0

608

Cub Cadet BS-390463

Starter Ass'y. Rewind

$

$

Not available

655

Cub Cadet BS-222598

Anchor Spring

$

$

Not available

851

Cub Cadet BS-221798

Cable Terminal Ignition
(Superseded to BS-493880S)

$3.49

$

In Stock, Qty 20+

0

1016

$9.49

$

In Stock, Qty 5

0
