650 (247-650-100) - Cub Cadet Shredder (1987) Shredder Parts Diagram

Shredder

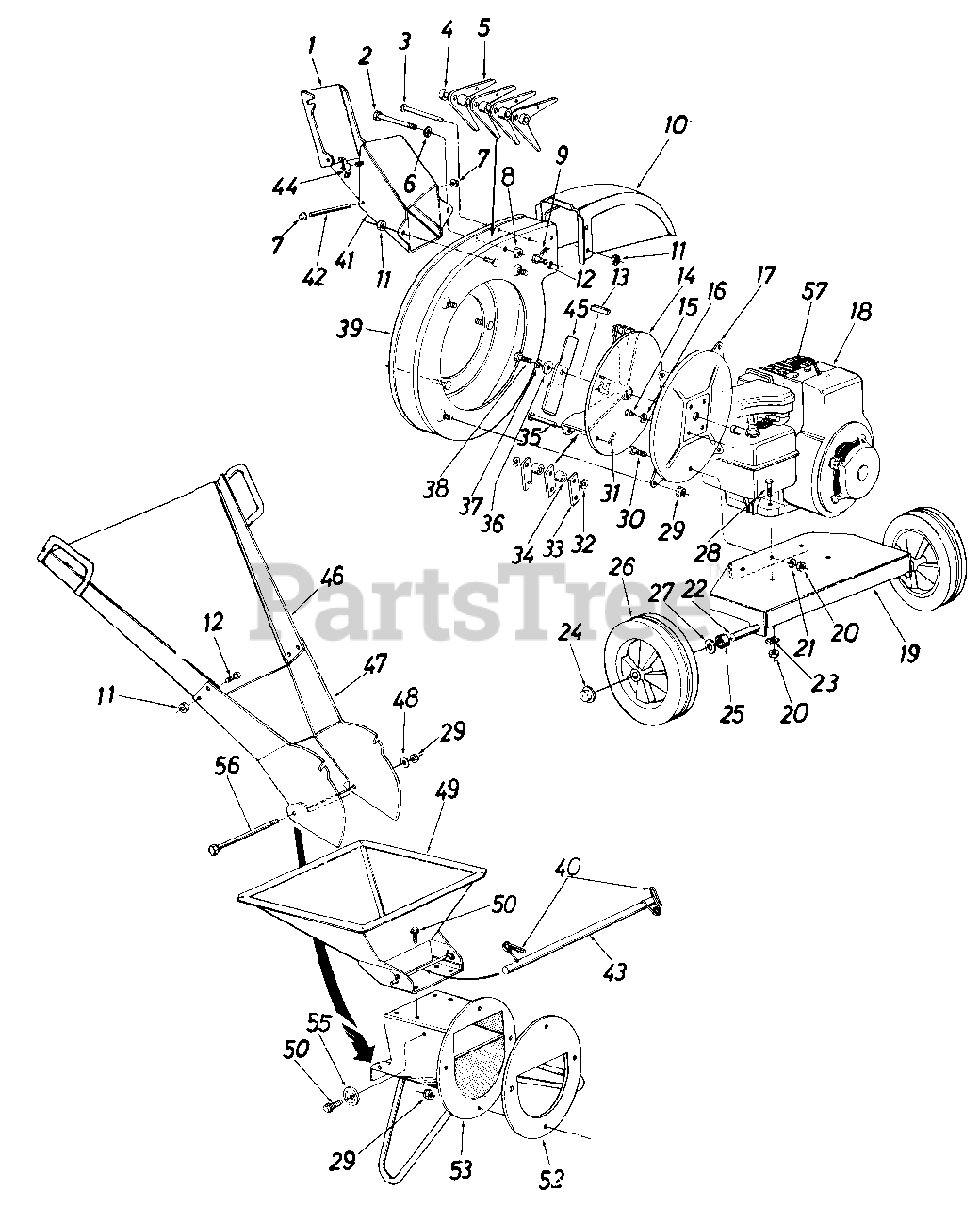

Shredder Parts Diagram

  • Title

1

Cub Cadet 11476

Door Chip It

$

$

Currently unavailable

2

Cub Cadet 710-0465

Hex Bolt 1/2-20 x 4.50" Lg.*

$11.99

$

In Stock, only 1 left!

0

3

Cub Cadet 711-0580

Clevis Pin

$

$

Not available

4

Cub Cadet 711-0579

Flail Spacer 7/32" Lg.

$

$

Not available

5

Cub Cadet 11455

Cutting Finger

$

$

Not available

6

Cub Cadet 736-0921

L-Wash. 1/2" I.D.*

$4.49

$

In Stock, Qty 6

0

7

Cub Cadet 726-0111

Palnut 3/16" Dia.

$

$

Not available

8

Cub Cadet 712-0922

Hex Jam Nut 1,2-20 Thd.*
(Superseded to 712-3029)

$6.99

$

In Stock, Qty 6

0

9

Cub Cadet 714-0507

Cotter Pin 3132" Dia. x 3/4" Lg .

$4.49

$

In Stock, only 2 left!

0

10

Cub Cadet 16568

Chute Deflector

$

$

Not available

11

Cub Cadet 712-0107

L.-Nut 1/4-20 Thd.
(Superseded to 912-0107)

$4.99

$

In Stock, only 1 left!

0

12

Cub Cadet 710-0289

Hex Bolt 1/4-20 x .50" Lg.*
(Superseded to 910-0289)

$3.99

$

In Stock, only 3 left!

0

13

Cub Cadet 714-0114

Sq. Key 1/4" x 2.00" Lg.
(Superseded to 914-0114)

$4.49

$

In Stock, only 1 left!

0

14

Cub Cadet 13430

Impeller Assembly

$

$

Not available

15

Cub Cadet 710-0157

Hex Bolt 5/16-24 x 3/4" Lg.

$4.49

$

In Stock, Qty 18

0

16

Cub Cadet 736-0119

L.-Wash. 5/16" I.D.*
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

17

Cub Cadet 14573

Hopper to Engine Mtg. Plate

$

$

Currently unavailable

18

Engine

$

$

Not available

19

Cub Cadet 11464

Engine Mounting Plate

$

$

Not available

20

Cub Cadet 712-0123

Hex Nut 5/16-24 Thd.*
(Superseded to 912-3057)

$6.99

$

In Stock, only 3 left!

0

21

Cub Cadet 736-0119

L.-Wash. 5/16" I.D.*
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

22

Cub Cadet 738-0521

Shaft

$

$

Not available

23

Cub Cadet 736-0170

Special L.-Wash. 5/16" I.D.

$5.99

$

Usually ships in 3-6 days

0

24

Cub Cadet 726-0221

Push Cap

$6.49

$

In Stock, only 1 left!

0

25

Cub Cadet 711-0494

Spacer

$

$

Not available

26

Cub Cadet 734-1056

Wheel Ass'y.-Comp.

$

$

Currently unavailable

27

Cub Cadet 736-0100

Fl.-Wash. .50" I.D.

$6.99

$

In Stock, Qty 7

0

28

Cub Cadet 710-0624

Hex Bolt 5/16-24 x 1.50" Lg.*

$5.99

$

Usually ships in 3-6 days

0

29

Cub Cadet 712-0429

Elastic Lock Nut 5/16-18 Thd.

$4.49

$

In Stock, Qty 20+

0

30

Cub Cadet 710-0237

Hex Bolt 5/16-24 x .62" Lg.*

$4.49

$

In Stock, only 1 left!

0

31

Cub Cadet 714-0144

Cotter Pin 1/8" Dia. x 1.00" Lg.* (Special)

$

$

Not available

32

Cub Cadet 736-0192

Fl.-Wash. .531" I.D. x 937 O.D. x .09

$4.49

$

In Stock, Qty 18

0

33

Cub Cadet 11459

Flail
(Superseded to 91459B)

$21.99

$

In Stock, Qty 20+

0

34

Cub Cadet 711-0564

Flail Spacer 23/32" Lg.
(Superseded to 911-0564)

$16.99

$

In Stock, only 2 left!

0

35

Cub Cadet 711-0578

Clevis Pin .50" Dia. x 3.0" Lg.

$10.99

$

Usually ships in 3-6 days

0

36

Cub Cadet 736-0247

Fl.-Wash. .406" I.D. x 1.25" O.D. Hdn.

$9.49

$

In Stock, Qty 14

0

37

Cub Cadet 736-0217

L.-Wash. 3/8" I.D. H.D.

$4.49

$

In Stock, Qty 8

0

38

Cub Cadet 710-0151

Hex Bolt 3/8-24 x 2.0" Lg. H.T.

$7.49

$

In Stock, only 3 left!

0

39

Cub Cadet 14575

Flail Housing Ass'y.-Comp.

Note: Color Code 499

Variations

Cub Cadet 14575-0637

HOUSING AS - POWDER BLACK (0637)

$

$

Not available

$

$

40

Cub Cadet 732-0546

Torsion Spring .062 Dia. x 1.06 Lg.
(Superseded to 932-0546)

$4.99

$

In Stock, only 2 left!

0

41

Cub Cadet 11477

Chip-lt Guide Ass'y.

$

$

Currently unavailable

42

Cub Cadet 11478

Hinge Pin

$

$

Currently unavailable

43

Cub Cadet 747-0531

Release Bar

$

$

Not available

44

Cub Cadet 712-0109

Wing Nut Elastic 1/4-20 Thd.

$

$

Not available

45

Cub Cadet 13431

Blade
(Superseded to 13431-0637)

Variations

Cub Cadet 13431-0637

Shredder Blade, Black - POWDER BLACK (0637)

$

$

Not available

$

$

46

Cub Cadet 11460

Upper Leaf Ramp Section

Note: Color Code 499

$

$

Not available

47

Cub Cadet 16524

Lower Leaf Ramp Section

Note: Color Code 499

$

$

Not available

48

Cub Cadet 736-0264

Fl.-Wash. 5/16" I.D.

$6.99

$

In Stock, only 1 left!

0

49

Cub Cadet 11481

Hopper Assembly

Note: Color Code 499

$

$

Not available

50

Cub Cadet 710-0601

Hex Wash. Hd. Self-Tap Scr. 5/16-18 x .75" Lg.
(Superseded to 710-1260A)

$3.99

$

In Stock, Qty 20+

0

52

Cub Cadet 11454

Back-Up Plate

$

$

Not available

53

Cub Cadet 16522

Inlet Guide Assembly

$

$

Not available

55

Cub Cadet 11480

Stop Washer

$

$

Not available

56

Cub Cadet 710-0542

Hex Bolt 5/16-18 x 8.38" Lg.

$

$

Not available

57

Cub Cadet 735-0639

Spark Plug Elbow (Optional)

$

$

Not available

Cub Cadet 764-0199

Bag
(Superseded to 964-04022)

Note: (Not Shown)

$74.99

$

In Stock, only 1 left!

0

Cub Cadet 723-0400

Safety Glasses

Note: (Not Shown)

$26.99

$

Usually ships in 3-6 days

0
