650 (240-650-100) - Cub Cadet Shredder (1990) Shredder Parts Diagram

Shredder

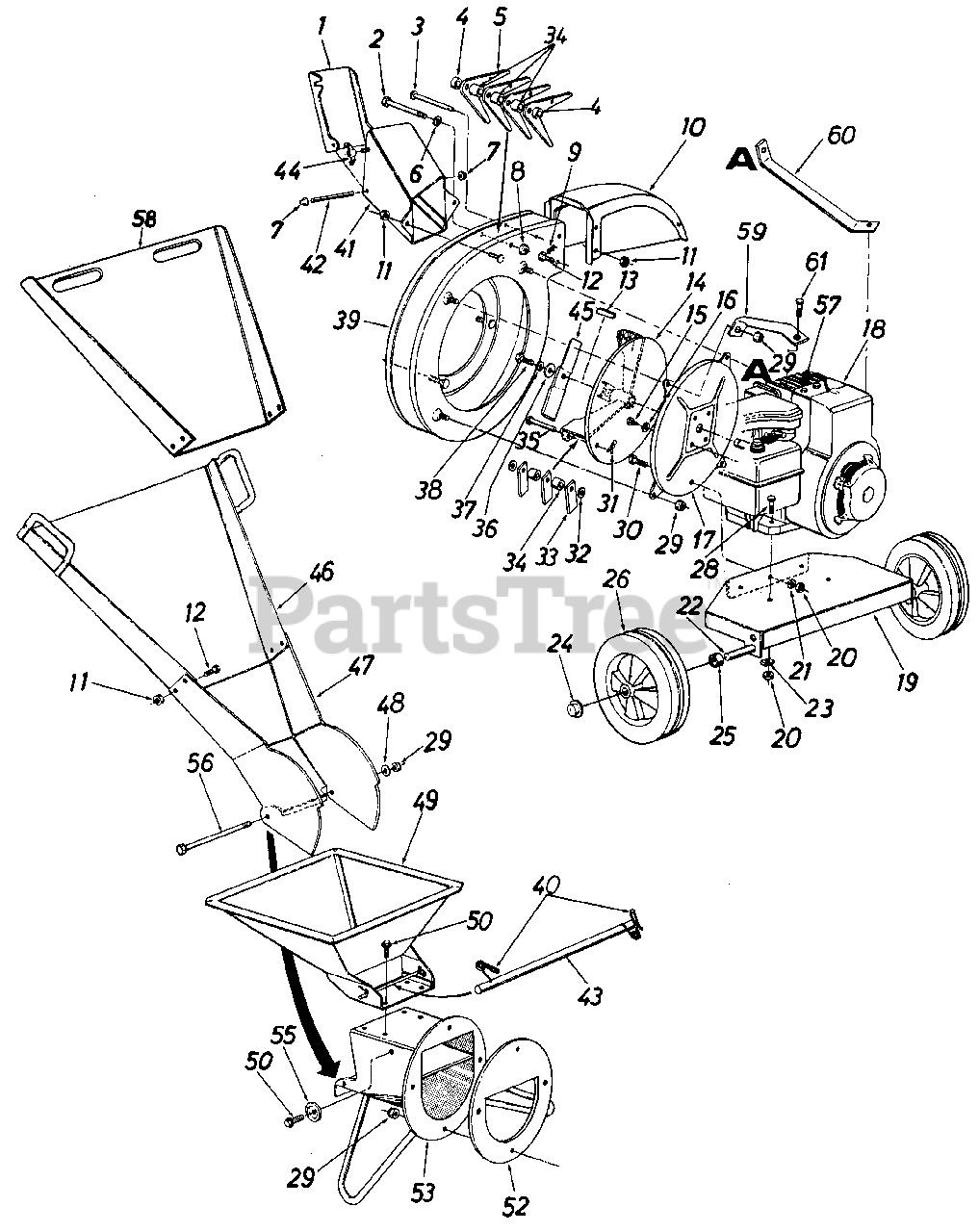

Shredder Parts Diagram

  • Title

1

Cub Cadet 11476

DOOR

$

$

Currently unavailable

2

Cub Cadet 710-0465

SCREW-HEX 1/2-20 X 4.50

$11.99

$

In Stock, only 1 left!

0

3

Cub Cadet 711-0580

PIN-CLEVIS-5/16 X3 5/8

$

$

Not available

4

Cub Cadet 711-0579

SPACER

$

$

Not available

5

Cub Cadet 11455

CUTTING FINGER

$

$

Not available

6

Cub Cadet 736-0921

WASHER-LOCK-1/2

$4.49

$

In Stock, Qty 6

0

7

Cub Cadet 726-0111

NUT-PUSH

$

$

Not available

8

Cub Cadet 712-0922

NUT-HEX JAM 1/2-20
(Superseded to 712-3029)

$6.99

$

In Stock, Qty 6

0

9

Cub Cadet 714-0507

PIN-COTTER-3/32 DIA X .75

$4.49

$

In Stock, only 2 left!

0

10

Cub Cadet 16568

DEFLECTOR-CHUTE

$

$

Not available

11

Cub Cadet 712-0107

NUT-HEX CENTER L-1/4-20
(Superseded to 912-0107)

$4.99

$

In Stock, only 1 left!

0

12

Cub Cadet 710-0289

SCREW-HEX 1/4-20 X .50
(Superseded to 910-0289)

$3.99

$

In Stock, only 3 left!

0

13

Cub Cadet 714-0115

PIN-COTTER-1/8 DIA X 1.00

$3.99

$

In Stock, only 2 left!

0

14

Cub Cadet 13430

IMPELLER ASSY-COMP

$

$

Not available

15

Cub Cadet 710-0157

SCREW-HEX 5/16-24 X .75

$4.49

$

In Stock, Qty 18

0

16

Cub Cadet 736-0119

WASHER-LOCK-5/16
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

17

Cub Cadet 14573

PLATE-MTG

$

$

Currently unavailable

18

Note: Engine

$

$

Not available

19

Cub Cadet 11464A

PLATE-ENGINE MTG

$

$

Not available

20

Cub Cadet 712-0123

NUT-5/16-24
(Superseded to 912-3057)

$6.99

$

In Stock, only 3 left!

0

21

Cub Cadet 736-0119

WASHER-LOCK-5/16
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

22

Cub Cadet 738-0521

AXLE

$

$

Not available

23

Cub Cadet 736-0170

WASHER-SPEC L 5/16 X .88 OD

$5.99

$

Usually ships in 3-6 days

0

24

Cub Cadet 726-0221

CAP-PUSH

$6.49

$

In Stock, only 1 left!

0

25

Cub Cadet 711-0494

SPACER

$

$

Not available

26

Cub Cadet 734-1173

WHEEL ASSY W/TIRE

$

$

Currently unavailable

28

Cub Cadet 710-0624

SCREW-5/16-24 X 1.5

$5.99

$

Usually ships in 3-6 days

0

29

Cub Cadet 712-0429

NUT-HEX INS L-5/16-18

$4.49

$

In Stock, Qty 20+

0

30

Cub Cadet 710-0237

SCREW-HEX 5/16-24 X .62

$4.49

$

In Stock, only 1 left!

0

31

Cub Cadet 714-0144

PIN-COTTER-1/8 DIA X 1

$

$

Not available

32

Cub Cadet 736-0192

WASHER-FL-.531 ID X .93 OD X .090

$4.49

$

In Stock, Qty 18

0

33

Cub Cadet 11459A

FLAIL
(Superseded to 91459B)

$21.99

$

In Stock, Qty 20+

0

34

Cub Cadet 711-0564

SPACER-FLAIL
(Superseded to 911-0564)

$16.99

$

In Stock, only 2 left!

0

35

Cub Cadet 711-0578

PIN-CLEVIS-1/2 X 3

$10.99

$

Usually ships in 3-6 days

0

36

Cub Cadet 736-0237

WASHER-FL

$4.49

$

In Stock, Qty 20+

0

37

Cub Cadet 736-0217

WASHER-HDL 3/8

$4.49

$

In Stock, Qty 8

0

38

Cub Cadet 710-0151

SCREW-HEX 3/8-24 X 2.00

$7.49

$

In Stock, only 3 left!

0

39

Cub Cadet 14575

HOUSING ASSY-FLAIL

Note: Color Code 498

Variations

Cub Cadet 14575-0637

HOUSING AS - POWDER BLACK (0637)

$

$

Not available

$

$

40

Cub Cadet 732-0546

SPRING-TORSION
(Superseded to 932-0546)

$4.99

$

In Stock, only 2 left!

0

41

Cub Cadet 11477

EXTENSION ASSY-GUARD

$

$

Currently unavailable

42

Cub Cadet 11478

PIN-HINGE

$

$

Currently unavailable

43

Cub Cadet 747-0531

BAR-RELEASE

$

$

Not available

44

Cub Cadet 712-0109

NUT-INS WING L-1/4-20

$

$

Not available

45

Cub Cadet 13431

BLADE-SHREDDER
(Superseded to 13431-0637)

Variations

Cub Cadet 13431-0637

Shredder Blade, Black - POWDER BLACK (0637)

$

$

Not available

$

$

46

Cub Cadet 11460

RAMP

Note: Color Code 498

$

$

Not available

47

Cub Cadet 16524

RAMP-SECTION-LWR LEAF

Note: Color Code 498

$

$

Not available

48

Cub Cadet 736-0264

WASHER-FL-.344 X .62

$6.99

$

In Stock, only 1 left!

0

49

Cub Cadet 11481A

HOPPER ASSY

Note: Color Code 498

$

$

Not available

50

Cub Cadet 710-0601

SCREW-HEX WASH SF TAPP
(Superseded to 710-1260A)

$3.99

$

In Stock, Qty 20+

0

52

Cub Cadet 11454

PLATE-BACK-UP

$

$

Not available

53

Cub Cadet 16522

GUIDE ASSY-INLET

$

$

Not available

55

Cub Cadet 11480

WASHER-STOP

$

$

Not available

56

Cub Cadet 710-0542

SCREW-HEX 5/16-18 X 8.25

$

$

Not available

57

Cub Cadet 735-0639

INSULATOR-SPARK PLUG

Note: (Optional)

$

$

Not available

58

Cub Cadet 11461B

RAMP SECTION-UPR

Note: (Optional)

Variations

Cub Cadet 11461B-0483

RAMP SECTI - CHARCOAL GRAY (0483)

$

$

Not available

Cub Cadet 11461B-0498

RAMP SECTI - OLD CUB YELLOW (0498)

$

$

Not available

Cub Cadet 11461B-0629

RAMP SECTI - SILVER FLAKE (0629)

$

$

Not available

Cub Cadet 11461B-0638

RAMP SECTI - MTD/TROY-BILT RED (0638)

$

$

Not available

Cub Cadet 11461B-0662

RAMP SECTI - OYSTER GRAY (0662)

$

$

Not available

$

$

59

Cub Cadet 781-0420

BRACE-SUPPORT-RH

$

$

Not available

60

Cub Cadet 781-0421

BRACE-SUPPORT-LH

$

$

Not available

61

Note: Part of Engine

$

$

Not available

Cub Cadet 764-0199

BAG-SHREDDER
(Superseded to 964-04022)

Note: (Not Shown)

$74.99

$

In Stock, only 1 left!

0

Cub Cadet 723-0400

GLASSES-SAFETY

Note: (Not Shown)

$26.99

$

Usually ships in 3-6 days

0
