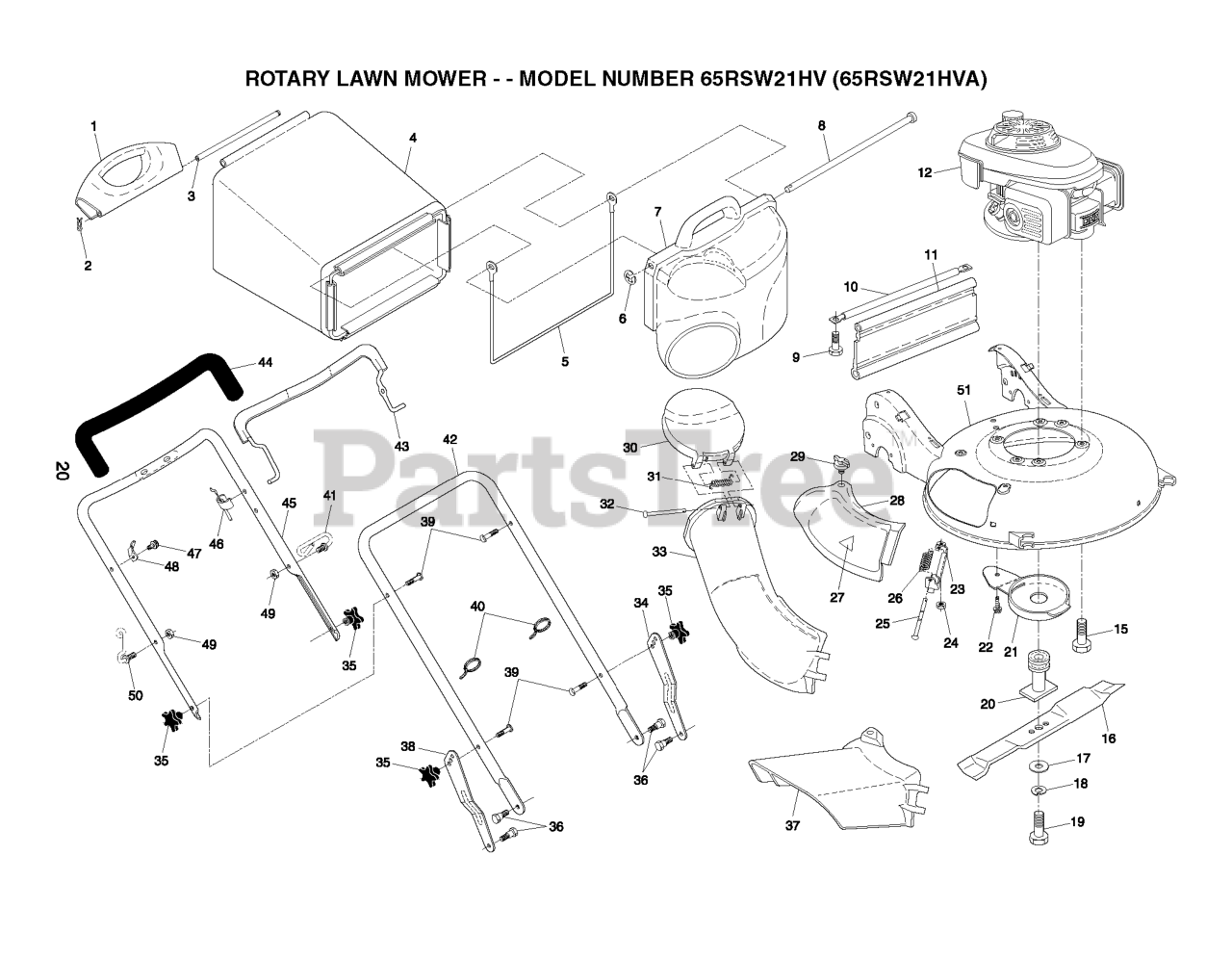

65 RSW 21 HVA - Husqvarna Walk-Behind Mower (2004-03) PRODUCT COMPLETE 2 Parts Diagram

Walk-Behind Mower

PRODUCT COMPLETE 2 Parts Diagram

  • Title

23

Husqvarna 532183609

BRACKET.ASM.HINGE

$

$

Not available

28

Husqvarna 532185995

MULCH DOOR
(Superseded to 532188010)

$

$

Not available

Husqvarna 532186302

GRASS BAG ASSY
(Superseded to 532431754)

Note: COMPLETE

$182.99

$

Usually ships in 3-10 days

0

33

Husqvarna 532186000

PLASTIC DISCHARGE CHUTE
(Superseded to 532188504)

$

$

Not available

11

Husqvarna 532183463

SKIRT.REAR.21".HI-VAC.BLACK

$

$

Not available

29

Husqvarna 532183447

KNOB.MULCH.DOOR

$

$

Not available

Husqvarna 532162300

WARNING DECAL
(Superseded to 530402152)

Note: NOT SHOWN

$1.49

$

Usually ships in 3-10 days

0

39

Husqvarna 532184568

HANDLE BOLT
(Superseded to 532191575)

Note: HANDLE

$6.99

$

In Stock, only 4 left!

0

30

Husqvarna 532186001

DOOR, DICHSRGE CHUTE
(Superseded to 532188499)

$17.99

$

In Stock, only 1 left!

0

41

Husqvarna 532187162

BRACKET.ANTIFOLD.HI-VAC(ONLY)

$11.99

$

Usually ships in 3-10 days

0

27

Husqvarna 532107339

DECAL HYT
(Superseded to 581579101)

$7.49

$

Usually ships in 3-10 days

0

50

Husqvarna 532183469

ROPE GUIDE

$

$

Not available

37

Husqvarna 532185996

GUARD.CLIP.ON.21.HV.GRAY

Note: DISCHARGE

$

$

Not available

36

Husqvarna 532183465

SHOULDER BOLT
(Superseded to 532194187)

$7.49

$

In Stock, only 3 left!

0

12

NEEDS DESCRIPTION

Note: "ENGINE, HONDA, MODEL GCV 190 ORDER PARTS FROM MFG ENGINE"

$

$

Not available

44

Husqvarna 532182748

GRIP.HANDLE.FOAM.WIDE.(1 SIDE)

$

$

Not available

8

Husqvarna 532183479

ROD, PIVOT

$15.99

$

Usually ships in 3-10 days

0

20

Husqvarna 532183428

ADAPTER, BLADE
(Superseded to 532186766)

$40.99

$

In Stock, only 1 left!

0

35

Husqvarna 532185588

KNOB.HANDLE.STAR.HUSQ.GRAY

$7.49

$

In Stock, only 1 left!

0

40

Husqvarna 532066426

TIE GUIDE
(Superseded to 532124756)

$9.49

$

Usually ships in 3-10 days

0

33

Husqvarna 532186301

CHUTE ASSY
(Superseded to 532189014)

Note: COMPLETE

$

$

Not available

7

Husqvarna 532186002

DOOR, GRASSBAG
(Superseded to 532188500)

$50.99

$

Usually ships in 3-10 days

0

2

Husqvarna 532065322

COTTER PIN (3 2)(2 2MC)

$4.99

$

Usually ships in 3-10 days

0

48

Husqvarna 532125203

BRACKET
(Superseded to 532430034)

$6.99

$

In Stock, only 3 left!

0

6

Husqvarna 812000014

E-RING

$7.49

$

In Stock, only 1 left!

0

18

Husqvarna 532850263

LOCKWASHER
(Superseded to 810040600)

$4.99

$

In Stock, Qty 20+

0

45

Husqvarna 532186296

HANDLE.ASM.UPPER.W/GRIP

Note: INCL FOAM GRIP

$54.99

$

Usually ships in 3-10 days

0

42

Husqvarna 532187096

HANDLE.LOWER.GREY

Note: LOWER

$31.99

$

Usually ships in 3-10 days

0

24

Husqvarna 532751152

LOCK NUT
(Superseded to 532191730)

$7.49

$

In Stock, Qty 5

0

46

Husqvarna 532183473

ASSY ZONE CONTROL
(Superseded to 532424983)

$17.99

$

In Stock, Qty 8

0

1

Husqvarna 532186003

HANDLE, GRASSBAG, REAR
(Superseded to 532188505)

$20.99

$

Usually ships in 3-10 days

0

43

Husqvarna 532186298

BAIL CONTROL
(Superseded to 532426812)

$

$

Not available

19

Husqvarna 532183431

SCREW.HX.HEAD.3/8-24

Note: GRADE 8

$

$

Not available

22

Husqvarna 817600406

SCREW 1/4X20

$6.49

$

Usually ships in 3-10 days

0

25

Husqvarna 532183445

ROD.HINGE.1/4"3.82"

$7.49

$

Usually ships in 3-10 days

0

Husqvarna 532187462

MANUAL

$

$

Not available

26

Husqvarna 532183446

SPRING.MULCH.DOOR

$7.49

$

In Stock, only 4 left!

0

47

Husqvarna 532184570

SCREW

$4.99

$

Usually ships in 3-10 days

0

9

Husqvarna 817411318

SCREW.HWH.13-16X1.12

$6.49

$

Usually ships in 3-10 days

0

32

Husqvarna 532183445

ROD.HINGE.1/4"3.82"

$7.49

$

Usually ships in 3-10 days

0

21

Husqvarna 532183690

DEBRIS SHIELD
(Superseded to 532188510)

$12.99

$

Usually ships in 3-10 days

0

17

Husqvarna 532851074

WASHER,HARDEN

$4.99

$

In Stock, only 4 left!

0

16

Husqvarna 532159267

21" MULCH BLADE PREMIUM

$27.99

$

Usually ships in 3-10 days

0

49

Husqvarna 532184569

HEX NUT

$

$

Not available

3

Husqvarna 532183483

ROD.REAR.HANDLE.YELLOW

$6.49

$

In Stock, only 1 left!

0

51

Husqvarna 532186477

KIT.HSG.ASM.21".CASTER

$113.99

$

Usually ships in 3-10 days

0

10

Husqvarna 532184331

TUBE

$9.99

$

Usually ships in 3-10 days

0

5

Husqvarna 532183481

GRASSBAG FRAME
(Superseded to 532188506)

$27.99

$

In Stock, only 1 left!

0

4

Husqvarna 532185228

GRASSBAG
(Superseded to 532410670)

$93.99

$

Usually ships in 3-10 days

0

15

Husqvarna 532150406

BOLT 3/8-16X1-1/8

$7.49

$

Usually ships in 3-10 days

0

31

Husqvarna 532183478

SPRING

$7.99

$

In Stock, only 1 left!

0

38

Husqvarna 532187426

BRACKET ADJ LOWER HNDLE RH
(Superseded to 532187064)

Note: RH

$

$

Not available

34

Husqvarna 532187425

BRACKET
(Superseded to 532187063)

Note: LH

$

$

Not available
