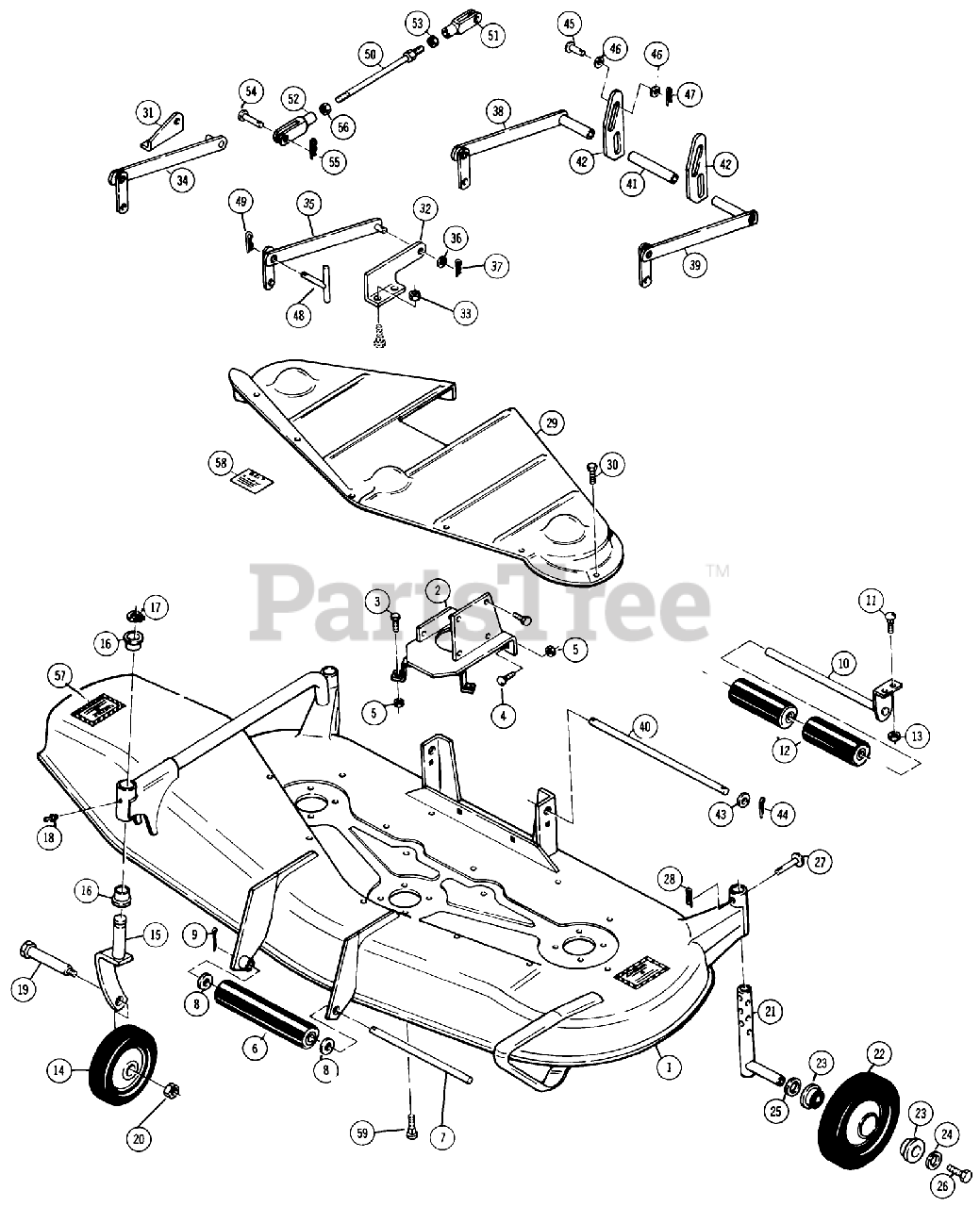

65-60XS02 - Toro 60" Side-Discharge Mower Deck (1976) PARTS LIST FOR 60" MOWER FACTORY ORDER NUMBER 65-60XS02 Parts Diagram

60" Side-Discharge Mower Deck

PARTS LIST FOR 60" MOWER FACTORY ORDER NUMBER 65-60XS02 Parts Diagram

  • Title

1

Toro 105574

60" Mower Deck Assembly

$

$

Not available

2

Toro 105622

Gear Box Base

$

$

Not available

3

Toro 908032

Bolt
(Superseded to 323-4)

$3.99

$

In Stock, Qty 20+

0

4

Toro 900062

Bolt-Carriage
(Superseded to 323-11)

$2.49

$

In Stock, Qty 20+

0

5

Toro 915113

Nut
(Superseded to 32153-2)

$0.99

$

In Stock, Qty 13

0

6

Toro 105706

ROLLER-FRONT

$

$

Not available

7

Toro 105707

SHAFT-FRONT ROLLER

$

$

Not available

8

Toro 920013

WASHER
(Superseded to 3256-27)

$2.99

$

In Stock, Qty 15

0

9

Toro 932029

Cotter Pin5/32 X 2

$

$

Not available

10

Toro 105708

Rear Roller Bracket

$

$

Not available

11

Toro 900037

Bolt
(Superseded to 3230-1)

$1.99

$

In Stock, Qty 20+

0

12

Toro 105711

Rear Roller, 7"

$

$

Not available

13

Toro 915112

Nut
(Superseded to 3217-6)

$1.49

$

In Stock, Qty 12

0

14

Toro 103665

Wheel
(Superseded to 110506)

$42.99

$

In Stock, Qty 10

0

15

Toro 105712

Caster Arm

$

$

Not available

16

Toro 101442

BEARING

$

$

Not available

17

Toro 936125

RING-SNAP, EXTERNAL
(Superseded to 32120-72)

$2.49

$

In Stock, Qty 20+

0

18

Toro 1030

Zerk

$

$

Not available

19

Toro 5188

BOLT-SHOULDER

$6.49

$

In Stock, Qty 14

0

20

Toro 915113

Nut
(Superseded to 32153-2)

$0.99

$

In Stock, Qty 13

0

21

Toro 105715

Gauge Wheel Arm
(Superseded to 106106)

$

$

Not available

22

Toro 105718

Gauge Wheel (with Bearings)
(Superseded to 114275)

$

$

Not available

23

Toro 105720

Ball Bearing

$

$

Not available

24

Toro 920008

WASHER 5/16 SAE

$0.99

$

In Stock, Qty 8

0

25

Toro 920013

WASHER
(Superseded to 3256-27)

$2.99

$

In Stock, Qty 15

0

26

Toro 908017

Bolt
(Superseded to 322-3)

$0.99

$

In Stock, Qty 20+

0

27

Toro 933000

Pin

$

$

Not available

28

Toro 933505

Hairpin Cotter
(Superseded to 9335054)

$1.99

$

In Stock, Qty 20+

0

29

Toro 105722

Drive Shield

$

$

Currently unavailable

30

Toro 926671

Bolt
(Superseded to 9266714)

$1.49

$

In Stock, Qty 20+

0

31

Toro 105954

Front R.H. Bracket

$

$

Not available

32

Toro 105955

Front L.H. Bracket

$

$

Not available

33

Toro 915113

Nut
(Superseded to 32153-2)

$0.99

$

In Stock, Qty 13

0

34

Toro 105725

Front R.H. Lift

$

$

Not available

35

Toro 105730

Front L.H.Lift

$

$

Not available

36

Toro 920015

Washer
(Superseded to 3256-28)

$3.99

$

In Stock, Qty 20+

0

37

Toro 933506

Hairpin
(Superseded to 9335064)

$2.49

$

In Stock, Qty 11

0

38

Toro 105731

Rear R.H. Lift

$

$

Not available

39

Toro 105732

Rear L.H. Lift

$

$

Not available

40

Toro 105733

Rear Lift Rod

$

$

Not available

41

Toro 105734

Tube

$

$

Not available

42

Toro 105735

Lift Plate

$

$

Not available

43

Toro 920016

Washer 7/8 SAE

$

$

Not available

44

Toro 932035

PIN-4

$

$

Not available

45

Toro 105736

Clevis Pin 5/8 x 1 1/4

$

$

Not available

46

Toro 920013

WASHER
(Superseded to 3256-27)

$2.99

$

In Stock, Qty 15

0

47

Toro 933506

Hairpin
(Superseded to 9335064)

$2.49

$

In Stock, Qty 11

0

48

Toro 105588

Attaching Pin

$

$

Not available

49

Toro 933506

Hairpin
(Superseded to 9335064)

$2.49

$

In Stock, Qty 11

0

50

Toro 105738

Rod Assembly

$

$

Not available

51

Toro 101246

Clevis

$

$

Not available

52

Toro 105740

Clevis (L.H. Thread)

$

$

Not available

53

Toro 915238

Jam Nut
(Superseded to 3218-5)

$1.49

$

In Stock, Qty 20+

0

54

Toro 932998

CLEVIS PIN

$

$

Not available

55

Toro 933505

Hairpin Cotter
(Superseded to 9335054)

$1.99

$

In Stock, Qty 20+

0

56

Toro 103117

NUT

$

$

Not available

57

Toro 105206

Caution Decal
(Superseded to 93-1122)

$9.99

$

In Stock, Qty 12

0

58

Toro 105741

"Belt" Decal

$

$

Not available

59

Toro 900063

Bolt
(Superseded to 323-12)

$2.99

$

In Stock, Qty 20+

0

101

Toro 105631

Toggle

$

$

Not available

121

Toro 909540

Set Screw
(Superseded to 3242-2)

$1.99

$

In Stock, only 3 left!

0
