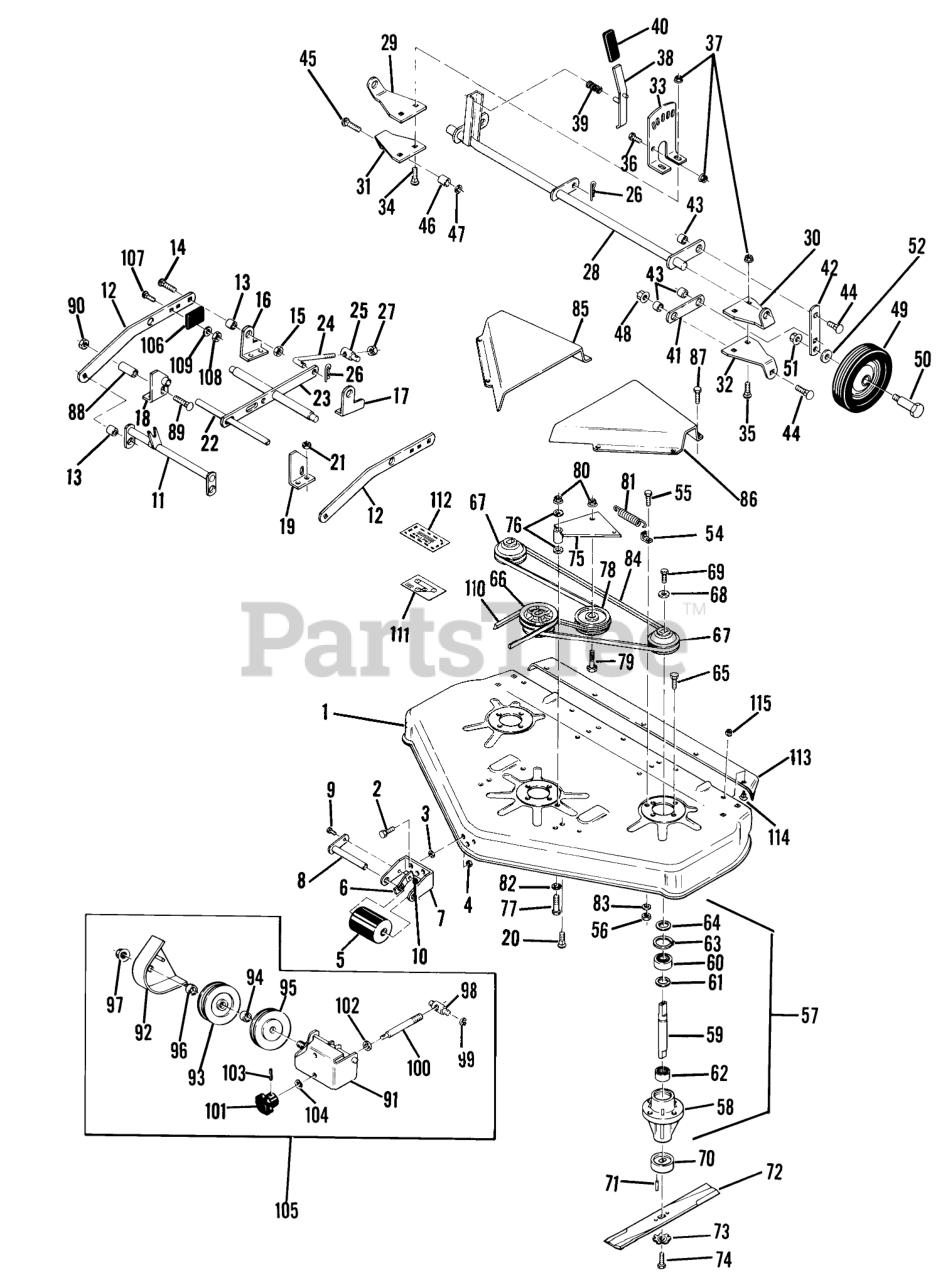

65-42MR01 - Toro 42" Rear-Discharge Mower Deck (1976) PARTS LIST FOR 42" REAR DISCHARGE MOWER FACTORY ORDER NUMBER 65-42MR01 Parts Diagram

42" Rear-Discharge Mower Deck

PARTS LIST FOR 42" REAR DISCHARGE MOWER FACTORY ORDER NUMBER 65-42MR01 Parts Diagram

  • Title
1

Toro 105839

Mower Deck Assembly
(Superseded to 111129-01)

$

$

Not available

2

Toro 908016

Bolt
(Superseded to 322-2)

$2.99

$

In Stock, Qty 17

0

3

Toro 920038

Collar
(Superseded to 3-2563)

$0.99

$

In Stock, Qty 20+

0

4

Toro 915112

Nut
(Superseded to 3217-6)

$1.49

$

In Stock, Qty 12

0

5

Toro 5240

Roller
(Superseded to 94-1599)

$13.99

$

In Stock, Qty 16

0

6

Toro 102773

SPRING ROLLER STOP

$

$

Not available

7

Toro 5218

Bracket
(Superseded to 115060)

$

$

Not available

8

Toro 102770

Roller Shaft
(Superseded to 110847)

$28.99

$

In Stock, Qty 5

0

9

Toro 908022

HHCS
(Superseded to 322-9)

$3.49

$

In Stock, Qty 20+

0

10

Toro 915111

Nut
(Superseded to 3217-5)

$0.99

$

In Stock, Qty 8

0

11

Toro 101758

Hitch
(Superseded to 101758-01)

$131.99

$

In Stock, only 1 left!

0

12

Toro 101777

Bar Draft
(Superseded to 101777-01)

$100.99

$

Usually ships in 3-6 days

0

13

Toro 102704

SPACER

$2.99

$

In Stock, Qty 8

0

14

Toro 900063

Bolt
(Superseded to 323-12)

$2.99

$

In Stock, Qty 20+

0

15

Toro 102809

LOCKNUT-FLANGE
(Superseded to 32128-19)

$1.49

$

In Stock, Qty 20+

0

16

Toro 102598

R.H. Rear Bracket
(Superseded to 107512-01)

$46.99

$

Usually ships in 3-6 days

0

17

Toro 102599

L.H. Rear Bracket
(Superseded to 107511-01)

$46.99

$

Usually ships in 3-6 days

0

18

Toro 102566

Front Bracket RH
(Superseded to 102566-01)

$61.99

$

Usually ships in 3-6 days

0

19

Toro 102567

Front Bracket LH
(Superseded to 102567-01)

$61.99

$

Usually ships in 3-6 days

0

20

Toro 900062

Bolt-Carriage
(Superseded to 323-11)

$2.49

$

In Stock, Qty 20+

0

21

Toro 915113

Nut
(Superseded to 32153-2)

$0.99

$

In Stock, Qty 13

0

22

Toro 102570

Front Shaft
(Superseded to 102570-03)

$128.99

$

Usually ships in 3-6 days

0

23

Toro 102958

Leveler
(Superseded to 110268-01)

$128.99

$

Usually ships in 3-6 days

0

24

Toro 101828

ROD-LEVEL ADJUST

$28.99

$

In Stock, only 1 left!

0

25

Toro 6739

TRUNNION-LIFT

$24.99

$

In Stock, Qty 5

0

26

Toro 933504

Hairpin
(Superseded to 9335044)

$1.49

$

In Stock, Qty 13

0

27

Toro 915663

NUT
(Superseded to 3296-39)

$2.99

$

In Stock, Qty 20+

0

28

Toro 105833

Gage Wheel Support

$

$

Not available

29

Toro 101714

Bracket-R.H. Upper

$

$

Not available

30

Toro 101715

Bracket-L.H. Upper

$

$

Not available

31

Toro 101716

Bracket-Lower R.H.

$

$

Not available

32

Toro 101717

Bracket-L.H. Lower

$

$

Not available

33

Toro 101723

Quadrant

$

$

Not available

34

Toro 900065

Bolt
(Superseded to 323-14)

$3.99

$

In Stock, Qty 20+

0

35

Toro 900064

Bolt
(Superseded to 3231-25)

$1.99

$

In Stock, Qty 20+

0

36

Toro 908032

Bolt
(Superseded to 323-4)

$3.99

$

In Stock, Qty 20+

0

37

Toro 102809

LOCKNUT-FLANGE
(Superseded to 32128-19)

$1.49

$

In Stock, Qty 20+

0

38

Toro 102431

Lever
(Superseded to 102431-01)

$

$

Not available

39

Toro 101853

SPRING-COMPRESSION

$1.49

$

In Stock, only 3 left!

0

40

$2.49

$

Usually ships in 3-6 days

0

41

Toro 101719

SUPPORT LINK R

$

$

Not available

42

Toro 101713

WHEEL SUPPORT LINK

$

$

Not available

43

Toro 102704

SPACER

$2.99

$

In Stock, Qty 8

0

44

Toro 900063

Bolt
(Superseded to 323-12)

$2.99

$

In Stock, Qty 20+

0

45

Toro 900065

Bolt
(Superseded to 323-14)

$3.99

$

In Stock, Qty 20+

0

46

Toro 8570

Spacer

$

$

Not available

47

Toro 2844

WASHER

$2.99

$

In Stock, Qty 20+

0

48

Toro 102809

LOCKNUT-FLANGE
(Superseded to 32128-19)

$1.49

$

In Stock, Qty 20+

0

49

Toro 103665

Wheel
(Superseded to 110506)

$42.99

$

In Stock, Qty 10

0

50

Toro 5188

BOLT-SHOULDER

$6.49

$

In Stock, Qty 14

0

51

Toro 102809

LOCKNUT-FLANGE
(Superseded to 32128-19)

$1.49

$

In Stock, Qty 20+

0

52

Toro 920211

WASHER

$

$

Not available

54

Toro 2534

CLIP - SPRING

$4.99

$

In Stock, only 2 left!

0

55

Toro 908031

Bolt
(Superseded to 323-34)

$6.49

$

In Stock, only 2 left!

0

56

Toro 915113

Nut
(Superseded to 32153-2)

$0.99

$

In Stock, Qty 13

0

57

Toro 104891

Spindle Assy.

$

$

Not available

58

Toro 102775

HOUSING SPINDLE

$

$

Not available

59

Toro 104890

SHAFT SPINDLE

$157.99

$

Usually ships in 3-6 days

0

60

Toro 101411

BEARING

$130.99

$

Usually ships in 3-6 days

0

61

Toro 104822

Snap Ring
(Superseded to 32120-93)

$2.99

$

In Stock, Qty 20+

0

62

Toro 100289

NEEDLE BEARING

$68.99

$

Usually ships in 3-6 days

0

63

Toro 936029

INT SNAP RING

$3.49

$

Usually ships in 3-6 days

0

64

Toro 105819

WASHER

$

$

Not available

65

Toro 908032

Bolt
(Superseded to 323-4)

$3.99

$

In Stock, Qty 20+

0

66

Toro 6692

Center Pulley
(Superseded to 106847)

$

$

Not available

67

Toro 5877

End Pulley
(Superseded to 106846)

$

$

Not available

68

Toro 2844

WASHER

$2.99

$

In Stock, Qty 20+

0

69

Toro 908032

Bolt
(Superseded to 323-4)

$3.99

$

In Stock, Qty 20+

0

70

Toro 104374

Cup-Spindle
(Superseded to 102784)

$

$

Not available

71

Toro 933210

SPIROL ROLL PIN

$3.49

$

Usually ships in 3-6 days

0

72

Toro 105837

Mower Blade
(Superseded to 106586)

$

$

Not available

73

Toro 1336

WASHER

$

$

Not available

74

Toro 908033

Bolt
(Superseded to 110242)

$2.49

$

In Stock, Qty 5

0

75

Toro 105828

Idler Arm Assembly

$

$

Not available

76

Toro 102025

SPACER

$

$

Not available

77

Toro 908041

Bolt
(Superseded to 323-13)

$1.99

$

In Stock, Qty 20+

0

78

Toro 6719

Idler Pulley
(Superseded to 92-7101)

$34.99

$

In Stock, only 2 left!

0

79

Toro 911404

HEX HD CAP SCREW

$0.99

$

In Stock, Qty 7

0

80

Toro 102809

LOCKNUT-FLANGE
(Superseded to 32128-19)

$1.49

$

In Stock, Qty 20+

0

81

Toro 9197

SPRING IDLER

$

$

Not available

82

Toro 920037

WASHER

$

$

Not available

83

Toro 2844

WASHER

$2.99

$

In Stock, Qty 20+

0

84

Toro 6738

V BELT

$35.99

$

In Stock, only 3 left!

0

85

Toro 105830

R.H. Belt Cover

$

$

Not available

86

Toro 105831

L.H. Belt Cover
(Superseded to 106638-01)

$64.99

$

Usually ships in 3-6 days

0

87

Toro 926671

Bolt
(Superseded to 9266714)

$1.49

$

In Stock, Qty 20+

0

88

Toro 6595

SPACER-BEARING

$

$

Not available

89

Toro 900093

CARRIAGE BOLT -4

$1.49

$

In Stock, only 3 left!

0

90

Toro 915664

Nut
(Superseded to 3296-48)

$0.99

$

In Stock, Qty 20+

0

91

Toro 101728

Front Support
(Superseded to 101728-01)

$210.99

$

Usually ships in 3-6 days

0

92

Toro 102582

Belt Cover
(Superseded to 102582-01)

$101.99

$

Usually ships in 3-6 days

0

93

Toro 104975

PULLEY-FLAT IDLER

$56.99

$

In Stock, only 2 left!

0

94

Toro 101734

SPACER

$4.99

$

In Stock, Qty 10

0

95

Toro 104974

Pulley-V
(Superseded to 92-7103)

$53.99

$

In Stock, only 3 left!

0

96

Toro 101757

SPACER-OUTER

$6.49

$

In Stock, Qty 5

0

97

Toro 102976

Nut 3/4-16 MF
(Superseded to 3219-7)

$1.99

$

In Stock, Qty 20+

0

98

Toro 101708

TRUNNION-DOUBLE

$31.99

$

Usually ships in 3-6 days

0

99

Toro 105797

RING-RETAINING

$0.99

$

In Stock, Qty 20+

0

100

Toro 101842

ROD ADJ

$62.99

$

Usually ships in 3-6 days

0

101

Toro 101851

KNOB-ADJUSTMENT

$25.99

$

In Stock, only 3 left!

0

102

Toro 920009

Washer
(Superseded to 3256-24)

$0.99

$

In Stock, Qty 20+

0

103

Toro 933156

PIN-ROLL

$1.49

$

In Stock, Qty 7

0

104

Toro MW-4405

Washer

$

$

Currently unavailable

105

Toro 101657

ASM-SUPPORT,IDLER

$644.99

$

Usually ships in 3-6 days

0

106

Toro 102322

BUMPER

$8.49

$

Usually ships in 3-6 days

0

107

Toro 900038

Bolt-Carriage
(Superseded to 3230-2)

$1.49

$

In Stock, Qty 14

0

108

Toro 915112

Nut
(Superseded to 3217-6)

$1.49

$

In Stock, Qty 12

0

109

Toro 920038

Collar
(Superseded to 3-2563)

$0.99

$

In Stock, Qty 20+

0

110

Toro 108834

V-BELT

$36.99

$

In Stock, only 1 left!

0

111

Toro 105208

Decal Belt Diagram
(Superseded to 106748)

$11.99

$

In Stock, only 2 left!

0

112

Toro 105002

Caution Decal
(Superseded to 93-1122)

$9.99

$

In Stock, Qty 12

0

113

Toro 105832

Grooved Pin 5X28MM

$

$

Not available

114

Toro 900036

CARRIAGE BOLT -4

$2.49

$

Usually ships in 3-6 days

0

115

Toro 915112

Nut
(Superseded to 3217-6)

$1.49

$

In Stock, Qty 12

0
