65-36MS01 - Toro 36" Side-Discharge Mower Deck (1976) PARTS LIST FOR ROTARY MOWERS (65-36XR01, 65-36MS01) Parts Diagram

36" Side-Discharge Mower Deck

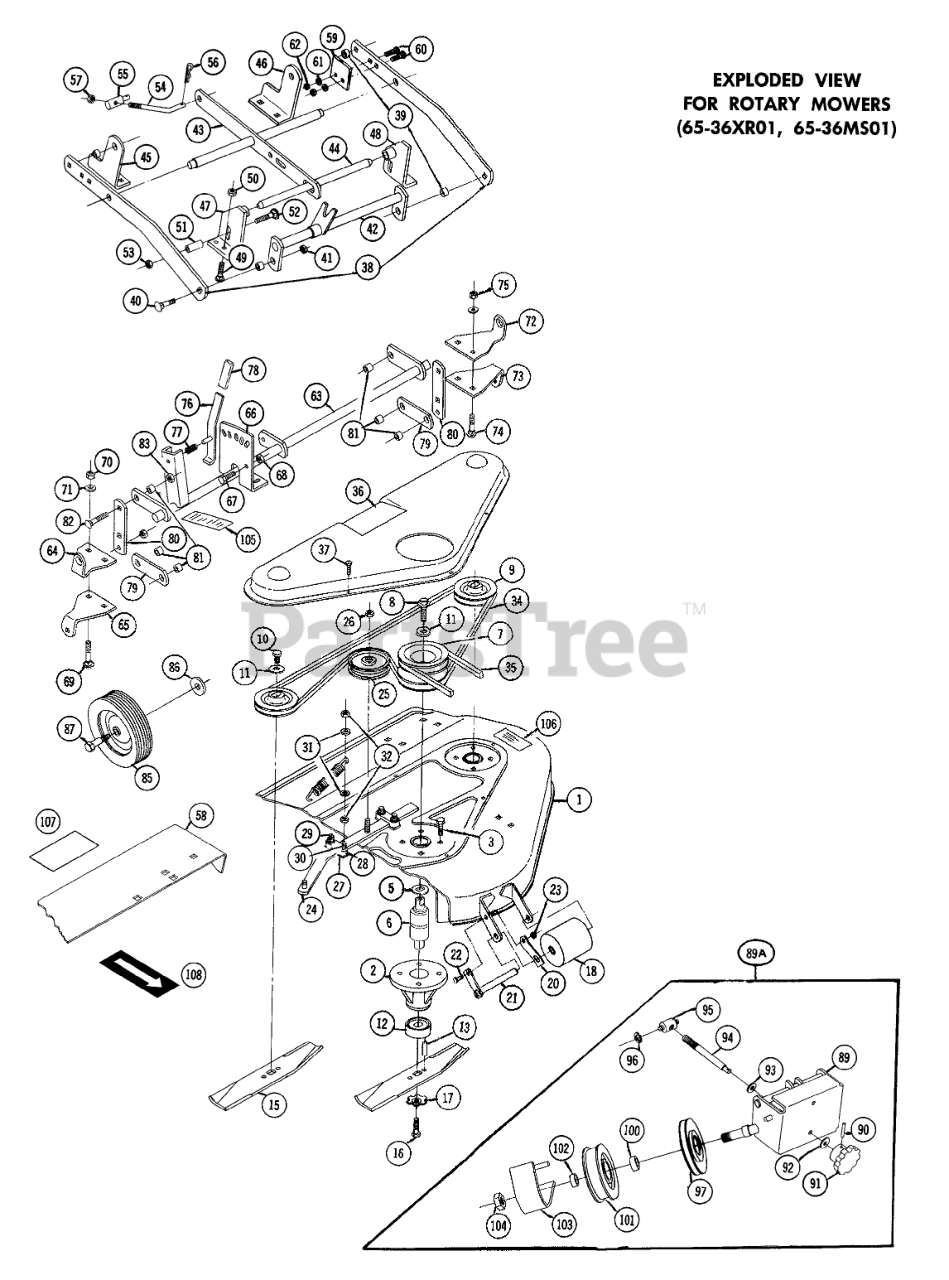

PARTS LIST FOR ROTARY MOWERS (65-36XR01, 65-36MS01) Parts Diagram

  • Title
1

Toro 102490

Deck-Mower-Rear Discharge 5-0622)

$

$

Not available

1

Toro 102983

Deck-Mower Side Discharge (5-0721)
(Superseded to 107993)

$

$

Not available

2

Toro 105074

HOUSING-BEARING B
(Superseded to 105074-03)

$

$

Not available

3

Toro 908032

Bolt
(Superseded to 323-4)

$3.99

$

In Stock, only 3 left!

0

5

Toro 105075

WASHER-DOUBLE D

$

$

Not available

6

Toro 103119

BEARING

$

$

Not available

7

Toro 103156

Pulley-Center Drive
(Superseded to 99-5357)

$156.99

$

Usually ships in 3-6 days

0

8

Toro 102972

Bolt-Lock 3/8-16 x 7/8
(Superseded to 113134)

$

$

Not available

9

Toro 8392

Pulley
(Superseded to 105781)

$59.99

$

In Stock, only 2 left!

0

10

Toro 908032

Bolt
(Superseded to 323-4)

$3.99

$

In Stock, only 3 left!

0

11

Toro 2844

WASHER

$2.99

$

In Stock, Qty 18

0

12

Toro 104373

Cup-Spindle
(Superseded to 102780)

$136.99

$

In Stock, only 1 left!

0

13

Toro 933210

SPIROL ROLL PIN

$2.99

$

Usually ships in 3-6 days

0

15

Toro 8969

BLADE KIT 36 LF REAR

$136.99

$

In Stock, only 1 left!

0

15

Toro 101335

BLADE KIT

$144.99

$

Usually ships in 3-6 days

0

16

Toro 908033

Bolt
(Superseded to 110242)

$2.49

$

In Stock, Qty 5

0

17

Toro 1336

WASHER

$

$

Not available

18

Toro 5240

Roller
(Superseded to 94-1599)

$12.99

$

In Stock, Qty 16

0

20

Toro 102773

SPRING ROLLER STOP

$

$

Not available

21

Toro 102770

Roller Shaft
(Superseded to 110847)

$28.99

$

In Stock, only 3 left!

0

22

Toro 908002

H H C S
(Superseded to 321-3)

$1.49

$

In Stock, Qty 20+

0

23

Toro 915111

Nut
(Superseded to 3217-5)

$0.99

$

In Stock, Qty 8

0

24

Toro 9256

Bar Idler Support

$

$

Not available

25

Toro 7434

Idler Pulley
(Superseded to 112426)

$26.99

$

In Stock, only 1 left!

0

26

Toro 915236

Nut
(Superseded to 9152366)

$3.49

$

In Stock, only 1 left!

0

27

Toro 6748

SLIDE

$

$

Not available

28

Toro 6720

Side Block
(Superseded to 742659)

$

$

Not available

29

Toro 900039

Bolt-Carriage
(Superseded to 3230-3)

$1.49

$

In Stock, Qty 20+

0

30

Toro 900040

Bolt-Carriage
(Superseded to 3230-4)

$3.99

$

In Stock, Qty 6

0

31

Toro 920008

WASHER 5/16 SAE

$0.99

$

In Stock, Qty 8

0

32

Toro 915112

Nut
(Superseded to 3217-6)

$1.49

$

In Stock, Qty 12

0

33

Toro 6651

SPRING R

$21.99

$

In Stock, only 1 left!

0

34

Toro 8411

V-BELT

$25.99

$

In Stock, only 1 left!

0

35

Toro 102741

V-BELT

$37.99

$

In Stock, only 1 left!

0

36

Toro 104987

Belt Cover

$

$

Not available

37

Toro 926671

Bolt
(Superseded to 9266714)

$1.49

$

In Stock, Qty 5

0

38

Toro 101777

Bar Draft
(Superseded to 101777-01)

$99.99

$

Usually ships in 3-6 days

0

39

Toro 102704

SPACER

$2.49

$

In Stock, Qty 8

0

40

Toro 900063

Bolt
(Superseded to 323-12)

$2.49

$

In Stock, Qty 13

0

41

Toro 102809

LOCKNUT-FLANGE
(Superseded to 32128-19)

$1.49

$

In Stock, Qty 20+

0

42

Toro 101758

Hitch
(Superseded to 101758-01)

$128.99

$

In Stock, only 1 left!

0

43

Toro 102958

Leveler
(Superseded to 110268-01)

$125.99

$

Usually ships in 3-6 days

0

44

Toro 102570

Front Shaft
(Superseded to 102570-03)

$127.99

$

Usually ships in 3-6 days

0

45

Toro 102598

R.H. Rear Bracket
(Superseded to 107512-01)

$46.99

$

Usually ships in 3-6 days

0

46

Toro 102599

L.H. Rear Bracket
(Superseded to 107511-01)

$46.99

$

Usually ships in 3-6 days

0

47

Toro 102566

Front Bracket RH
(Superseded to 102566-01)

$60.99

$

Usually ships in 3-6 days

0

48

Toro 102567

Front Bracket LH
(Superseded to 102567-01)

$60.99

$

Usually ships in 3-6 days

0

49

Toro 900062

Bolt-Carriage
(Superseded to 323-11)

$2.49

$

In Stock, Qty 20+

0

50

Toro 915113

Nut
(Superseded to 32153-2)

$0.99

$

In Stock, Qty 14

0

Toro 900063

Bolt
(Superseded to 323-12)

$2.49

$

In Stock, Qty 13

0

51

Toro 6595

SPACER-BEARING

$

$

Not available

52

Toro 900093

CARRIAGE BOLT -4

$0.99

$

In Stock, only 3 left!

0

53

Toro 915664

Nut
(Superseded to 3296-48)

$0.99

$

In Stock, Qty 20+

0

54

Toro 101828

ROD-LEVEL ADJUST

$27.99

$

In Stock, only 1 left!

0

55

Toro 6739

TRUNNION-LIFT

$23.99

$

In Stock, Qty 6

0

56

Toro 933504

Hairpin
(Superseded to 9335044)

$1.49

$

In Stock, Qty 13

0

57

Toro 915663

NUT
(Superseded to 3296-39)

$2.99

$

In Stock, Qty 20+

0

58

Toro 103585

Extension-Chute
(Superseded to 106480-01)

$

$

Not available

59

Toro 102322

BUMPER

$7.99

$

Usually ships in 3-6 days

0

60

Toro 900038

Bolt-Carriage
(Superseded to 3230-2)

$1.49

$

Usually ships in 3-6 days

0

61

Toro 920038

Collar
(Superseded to 3-2563)

$0.99

$

In Stock, Qty 20+

0

62

Toro 915112

Nut
(Superseded to 3217-6)

$1.49

$

In Stock, Qty 12

0

63

Toro 101722

Gage Wheel Support Assy.

$

$

Not available

64

Toro 101714

Bracket-R.H. Upper

$

$

Not available

65

Toro 101716

Bracket-Lower R.H.

$

$

Not available

66

Toro 101723

Quadrant

$

$

Not available

67

Toro 908032

Bolt
(Superseded to 323-4)

$3.99

$

In Stock, only 3 left!

0

68

Toro 915113

Nut
(Superseded to 32153-2)

$0.99

$

In Stock, Qty 14

0

69

Toro 900065

Bolt
(Superseded to 323-14)

$3.99

$

In Stock, Qty 20+

0

70

Toro 915113

Nut
(Superseded to 32153-2)

$0.99

$

In Stock, Qty 14

0

71

Toro 920009

Washer
(Superseded to 3256-24)

$0.99

$

In Stock, Qty 20+

0

72

Toro 101715

Bracket-L.H. Upper

$

$

Not available

73

Toro 101717

Bracket-L.H. Lower

$

$

Not available

74

Toro 900064

Bolt
(Superseded to 3231-25)

$1.99

$

In Stock, Qty 20+

0

75

Toro 915113

Nut
(Superseded to 32153-2)

$0.99

$

In Stock, Qty 14

0

76

Toro 102431

Lever
(Superseded to 102431-01)

$

$

Not available

77

Toro 101853

SPRING-COMPRESSION

$1.49

$

In Stock, only 3 left!

0

78

$1.99

$

Usually ships in 3-6 days

0

79

Toro 101719

SUPPORT LINK R

$

$

Not available

80

Toro 101713

WHEEL SUPPORT LINK

$

$

Not available

81

Toro 102704

SPACER

$2.49

$

In Stock, Qty 8

0

82

Toro 900063

Bolt
(Superseded to 323-12)

$2.49

$

In Stock, Qty 13

0

83

Toro 102809

LOCKNUT-FLANGE
(Superseded to 32128-19)

$1.49

$

In Stock, Qty 20+

0

85

Toro 103665

Wheel
(Superseded to 110506)

$37.99

$

Usually ships in 3-6 days

0

86

Toro 920211

WASHER

$

$

Not available

87

Toro 5188

BOLT-SHOULDER

$5.99

$

In Stock, Qty 6

0

88

Toro 915113

Nut
(Superseded to 32153-2)

$0.99

$

In Stock, Qty 14

0

89

Toro 101728

Front Support
(Superseded to 101728-01)

$208.99

$

Usually ships in 3-6 days

0

89A

Toro 101657

ASM-SUPPORT,IDLER

$628.99

$

Usually ships in 3-6 days

0

90

Toro 933156

PIN-ROLL

$1.49

$

In Stock, Qty 9

0

91

Toro 101851

KNOB-ADJUSTMENT

$23.99

$

In Stock, only 3 left!

0

92

Toro MW4405

Spring Washer
(Superseded to 108571)

$10.99

$

In Stock, only 2 left!

0

93

Toro 920009

Washer
(Superseded to 3256-24)

$0.99

$

In Stock, Qty 20+

0

94

Toro 101842

ROD ADJ

$60.99

$

Usually ships in 3-6 days

0

95

Toro 101708

TRUNNION-DOUBLE

$31.99

$

Usually ships in 3-6 days

0

96

Toro 100398

E Ring-3/8
(Superseded to 105797)

$0.99

$

In Stock, Qty 20+

0

97

Toro 104974

Pulley-V
(Superseded to 92-7103)

$53.99

$

In Stock, only 4 left!

0

100

Toro 101734

SPACER

$4.99

$

In Stock, Qty 10

0

101

Toro 104975

PULLEY-FLAT IDLER

$56.99

$

In Stock, only 2 left!

0

102

Toro 101757

SPACER-OUTER

$6.49

$

In Stock, Qty 5

0

103

Toro 102582

Belt Cover
(Superseded to 102582-01)

$98.99

$

Usually ships in 3-6 days

0

104

Toro 102976

Nut 3/4-16 MF
(Superseded to 3219-7)

$1.99

$

In Stock, Qty 10

0

105

Toro 105208

Decal Belt Diagram
(Superseded to 106748)

$10.99

$

In Stock, only 1 left!

0

106

Toro 105206

Caution Decal
(Superseded to 93-1122)

$8.99

$

In Stock, Qty 12

0

107

Toro 105203

Guard Decal
(Superseded to 66-1340)

$10.99

$

In Stock, only 1 left!

0

108

Toro 104903

Decal-Edge of Cut

$

$

Not available

109

Toro 101525

S/A SPINDLE ASSY

$

$

Not available
