648 (990899) - Simplicity Yeoman Lawn Tractor Power Take Off Group Parts Diagram

Yeoman Lawn Tractor

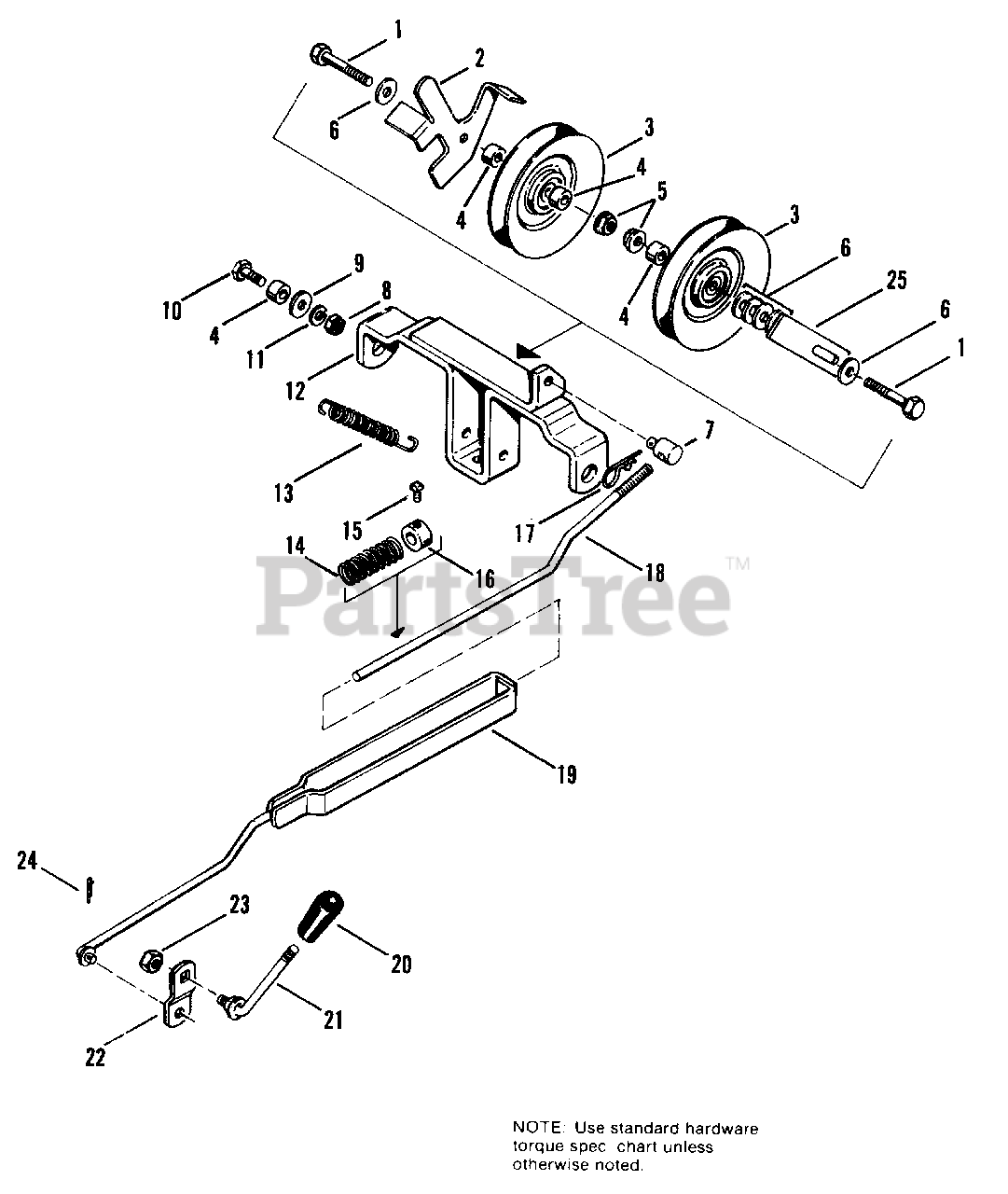

Power Take Off Group Parts Diagram

  • Title

1

Simplicity 2823701

CAPSCREW, Hex Hd., 3/8-16 x 2

$

$

Not available

2

Simplicity 176693

STOP

$

$

Not available

3

Simplicity 2101096SM

PULLEY, Idler

$59.99

$

In Stock, only 3 left!

0

4

Simplicity 2154177SM

SPACER

$39.99

$

In Stock, only 1 left!

0

5

Simplicity 2828352

LOCKNUT, Flange, 3/8-16
(Superseded to 703793)

$4.49

$

In Stock, Qty 5

0

6

Simplicity 2817642

WASHER, Plain, 5/16

$

$

Not available

7

Simplicity 1606623

PIVOT, Rod End

$

$

Not available

8

Simplicity 2816950SM

NUT, Hex, Full, 3/8-16
(Superseded to 703457)

$4.49

$

In Stock, Qty 7

0

9

Simplicity 1924940SM

WASHER, Plain, 3/8
(Superseded to 703878)

$3.99

$

In Stock, Qty 20+

0

10

Simplicity 2821210

CAPSCREW, Hex Hd., 3/8-16 x 1

$

$

Not available

11

Simplicity 1916965SM

LOCKWASHER, 3/8
(Superseded to 703454)

$3.49

$

In Stock, Qty 17

0

12

Simplicity 1606530

CLEVIS ASSY., Pulley

$

$

Not available

13

Simplicity 2159106SM

SPRING
(Superseded to 703144)

$5.99

$

In Stock, Qty 6

0

14

Simplicity 1606536

SPRING

$

$

Not available

15

Simplicity 2828804

SETSCREW, 1/4-20 x 3/8

$

$

Not available

16

Simplicity 105201

COLLAR, Set

$

$

Not available

17

Simplicity 1918196SM

CLIP, Spring
(Superseded to 5025210YP)

$3.99

$

In Stock, Qty 20+

0

18

Simplicity 1606529

ROD

$

$

Not available

19

Simplicity 176476

GUIDE ASSY., P.T.O.

$

$

Not available

20

Simplicity 2172038SM

KNOB
(Superseded to 1732470SM)

$19.99

$

In Stock, Qty 8

0

21

Simplicity 2172040

HANDLE, Clutch Control

$

$

Not available

22

Simplicity 1606550

ARM, P.T.O.

$

$

Not available

23

Simplicity 1930645SM

LOCKNUT, Hex, 3/8-16
(Superseded to 703893)

$6.99

$

In Stock, Qty 20+

0

24

Simplicity 2822000

PIN, Cotter, 3/32 x 5/8

$

$

Not available

25

Simplicity 162119

STOP

$

$

Not available
