648 (241-648-100) - Cub Cadet Shredder (1991) Shredder Parts Diagram

Shredder

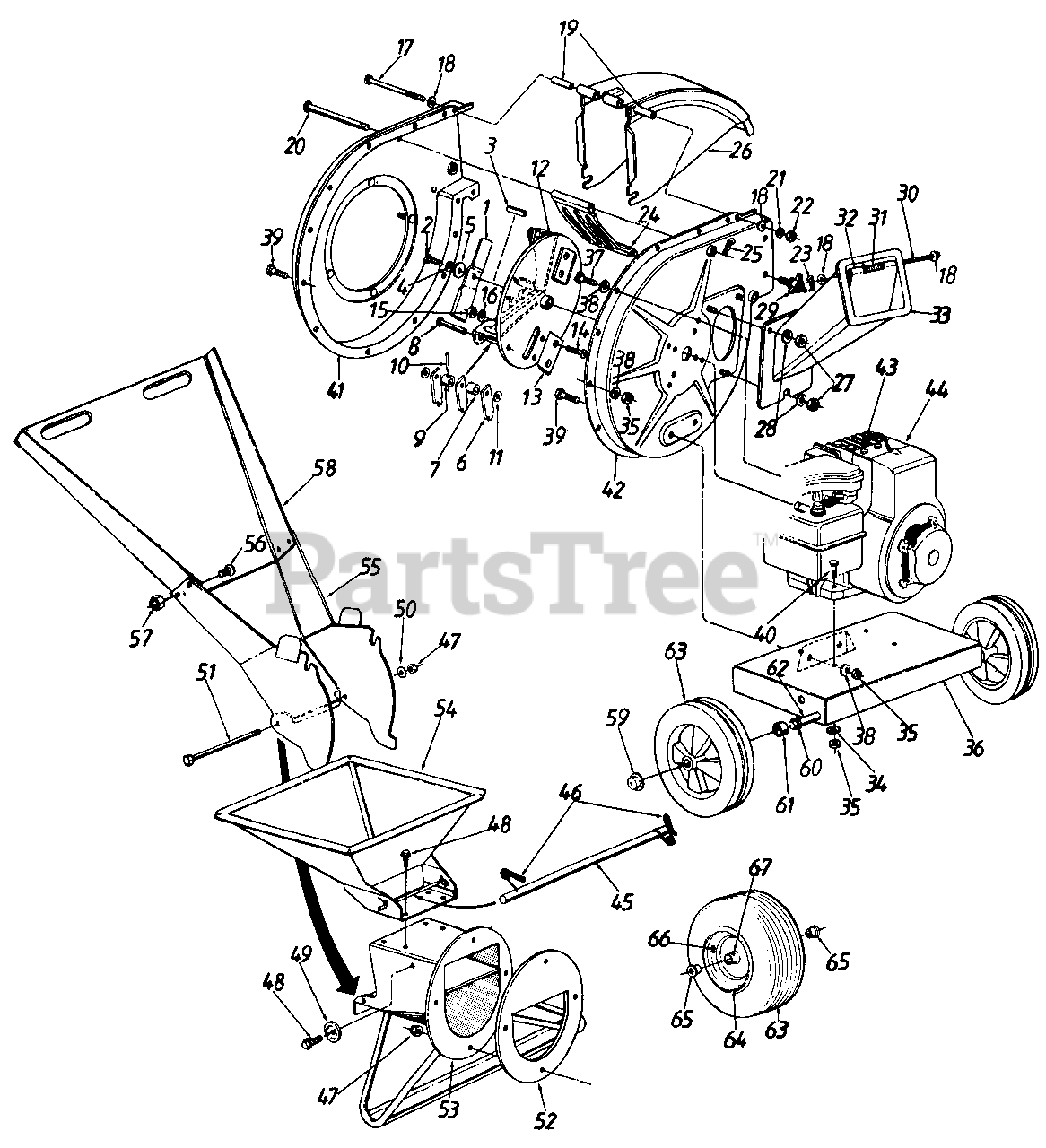

Shredder Parts Diagram

  • Title

1

Cub Cadet 13431

BLADE-SHREDDER
(Superseded to 13431-0637)

Variations

Cub Cadet 13431-0637

Shredder Blade, Black - POWDER BLACK (0637)

$

$

Not available

$

$

2

Cub Cadet 710-0818

SCREW-HEX 3/8-24 X 2.00

$6.99

$

Usually ships in 3-6 days

0

3

Cub Cadet 714-0114

KEY-SQ 1/4 X 2.00
(Superseded to 914-0114)

$4.49

$

In Stock, only 1 left!

0

4

Cub Cadet 736-0217

WASHER-HDL 3/8

$4.49

$

In Stock, Qty 8

0

5

Cub Cadet 736-0247

WASHER-FL-HOND .410ID X 1.255X.162

$9.49

$

In Stock, Qty 14

0

6

Cub Cadet 11459B

FLAIL
(Superseded to 91459B)

$21.99

$

In Stock, Qty 20+

0

7

Cub Cadet 711-0564

SPACER-FLAIL
(Superseded to 911-0564)

$16.99

$

In Stock, only 2 left!

0

8

Cub Cadet 711-0833A

PIN-CLEVIS
(Superseded to 911-0833B)

$12.99

$

In Stock, Qty 5

0

9

Cub Cadet 711-0834

SPACER
(Superseded to 911-0834A)

$

$

Not available

10

Cub Cadet 715-0249

PIN-SPRING ROLL 5/32 X 1.12
(Superseded to 915-0249)

$6.99

$

In Stock, Qty 20+

0

11

Cub Cadet 736-0192

WASHER-FL-.531 ID X .93 OD X .090

$4.49

$

In Stock, Qty 18

0

12

Cub Cadet 731-0484

HUB CAP
(Superseded to 931-0484A)

$6.49

$

In Stock, Qty 20+

0

13

Cub Cadet 781-0490

BLADE-CHIPPER
(Superseded to 981-0490)

$30.99

$

In Stock, Qty 9

0

14

Cub Cadet 710-1054

SCREW-FLAT HD

$4.49

$

In Stock, Qty 20+

0

15

Cub Cadet 712-0411

NUT-HEX INS L

$4.49

$

In Stock, Qty 20+

0

16

Cub Cadet 736-0119

WASHER-LOCK-5/16
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

17

Cub Cadet 710-1058

BOLT-HEX 1/4-20 X 4 LG

$5.99

$

Usually ships in 3-6 days

0

18

Cub Cadet 736-0159

WASHER-FL-.344 ID X .88 OD X .063

$4.49

$

In Stock, Qty 20+

0

19

Cub Cadet 750-0793

SPACER-.260 X .373 X 1.66
(Superseded to 950-0793)

$3.99

$

In Stock, Qty 12

0

20

Cub Cadet 711-0835

PIN-CLEVIS
(Superseded to 911-0835)

$12.99

$

In Stock, only 3 left!

0

21

Cub Cadet 736-0329

LOCK WASHER 1/4 DIA
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 11

0

22

Cub Cadet 712-0287

NUT-HEX 1/4-20
(Superseded to 912-0287)

$4.99

$

In Stock, only 1 left!

0

23

Cub Cadet 726-0106

NUT-PUSH

$3.99

$

Usually ships in 3-6 days

0

24

Cub Cadet 781-0457

SCREEN-SHREDDER
(Superseded to 781-0457-0637)

Variations

Cub Cadet 781-0457-0637

Shredder Screen, Black - POWDER BLACK (0637)

$41.99

$

In Stock, Qty 11

0

$41.99

$

In Stock, Qty 11

0

25

Cub Cadet 714-0145

PIN-INTERN COT

$4.99

$

In Stock, Qty 20+

0

26

Cub Cadet 781-0480

DEFLECTOR ASSY-CHUTE
(Superseded to 681-0094A)

Variations

Cub Cadet 781-0480-0480

USE 681-0094A-0637 CHUTE-DISC - BRILLIANT GREEN (0480)

$129.99

$

Usually ships in 3-6 days

0

Cub Cadet 781-0480-0483

USE 681-0094A-0637 CHUTE-DISC - CHARCOAL GRAY (0483)

$129.99

$

Usually ships in 3-6 days

0

Cub Cadet 781-0480-0637

USE 681-0094A-0637 CHUTE-DISC - POWDER BLACK (0637)

$129.99

$

Usually ships in 3-6 days

0

Cub Cadet 781-0480-0638

Discharge Chute - MTD/TROY-BILT RED (0638)

$129.99

$

Usually ships in 3-6 days

0

Cub Cadet 781-0480-0662

USE 681-0094A-0637 CHUTE-DISC - OYSTER GRAY (0662)

$129.99

$

Usually ships in 3-6 days

0

Cub Cadet 781-0480-0665

USE 681-0094-0665 CHUTE ASSY- - YARDMAN GREEN (0665)

$129.99

$

Usually ships in 3-6 days

0

Cub Cadet 781-0480-0498

DISCHARGE CHUTE ASSEMBLY - OLD CUB YELLOW (0498)

$

$

Not available

Cub Cadet 781-0480-0686

DISCHARGE CHUTE ASSEMBLY - SIMPLICITY ORANGE (0686)

$

$

Not available

$135.99

$

Usually ships in 3-6 days

0

27

Cub Cadet 712-3010

NUT-HEX 5/16-18

$4.49

$

In Stock, Qty 20+

0

28

Cub Cadet 736-0242

WASHER-BELL .337 X .867 X .057

$4.49

$

In Stock, Qty 20+

0

29

Cub Cadet 720-0170

KNOB-THREE ARM

$11.99

$

In Stock, only 2 left!

0

30

Cub Cadet 747-0744A

ROD-CHIPPER DOOR

$

$

Not available

31

Cub Cadet 732-0542

SPRING-TORSION
(Superseded to 932-0542)

$

$

Not available

32

Cub Cadet 781-0489

DOOR-CHIPPER

Variations

Cub Cadet 781-0489-0483

DOOR - CHARCOAL GRAY (0483)

$

$

Not available

Cub Cadet 781-0489-0498

DOOR - OLD CUB YELLOW (0498)

$

$

Not available

Cub Cadet 781-0489-0629

DOOR - SILVER FLAKE (0629)

$

$

Not available

Cub Cadet 781-0489-0637

DOOR-CHIPP - POWDER BLACK (0637)

$

$

Not available

Cub Cadet 781-0489-0638

DOOR - MTD/TROY-BILT RED (0638)

$

$

Not available

Cub Cadet 781-0489-0662

DOOR - OYSTER GRAY (0662)

$

$

Not available

Cub Cadet 781-0489-0665

DOOR - YARDMAN GREEN (0665)

$

$

Not available

$

$

33

Cub Cadet 781-0475

CHUTE-CHIPPER

Variations

Cub Cadet 781-0475-0480

CHIPPER CHUTE - BRILLIANT GREEN (0480)

$

$

Not available

Cub Cadet 781-0475-0483

CHIPPER CHUTE - CHARCOAL GRAY (0483)

$

$

Not available

Cub Cadet 781-0475-0498

CHIPPER CHUTE - OLD CUB YELLOW (0498)

$

$

Not available

Cub Cadet 781-0475-0629

CHIPPER CHUTE - SILVER FLAKE (0629)

$

$

Not available

Cub Cadet 781-0475-0637

CHIPPER CHUTE - POWDER BLACK (0637)

$

$

Not available

Cub Cadet 781-0475-0638

CHIPPER CHUTE - MTD/TROY-BILT RED (0638)

$

$

Not available

Cub Cadet 781-0475-0648

CHIPPER CHUTE - TECH GRAY (0648)

$

$

Not available

Cub Cadet 781-0475-0650

CHIPPER CHUTE - RED METALLIC (0650)

$

$

Not available

Cub Cadet 781-0475-0662

CHIPPER CHUTE - OYSTER GRAY (0662)

$

$

Not available

Cub Cadet 781-0475-0665

CHIPPER CHUTE - YARDMAN GREEN (0665)

$

$

Not available

Cub Cadet 781-0475-0667

CHIPPER CHUTE - MIDNIGHT BLUE (0667)

$

$

Not available

Cub Cadet 781-0475-0674

CHIPPER CHUTE - YARDMAN YELLOW (0674)

$

$

Not available

$

$

34

Cub Cadet 736-0170

WASHER-SPEC L 5/16 X .88 OD

$5.99

$

Usually ships in 3-6 days

0

35

Cub Cadet 712-3010

NUT-HEX 5/16-18

$4.49

$

In Stock, Qty 20+

0

36

Cub Cadet 781-0510

FRAME-ENGINE MTG
(Superseded to 681-0184C)

$102.99

$

Usually ships in 3-6 days

0

37

Cub Cadet 710-0157

SCREW-HEX 5/16-24 X .75

$4.49

$

In Stock, Qty 18

0

38

Cub Cadet 736-0119

WASHER-LOCK-5/16
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

39

Cub Cadet 710-3008

SCREW-HEX 5/16 X 3/4

$4.49

$

In Stock, Qty 20+

0

40

Cub Cadet 710-0380

SCREW-HEX 5/16-18 X 1.75
(Superseded to 710-3180)

$5.49

$

In Stock, Qty 20+

0

41

Cub Cadet 781-0473

HOUSING ASSY-LH

Variations

Cub Cadet 781-0473-0648

HOUSING ASSEMBLY (LH) (TECH GRAY) - TECH GRAY (0648)

$

$

Not available

Cub Cadet 781-0473-0483

HOUSING ASSEMBLY (LH) CHARCOAL - CHARCOAL GRAY (0483)

$

$

Not available

Cub Cadet 781-0473-0498

HOUSING ASSEMBLY (LH) (CUB YELLOW) - OLD CUB YELLOW (0498)

$

$

Not available

Cub Cadet 781-0473-0629

HOUSING ASSEMBLY (LH) SILVER - SILVER FLAKE (0629)

$

$

Not available

Cub Cadet 781-0473-0638

HOUSING ASSEMBLY (LH) (MTD RED) - MTD/TROY-BILT RED (0638)

$

$

Not available

Cub Cadet 781-0473-0662

HOUSING ASSEMBLY (LH) (OYSTER GRAY) - OYSTER GRAY (0662)

$

$

Not available

Cub Cadet 781-0473-0665

HOUSING AS - YARDMAN GREEN (0665)

$

$

Not available

$

$

42

Cub Cadet 781-0474

HOUSING ASSY-FLAIL-RH

$

$

Not available

43

Cub Cadet 735-0639

INSULATOR-SPARK PLUG

Note: (Optional)

$

$

Not available

44

Note: ENGINE

$

$

Not available

45

Cub Cadet 747-0531A

BAR-RELEASE

$

$

Not available

46

Cub Cadet 732-0546

SPRING-TORSION
(Superseded to 932-0546)

$4.99

$

Usually ships in 3-6 days

0

47

Cub Cadet 712-0429

NUT-HEX INS L-5/16-18

$4.49

$

In Stock, Qty 20+

0

48

Cub Cadet 710-0601

SCREW-HEX WASH SF TAPP
(Superseded to 710-1260A)

$3.99

$

In Stock, Qty 20+

0

49

Cub Cadet 11480

WASHER-STOP

$

$

Not available

50

Cub Cadet 736-0264

WASHER-FL-.344 X .62

$6.99

$

In Stock, only 1 left!

0

51

Cub Cadet 710-0542

SCREW-HEX 5/16-18 X 8.25

$

$

Not available

52

Cub Cadet 781-0487A

PLATE-BACK-UP

$

$

Not available

53

Cub Cadet 16522A

GUIDE ASSY-INLET

$

$

Not available

54

Cub Cadet 11481B

HOPPER ASSY

Variations

Cub Cadet 11481B-0483

HOPPER ASSEMBLY - CHARCOAL GRAY (0483)

$

$

Not available

Cub Cadet 11481B-0629

HOPPER ASSEMBLY - SILVER FLAKE (0629)

$

$

Not available

Cub Cadet 11481B-0638

HOPPER ASSEMBLY - MTD/TROY-BILT RED (0638)

$

$

Not available

Cub Cadet 11481B-0662

HOPPER ASSEMBLY - OYSTER GRAY (0662)

$

$

Not available

Cub Cadet 11481B-0665

HOPPER ASSEMBLY - YARDMAN GREEN (0665)

$

$

Not available

$

$

55

Cub Cadet 781-0509

RAMP ASSY-LEAF UPR

Variations

Cub Cadet 781-0509-0483

RAMP SECTION - CHARCOAL GRAY (0483)

$

$

Not available

Cub Cadet 781-0509-0498

RAMP SECTION - OLD CUB YELLOW (0498)

$

$

Not available

Cub Cadet 781-0509-0637

RAMP SECTION - POWDER BLACK (0637)

$

$

Not available

Cub Cadet 781-0509-0638

RAMP SECTION - MTD/TROY-BILT RED (0638)

$

$

Not available

Cub Cadet 781-0509-0650

RAMP SECTION - RED METALLIC (0650)

$

$

Not available

Cub Cadet 781-0509-0662

RAMP SECTION - OYSTER GRAY (0662)

$

$

Not available

$

$

56

Cub Cadet 710-0286

SCREW-TRUSS MACH 1/4-20 X .50

$4.49

$

Usually ships in 3-6 days

0

57

Cub Cadet 712-0107

NUT-HEX CENTER L-1/4-20
(Superseded to 912-0107)

$4.99

$

In Stock, only 1 left!

0

58

Cub Cadet 11461B

RAMP SECTION-UPR

Variations

Cub Cadet 11461B-0483

RAMP SECTI - CHARCOAL GRAY (0483)

$

$

Not available

Cub Cadet 11461B-0498

RAMP SECTI - OLD CUB YELLOW (0498)

$

$

Not available

Cub Cadet 11461B-0629

RAMP SECTI - SILVER FLAKE (0629)

$

$

Not available

Cub Cadet 11461B-0638

RAMP SECTI - MTD/TROY-BILT RED (0638)

$

$

Not available

Cub Cadet 11461B-0662

RAMP SECTI - OYSTER GRAY (0662)

$

$

Not available

$

$

59

Cub Cadet 726-0214

CAP-PUSH

$10.99

$

In Stock, only 4 left!

0

60

Cub Cadet 736-0187

WASHER-FL-.640ID X 1.24OD X .06HDN

$4.49

$

In Stock, Qty 20+

0

61

Cub Cadet 750-0786

SPACER
(Superseded to 950-0786)

$7.49

$

Usually ships in 3-6 days

0

62

Cub Cadet 738-0814

AXLE-SHREDDER 3&5 HP

Note: (645)

$44.99

$

In Stock, only 1 left!

0

Cub Cadet 738-0813

AXLE-SHREDDER 8 HP

Note: (648)

$52.99

$

Usually ships in 3-6 days

0

63

Cub Cadet 734-1600

WHEEL ASSY W/TIRE 645

Note: (645)

$93.99

$

Usually ships in 3-6 days

0

Cub Cadet 734-1597

WHEEL ASSY W/TIRE 648 410/3.50-4
(Superseded to 934-04009)

Note: (648)

Variations

Cub Cadet 734-1597-0911

Wheel Assembly Complete, 10 - Carlisle Gray (0911)

$122.99

$

Usually ships in 3-6 days

0

Cub Cadet 734-1597-0931

Wheel Assembly Complete, 10 - Carlisle Beige (0931)

$122.99

$

Usually ships in 3-6 days

0

Cub Cadet 734-1597-0941

Wheel Assembly Complete, 10 - Carlisle Yellow (0941)

$122.99

$

Usually ships in 3-6 days

0

$122.99

$

Usually ships in 3-6 days

0

Cub Cadet 734-1598

TIRE-648 4.10 /3.5 X 4
(Superseded to 734-1598-0901)

Note: (648)

Variations

Cub Cadet 734-1598-0901

Tire, 648 4.10 /3.5 - Carlisle (0901)

$119.99

$

Usually ships in 3-6 days

0

Cub Cadet 734-1598-0902

Tire, 648 4.10 /3.5 - Dico (0902)

$119.99

$

Usually ships in 3-6 days

0

Cub Cadet 734-1598-0905

Tire, 648 4.10 /3.5 - Duro (0905)

$119.99

$

Usually ships in 3-6 days

0

$119.99

$

Usually ships in 3-6 days

0

64

Cub Cadet 734-1455

WHEEL RIM

Note: (648)

$

$

Not available

65

Cub Cadet 741-0487

BEARING-FLANGE
(Superseded to 741-0487C)

Note: (648)

$7.49

$

Usually ships in 3-6 days

0

66

Cub Cadet 734-0255

VALVE-TUBELESS AIR
(Superseded to 934-0255)

Note: (648)

$4.49

$

In Stock, Qty 20+

0

67

Cub Cadet 737-0280

FITTING-GREASE (SLOTTED)

Note: (648)

$7.99

$

In Stock, Qty 8

0

Cub Cadet 764-0199A

BAG-SHREDDER
(Superseded to 964-04022)

Note: (Not Shown)

$74.99

$

Usually ships in 3-6 days

0

Cub Cadet 723-0400

GLASSES-SAFETY

Note: (Not Shown)

$26.99

$

Usually ships in 3-6 days

0
