645 DS (246-645D100) - Cub Cadet Shredder (1996) Shredder Parts Diagram

Shredder

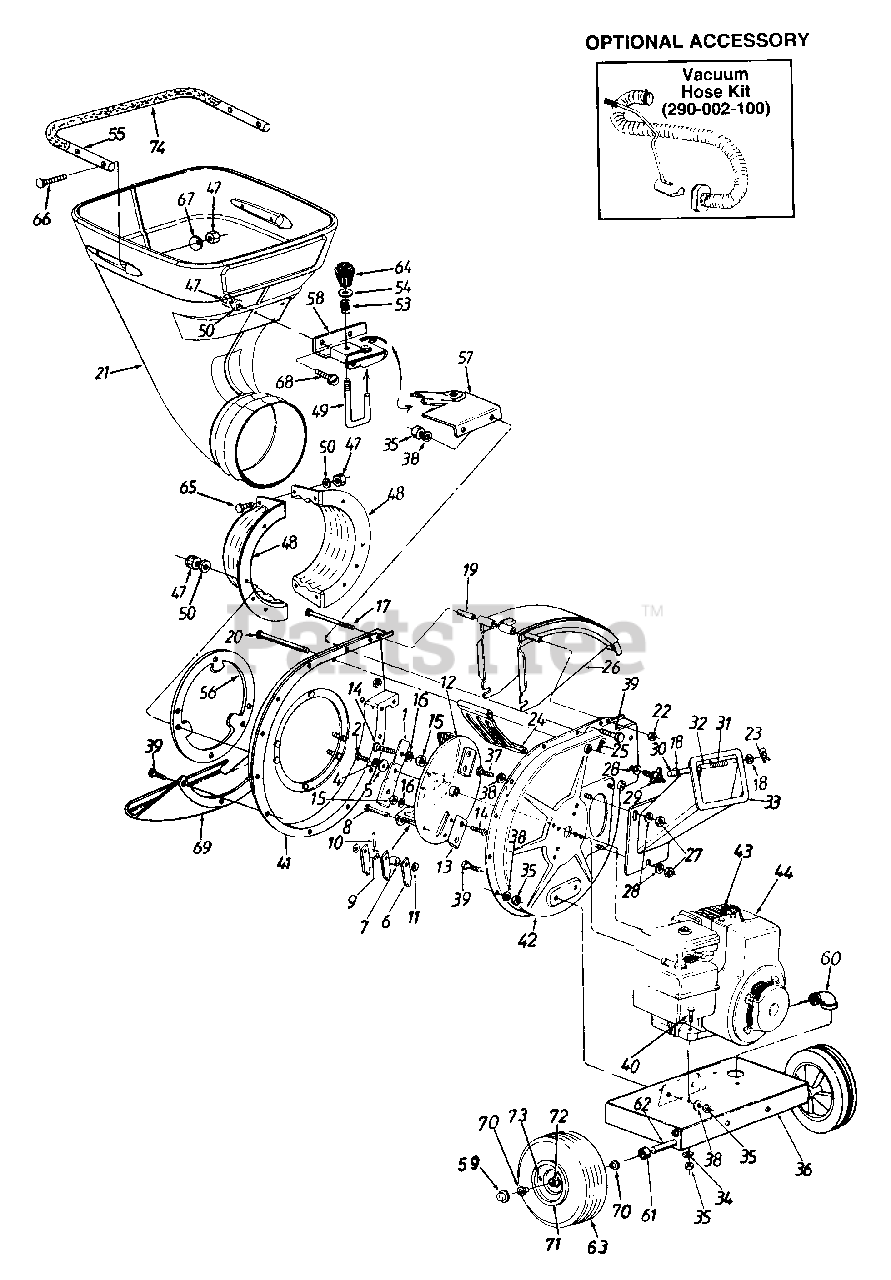

Shredder Parts Diagram

  • Title

1

Cub Cadet 742-0571

Blade
(Superseded to 942-0571)

$37.99

$

In Stock, Qty 10

0

2

Cub Cadet 710-1254

Hex Patch Bolt 3/8-24 x 2.25" Lg.

$7.99

$

In Stock, Qty 8

0

4

Cub Cadet 736-0217

L-Wash. 3/8" I.D. H.D.

$4.49

$

In Stock, Qty 8

0

5

Cub Cadet 736-0247

FI-Wash..406" I.D. x 1.25" O.D. Hdn.

$9.49

$

In Stock, Qty 14

0

6

Cub Cadet 11459B

Flail
(Superseded to 91459B)

$21.99

$

In Stock, Qty 20+

0

7

Cub Cadet 711-0564

Flail Spacer
(Superseded to 911-0564)

$16.99

$

In Stock, only 2 left!

0

8

Cub Cadet 711-0833B

Clevis Pin .496" Dia.
(Superseded to 911-0833B)

$12.99

$

In Stock, Qty 5

0

9

Cub Cadet 711-0834A

Flail Spacer w/.160" Dia. Hole
(Superseded to 911-0834A)

$

$

Not available

10

Cub Cadet 715-0162

Spring Roll Pin 1.125" Lg.
(Superseded to 915-0162)

$5.49

$

In Stock, only 3 left!

0

11

Cub Cadet 736-0192

FI-Wash..531" I.D. x.94" O.D.

$4.49

$

In Stock, Qty 18

0

12

Cub Cadet 681-0032

Impeller Ass'y. Comp.

$

$

Not available

13

Cub Cadet 742-0544

Chipper Blade
(Superseded to 942-0544B)

$89.99

$

In Stock, Qty 7

0

14

Cub Cadet 710-1054

Flat Hd. Scr. 5/16-24 x .75" Lg.

$4.49

$

In Stock, Qty 20+

0

15

Cub Cadet 712-0411

Hex Top L-Nut 5/16-24 (Gr. 5)

$4.49

$

In Stock, Qty 20+

0

16

Cub Cadet 736-0119

L-Wash. 5/16" I.D.
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

17

Cub Cadet 710-0825

Hex Bolt 1/4-20 x 3.75" Lg.

$5.49

$

In Stock, only 3 left!

0

18

Cub Cadet 736-0142

FI-Wash..281" I.D. x .50" O.D.

$4.99

$

In Stock, Qty 20+

0

19

Cub Cadet 750-0793

Chute Hinge Spacer 1.66" Lg.
(Superseded to 950-0793)

$3.99

$

In Stock, Qty 12

0

20

Cub Cadet 711-0835

Clevis Pin .5" Dia. x 4.62" Lg.
(Superseded to 911-0835)

$12.99

$

In Stock, only 3 left!

0

21

Cub Cadet 731-1427

Rotating Hopper

$

$

Not available

22

Cub Cadet 712-0291

Hex Ctr. L-Nut 1/4-20 Thd.

$4.49

$

In Stock, Qty 8

0

23

Cub Cadet 714-3010

Cotter Pin

$4.99

$

In Stock, only 1 left!

0

24

Cub Cadet 781-0457

Shredder Screen
(Superseded to 781-0457-0637)

Variations

Cub Cadet 781-0457-0637

Shredder Screen, Black - POWDER BLACK (0637)

$41.99

$

In Stock, Qty 11

0

$41.99

$

In Stock, Qty 11

0

25

Cub Cadet 714-0149B

Internal Cotter Pin 3/8" Dia.

$4.49

$

In Stock, Qty 18

0

26

Cub Cadet 781-0480

Chute Deflector Ass'y.
(Superseded to 681-0094A)

Variations

Cub Cadet 781-0480-0480

USE 681-0094A-0637 CHUTE-DISC - BRILLIANT GREEN (0480)

$129.99

$

Usually ships in 3-6 days

0

Cub Cadet 781-0480-0483

USE 681-0094A-0637 CHUTE-DISC - CHARCOAL GRAY (0483)

$129.99

$

Usually ships in 3-6 days

0

Cub Cadet 781-0480-0637

USE 681-0094A-0637 CHUTE-DISC - POWDER BLACK (0637)

$129.99

$

Usually ships in 3-6 days

0

Cub Cadet 781-0480-0638

Discharge Chute - MTD/TROY-BILT RED (0638)

$129.99

$

Usually ships in 3-6 days

0

Cub Cadet 781-0480-0662

USE 681-0094A-0637 CHUTE-DISC - OYSTER GRAY (0662)

$129.99

$

Usually ships in 3-6 days

0

Cub Cadet 781-0480-0665

USE 681-0094-0665 CHUTE ASSY- - YARDMAN GREEN (0665)

$129.99

$

Usually ships in 3-6 days

0

Cub Cadet 781-0480-0498

DISCHARGE CHUTE ASSEMBLY - OLD CUB YELLOW (0498)

$

$

Not available

Cub Cadet 781-0480-0686

DISCHARGE CHUTE ASSEMBLY - SIMPLICITY ORANGE (0686)

$

$

Not available

$135.99

$

Usually ships in 3-6 days

0

27

Cub Cadet 712-3010

Hex Nut 5/16-18 Thd. (Gr. 5)

$4.49

$

In Stock, Qty 20+

0

28

Cub Cadet 736-0242

Bell-Wash..345" I.D. x .88"

$4.49

$

In Stock, Qty 20+

0

29

Cub Cadet 720-0170

Hand Knob

$11.99

$

In Stock, only 2 left!

0

30

Cub Cadet 747-0744A

Chipper Door Rod

$

$

Not available

31

Cub Cadet 732-0542

Torsion Spring 1.14" Lg.
(Superseded to 932-0542)

$

$

Not available

32

Cub Cadet 781-0489

Chipper Door

Variations

Cub Cadet 781-0489-0483

DOOR - CHARCOAL GRAY (0483)

$

$

Not available

Cub Cadet 781-0489-0498

DOOR - OLD CUB YELLOW (0498)

$

$

Not available

Cub Cadet 781-0489-0629

DOOR - SILVER FLAKE (0629)

$

$

Not available

Cub Cadet 781-0489-0637

DOOR-CHIPP - POWDER BLACK (0637)

$

$

Not available

Cub Cadet 781-0489-0638

DOOR - MTD/TROY-BILT RED (0638)

$

$

Not available

Cub Cadet 781-0489-0662

DOOR - OYSTER GRAY (0662)

$

$

Not available

Cub Cadet 781-0489-0665

DOOR - YARDMAN GREEN (0665)

$

$

Not available

$

$

33

Cub Cadet 781-0475

Chipper Chute Ass'y.

Variations

Cub Cadet 781-0475-0480

CHIPPER CHUTE - BRILLIANT GREEN (0480)

$

$

Not available

Cub Cadet 781-0475-0483

CHIPPER CHUTE - CHARCOAL GRAY (0483)

$

$

Not available

Cub Cadet 781-0475-0498

CHIPPER CHUTE - OLD CUB YELLOW (0498)

$

$

Not available

Cub Cadet 781-0475-0629

CHIPPER CHUTE - SILVER FLAKE (0629)

$

$

Not available

Cub Cadet 781-0475-0637

CHIPPER CHUTE - POWDER BLACK (0637)

$

$

Not available

Cub Cadet 781-0475-0638

CHIPPER CHUTE - MTD/TROY-BILT RED (0638)

$

$

Not available

Cub Cadet 781-0475-0648

CHIPPER CHUTE - TECH GRAY (0648)

$

$

Not available

Cub Cadet 781-0475-0650

CHIPPER CHUTE - RED METALLIC (0650)

$

$

Not available

Cub Cadet 781-0475-0662

CHIPPER CHUTE - OYSTER GRAY (0662)

$

$

Not available

Cub Cadet 781-0475-0665

CHIPPER CHUTE - YARDMAN GREEN (0665)

$

$

Not available

Cub Cadet 781-0475-0667

CHIPPER CHUTE - MIDNIGHT BLUE (0667)

$

$

Not available

Cub Cadet 781-0475-0674

CHIPPER CHUTE - YARDMAN YELLOW (0674)

$

$

Not available

$

$

34

Cub Cadet 736-0170

Spec. L-Wash. 5/16" I.D.

$5.99

$

Usually ships in 3-6 days

0

35

Cub Cadet 712-3010

Hex Nut 5/16-18 Thd. (Gr. 5)

$4.49

$

In Stock, Qty 20+

0

36

Cub Cadet 781-0510A

Shredder Frame
(Superseded to 681-0184C)

Variations

Cub Cadet 781-0510A-0483

USE 681-0184C-0483 FRAME ASM- - CHARCOAL GRAY (0483)

$102.99

$

Usually ships in 3-6 days

0

Cub Cadet 781-0510A-0689

USE 681-0184C-0689 FRAME ASM- - POLO GREEN (0689)

$102.99

$

Usually ships in 3-6 days

0

$102.99

$

Usually ships in 3-6 days

0

37

Cub Cadet 710-0157

Hex Bolt 5/16-24 x .75" Lg.

$4.49

$

In Stock, Qty 18

0

38

Cub Cadet 736-0119

L-Wash. 5/16" I.D.
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

39

Cub Cadet 710-3008

Hex Bolt 5/16-18 x .75" Lg. (Gr. 5)

$4.49

$

In Stock, Qty 20+

0

40

Cub Cadet 710-0442

Hex Bolt 5/16-18 x 1.5" Lg.
(Superseded to 710-0805A)

$4.49

$

In Stock, Qty 20+

0

41

Cub Cadet 681-0004

Flail Housing Ass'y.-- L.H.
(Superseded to 681-0004A)

Variations

Cub Cadet 681-0004-0498

USE 681-0004A-0498 HOUSING AS - OLD CUB YELLOW (0498)

$236.99

$

Usually ships in 3-6 days

0

Cub Cadet 681-0004-0637

USE 681-0004A-0637 HOUSING AS - POWDER BLACK (0637)

$236.99

$

Usually ships in 3-6 days

0

Cub Cadet 681-0004-0638

USE 681-0004A-0638 HOUSING AS - MTD/TROY-BILT RED (0638)

$236.99

$

Usually ships in 3-6 days

0

Cub Cadet 681-0004-0483

USE 681-0004A-0483 HOUSING AS - CHARCOAL GRAY (0483)

$219.99

$

Usually ships in 3-6 days

0

Cub Cadet 681-0004-0662

USE 681-0004A-0662 HOUSING AS - OYSTER GRAY (0662)

$191.99

$

Usually ships in 3-6 days

0

Cub Cadet 681-0004-0665

USE 681-0004A-0665 HOUSING AS - YARDMAN GREEN (0665)

$191.99

$

Usually ships in 3-6 days

0

Cub Cadet 681-0004-0689

USE 681-0004A-0689 HOUSING AS - POLO GREEN (0689)

$219.99

$

Usually ships in 3-6 days

0

$191.99

$

Usually ships in 3-6 days

0

42

Cub Cadet 781-0474A

Flail Housing Ass'y.-- R.H.

Variations

Cub Cadet 781-0474A-0480

HOUSING ASSEMBLY-FLAILBRILLIANT - BRILLIANT GREEN (0480)

$

$

Not available

Cub Cadet 781-0474A-0483

HOUSING ASSEMBLY-FLAIL - CHARCOAL GRAY (0483)

$

$

Not available

Cub Cadet 781-0474A-0498

HOUSING ASSEMBLY-FLAIL(CUB YELLOW) - OLD CUB YELLOW (0498)

$

$

Not available

Cub Cadet 781-0474A-0629

HOUSING ASSEMBLY-FLAIL(SILVER FLAKE) - SILVER FLAKE (0629)

$

$

Not available

Cub Cadet 781-0474A-0637

HOUSING ASSEMBLY-FLAIL(POWDER BLACK) - POWDER BLACK (0637)

$

$

Not available

Cub Cadet 781-0474A-0638

HOUSING ASSEMBLY-FLAIL(MTD RED) - MTD/TROY-BILT RED (0638)

$

$

Not available

Cub Cadet 781-0474A-0648

HOUSING ASSEMBLY-FLAIL(TECH GRAY) - TECH GRAY (0648)

$

$

Not available

Cub Cadet 781-0474A-0662

HOUSING ASSEMBLY-FLAIL(OYSTER GRAY) - OYSTER GRAY (0662)

$

$

Not available

Cub Cadet 781-0474A-0665

HOUSING ASSEMBLY-FLAIL(YARD-MAN GREEN) - YARDMAN GREEN (0665)

$

$

Not available

Cub Cadet 781-0474A-0674

HOUSING ASSEMBLY-FLAIL(YARD-MAN YELLOW) - YARDMAN YELLOW (0674)

$

$

Not available

$

$

43

Cub Cadet 735-0639

Spark Plug Boot

$

$

Not available

44

Engine

$

$

Not available

47

Cub Cadet 712-0429

Elastic Lock Nut 5/16-18 Thd.

$4.49

$

In Stock, Qty 20+

0

48

Cub Cadet 731-1428

Hopper Mtg. Collar

$

$

Not available

49

Cub Cadet 781-0568

Locking Pin

$

$

Not available

50

Cub Cadet 736-0264

Fl-Wash. 5/16" I.D.

$6.99

$

In Stock, only 1 left!

0

53

Cub Cadet 732-0730

Spring 1.5" Lg

$

$

Not available

54

Cub Cadet 736-0117

FI-Wash..385" I.D x 62" O.D.
(Superseded to 936-0117)

$7.49

$

Usually ships in 3-6 days

0

55

Cub Cadet 749-0932

Handle

Variations

Cub Cadet 749-0932-0637

HANDLE-HOPPER - POWDER BLACK (0637)

$

$

Not available

$

$

56

Cub Cadet 781-0574

Back-Up Plate

Variations

Cub Cadet 781-0574-0483

PLATE-HOPPER BACK- - CHARCOAL GRAY (0483)

$185.99

$

Usually ships in 3-6 days

0

Cub Cadet 781-0574-0637

PLATE-HOPPER BACK- - POWDER BLACK (0637)

$185.99

$

Usually ships in 3-6 days

0

Cub Cadet 781-0574-0638

PLATE-HOPPER BACK- - MTD/TROY-BILT RED (0638)

$172.99

$

Usually ships in 3-6 days

0

Cub Cadet 781-0574-0662

PLATE-HOPPER BACK- - OYSTER GRAY (0662)

$172.99

$

Usually ships in 3-6 days

0

Cub Cadet 781-0574-0665

PLATE-HOPPER BACK- - YARDMAN GREEN (0665)

$172.99

$

Usually ships in 3-6 days

0

$172.99

$

Usually ships in 3-6 days

0

57

Cub Cadet 781-0562

Lower Locking Brkt.

Variations

Cub Cadet 781-0562-0637

BRACKET-LWR LOCKIN(POWDER BLACK) - POWDER BLACK (0637)

$

$

Not available

Cub Cadet 781-0562-0638

BRACKET-LWR LOCKIN(MTD RED) - MTD/TROY-BILT RED (0638)

$

$

Not available

Cub Cadet 781-0562-0665

BRACKET-LWR LOCKIN(YARD-MAN GREEN) - YARDMAN GREEN (0665)

$

$

Not available

Cub Cadet 781-0562-0674

BRACKET-LWR LOCKIN(YARD-MAN YELLOW) - YARDMAN YELLOW (0674)

$

$

Not available

$

$

58

Cub Cadet 781-0561

Upper Locking Brkt.

Variations

Cub Cadet 781-0561-0483

BRACKET-UPR LOCKINCHARCOAL - CHARCOAL GRAY (0483)

$

$

Not available

Cub Cadet 781-0561-0629

BRACKET-UPR LOCKIN(SILVER FLAKE) - SILVER FLAKE (0629)

$

$

Not available

Cub Cadet 781-0561-0637

BRACKET-UPR LOCKIN(POWDER BLACK) - POWDER BLACK (0637)

$

$

Not available

Cub Cadet 781-0561-0665

BRACKET-UPR LOCKIN(YARD-MAN GREEN) - YARDMAN GREEN (0665)

$

$

Not available

$

$

59

Cub Cadet 726-0214

Push Cap 5/8" Dia. Rod

$10.99

$

Usually ships in 3-6 days

0

60

Cub Cadet 737-0195

Drain Elbow
(Superseded to 937-0195)

$16.99

$

Usually ships in 3-6 days

0

61

Cub Cadet 750-0786

Spacer .64" I.D. x .38" Lg.
(Superseded to 950-0786)

$7.49

$

Usually ships in 3-6 days

0

62

Cub Cadet 738-0813

Shredder Axle

$52.99

$

Usually ships in 3-6 days

0

63

Cub Cadet 734-1597

Wheel Ass'y Comp.
(Superseded to 934-04009)

Variations

Cub Cadet 734-1597-0911

Wheel Assembly Complete, 10 - Carlisle Gray (0911)

$122.99

$

Usually ships in 3-6 days

0

Cub Cadet 734-1597-0931

Wheel Assembly Complete, 10 - Carlisle Beige (0931)

$122.99

$

Usually ships in 3-6 days

0

Cub Cadet 734-1597-0941

Wheel Assembly Complete, 10 - Carlisle Yellow (0941)

$122.99

$

Usually ships in 3-6 days

0

$122.99

$

Usually ships in 3-6 days

0

Cub Cadet 734-1598

Tire Only
(Superseded to 734-1598-0901)

Variations

Cub Cadet 734-1598-0901

Tire, 648 4.10 /3.5 - Carlisle (0901)

$119.99

$

Usually ships in 3-6 days

0

Cub Cadet 734-1598-0902

Tire, 648 4.10 /3.5 - Dico (0902)

$119.99

$

Usually ships in 3-6 days

0

Cub Cadet 734-1598-0905

Tire, 648 4.10 /3.5 - Duro (0905)

$119.99

$

Usually ships in 3-6 days

0

$119.99

$

Usually ships in 3-6 days

0

64

Cub Cadet 720-0232

Knob
(Superseded to 920-0232)

$10.99

$

In Stock, Qty 10

0

65

Cub Cadet 710-0376

Hex Bolt 5/16-18 x 1" Lg. (Gr. 5)

$3.99

$

In Stock, Qty 5

0

66

Cub Cadet 710-1267

Curved Carr. Bolt 5/16-18 x 1.25" Lg.

$

$

Not available

67

Cub Cadet 736-0451

Saddle Wash. 32" I.D.

$4.49

$

In Stock, Qty 11

0

68

Cub Cadet 710-0451

Carr. Bolt 5/16-18 x .75" Lg.

$4.49

$

In Stock, Qty 20+

0

69

Cub Cadet 781-0515

Front Support Brkt.

Variations

Cub Cadet 781-0515-0483

BRACKET-SUPPORT-FR - CHARCOAL GRAY (0483)

$53.99

$

Usually ships in 3-6 days

0

Cub Cadet 781-0515-0638

BRACKET-SUPPORT-FR - MTD/TROY-BILT RED (0638)

$49.99

$

Usually ships in 3-6 days

0

Cub Cadet 781-0515-0637

BRACKET-SUPPORT-FR - POWDER BLACK (0637)

$53.99

$

Usually ships in 3-6 days

0

Cub Cadet 781-0515-0662

USE 781-0515-0637 BRACKET-SUP - OYSTER GRAY (0662)

$53.99

$

Usually ships in 3-6 days

0

Cub Cadet 781-0515-0665

USE 781-0515-0637 BRACKET-SUP - YARDMAN GREEN (0665)

$53.99

$

Usually ships in 3-6 days

0

Cub Cadet 781-0515-0691

BRACKET-SUPPORT-FR - BLACK JACK (0691)

$49.99

$

Usually ships in 3-6 days

0

Cub Cadet 781-0515-4044

BRKT-FRNT SUPPORT - CRAFTSMAN RED (4044)

$43.99

$

Usually ships in 3-6 days

0

$43.99

$

Usually ships in 3-6 days

0

70

Cub Cadet 741-0487A

Flange Bearing .632" I.D.
(Superseded to 741-0487C)

$7.49

$

Usually ships in 3-6 days

0

71

Cub Cadet 734-1455A

Rim Only

Variations

Cub Cadet 734-1455A-0499

RIM ASSEMBLY: BEIGE - CUB BEIGE (0499)

$

$

Not available

Cub Cadet 734-1455A-0629

RIM - SILVER FLAKE (0629)

$

$

Not available

Cub Cadet 734-1455A-0662

RIM - OYSTER GRAY (0662)

$

$

Not available

Cub Cadet 734-1455A-0674

RIM - YARDMAN YELLOW (0674)

$

$

Not available

$

$

72

Cub Cadet 737-0211

Grease Fitting
(Superseded to 737-0211A)

$10.99

$

Usually ships in 3-6 days

0

73

Cub Cadet 734-0255

Air Valve
(Superseded to 934-0255)

$4.49

$

In Stock, Qty 20+

0

74

Cub Cadet 720-0280

Foam Grip

$

$

Not available

Cub Cadet 764-0199A

Bag
(Superseded to 964-04022)

Note: (Not Shown)

$74.99

$

Usually ships in 3-6 days

0

Cub Cadet 723-0400

Safety Glasses

Note: (Not Shown)

$26.99

$

Usually ships in 3-6 days

0
