645 C (244-645C100) - Cub Cadet Shredder Engine (1994) B&S 5 HP Control Panel, Tube & Dipstick Ass'y Parts Diagram

Shredder Engine

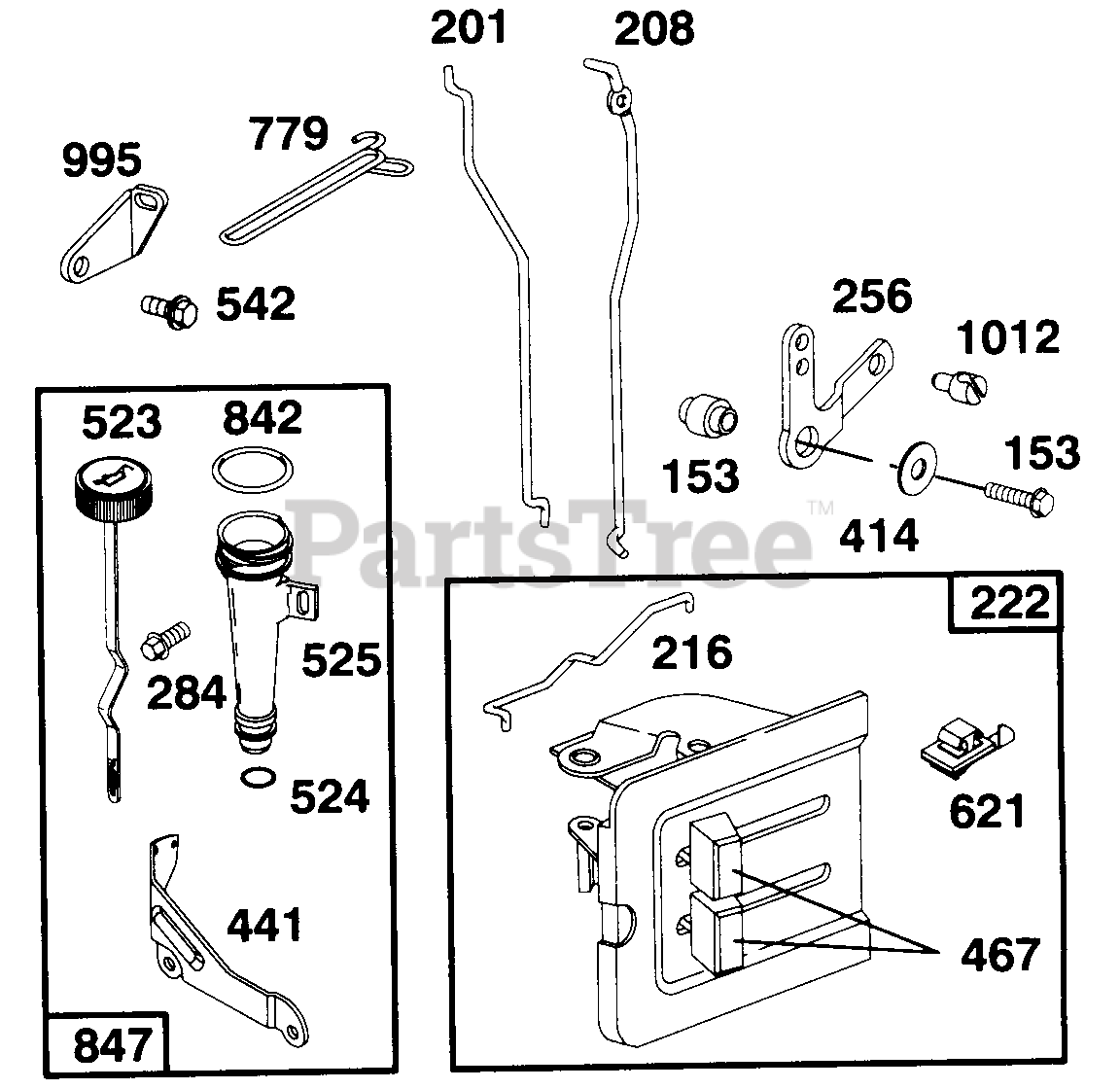

B&S 5 HP Control Panel, Tube & Dipstick Ass'y Parts Diagram

  • Title

153

Cub Cadet BS-490589

Screw and Collar

$

$

Not available

201

Cub Cadet BS-262280

Link--Governor

$

$

Not available

208

Cub Cadet BS-262279

Rod--Speed Control
(Superseded to BS-691813)

$

$

Not available

216

Cub Cadet BS-262359

Link--Choke
(Superseded to BS-691824)

$9.99

$

In Stock, only 2 left!

0

222

Cub Cadet BS-490649

Panel--Control

$

$

Not available

256

Cub Cadet BS-223813

Crank--Bell

$

$

Not available

284

Cub Cadet BS-94620

Screw--Hex Head
(Superseded to BS-691693)

$3.99

$

In Stock, Qty 9

0

414

Cub Cadet BS-220982

Washer

$

$

Not available

441

Cub Cadet BS-224240

Bracket--Oil Fill

$

$

Currently unavailable

467

Cub Cadet BS-280715

Knob Control
(Superseded to BS-692295)

$9.49

$

In Stock, only 4 left!

0

523

Cub Cadet BS-494416

Dipstick and Cap Ass'y.

$

$

Not available

524

Cub Cadet BS-271485

Seal--Oil Filler Tube

$

$

Not available

525

Cub Cadet BS-280578

Tube Oil Filler

$

$

Not available

542

Cub Cadet 710-0432

Screw

$

$

Not available

621

Cub Cadet BS-396847

Switch--Stop
(Superseded to BS-692310)

$5.99

$

In Stock, Qty 20+

0

779

Cub Cadet BS-262570

Link--Speed Control

$

$

Not available

842

Cub Cadet BS-270920

Seal--Oil Filler Tube
(Superseded to BS-691870)

$4.49

$

Usually ships in 2-12 days

0

847

Cub Cadet BS-494417

Tube and Dipstick Ass'y.

$

$

Not available

995

Cub Cadet BS-223887

Lever--Bracket Ass'y.

$

$

Not available

1012

Cub Cadet BS-490507

Retainer--Link

$

$

Not available
