645 C (243-645C100) - Cub Cadet Shredder Engine (1993) B&S 5 HP Fuel Tank Ass'y Parts Diagram

Shredder Engine

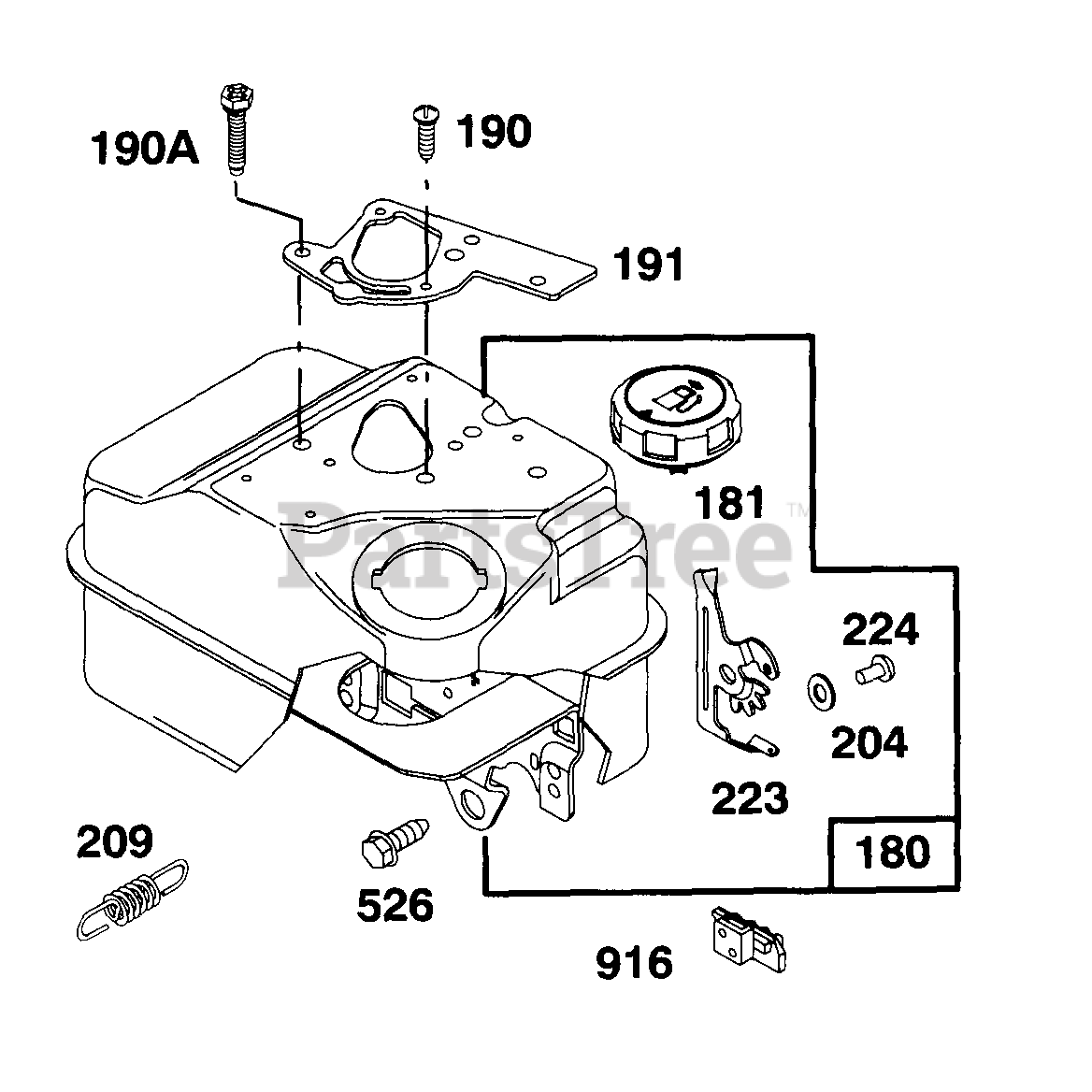

B&S 5 HP Fuel Tank Ass'y Parts Diagram

  • Title

180

Cub Cadet BS-495405

Tank Assembly--Fuel
(Superseded to BS-694315)

$

$

Not available

181

Cub Cadet BS-494559

Cap--Fuel Tank

$

$

Not available

190

Cub Cadet BS-94712

Screw--Fuel Tank

$

$

Not available

190A

Cub Cadet BS-94677

Screw--Fuel Tank Mounting (1-3/4" Long)

$

$

Not available

191

Cub Cadet BS-272489

Gasket--Fuel Tank to Carb. Mtg.
(Superseded to BS-692241)

$4.49

$

In Stock, Qty 20+

0

204

Cub Cadet BS-222962

Bushing--Governor Lever (Flat)

$

$

Currently unavailable

209

Cub Cadet BS-262282

Spring--Governor
(Superseded to BS-690376)

$11.99

$

In Stock, only 4 left!

0

223

Cub Cadet BS-223455

Lever--Gov. Control

$

$

Currently unavailable

224

Cub Cadet BS-93491

Rivet--Gov. Control Lever Mounting

$1.49

$

Usually ships in 2-12 days

0

526

Cub Cadet BS-94659

Screw--Tank Bracket Mounting Sem

$

$

Not available

916

Cub Cadet BS-280321

Rack--Gear Control

$

$

Not available

Cub Cadet BS-495603

Gasket set

$32.99

$

In Stock, Qty 20+

0

Cub Cadet BS-495606

Carburetor Overhaul Kit

$26.99

$

In Stock, Qty 7

0
