645 C (243-645C100) - Cub Cadet Shredder Engine (1993) B&S 5 HP Cylinder and Crankshaft Parts Diagram

Shredder Engine

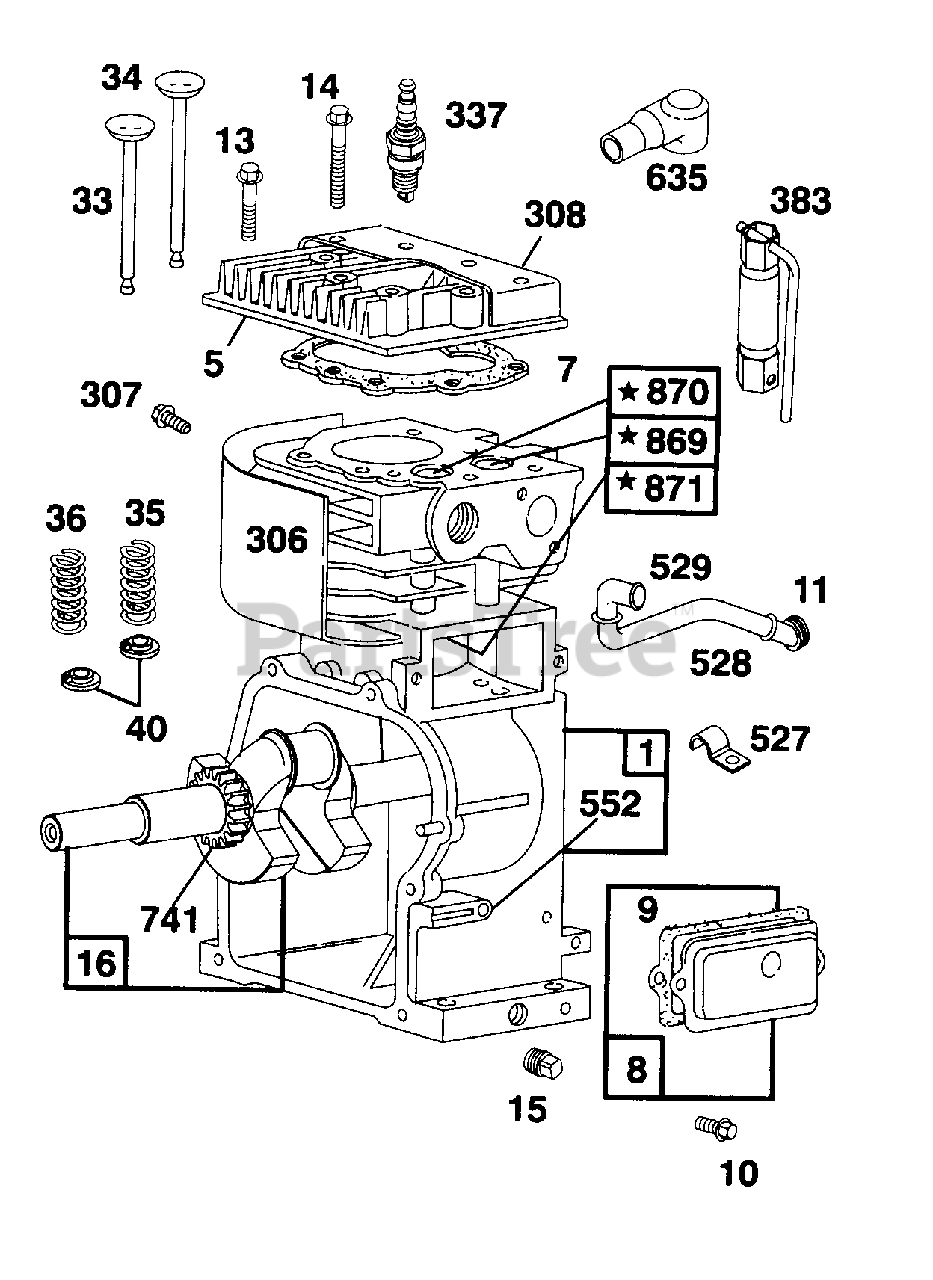

B&S 5 HP Cylinder and Crankshaft Parts Diagram

  • Title

1

Cub Cadet BS-395990

Cylinder Assembly

$

$

Not available

5

Cub Cadet BS-214040

Head--Cylinder

$

$

Not available

7

Cub Cadet BS-272157

Gasket--Cylinder Head
(Superseded to BS-272157S)

$6.49

$

In Stock, Qty 6

0

8

Cub Cadet BS-495774

Breather Ass'y.
(Superseded to BS-791779)

$15.99

$

Usually ships in 2-12 days

0

9

Cub Cadet BS-27549

Gasket--Valve Cover

$

$

Not available

10

Cub Cadet BS-94621

Screw--Breather Mtg.
(Superseded to BS-691666)

$3.99

$

In Stock, Qty 5

0

11

Cub Cadet BS-66578

Grommet--Breather
(Superseded to BS-692187)

$4.49

$

In Stock, Qty 19

0

13

Cub Cadet BS-94221

Screw Cylinder Head (2-3/32" Long)
(Superseded to BS-691640)

$3.49

$

In Stock, Qty 12

0

14

Cub Cadet BS-94679

Screw Cylinder Head (2-15/32" Long)

$

$

Not available

15

Cub Cadet BS-94387

Plug--Pipe
(Superseded to BS-691686)

$5.49

$

In Stock, only 2 left!

0

16

Cub Cadet BS-495649

Crankshaft

Note: To Replace Crankshaft Gear Pin, Part No. BS-230978

$131.99

$

Usually ships in 2-12 days

0

33

Cub Cadet BS-211119

Valve--Exhaust
(Superseded to BS-211119S)

$

$

Not available

34

Cub Cadet BS-261044

Valve--Intake
(Superseded to BS-261044S)

$

$

Not available

35

Cub Cadet BS-260552

Spring--Intake Valve

$5.49

$

In Stock, only 1 left!

0

36

Cub Cadet BS-26478

Spring--Exhaust Valve

$6.49

$

In Stock, only 1 left!

0

40

Cub Cadet BS-93312

Retainer--Intake Valve and Exhaust Spring
(Superseded to BS-692194)

$5.99

$

In Stock, Qty 11

0

306

Cub Cadet BS-221511

Shield--Cylinder

$

$

Currently unavailable

307

Cub Cadet BS-94680

Screw--Cylinder Shield
(Superseded to BS-691660)

$3.99

$

In Stock, Qty 8

0

308

Cub Cadet BS-224738

Cover--Cylinder Head

$

$

Not available

337

Cub Cadet 759-3338

Plug--Spark

$3.49

$

In Stock, Qty 17

0

383

Cub Cadet BS-89838

Wrench--Spark Plug
(Superseded to BS-89838S)

$6.49

$

In Stock, only 4 left!

0

527

Cub Cadet BS-223786

Clamp--Breather Tube
(Superseded to BS-691741)

$4.99

$

Usually ships in 2-12 days

0

528

Cub Cadet BS-231550

Tube--Breather

$

$

Not available

529

Cub Cadet BS-67838

Grommet--Breather Tube
(Superseded to BS-692189)

$4.49

$

In Stock, Qty 13

0

552

Cub Cadet BS-231079

Bushing--Gov. Crank

$

$

Not available

635

Cub Cadet BS-66538

Elbow--Spark Plug
(Superseded to BS-66538S)

$3.99

$

In Stock, Qty 11

0

741

Cub Cadet BS-261696

Gear--Timing

$52.99

$

Usually ships in 2-12 days

0

869

Cub Cadet BS-211787

Seat--Int. Valve (Std.)

$

$

Not available

870

Cub Cadet BS-211172

Seat--Ex. Valve (Std.)

$

$

Not available

871

Cub Cadet BS-262001

Guide--Exhaust Valve

$13.99

$

Usually ships in 2-12 days

0

Cub Cadet BS-63709

Guide--Intake

$14.99

$

Usually ships in 2-12 days

0

Cub Cadet BS-495603

Gasket Set

$32.99

$

In Stock, Qty 20+

0

Cub Cadet BS-230978

To Replace Crankshaft Gear Pin

$

$

Not available
