645 C (243-645C100) - Cub Cadet Shredder Engine (1993) B&S 5 HP Carburetor Parts Diagram

Shredder Engine

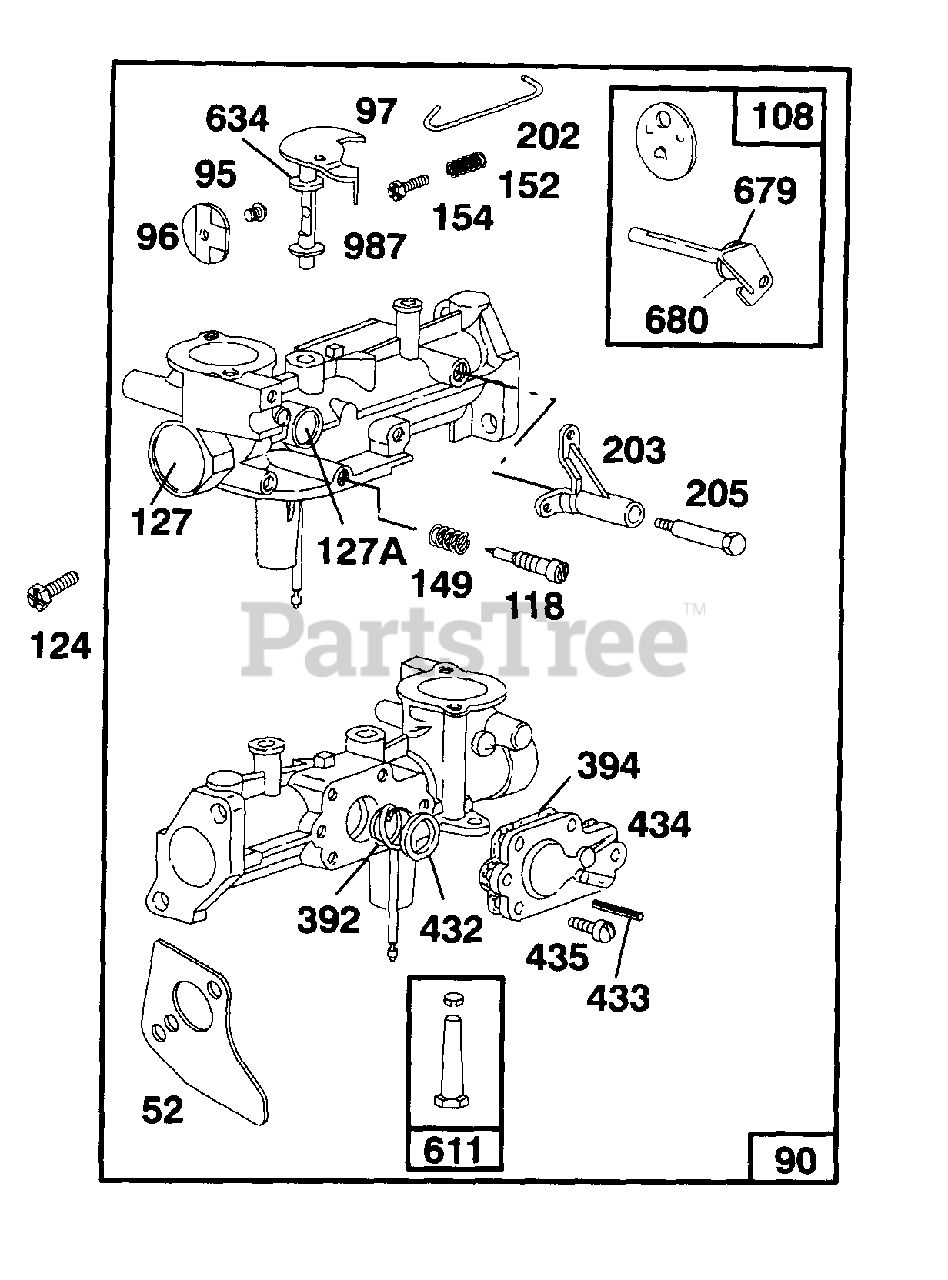

B&S 5 HP Carburetor Parts Diagram

  • Title

52

Cub Cadet BS-271936

Gasket--Carburetor Mounting (2)
(Superseded to BS-273113S)

$4.49

$

In Stock, Qty 17

0

90

Cub Cadet BS-495426

Carburetor Assembly
(Superseded to BS-498298)

$149.99

$

In Stock, Qty 20+

0

95

Cub Cadet BS-93499

Screw--Throttle Valve to Shaft
(Superseded to BS-691437)

$3.99

$

In Stock, only 3 left!

0

96

Cub Cadet BS-223793

Throttle--Carburetor

$

$

Currently unavailable

97

Cub Cadet BS-490048

Shaft and Lever--Throttle

$

$

Not available

108

Cub Cadet BS-491177

Valve & Shaft Group--Choke

$

$

Not available

118

Cub Cadet BS-231533

Valve--Needle

$

$

Not available

124

Cub Cadet BS-94616

Screw--Hex Head
(Superseded to BS-690953)

$5.99

$

Usually ships in 2-12 days

0

127

Cub Cadet BS-220352

Plug--Welch
(Superseded to BS-691718)

$13.99

$

In Stock, only 4 left!

0

127A

Cub Cadet BS-223789

Plug--Welch

$

$

Not available

149

Cub Cadet BS-26336

Spring--Needle Valve

$

$

Not available

152

Cub Cadet BS-260575

Spring--Throttle Adjustment

$

$

Currently unavailable

154

Cub Cadet BS-93527

Screw--Machine, Rd. Hd.

$

$

Not available

202

Cub Cadet BS-262270

Link--Throttle
(Superseded to BS-691812)

$8.99

$

In Stock, only 1 left!

0

203

Cub Cadet BS-280720

Bell Crank

$

$

Not available

205

Cub Cadet BS-231520

Screw--Shoulder

$

$

Not available

392

Cub Cadet BS-262328

Spring--Fuel Pump Diaphragm
(Superseded to BS-691823)

$4.99

$

In Stock, only 2 left!

0

394

Cub Cadet BS-272538

Diaphragm
(Superseded to BS-272538S)

$3.99

$

In Stock, Qty 20+

0

432

Cub Cadet BS-221377

Cap--Spring
(Superseded to BS-690766)

$4.99

$

In Stock, only 3 left!

0

433

Cub Cadet BS-93265

Pin--Diaphragm Cover

$

$

Currently unavailable

434

Cub Cadet BS-214021

Cover--Diaphragm
(Superseded to BS-691713)

$10.99

$

In Stock, only 1 left!

0

435

Cub Cadet BS-93141

Screw--Diaphragm Cover

$

$

Not available

611

Cub Cadet BS-391813

Fuel Pipe and Clip Assembly

$

$

Not available

634

Cub Cadet BS-271853

Washer--Throttle Shaft (Foam)
(Superseded to BS-692279)

$3.99

$

In Stock, only 3 left!

0

679

Cub Cadet BS-270382

Washer--Foam
(Superseded to BS-691869)

$3.99

$

In Stock, only 3 left!

0

680

Cub Cadet BS-221839

Washer--Brass

$

$

Not available

987

Cub Cadet BS-398970

Seal--Throttle Shaft
(Superseded to BS-692279)

$3.99

$

In Stock, only 3 left!

0

Cub Cadet BS-495606

Carburetor Overhaul Kit

$26.99

$

In Stock, Qty 7

0

Cub Cadet BS-495603

Gasket Set

$32.99

$

In Stock, Qty 20+

0
