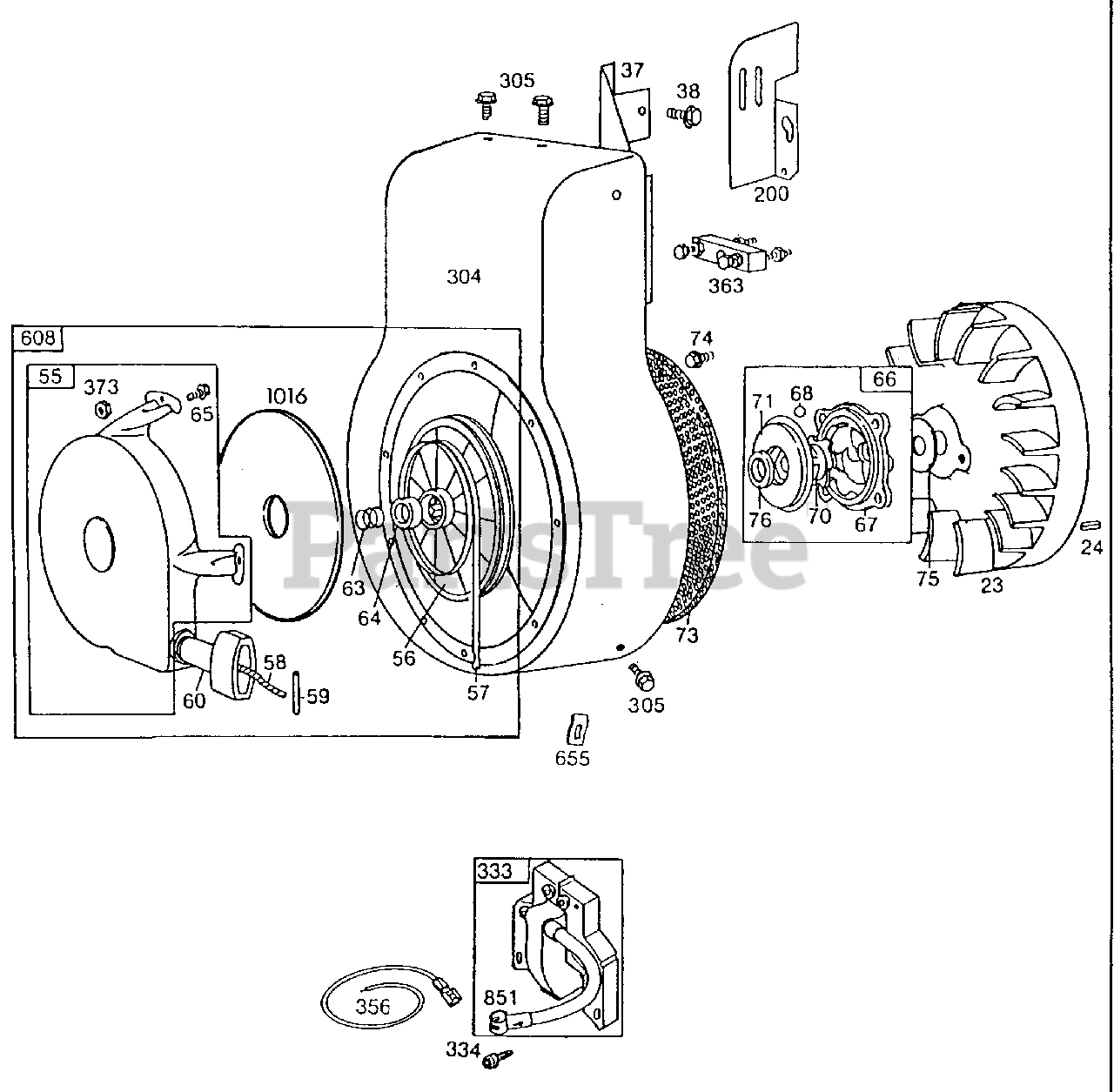

645 (247-645-100) - Cub Cadet Log Splitter Engine (1987) B&S 8.0 HP-190402-3006-01 Part 4 Parts Diagram

Log Splitter Engine

B&S 8.0 HP-190402-3006-01 Part 4 Parts Diagram

  • Title
23

Cub Cadet BS-298260

Flywheel-Magneto

$

$

Not available

24

Cub Cadet BS-222698

Key-Flywheel
(Superseded to BS-222698S)

$2.99

$

In Stock, Qty 20+

0

37

Cub Cadet BS-222475

Guard-Flywheel

$

$

Not available

38

Cub Cadet BS-93777

Screw-Sem

$

$

Currently unavailable

55

Cub Cadet BS-393576

Housing-Rewind Starter

$85.99

$

Usually ships in 2-12 days

0

56

Cub Cadet BS-295871

Pulley-Rewind Starter

$14.99

$

In Stock, Qty 20+

0

57

Cub Cadet BS-490179

Spring-Rewind Starter

$

$

Not available

58

Cub Cadet BS-66884

Rope-Rewind Starter-63" Long
(Superseded to BS-692188)

$8.49

$

Usually ships in 2-12 days

0

59

Cub Cadet BS-230228

Pin-Starter Grip

$

$

Not available

60

Cub Cadet BS-66728

Grip-Starter Rope
(Superseded to BS-490652)

$5.49

$

In Stock, Qty 10

0

63

Cub Cadet BS-260414

Spring-Ratchet

$

$

Not available

64

Cub Cadet BS-230543

Adapter-Ratchet Spring
(Superseded to BS-691920)

$11.99

$

In Stock, Qty 5

0

65

Cub Cadet BS-93105

Screw-Rewind Starter Housing Mounting Sem
(Superseded to BS-690837)

$3.49

$

In Stock, Qty 20+

0

66

Cub Cadet BS-394558

Clutch Ass'y.-Rewind Starter
(Superseded to BS-399671)

$34.99

$

In Stock, Qty 20+

0

67

Cub Cadet BS-394897

Housing-Rewind Starter Clutch

$36.99

$

In Stock, only 1 left!

0

68

Cub Cadet BS-63770

Ball-Clutch

$

$

Not available

70

Cub Cadet BS-298799

Ratchet-Rewind Starter Clutch
(Superseded to BS-691945)

$17.99

$

In Stock, only 1 left!

0

71

Cub Cadet BS-221653

Washer-Retainer

$

$

Currently unavailable

73

Cub Cadet BS-221796

Screen-Rewind Starter

$

$

Not available

74

Cub Cadet BS-93042

Screw-Sem

$

$

Currently unavailable

75

Cub Cadet BS-220865

Washer-Spring

$

$

Currently unavailable

76

Cub Cadet BS-68238

Washer-Ratchet Sealing

$

$

Not available

200

$

$

Not available

304

Cub Cadet BS-398495

Housing-Blower
(Superseded to BS-491596)

$

$

Not available

305

Cub Cadet BS-93158

Screw-Sem

$

$

Not available

333

Cub Cadet BS-398811

Armature-Magneto

$63.99

$

In Stock, Qty 17

0

334

Cub Cadet BS-93381

Screw-Armature Mounting Sem

$

$

Not available

356

Cub Cadet BS-398838

Wire-Ground

$7.99

$

Usually ships in 2-12 days

0

363

Cub Cadet BS-19203

Puller-Flywheel

$23.99

$

In Stock, only 1 left!

0

373

Cub Cadet BS-92987

Nut-Hex.
(Superseded to 712-0349)

$4.99

$

In Stock, Qty 5

0

608

Cub Cadet BS-390391

Starter Assembly-Rewind
(Superseded to BS-693900)

$131.99

$

In Stock, Qty 10

0

655

Cub Cadet BS-222598

Anchor-Spring

$

$

Not available

851

Cub Cadet BS-221798

Terminal-Ignition Cable
(Superseded to BS-493880S)

$3.49

$

In Stock, Qty 20+

0

1016

$9.49

$

In Stock, Qty 5

0
