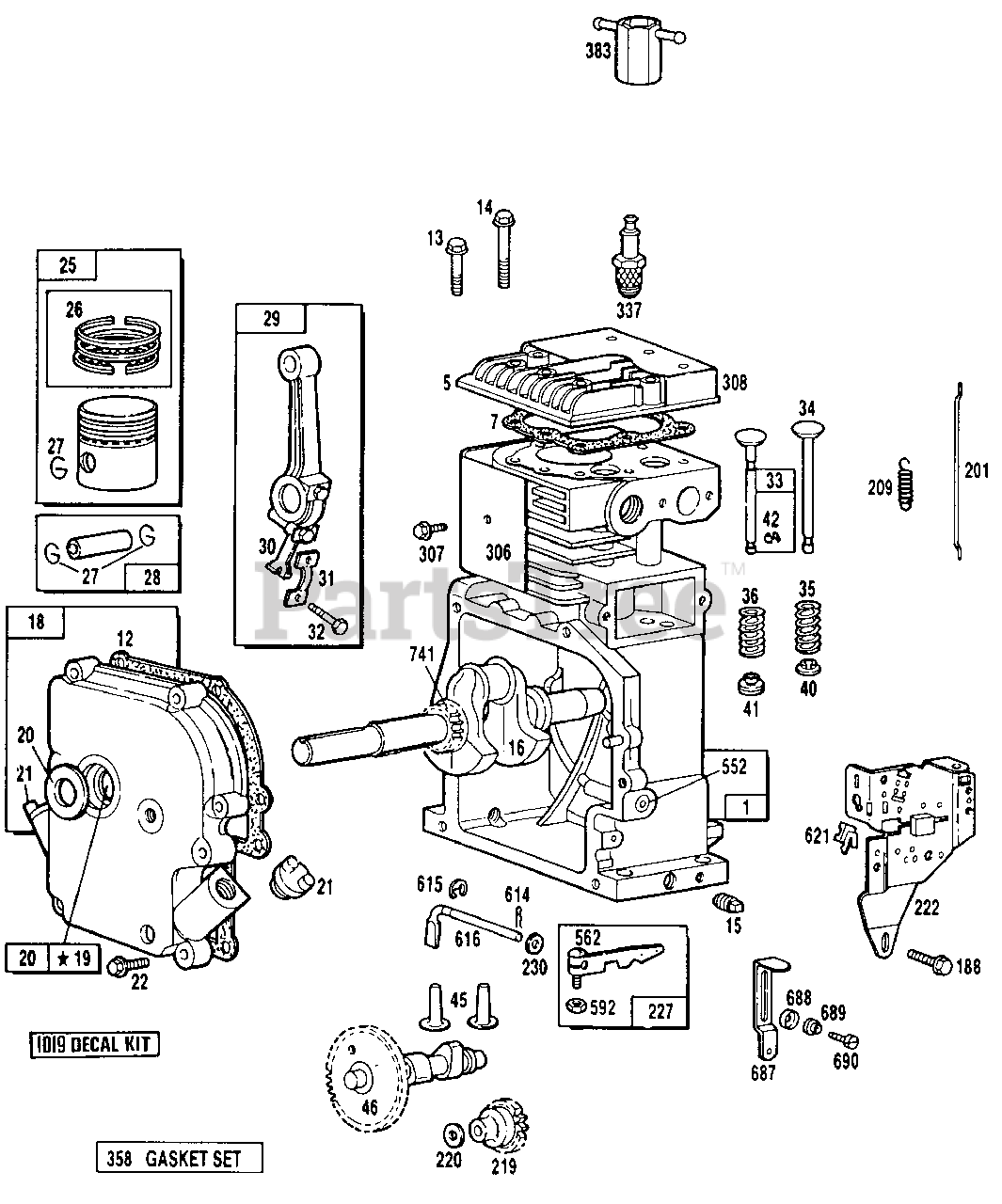

645 (247-645-100) - Cub Cadet Log Splitter Engine (1987) B&S 8.0 HP-190402-3006-01 Part 1 Parts Diagram

Log Splitter Engine

B&S 8.0 HP-190402-3006-01 Part 1 Parts Diagram

  • Title

1

Cub Cadet BS-396178

Cylinder Assembly

$

$

Currently unavailable

5

Cub Cadet BS-212286

Head-Cylinder

$

$

Currently unavailable

7

Cub Cadet BS-270430

Gasket-Cylinder Hd.
(Superseded to BS-272163S)

Note: (Included in Gasket Set-Part No. 299577)

$7.99

$

In Stock, Qty 20+

0

12

Cub Cadet BS-27750

Gasket-Crankcase Cover- 1/64" Thick
(Superseded to BS-692221)

Note: (Included in Gasket Set-Part No. 299577)

$8.99

$

In Stock, Qty 7

0

Cub Cadet BS-27876

Gasket-Crankcase Cover-.005" Thick

Note: (Included in Gasket Set-Part No. 299577)

$

$

Not available

Cub Cadet BS-27877

Gasket-Crankcase Cover- .OO9" Thick

Note: (Included in Gasket Set-Part No. 299577)

$10.99

$

In Stock, only 3 left!

0

13

Cub Cadet BS-93211

Screw-Cylinder Head (2-21/32" Long)

$

$

Not available

14

Cub Cadet BS-93723

Screw-Cylinder Head (3" Long)

$

$

Not available

15

Cub Cadet BS-91084

Plug-Oil Drain
(Superseded to BS-690946)

$5.99

$

In Stock, Qty 14

0

16

Cub Cadet BS-261077

Crankshaft

$

$

Currently unavailable

18

Cub Cadet BS-397688

Cover Ass'y.-Crankcase

$

$

Not available

19

Cub Cadet BS-295964

Bushing-Crankcase Cover

$35.99

$

Usually ships in 2-12 days

0

20

Cub Cadet BS-391086

Seal-Oil
(Superseded to BS-391086S)

$6.49

$

In Stock, Qty 20+

0

21

Cub Cadet BS-66768

Plug-Oil Filler
(Superseded to BS-281658S)

$4.49

$

In Stock, Qty 20+

0

22

Cub Cadet BS-93585

Screw-Crankcase Cover Mounting Sem

$

$

Not available

25

Cub Cadet BS-391673

Piston Assembly-Standard
(Superseded to BS-499907)

$

$

Not available

Cub Cadet BS-391674

Piston Assembly-.010" O.S.

$

$

Not available

Cub Cadet BS-391675

Piston Assembly-.020" O.S.
(Superseded to BS-499909)

$149.99

$

Usually ships in 2-12 days

0

Cub Cadet BS-391676

Piston Assembly-.030" O.S.

$

$

Currently unavailable

26

Cub Cadet BS-391669

Ring Set-Piston-Standard
(Superseded to BS-499921)

$47.99

$

Usually ships in 2-12 days

0

Cub Cadet BS-391670

Ring Set-Piston-.010" O.S.

$18.99

$

Usually ships in 2-12 days

0

Cub Cadet BS-391671

Ring Set-Piston-.020" O.S.

$

$

Not available

Cub Cadet BS-391672

Ring Set-Piston-.030" O.S.

$

$

Currently unavailable

27

Cub Cadet BS-68546

Lock-Piston Pin

$

$

Not available

28

Cub Cadet BS-295840

Pin Assembly-Piston-Standard

$

$

Not available

Cub Cadet BS-295841

Pin Assembly-Piston-.005" O.S.

$6.99

$

Usually ships in 2-12 days

0

29

Cub Cadet BS-390401

Rod Assembly-Connecting

$

$

Not available

30

Cub Cadet BS-222113

Dipper-Connecting Rod

$

$

Not available

31

Cub Cadet BS-222114

Lock-Connecting Rod Screw

$

$

Not available

32

Cub Cadet BS-92659

Screw-Connecting Rod

$

$

Currently unavailable

33

Cub Cadet BS-390419

Valve-Exhaust

$

$

Not available

34

Cub Cadet BS-261055

Valve-Intake
(Superseded to BS-261055S)

$32.99

$

In Stock, only 2 left!

0

35

Cub Cadet BS-65906

Spring-Intake Valve

$

$

Not available

36

Cub Cadet BS-26828

Spring-Exhaust Valve

$

$

Not available

40

Cub Cadet BS-221596

Retainer-Intake Valve
(Superseded to BS-690656)

$

$

Not available

41

Cub Cadet BS-292260

Rotocoil-Exhaust Valve
(Superseded to BS-691939)

$27.99

$

In Stock, Qty 5

0

42

Cub Cadet BS-93630

Retainer-Exhaust Valve Rotocoil
(Superseded to BS-494553)

$7.99

$

In Stock, only 2 left!

0

45

Cub Cadet BS-260933

Tappet-Valve

$

$

Not available

46

Cub Cadet BS-211689

Gear-Cam

$

$

Not available

188

Cub Cadet BS-93535

Screw-Sem

$

$

Not available

201

Cub Cadet BS-260872

Link-Governor

$

$

Not available

209

Cub Cadet BS-261126

Spring-Governor

$

$

Not available

219

Cub Cadet BS-391737

Gear-Governor

$38.99

$

In Stock, only 2 left!

0

220

Cub Cadet BS-221551

Washer-Thrust
(Superseded to BS-691724)

$5.49

$

In Stock, only 2 left!

0

222

Cub Cadet BS-399151

Plate-Governor Control

$

$

Not available

227

Cub Cadet BS-391965

Lever-Assembly-Governor

$

$

Not available

230

Cub Cadet BS-222450

Washer-Governor Crank
(Superseded to BS-691691)

$3.99

$

In Stock, Qty 5

0

306

Cub Cadet BS-222830

Shield-Cylinder

$

$

Not available

307

Cub Cadet BS-93163

Screw-Cylinder Shield Mtg. Sem

$

$

Currently unavailable

308

Cub Cadet BS-222636

Cover-Cylinder Head

$

$

Currently unavailable

337

Cub Cadet BS-298809

Plug-Spark (1 1/2" High- 37-42 MM)

$

$

Currently unavailable

358

Cub Cadet BS-299577

Gasket Set

$35.99

$

In Stock, Qty 11

0

383

Cub Cadet BS-89838

Wrench-Spark Plug
(Superseded to BS-89838S)

$6.49

$

In Stock, only 4 left!

0

552

Cub Cadet BS-231056

Bushing-Governor Crank

$

$

Currently unavailable

562

Cub Cadet BS-92613

Bolt-Governor Lever

$

$

Not available

592

Cub Cadet BS-231082

Nut-Hex.-10-24

$

$

Not available

614

Cub Cadet BS-93306

Cotter-Hairpin

$

$

Not available

615

Cub Cadet BS-93307

Retainer-E-Ring

$5.99

$

In Stock, only 3 left!

0

616

Cub Cadet BS-231057

Crank-Governor

$

$

Not available

621

Cub Cadet BS-396847

Switch-Stop
(Superseded to BS-692310)

$5.99

$

In Stock, Qty 20+

0

687

Cub Cadet BS-390690

Slide-Friction Control

$

$

Not available

688

Cub Cadet BS-221766

Cap-Friction Spring

$

$

Not available

689

Cub Cadet BS-260847

Spring-Friction

$

$

Not available

690

Cub Cadet BS-90746

Screw-Machine, Fil. Hd.
(Superseded to BS-690278)

$3.99

$

In Stock, only 1 left!

0

741

Cub Cadet BS-261195

Gear-Timing

$17.99

$

Usually ships in 2-12 days

0

1019

Cub Cadet BS-491181

Decal (Label) Kit

$40.99

$

Usually ships in 2-12 days

0
