6431 - Lawn-Boy Walk-Behind Mower (SN: G00000001 - G99999999) (1988) HOUSING AND SHROUD GROUP MODEL: 6431 Parts Diagram

Walk-Behind Mower

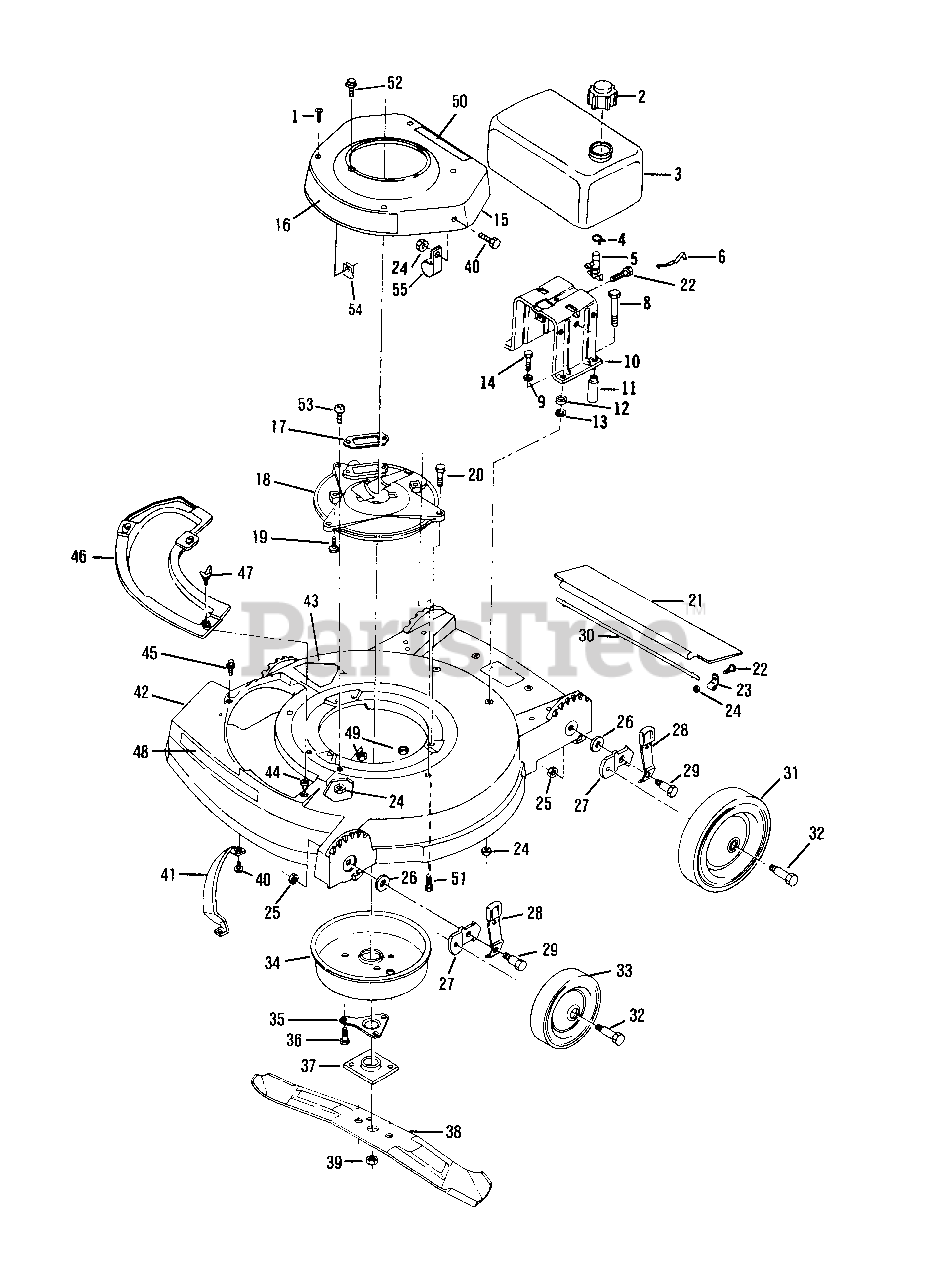

HOUSING AND SHROUD GROUP MODEL: 6431 Parts Diagram

  • Title

1

Lawn-Boy 611395

Screw
(Superseded to 611543)

Note: Important Note: Replacement parts may not always be available in matching colors.

$4.49

$

In Stock, Qty 6

0

2

Lawn-Boy 682755

Fuel Cap

Note: Important Note: Replacement parts may not always be available in matching colors.

$25.99

$

In Stock, only 1 left!

0

Lawn-Boy 609150

Baffle

Note: Important Note: Replacement parts may not always be available in matching colors.

$6.49

$

In Stock, Qty 11

0

Lawn-Boy 607213

Gasket

Note: Important Note: Replacement parts may not always be available in matching colors.

$1.99

$

In Stock, Qty 20+

0

3

Lawn-Boy 145476

Fuel Tank

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

4

Lawn-Boy 312387

Clamp

Note: Important Note: Replacement parts may not always be available in matching colors.

$1.49

$

In Stock, Qty 8

0

5

Lawn-Boy 677052

Shut-Off Valve and Screen

Note: Important Note: Replacement parts may not always be available in matching colors.

$23.99

$

In Stock, only 2 left!

0

6

Lawn-Boy 609830

Spring-Fuel Tank Mounting

Note: Important Note: Replacement parts may not always be available in matching colors.

$5.49

$

In Stock, Qty 6

0

8

Lawn-Boy 609763

Screw

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

9

Lawn-Boy 609923

Washer-Tank Mounting

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

10

Lawn-Boy 611260

Bracket-Fuel Tank

Note: Important Note: Replacement parts may not always be available in matching colors.

$108.99

$

In Stock, only 1 left!

0

11

Lawn-Boy 609762

Spacer-Tank Mounting

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

12

Lawn-Boy 604995

Grommet-Tank Mounting

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

13

Lawn-Boy 602945

Washer-Tank Mounting

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

14

Lawn-Boy 606144

Bolt-Tank Mounting

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

15

Lawn-Boy 683638

Shroud

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

16

Lawn-Boy 612754

Applique

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

17

Lawn-Boy 609420

Gasket-Exhaust
(Superseded to 93-1233)

Note: Important Note: Replacement parts may not always be available in matching colors.

$1.99

$

In Stock, Qty 6

0

18

Lawn-Boy 611802

Plate-Muffler

Note: Important Note: Replacement parts may not always be available in matching colors.

$243.99

$

In Stock, only 1 left!

0

19

Lawn-Boy 607601

Screw-Muffler Plate to Block

Note: Important Note: Replacement parts may not always be available in matching colors.

$4.49

$

In Stock, only 2 left!

0

20

Lawn-Boy 611774

Screw-Muffler Plate to Housing

Note: Important Note: Replacement parts may not always be available in matching colors.

$4.49

$

In Stock, only 2 left!

0

21

Lawn-Boy 611016

Shield-Trailing

Note: Important Note: Replacement parts may not always be available in matching colors.

$102.99

$

Usually ships in 3-6 days

0

22

Lawn-Boy 609891

Screw
(Superseded to 700138)

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

23

Lawn-Boy 608161

Clamp

Note: Important Note: Replacement parts may not always be available in matching colors.

$11.99

$

Usually ships in 3-6 days

0

24

Lawn-Boy 602315

Nut

Note: Important Note: Replacement parts may not always be available in matching colors.

$4.99

$

In Stock, only 2 left!

0

25

Lawn-Boy 603733

Nut
(Superseded to 603773)

Note: Important Note: Replacement parts may not always be available in matching colors.

$2.99

$

In Stock, Qty 10

0

26

Lawn-Boy 608834

Washer

Note: Important Note: Replacement parts may not always be available in matching colors.

$14.99

$

In Stock, only 2 left!

0

27

Lawn-Boy 608833

Bracket-Wheel Height Adjust
(Superseded to 608833-03)

Note: Important Note: Replacement parts may not always be available in matching colors.

$27.99

$

In Stock, only 2 left!

0

28

Lawn-Boy 153444

Knob and Spring Assembly

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

29

Lawn-Boy 610646

Bolt-Shoulder

Note: Important Note: Replacement parts may not always be available in matching colors.

$7.49

$

Usually ships in 3-6 days

0

30

Lawn-Boy 608174

Rod-Trailing Shield

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

31

Lawn-Boy 683754

Wheel-Rear-8"

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

32

Lawn-Boy 603567

Bolt-Wheel

Note: Important Note: Replacement parts may not always be available in matching colors.

$15.99

$

In Stock, only 2 left!

0

33

Lawn-Boy 683751

Wheel-Front 6"

Note: Important Note: Replacement parts may not always be available in matching colors.

$142.99

$

Usually ships in 3-6 days

0

34

Lawn-Boy 682876

Muffler Cover Assembly

Note: Important Note: Replacement parts may not always be available in matching colors.

$165.99

$

Usually ships in 3-6 days

0

35

Lawn-Boy 609786

Support-Crankshaft

Note: Important Note: Replacement parts may not always be available in matching colors.

$23.99

$

In Stock, only 2 left!

0

36

Lawn-Boy 609471

Screw-Muffler to Muffler Plate

Note: Important Note: Replacement parts may not always be available in matching colors.

$4.99

$

In Stock, Qty 14

0

37

Lawn-Boy 677525

Collar and Plate Assembly

Note: Important Note: Replacement parts may not always be available in matching colors.

$51.99

$

In Stock, only 1 left!

0

38

Lawn-Boy 683682

Blade-21"
(Superseded to 612543-03)

Note: Important Note: Replacement parts may not always be available in matching colors.

$33.99

$

In Stock, only 3 left!

0

39

Lawn-Boy 603164

Nut-Blade
(Superseded to 121-3611)

Note: Important Note: Replacement parts may not always be available in matching colors.

$5.99

$

In Stock, only 1 left!

0

40

Lawn-Boy 608418

Screw
(Superseded to 46-6811)

Note: Important Note: Replacement parts may not always be available in matching colors.

$3.49

$

In Stock, only 3 left!

0

41

Lawn-Boy 608175

Toe Bar

Note: Important Note: Replacement parts may not always be available in matching colors.

$77.99

$

Usually ships in 3-6 days

0

42

Lawn-Boy 682754

Housing Assembly

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

43

Lawn-Boy 610640

Decal-Blade Contact Warning
(Superseded to 43-8480)

Note: Important Note: Replacement parts may not always be available in matching colors.

$6.99

$

In Stock, Qty 6

0

44

Lawn-Boy 604604

Grommet
(Superseded to 94-1610)

Note: Important Note: Replacement parts may not always be available in matching colors.

$1.49

$

In Stock, Qty 9

0

45

Lawn-Boy 607809

Screw-Sems-Plate Mounting
(Superseded to 614677)

Note: Important Note: Replacement parts may not always be available in matching colors.

$4.49

$

In Stock, Qty 12

0

46

Lawn-Boy 607560

Cover-Chute
(Superseded to 95-7052)

Note: Important Note: Replacement parts may not always be available in matching colors.

$36.99

$

In Stock, only 1 left!

0

47

Lawn-Boy 606733

Wing Screw

Note: Important Note: Replacement parts may not always be available in matching colors.

$9.99

$

In Stock, Qty 6

0

48

Lawn-Boy 612758

Decal-Headliner

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

49

Lawn-Boy 608311

Nut

Note: Important Note: Replacement parts may not always be available in matching colors.

$3.49

$

Usually ships in 3-6 days

0

50

Lawn-Boy 612753

Decal-Fuel Mix

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

51

Lawn-Boy 800019

Bolt
(Superseded to 614512)

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

52

Lawn-Boy 612428

Screw-Starter

Note: Important Note: Replacement parts may not always be available in matching colors.

$2.49

$

In Stock, only 4 left!

0

53

Lawn-Boy 611499

Screw

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

54

Lawn-Boy 145945

Retainer

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

55

Lawn-Boy 611504

Clamp

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

Lawn-Boy 146014

Washer-Shim

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

Lawn-Boy 146015

Washer-Shim

Note: Important Note: Replacement parts may not always be available in matching colors.

$3.49

$

In Stock, only 1 left!

0
