6430 - Lawn-Boy Walk-Behind Mower (SN: E00000001 - E99999999) (1986) Housing And Shroud Group Model: 6230 Parts Diagram

Walk-Behind Mower

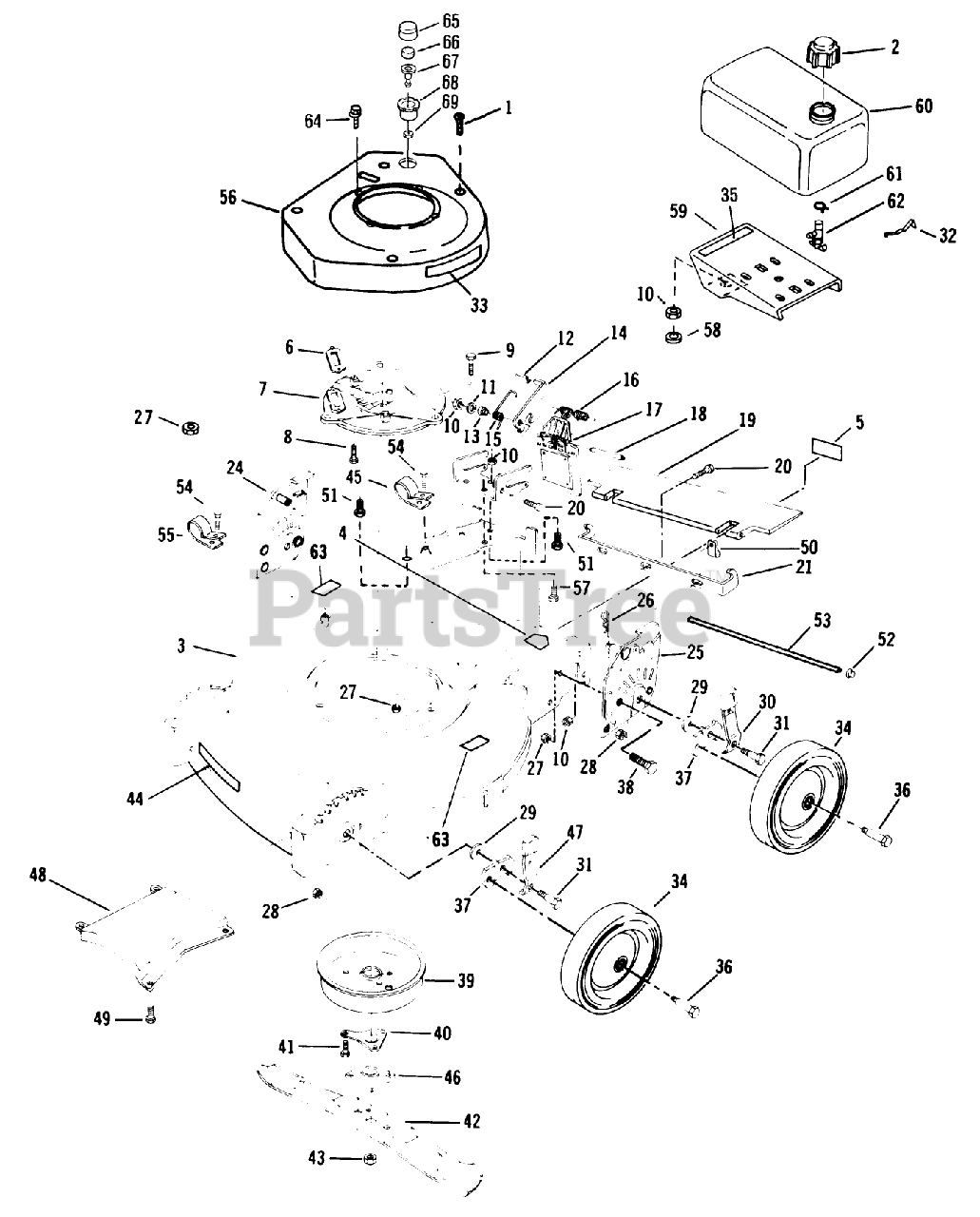

Housing And Shroud Group Model: 6230 Parts Diagram

  • Title

1

Lawn-Boy 611395

SCREW - SELF TAPPING
(Superseded to 611543)

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$3.99

$

In Stock, Qty 6

0

2

Lawn-Boy 682755

FUEL CAP & INSERT

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$21.99

$

Usually ships in 3-6 days

0

Lawn-Boy 609150

BAFFLE - FOAM SM

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$5.49

$

In Stock, Qty 11

0

Lawn-Boy 607213

GASKET S

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$1.99

$

In Stock, Qty 20+

0

3

Lawn-Boy 683341

See Supercession: 683798
(Superseded to 683798)

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

4

Lawn-Boy 610640

See Supercession: 43-8480
(Superseded to 43-8480)

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$6.49

$

In Stock, Qty 6

0

5

Lawn-Boy 611533

DISCONTINUED

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

6

Lawn-Boy 609420

See Supercession: 93-1233
(Superseded to 93-1233)

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$1.99

$

In Stock, Qty 5

0

7

Lawn-Boy 611802

PLATE F

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$243.99

$

In Stock, only 1 left!

0

8

Lawn-Boy 607601

SCREW V

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$3.99

$

In Stock, only 2 left!

0

9

Lawn-Boy 611774

SCREW-HH

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$3.99

$

In Stock, only 2 left!

0

10

Lawn-Boy 602315

LOCKNUT E

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$4.49

$

In Stock, only 2 left!

0

11

Lawn-Boy 611485

DISCONTINUED

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

12

Lawn-Boy 611488

DISCONTINUED

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

13

Lawn-Boy 611484

DISCONTINUED

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

14

Lawn-Boy 611486

DISCONTINUED

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

15

Lawn-Boy 611491

SPRING

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

16

Lawn-Boy 611480

SPRING ASOC

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

17

Lawn-Boy 683039

DISCONTINUED

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

18

Lawn-Boy 611493

ROD (RB&W)

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$8.49

$

Usually ships in 3-6 days

0

19

Lawn-Boy 611495

T/SHIELD SM&P

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$41.99

$

Usually ships in 3-6 days

0

20

Lawn-Boy 609892

DISCONTINUED

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

21

Lawn-Boy 612363

DISCONTINUED

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

23

Lawn-Boy 611496

DISCONTINUED

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

24

Lawn-Boy 683532

See Supercession: 683691
(Superseded to 683691)

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

25

Lawn-Boy 683533

See Supercession: 683690
(Superseded to 683690)

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

26

Lawn-Boy 605803

HAIR PIN

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

27

Lawn-Boy 608311

NUT-LOCK F

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$2.99

$

Usually ships in 3-6 days

0

28

Lawn-Boy 603773

LOCKNUT

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$2.99

$

In Stock, only 4 left!

0

29

Lawn-Boy 608834

WASHER

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$15.99

$

In Stock, only 2 left!

0

30

Lawn-Boy 683531

DISCONTINUED

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$22.99

$

In Stock, only 1 left!

0

31

Lawn-Boy 610646

BOLT

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$6.49

$

Usually ships in 3-6 days

0

32

Lawn-Boy 609830

SPRING

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$5.49

$

In Stock, Qty 6

0

33

Lawn-Boy 612333

DISCONTINUED

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

34

Lawn-Boy 683517

WHEEL & TIRE

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$152.99

$

Usually ships in 3-6 days

0

35

Lawn-Boy 611292

DISCONTINUED

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

36

Lawn-Boy 603567

BOLT-SHOULDER

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$13.99

$

In Stock, only 2 left!

0

37

Lawn-Boy 608833

See Supercession: 608833-03
(Superseded to 608833-03)

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$22.99

$

In Stock, only 2 left!

0

38

Lawn-Boy 610404

See Supercession: 146209
(Superseded to 146209)

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$1.99

$

Usually ships in 3-6 days

0

39

Lawn-Boy 682876

MUFFLER COVER F

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$143.99

$

Usually ships in 3-6 days

0

40

Lawn-Boy 609786

SUPPORT F

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$20.99

$

In Stock, only 2 left!

0

41

Lawn-Boy 609471

SCREW

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$4.99

$

In Stock, Qty 14

0

42

Lawn-Boy 682911

DISCONTINUED
(Superseded to 612542-03)

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

43

Lawn-Boy 603164

NUT-BLADE
(Superseded to 121-3611)

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$5.99

$

Usually ships in 3-6 days

0

44

Lawn-Boy 611579

DISCONTINUED

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

45

Lawn-Boy 612233

DISCONTINUED

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

46

Lawn-Boy 677525

PLATE AND COLLAR ASM

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$23.99

$

In Stock, only 1 left!

0

47

Lawn-Boy 681229

DISCONTINUED

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

48

Lawn-Boy 611497

BAFFLE CHUTE PL

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

49

Lawn-Boy 608418

See Supercession: 46-6811
(Superseded to 46-6811)

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$3.49

$

In Stock, only 3 left!

0

50

Lawn-Boy 611602

DISCONTINUED

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

51

Lawn-Boy 609927

SCREW HEX WASHER

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$3.99

$

Usually ships in 3-6 days

0

52

Lawn-Boy 609975

DISCONTINUED

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

53

Lawn-Boy 610026

DISCONTINUED

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

54

Lawn-Boy 611503

SCREW LAWRENCE

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

55

Lawn-Boy 611504

DISCONTINUED

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

56

Lawn-Boy 683578

DISCONTINUED

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

57

Lawn-Boy 606450

SCREW

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$17.99

$

Usually ships in 3-6 days

0

58

Lawn-Boy 602945

WASHER

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

59

Lawn-Boy 612364

See Supercession: 612797
(Superseded to 612797)

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$234.99

$

Usually ships in 3-6 days

0

60

Lawn-Boy 612433

DISCONTINUED

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

61

Lawn-Boy 312387

CLAMP - HOSE S

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$1.49

$

In Stock, Qty 8

0

62

Lawn-Boy 677052

VALVE&SCREEN SM

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$22.99

$

In Stock, only 2 left!

0

63

Lawn-Boy 612071

DISCONTINUED

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

64

Lawn-Boy 612428

SCREW SEMS SM

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$2.49

$

In Stock, only 4 left!

0

65

Lawn-Boy 611072

DISCONTINUED

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

66

Lawn-Boy 611114

FILTER S

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$3.99

$

Usually ships in 3-6 days

0

67

Lawn-Boy 612401

BASE P'MERBULB S

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$3.99

$

Usually ships in 3-6 days

0

68

Lawn-Boy 612335

CUP PRIMER S

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$7.99

$

Usually ships in 3-6 days

0

69

Lawn-Boy 612400

See Supercession: 78-7170
(Superseded to 78-7170)

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$1.49

$

In Stock, Qty 17

0
