6430 - Lawn-Boy Walk-Behind Mower (SN: E00000001 - E99999999) (1986) Handle And Grass Catcher Group Model: 8430 Parts Diagram

Walk-Behind Mower

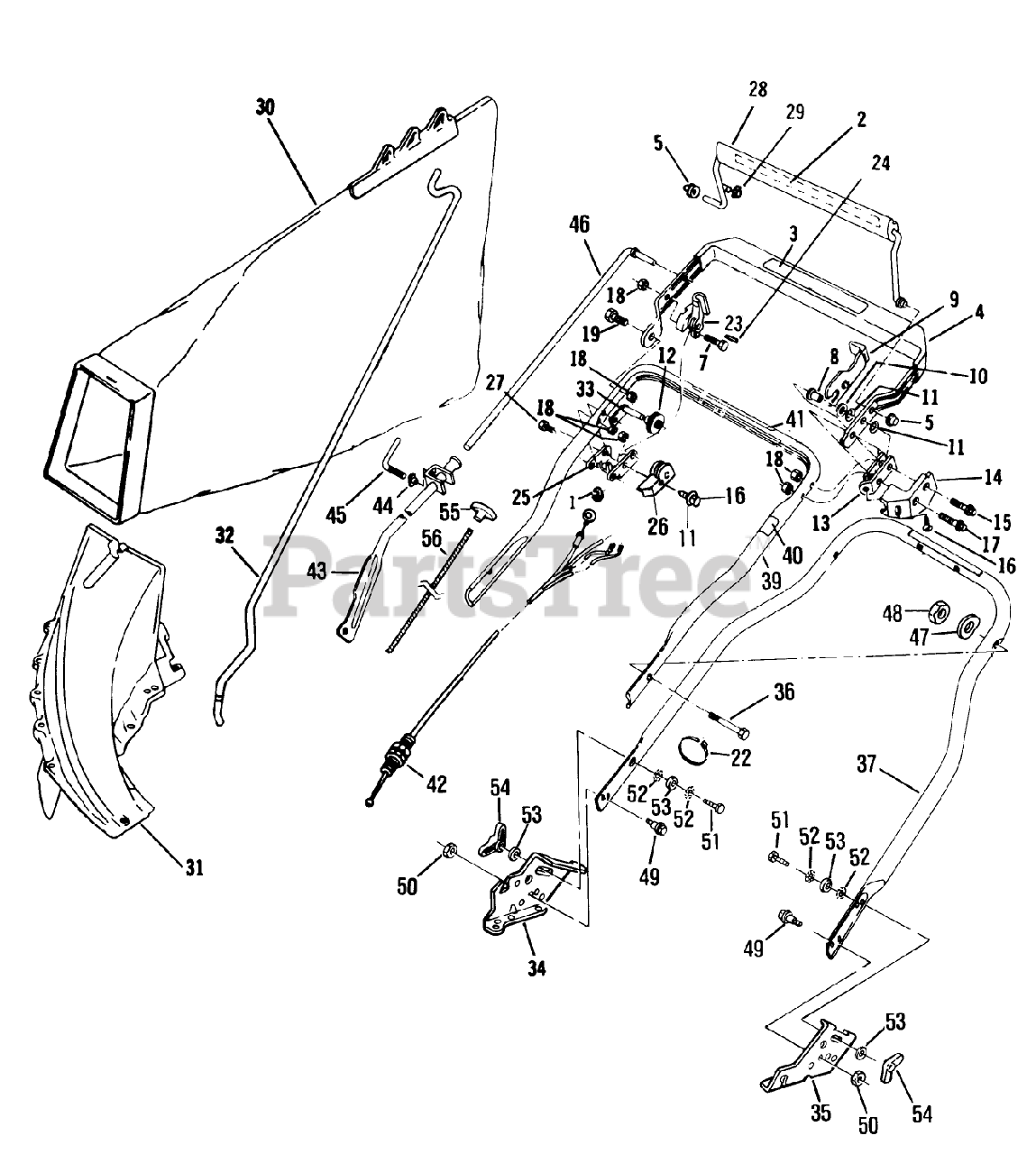

Handle And Grass Catcher Group Model: 8430 Parts Diagram

  • Title

1

Lawn-Boy 611224

RET. RING

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

2

Lawn-Boy 611244

DISCONTINUED

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

3

Lawn-Boy 611237

DISCONTINUED

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

4

Lawn-Boy 683524

DISCONTINUED

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

5

Lawn-Boy 605546

See Supercession: 32112-11
(Superseded to 32112-11)

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$1.49

$

In Stock, only 3 left!

0

7

Lawn-Boy 611222

DISCONTINUED

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

8

Lawn-Boy 611203

SPACER

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$42.99

$

Usually ships in 3-6 days

0

9

Lawn-Boy 611219

DISCONTINUED
(Superseded to 612657)

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

10

Lawn-Boy 306359

WASHER M

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

11

Lawn-Boy 303254

See Supercession: 121-4605
(Superseded to 121-4605)

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$4.49

$

In Stock, only 1 left!

0

12

Lawn-Boy 611195

See Supercession: 612564
(Superseded to 612564)

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$5.99

$

Usually ships in 3-6 days

0

13

Lawn-Boy 611221

DOWN STOP

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

14

Lawn-Boy 611218

LOCKOUT GUARD

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

15

Lawn-Boy 611220

BOLT SHOU

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

16

Lawn-Boy 606537

SCREW F

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$2.49

$

In Stock, only 4 left!

0

17

Lawn-Boy 611217

SCREW

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

18

Lawn-Boy 602315

LOCKNUT E

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$4.99

$

In Stock, only 2 left!

0

19

Lawn-Boy 611202

BOLT

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

22

Lawn-Boy 320107

See Supercession: 614249
(Superseded to 614249)

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$1.49

$

In Stock, only 2 left!

0

23

Lawn-Boy 683431

CAM (12)

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

24

Lawn-Boy 309301

DISCONTINUED

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

25

Lawn-Boy 611196

DISCONTINUED

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

26

Lawn-Boy 612319

DISCONTINUED
(Superseded to 612638)

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

27

Lawn-Boy 609891

See Supercession: 700138
(Superseded to 700138)

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

28

Lawn-Boy 683429

DISCONTINUED
(Superseded to 683728)

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

29

Lawn-Boy 612168

NUT ACORN

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$19.99

$

Usually ships in 3-6 days

0

30

Lawn-Boy 679966

89802 LB WHOLE GOODS

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

31

Lawn-Boy 679487

See Supercession: 99-6411
(Superseded to 99-6411)

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

32

Lawn-Boy 607561

ROD GRASSBAG

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

33

Lawn-Boy 611194

DISCONTINUED

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

34

Lawn-Boy 612462

See Supercession: 683598
(Superseded to 683598)

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

35

Lawn-Boy 612463

DISCONTINUED

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

36

Lawn-Boy 611205

See Supercession: 322-7
(Superseded to 322-7)

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$1.49

$

In Stock, Qty 20+

0

37

Lawn-Boy 612334

DISCONTINUED

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

39

Lawn-Boy 612345

DISCONTINUED

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

40

Lawn-Boy 611236

DISCONTINUED

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

41

Lawn-Boy 611238

DISCONTINUED

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

42

Lawn-Boy 682685

CONTROL CABLE

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

43

Lawn-Boy 682687

See Supercession: 683812
(Superseded to 683812)

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

44

Lawn-Boy 602992

DISCONTINUED

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

45

Lawn-Boy 603699

DISCONTINUED

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

46

Lawn-Boy 611229

CONTROL ROD

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$81.99

$

Usually ships in 3-6 days

0

47

Lawn-Boy 609379

DISCONTINUED

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

48

Lawn-Boy 608311

NUT-LOCK F

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$3.49

$

In Stock, only 3 left!

0

49

Lawn-Boy 610357

BOLT

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

50

Lawn-Boy 610358

NUT-JAM, LOCKING

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$2.99

$

In Stock, Qty 12

0

51

Lawn-Boy 611205

See Supercession: 322-7
(Superseded to 322-7)

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$1.49

$

In Stock, Qty 20+

0

52

Lawn-Boy 145887

LOCK WASHER LARSON

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$2.49

$

In Stock, only 4 left!

0

53

Lawn-Boy 145875

WASHER

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

54

Lawn-Boy 607544

NUT-WING

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$25.99

$

In Stock, only 4 left!

0

55

Lawn-Boy 612430

HANDLE START UM&D

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

56

Lawn-Boy 612432

See Supercession: 613773
(Superseded to 613773)

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$34.99

$

In Stock, only 1 left!

0
