6430 - Lawn-Boy Walk-Behind Mower (SN: E00000001 - E99999999) (1986) Carburetor Group Models: Parts Diagram

Walk-Behind Mower

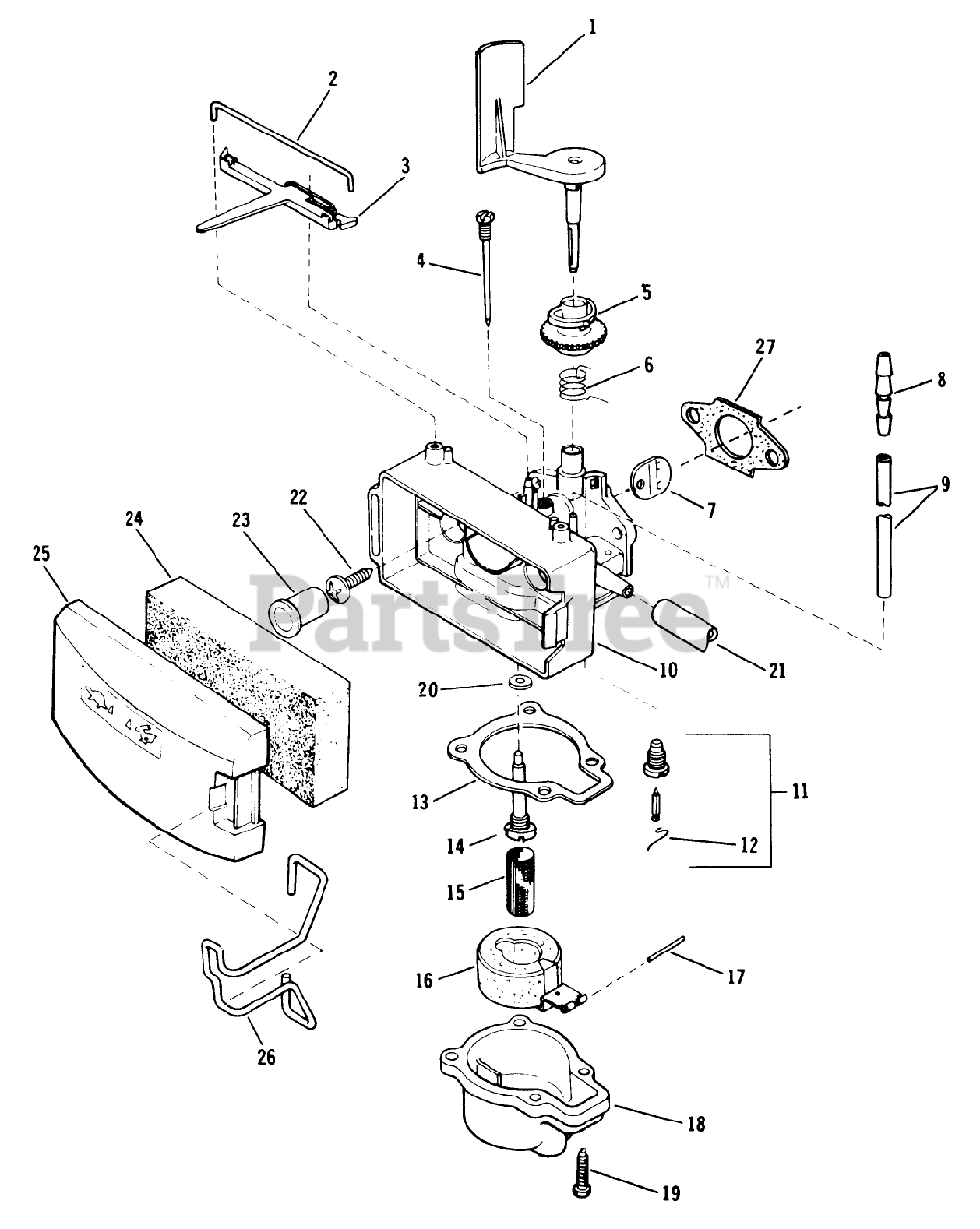

Carburetor Group Models: Parts Diagram

  • Title

Lawn-Boy 683501

See Supercession: 92-9696
(Superseded to 92-9696)

$287.99

$

In Stock, only 2 left!

0

1

Lawn-Boy 611405

See Supercession: 104-4430
(Superseded to 104-4430)

$12.99

$

In Stock, Qty 15

0

2

Lawn-Boy 610165

RETAINER

$4.49

$

In Stock, Qty 14

0

3

Lawn-Boy 611070

LEVER S

$

$

Not available

4

Lawn-Boy 682567

NEEDLE ADJ. AY S

$

$

Not available

5

Lawn-Boy 610834

COLLAR-ADJUST, AIRVANE

$4.49

$

In Stock, Qty 20+

0

6

Lawn-Boy 611069

SPRING,THROTTLE S

$14.99

$

In Stock, only 1 left!

0

7

$5.49

$

In Stock, Qty 11

0

8

611419

REDUCER-CONNECTOR

$

$

Not available

9

Lawn-Boy 612399

TUBING-PRIMER S

$

$

Not available

10

Lawn-Boy 611421

CARB BODY S

$82.99

$

In Stock, only 1 left!

0

11

Lawn-Boy 681741

See Supercession: 92-9697
(Superseded to 92-9697)

$27.99

$

In Stock, Qty 20+

0

12

Lawn-Boy 603145

See Supercession: 92-9697
(Superseded to 92-9697)

$27.99

$

In Stock, Qty 20+

0

13

Lawn-Boy 602850

See Supercession: 98-1362
(Superseded to 98-1362)

$3.49

$

In Stock, Qty 20+

0

14

Lawn-Boy 683441

NOZZLE SER KIT S

$102.99

$

In Stock, only 1 left!

0

15

Lawn-Boy 611071

FILTER-FUEL VS

$18.99

$

In Stock, only 2 left!

0

16

Lawn-Boy 396514

DISCONTINUED
(Superseded to 678113)

$

$

Not available

17

Lawn-Boy 300096

See Supercession: 92-6389
(Superseded to 92-6389)

$5.99

$

In Stock, only 1 left!

0

18

Lawn-Boy 610416

DISCONTINUED
(Superseded to 92-6374)

$

$

Not available

19

Lawn-Boy 608850

SCREW-HH

$2.49

$

In Stock, only 3 left!

0

20

$1.99

$

In Stock, only 1 left!

0

21

Lawn-Boy 610633

See Supercession: 112-7048
(Superseded to 112-7048)

Note: Used on Models 8430

$6.99

$

Usually ships in 3-6 days

0

21

Lawn-Boy 611523

DISCONTINUED

Note: Used on Models 6230, 6430 8480

$

$

Not available

22

$2.99

$

In Stock, Qty 8

0

23

Lawn-Boy 611545

See Supercession: 93-4320
(Superseded to 93-4320)

$

$

Not available

24

Lawn-Boy 609493

See Supercession: 107-4621
(Superseded to 107-4621)

$5.49

$

In Stock, Qty 20+

0

25

Lawn-Boy 145831

See Supercession: 93-1231
(Superseded to 93-1231)

Note: Used on Models 8430

$

$

Not available

25

Lawn-Boy 611376

See Supercession: 93-1231
(Superseded to 93-1231)

Note: Used on Models 6230, 6430 8480

$

$

Not available

26

Lawn-Boy 610383

RETAINER-COVER, FILTER

$9.49

$

In Stock, Qty 20+

0

27

Lawn-Boy 609476

GASKET CARB S

$

$

Not available
