642 (590-642-100) - Cub Cadet 72" Front Loader att Mounting Brackets And Hardware Parts Diagram

72" Front Loader

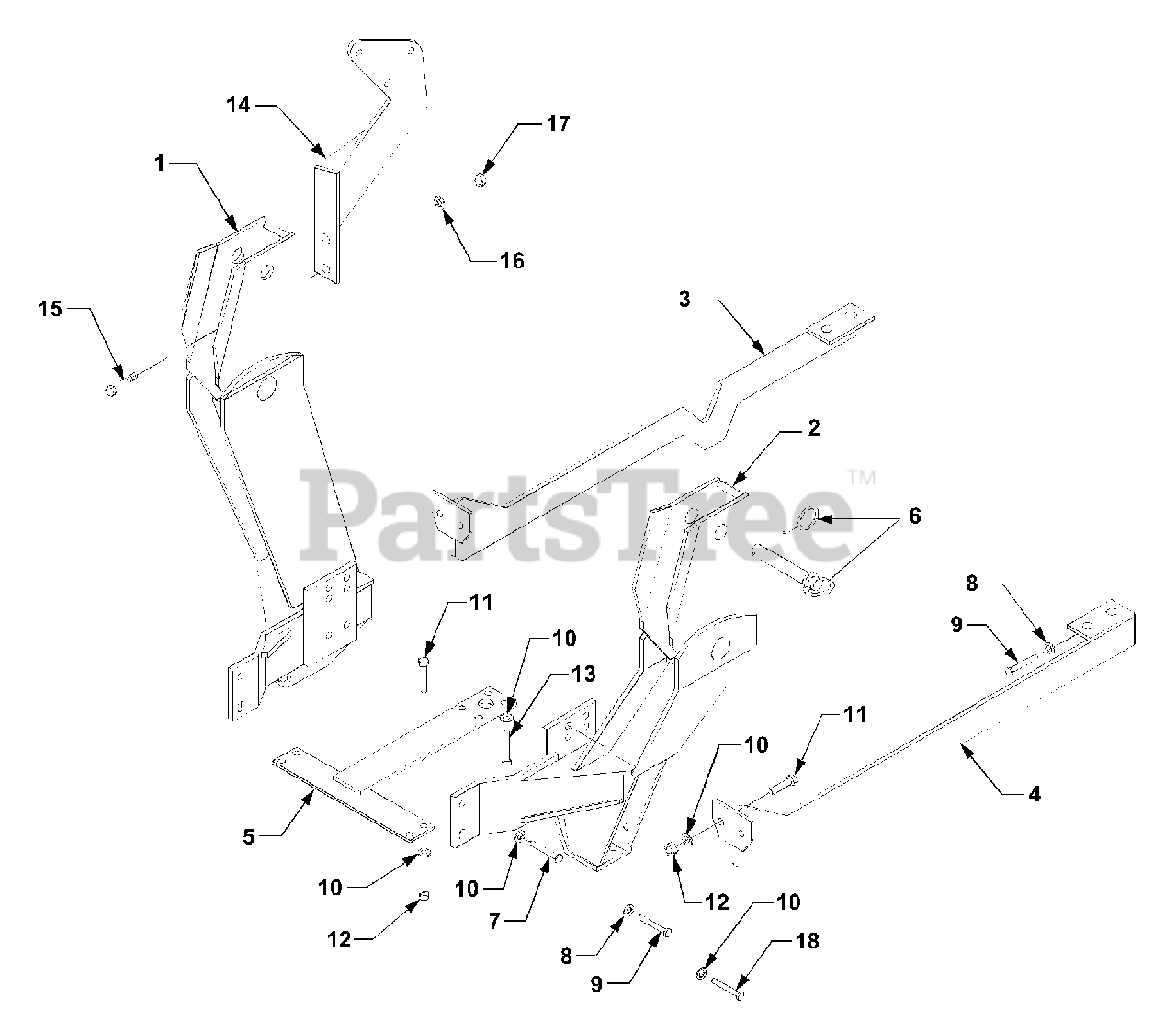

Mounting Brackets And Hardware Parts Diagram

  • Title
1

Cub Cadet KD-1201-3054

Rear Mount Assembly, RH

$

$

Currently unavailable

2

Cub Cadet KD-1201-3053

Rear Mount Assembly, LH

$

$

Currently unavailable

3

Cub Cadet KD-1207-3018

Rear Rail Assembly, RH

$

$

Not available

4

Cub Cadet KD-1207-3017

Rear Rail Assembly, LH

$

$

Not available

5

Cub Cadet KD-1209-3005

Rear Cross Member Assembly

$

$

Not available

6

Cub Cadet KD-0551-3017

Latch Pin w/ Linch Pin

$

$

Not available

7

Cub Cadet KD-0569-2362

Hex Cap Screw, 12mm x 60mm

$

$

Not available

8

Cub Cadet KD-0544-2013

Lock Washer, 9/16"

$

$

Currently unavailable

9

Cub Cadet KD-0549-2396

Hex Cap Screw, 14mm x 40mm

$

$

Not available

10

Cub Cadet KD-0544-2012

Lock Washer, 1/2"

$

$

Currently unavailable

11

Cub Cadet KD-0545-2106

Hex Cap Screw, 1/2" x 1 1/2"

$

$

Currently unavailable

12

Cub Cadet KD-0555-2004

Hex Nut, 1/2"

$

$

Currently unavailable

13

Cub Cadet KD-0569-2357

Hex Cap Screw, 12mm x 35mm

$

$

Not available

14

Cub Cadet KD-1204-3010

Valve Stand Assembly

$

$

Not available

15

Cub Cadet KD-0545-2052

Hex Cap Screw, 3/8" x 1 1/4"

$

$

Currently unavailable

16

Cub Cadet KD-0544-2010

Lock Washer, 3/8"

$

$

Currently unavailable

17

Cub Cadet KD-0555-2002

Hex Nut, 3/8"

$

$

Currently unavailable

18

Cub Cadet KD-0569-2363

Hex Cap Screw, 12mm x 65mm

$

$

Not available
