642 (244-642-100) - Cub Cadet Log Splitter (1984) Log Splitter Parts Diagram

Log Splitter

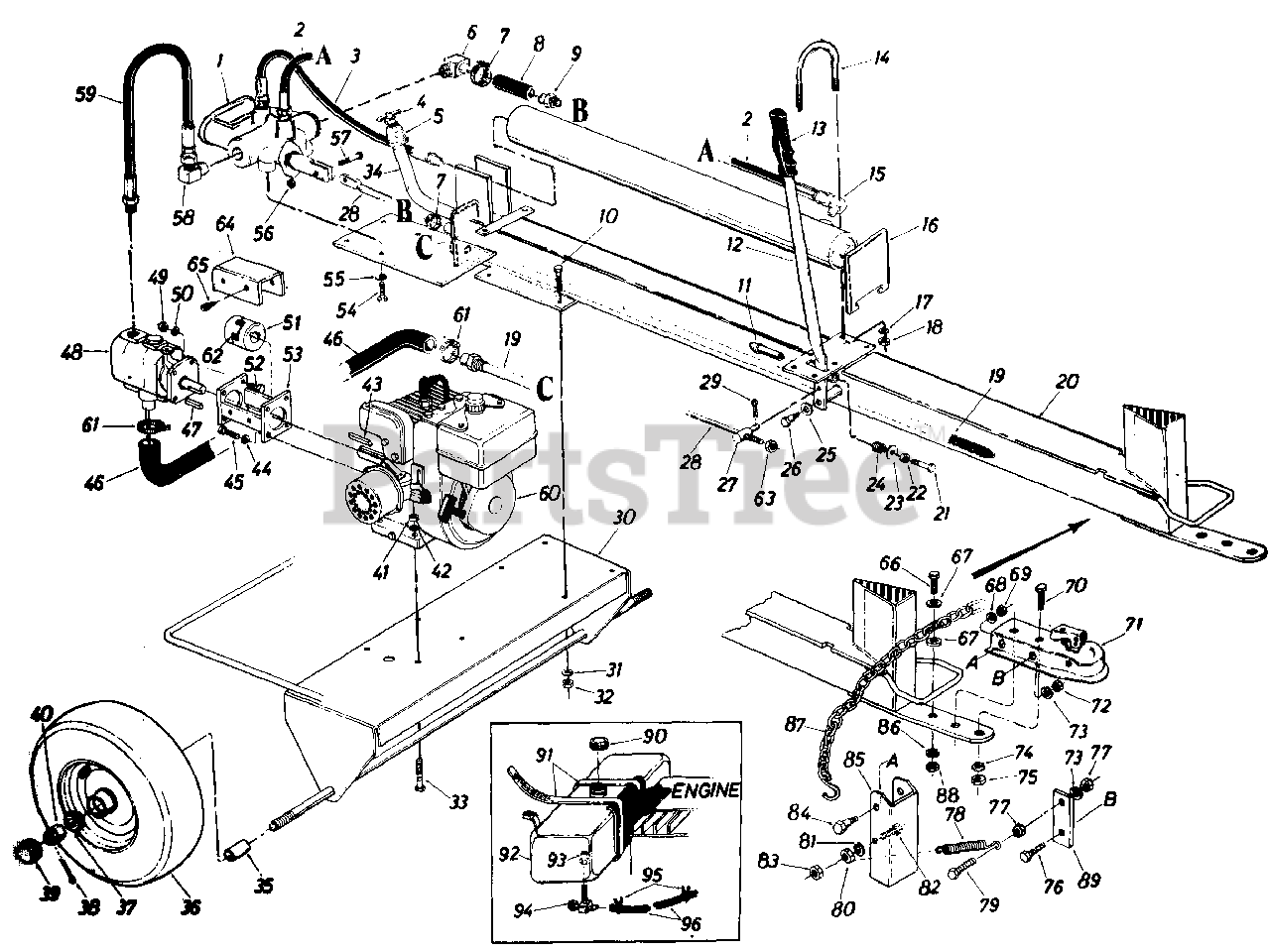

Log Splitter Parts Diagram

  • Title

1

Cub Cadet 717-0407

Control Valve

$

$

Currently unavailable

2

Cub Cadet 727-0231

Return Stroke High Pressure Hose

$

$

Not available

3

Cub Cadet 727-0211

Forward Stroke High Pressure Hose

$

$

Currently unavailable

4

Cub Cadet 737-0161

Breather Valve

$

$

Currently unavailable

5

Cub Cadet 737-0173

Female Adapter 3/4-14 x 1/4-28 N.P.T.F.

$

$

Currently unavailable

6

Cub Cadet 737-0153

Return Elbow

$57.99

$

Usually ships in 3-6 days

0

7

Cub Cadet 726-0173

Hose Clamp 3/4" I.D.
(Superseded to 726-0132)

$15.99

$

Usually ships in 3-6 days

0

8

Cub Cadet 727-0210

Return Hose 3/4" I.D. x 2.62" Lg.

$

$

Currently unavailable

9

Cub Cadet 737-0172

Nipple 1/2-14 N.P.T.F. x 1.5" Lg.

$

$

Currently unavailable

10

Cub Cadet 710-0117

Hex Bolt 5/16-24 x 1.00" Lg. (Grade 5)
(Superseded to 710-0888)

$4.49

$

In Stock, Qty 20+

0

11

Cub Cadet 738-0406

Return Stroke Stop Plunger

$

$

Not available

12

Cub Cadet 750-0428

Engagement Handle

$

$

Currently unavailable

13

Cub Cadet 08118

Grip
(Superseded to 920-0233)

$

$

Not available

14

Cub Cadet 747-0355

Cylinder Support Rod (for 3-1/2" Dia.)

Note: (642244)

$

$

Currently unavailable

Cub Cadet 747-0354

Cylinder Support Rod (for 4" Dia.)

Note: (645244)

$

$

Currently unavailable

15

Cub Cadet 737-0152

High Pressure 90° Elbow 3/8 N.P.T. x 9/16-18

$

$

Currently unavailable

16

Cylinder Ass'y.

Note: (See Breakdown)

$

$

Not available

17

Cub Cadet 736-0169

L.-Wash. 3/8" I.D.

$3.99

$

In Stock, Qty 20+

0

18

Cub Cadet 712-0798

Hex Nut 3/8-16 Thd.

$4.49

$

In Stock, Qty 12

0

19

Cub Cadet 15234

Strainer Tube Ass'y.

$

$

Currently unavailable

20

Cub Cadet 15235

Complete Oil Tank & Beam

$

$

Currently unavailable

21

Cub Cadet 710-0624

Hex Bolt 5/16-24 x 1.50" Lg.

$5.99

$

Usually ships in 3-6 days

0

22

Cub Cadet 712-0123

Hex Nut 5/16-24 Thd.
(Superseded to 912-3057)

$6.99

$

In Stock, only 3 left!

0

23

Cub Cadet 736-0159

Fl.-Wash. .34 I.D. x .88" O.D.

$4.49

$

In Stock, Qty 20+

0

24

Cub Cadet 732-0252

Compression Spring .64 O.D. x .82 Lg.

$

$

Not available

25

Cub Cadet 736-0160

Fl.-Wash. .53" I.D. x .94" O.D.

$4.49

$

In Stock, only 2 left!

0

26

Cub Cadet 738-0143

Shld. Bolt .500" Dia. x .340

$4.49

$

In Stock, Qty 20+

0

27

Cub Cadet 711-0198

Pivot Bushing
(Superseded to 911-0198)

$13.99

$

In Stock, Qty 17

0

28

Cub Cadet 747-0298

Engagement Rod .38 Dia. x 32" Lg.

$

$

Currently unavailable

29

Cub Cadet 714-0507

Cotter Pin 3/32" Dia. x .75" Lg.

$4.49

$

In Stock, Qty 12

0

30

Cub Cadet 13747

Frame Ass'y.

$

$

Currently unavailable

31

Cub Cadet 736-0119

L.-Wash. 5/16" I.D.
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

32

Cub Cadet 712-0123

Hex Nut 5/16-24 Thd.
(Superseded to 912-3057)

$6.99

$

In Stock, only 3 left!

0

33

Cub Cadet 710-0409

Hex Bolt 5/16-24 x 1.75" Lg.

$4.99

$

Usually ships in 3-6 days

0

34

Cub Cadet 750-0501

Filler Tube

$

$

Not available

35

Cub Cadet 750-0442

Spacer .75" I.D. x 1.12" O.D. x 1.56"

$

$

Not available

36

Cub Cadet 734-1016

Wheel Ass'y. Comp 4.80/4.00 x 8
(Superseded to 634-0186)

Variations

Cub Cadet 734-1016-0911

Wheel Assembly, Complete - Carlisle Gray (0911)

$363.99

$

Usually ships in 3-6 days

0

Cub Cadet 734-1016-0931

Wheel Assembly, Complete - Carlisle Beige (0931)

$363.99

$

Usually ships in 3-6 days

0

Cub Cadet 734-1016-0941

WHEEL ASSEMBLY - Carlisle Yellow (0941)

$

$

Not available

$363.99

$

Usually ships in 3-6 days

0

Cub Cadet 734-1017

Wheel Rim Ass'y.
(Superseded to 634-0188)

Note: (Service Only)

Variations

Cub Cadet 734-1017-0662

Rim Assembly, Gray 3.75 X 8.0 - OYSTER GRAY (0662)

$175.99

$

Usually ships in 3-6 days

0

Cub Cadet 734-1017-0674

Rim Assembly, Gray 3.75 X 8.0 - YARDMAN YELLOW (0674)

$175.99

$

Usually ships in 3-6 days

0

Cub Cadet 734-1017-0499

USE 634-0189 RIM ASM-3.75 X 8 - CUB BEIGE (0499)

$

$

Not available

$175.99

$

Usually ships in 3-6 days

0

Cub Cadet 734-0872

Tire Only 4.80/4.00 x 8

Note: (Service Only)

$169.99

$

Usually ships in 3-6 days

0

37

Cub Cadet 741-0107

Tapered Roller Bearing
(Superseded to 941-0107)

Note: (Service Only)

$47.99

$

In Stock, Qty 17

0

38

Cub Cadet 714-0121

Cotter Pin 5/32" Dia. x 1.00" Lg.
(Superseded to 914-0121)

$

$

Not available

39

Cub Cadet 734-0873

Hub Cap

Note: (Service Only)

$11.99

$

In Stock, only 3 left!

0

40

Cub Cadet 712-0299

Hex Castle Nut 3/4-16 Thd.

$

$

Currently unavailable

41

Cub Cadet 712-0123

Hex Nut 5/16-24 Thd.
(Superseded to 912-3057)

$6.99

$

In Stock, only 3 left!

0

42

Cub Cadet 736-0119

L.-Wash. 5/16" I.D.
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

43

Cub Cadet 714-0128

Sq. Key 1/4" x 1.00" Lg.

$4.99

$

In Stock, Qty 6

0

44

Cub Cadet 736-0119

L.-Wash. 5/16" I.D.
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

45

Cub Cadet 710-0157

Hex Bolt 5/16-24 x .75" Lg.

$4.49

$

In Stock, Qty 18

0

46

Cub Cadet 727-0228

Suction Hose

Note: (642244)

$

$

Not available

Cub Cadet 727-0229

Suction Hose

Note: (645244)

$

$

Currently unavailable

47

Woodruff Key

Note: (Comes with Ref. No. 48)

$

$

Not available

48

Cub Cadet 717-0460

Pump with Woodruff Key

Note: (642244)

$

$

Currently unavailable

Cub Cadet 717-0461

Pump with Woodruff Key

Note: (645244)

$

$

Currently unavailable

49

Cub Cadet 712-0123

Hex Nut 5/16 24 Thd.
(Superseded to 912-3057)

$6.99

$

In Stock, only 3 left!

0

50

Cub Cadet 736-0119

L.-Wash 5/16" I.D.
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

51

Cub Cadet 717-0462

Flexible Coupling

$

$

Not available

52

Cub Cadet 710-0117

Hex Bolt 5/16-24 x 1.00" Lg.
(Superseded to 710-0888)

$4.49

$

In Stock, Qty 20+

0

53

Cub Cadet 13295

Coupling Support Brkt. Ass'y.

Note: (642244)

$

$

Currently unavailable

Cub Cadet 781-0011

Coupling Support Brkt. Ass'y.

Note: (645244)

$

$

Currently unavailable

54

Cub Cadet 710-0216

Hex Bolt 3/8 16 x .75" Lg.

$4.49

$

In Stock, Qty 15

0

55

Cub Cadet 736-0105

Belleville Wash. 3/8" I.D.

$4.49

$

In Stock, Qty 20+

0

56

Cub Cadet 712-0107

Hex Cent. L.-Nut 1/4-20 Thd.
(Superseded to 912-0107)

$4.99

$

In Stock, only 1 left!

0

57

Cub Cadet 710-0106

Hex Bolt 1/4-20 x 1.25" Lg.

$3.99

$

In Stock, Qty 12

0

58

Cub Cadet 737-0171

90° Solid Male Adapter

$

$

Not available

59

Cub Cadet 727-0232

High Pressure Hose Ass'y.

$

$

Currently unavailable

60

Engine B & S - 5 H.P.

$

$

Not available

Engine B & S - 8 H.P.

$

$

Not available

61

Cub Cadet 726-0132

Hose Clamp 1" I.D.

$15.99

$

Usually ships in 3-6 days

0

62

Cub Cadet 735-0205

Spider

$

$

Not available

63

Cub Cadet 712-0241

Hex Nut 3/8-24 Thd.

$4.49

$

In Stock, Qty 13

0

64

Cub Cadet 14806

Coupling Shield

$

$

Currently unavailable

65

Cub Cadet 710-0653

Hex Self Tap. Scr, 1/4-20 x .38"

$4.49

$

In Stock, Qty 8

0

66

Cub Cadet 710-0539

Hex Bolt 3/8-24 x 1.75" Lg.

$4.99

$

In Stock, Qty 11

0

67

Cub Cadet 736-0262

Fl.-Wash. 3/8" I.D. x 7/8" O.D. x .09

$3.99

$

In Stock, Qty 10

0

68

Cub Cadet 736-0329

L.-Wash. 1/4" I.D.
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 11

0

69

Cub Cadet 712-0287

Hex Nut 1/4-20 Thd."
(Superseded to 912-0287)

$4.99

$

In Stock, only 1 left!

0

70

Cub Cadet 710-0191

Hex Bolt 3/8-24 x 1.25" Lg.

$4.99

$

In Stock, Qty 9

0

71

Cub Cadet 727-0289

Tow Hitch Ass'y. Comp.

$

$

Not available

72

Cub Cadet 712-0267

Hex Nut 5/16-18 Thd.
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

73

Cub Cadet 736-0119

L.-Wash. 5/16" I.D.
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

74

Cub Cadet 736-0217

L.-Wash. 3/8" I.D.

$4.49

$

In Stock, Qty 8

0

75

Cub Cadet 712-0241

Hex Nut 3/8-24 Thd.

$4.49

$

In Stock, Qty 13

0

76

Cub Cadet 710-0118

Hex Bolt 5/16-18 x .75" Lg.
(Superseded to 710-3008)

$4.49

$

In Stock, Qty 20+

0

77

Cub Cadet 712-0267

Hex Nut 5/16-18 Thd.
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

78

Cub Cadet 732-0352

Extension Spring

$

$

Not available

79

Cub Cadet 710-0442

Hex Bolt 5/16-18 x 1.50" Lg.
(Superseded to 710-0805A)

$4.49

$

In Stock, Qty 20+

0

80

Cub Cadet 712-0138

Hex Nut 1/4-28 Thd.

$6.99

$

Usually ships in 3-6 days

0

81

Cub Cadet 736-0329

L.-Wash. 1/4" I.D.
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 11

0

82

Cub Cadet 710-0152

Hex Bolt 1/4-28 x 1.00" Lg.
(Superseded to 710-1039)

$4.49

$

In Stock, Qty 20+

0

83

Cub Cadet 712-0117

Hex L. Nut 1/4-28 Thd.
(Superseded to 912-0117)

$2.49

$

In Stock, only 2 left!

0

84

Cub Cadet 738-0255

Shld. Bolt .374" Dia. x .171" Lg.
(Superseded to 938-0255)

$5.49

$

In Stock, Qty 8

0

85

Cub Cadet 15850

Flip Stand Bracket

$

$

Currently unavailable

86

Cub Cadet 736-0217

L.-Wash. 3/8" I.D.

$4.49

$

In Stock, Qty 8

0

87

Cub Cadet 713-0338

Chain 40" Lg. Tow Hitch

$

$

Currently unavailable

88

Cub Cadet 712-0241

Hex Nut 3/8-24 Thd.

$4.49

$

In Stock, Qty 13

0

89

Cub Cadet 781-0010

Spring Mtg. Bracket

$

$

Currently unavailable

90

Cub Cadet 723-0365

Gas Tank Cap

Note: (645244)

$

$

Not available

91

Cub Cadet 726-0153

Gas Tank Straps
(Superseded to 726-0230)

Note: (645244)

$27.99

$

In Stock, only 1 left!

0

92

Cub Cadet 751-0225

Gas Tank

Note: (645244)

$

$

Not available

93

Cub Cadet 735-0149

Gas Tank Bushing
(Superseded to 935-0149)

Note: (645244)

$2.99

$

In Stock, Qty 20+

0

94

Cub Cadet 751-0171

Shut Off Valve
(Superseded to 951-0171)

Note: (645244)

$20.99

$

In Stock, Qty 20+

0

95

Cub Cadet 726-0207

Gas Line Clamp

Note: (645244)

$

$

Not available

96

Cub Cadet 751-0173

Gas Line - 15" Lg.
(Superseded to 751-10349-16)

Note: (645244)

$19.99

$

In Stock, Qty 11

0
