640 (590-640-100) - Cub Cadet 60" Front Loader att Bucket And Bucket Level Indicator Parts Diagram

60" Front Loader

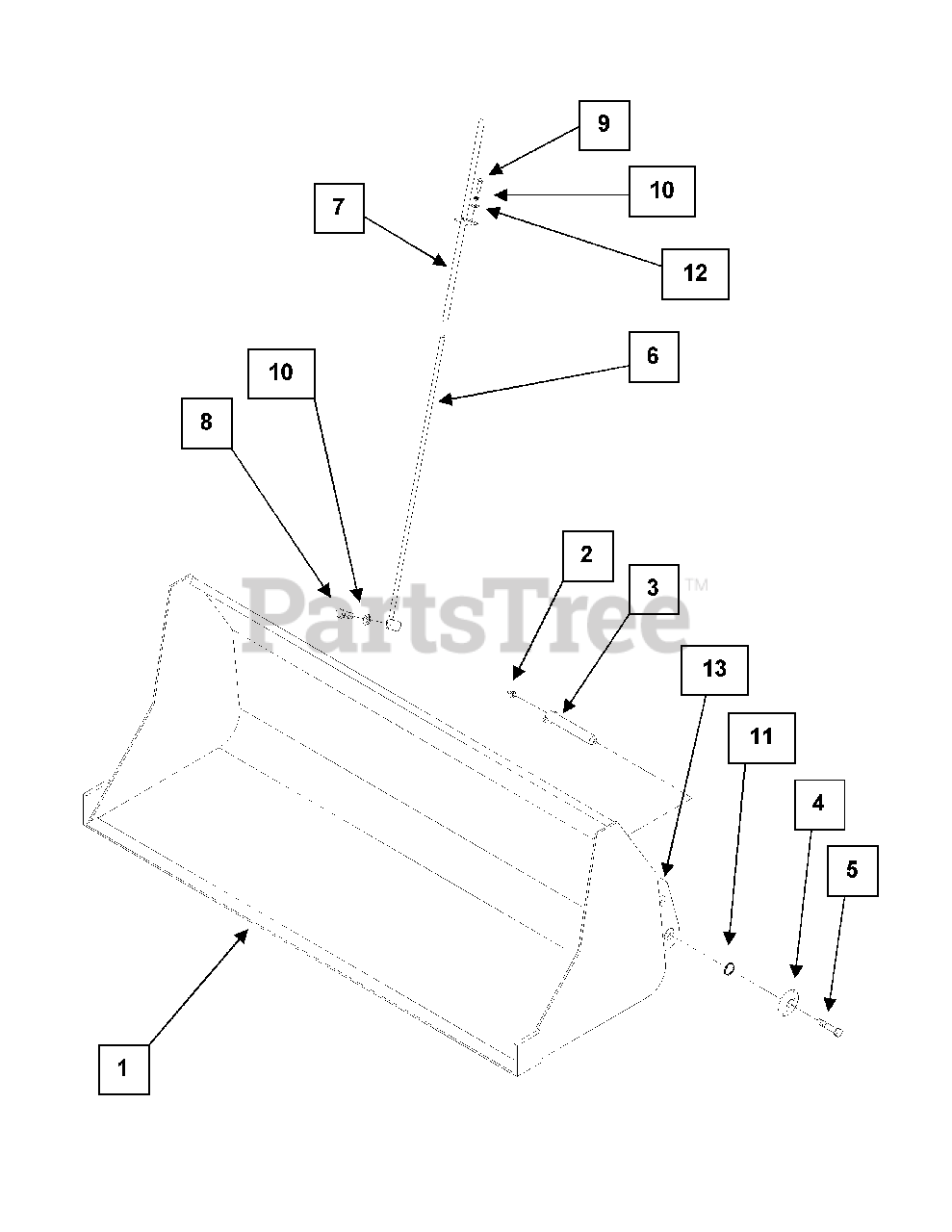

Bucket And Bucket Level Indicator Parts Diagram

  • Title

1

Cub Cadet KD-1300-3196

Bucket Assembly, 66"

$

$

Not available

2

Cub Cadet KD-0530-2002

Grease Fitting

$

$

Not available

3

Cub Cadet KD-0550-3011

Pivot Pin, 1" x 103mm

$

$

Not available

4

Cub Cadet KD-0541-3002

Dust Cover

$14.99

$

Usually ships in 3-6 days

0

5

Cub Cadet KD-0545-2024

Hex Head Cap Screw, 5/16" x 3/4"

$

$

Currently unavailable

6

Cub Cadet KD-1403-3050

BLI Rod Assembly

$

$

Not available

7

Cub Cadet KD-1403-3048

BLI Tube Assembly

$

$

Not available

8

Cub Cadet N/A

Hex Head Cap Screw, 5/16" x 1-1/2

Note: Purchase Locally

$

$

Currently unavailable

9

Cub Cadet KD-0545-2022

Hex Head Cap Screw, 5/16" x 1/2"

$

$

Currently unavailable

10

Cub Cadet KD-0544-2009

Lock Washer, 5/16"

$

$

Currently unavailable

11

Cub Cadet KD-0520-3000

O-Ring

$

$

Not available

12

Cub Cadet N/A

Flatwasher, 5/16"

Note: Purchase Locally

$

$

Currently unavailable

13

Cub Cadet KD-1304-3073

Tool Carrier

$

$

Not available
