638 (638112) - Cub Cadet Walk-Behind Mower (1982) Rear Chute, Height Adjuster & Throttle Control Assemblies Parts Diagram

Walk-Behind Mower

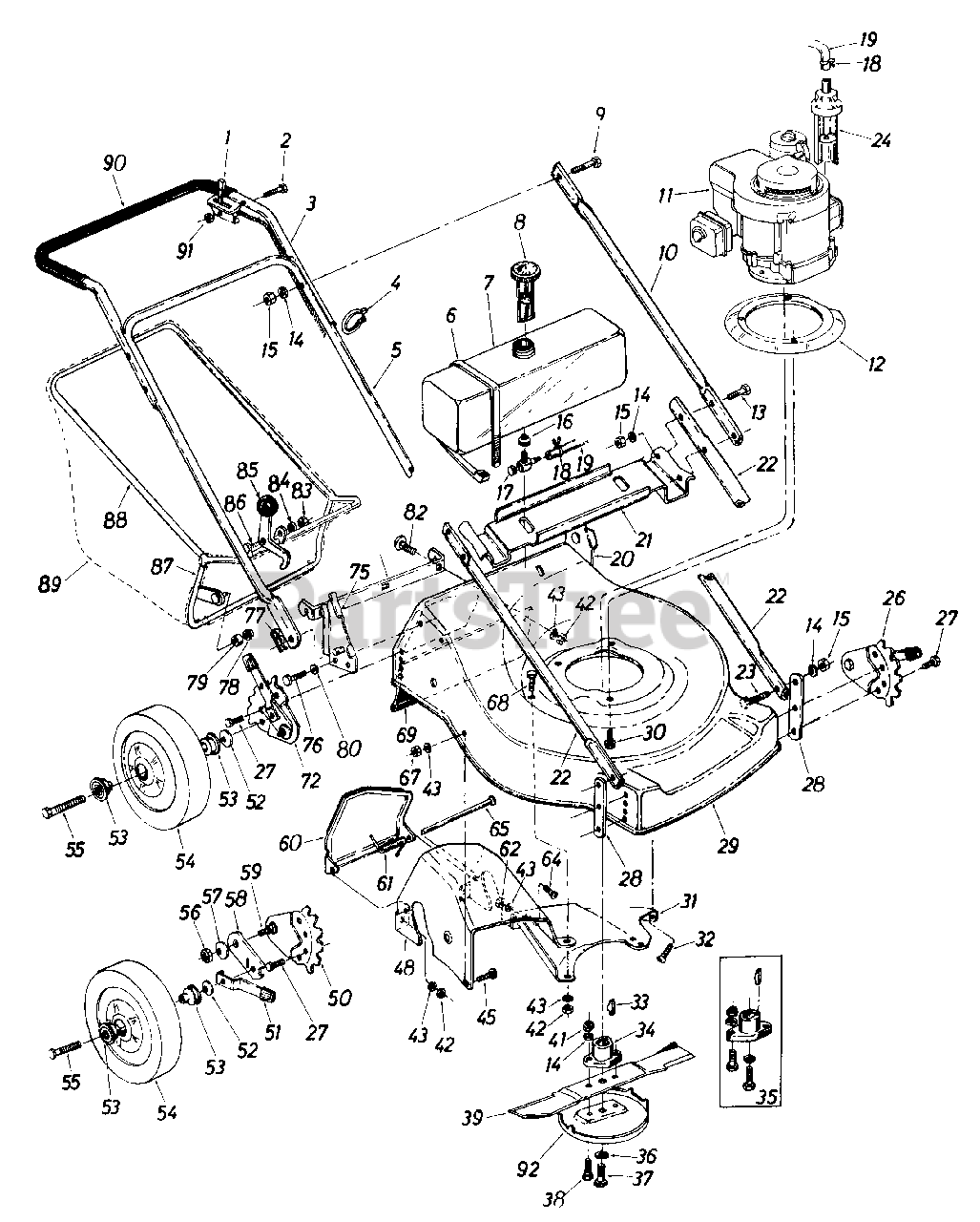

Rear Chute, Height Adjuster & Throttle Control Assemblies Parts Diagram

  • Title

1

Cub Cadet 746-0428

Throttle Control Ass'y. Comp

$

$

Not available

2

Cub Cadet 710-0606

Hex Bolt 1/4-20 x 1.50" Lg.

$5.49

$

In Stock, Qty 10

0

3

Cub Cadet 749-0378

Upper Handle

$

$

Currently unavailable

4

Cub Cadet 726-0188

Plastic Cable Tie

$

$

Not available

5

Cub Cadet 749-0374

Lower Handle
(Superseded to 749-0907B)

$50.99

$

In Stock, only 1 left!

0

6

Cub Cadet 726-0209

Fuel Tank Straps
(Superseded to 726-0230)

$27.99

$

In Stock, only 1 left!

0

7

Cub Cadet 751-0225

Fuel Tank

$

$

Not available

8

Cub Cadet 723-0155

Fuel Gauge

$

$

Not available

9

Cub Cadet 710-0380

Hex Bolt 5/16-18 x 1.75" Lg.
(Superseded to 710-3180)

$5.49

$

In Stock, Qty 20+

0

10

Cub Cadet 749-0514

Upper Strut

$

$

Currently unavailable

11

Engine

$

$

Not available

12

Cub Cadet 13773

Engine Mount Cover Plate

$

$

Currently unavailable

13

Cub Cadet 710-0442

Hex Bolt 5/16-18 x 1.50" Lg.
(Superseded to 710-0805A)

$4.49

$

In Stock, Qty 20+

0

14

Cub Cadet 736-0119

L-Wash. 5/16" I.D.
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

15

Cub Cadet 712-0158

Hex Cent. L-Nut 5/16-18 Thd.
(Superseded to 912-0158)

$3.49

$

In Stock, Qty 18

0

16

Cub Cadet 735-0149

Bushing (Fuel Tank)
(Superseded to 935-0149)

$2.99

$

In Stock, Qty 20+

0

17

Cub Cadet 751-0171

Fuel Shut-Off Valve
(Superseded to 951-0171)

$20.99

$

In Stock, Qty 20+

0

18

Cub Cadet 726-0183

Hose Clamp 3/8" I.D.

$

$

Not available

19

Cub Cadet 751-0173

Fuel Line
(Superseded to 751-10349-16)

$19.99

$

In Stock, Qty 11

0

20

Cub Cadet 12297

Handle Mount Brkt. Ass'y.

$

$

Not available

21

Cub Cadet 14426

Fuel Tank Mounting Brkt.

$

$

Not available

22

Cub Cadet 749-0513

Lower Strut

$

$

Currently unavailable

23

Cub Cadet 710-0118

Hex Bolt 5/16-18 x .75" Lg.
(Superseded to 710-3008)

$4.49

$

In Stock, Qty 20+

0

24

Cub Cadet 751-0279

Fuel Control Valve

$

$

Currently unavailable

26

Cub Cadet 12321

Height Adjuster Ass'y. Comp. - L.H.

$

$

Not available

27

Cub Cadet 710-0209

Hex Sems Bolt 3/8-16 x .62" Lg.

$

$

Not available

28

Cub Cadet 14425

Strut Mounting Bracket

$

$

Currently unavailable

29

Cub Cadet 14004

22" Deck Ass'y.

Note: Color Code - 499

$

$

Currently unavailable

30

Cub Cadet 710-0654

Hex Wash. Hd. Self-Tap Scr. 3/8-16 x .88" Lg.
(Superseded to 710-0654A)

$4.49

$

In Stock, Qty 20+

0

31

Cub Cadet 14014

Rear Chute Baffle - L.H.

Note: Color Code - 499

$

$

Currently unavailable

32

Cub Cadet 710-0167

Carriage Bolt 1/4-20 x .50" Lg.
(Superseded to 710-05177)

$4.99

$

In Stock, Qty 20+

0

33

Cub Cadet 714-0365

#6 Hi-Pro Key 5/32 x 5/8" Dia.

$5.49

$

Usually ships in 3-6 days

0

34

Cub Cadet 10769

Blade Adapter Kit

$

$

Not available

35

Cub Cadet 10769

Blade Adapter Kit

$

$

Not available

36

Cub Cadet 736-0217

L-Wash. 3/8" I.D. - H.D.

$4.49

$

In Stock, Qty 8

0

37

Cub Cadet 710-0459

Hex Bolt 3/8-24 x 1.50" Lg. (Grade 5)
(Superseded to 710-0459A)

$6.99

$

In Stock, Qty 8

0

38

Cub Cadet 710-0117

Hex Bolt 5/16-24 x 1.00" Lg. (Grade 5)
(Superseded to 710-0888)

$4.49

$

In Stock, Qty 20+

0

39

Cub Cadet 742-0125

22" Blade
(Superseded to 942-0125B)

$

$

Not available

41

Cub Cadet 712-0123

Hex Nut 5/16-24 Thd.
(Superseded to 912-3057)

$6.99

$

In Stock, only 3 left!

0

42

Cub Cadet 712-0287

Hex Nut 1/4-20 Thd.
(Superseded to 912-0287)

$4.99

$

In Stock, only 1 left!

0

43

Cub Cadet 736-0329

L-Wash. 1/4" I.D.
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 11

0

45

Cub Cadet 710-0167

Carriage Bolt 1/4-20 x .50" Lg.
(Superseded to 710-05177)

$4.99

$

In Stock, Qty 20+

0

48

Cub Cadet 14235

Rear Chute Ass'y.

Note: Color Code - 499; Includes Ref. Nos. 60, 61 and 65)

$

$

Not available

50

Cub Cadet 12323

Index Plate

$

$

Not available

51

Cub Cadet 10531

Spring Lever Ass'y. w/Knob

$

$

Not available

52

Cub Cadet 736-0105

Bell-Wash. 3/8" I.D.

$4.49

$

In Stock, Qty 20+

0

53

Cub Cadet 741-0332

Flanged Ball Bearing

$

$

Not available

54

Cub Cadet 734-1062

Wheel Ass'y. Comp. 8 x 1.75

$

$

Currently unavailable

55

Cub Cadet 710-0427

Hex Bolt 3/8-16 x 2.00" Lg.
(Superseded to 710-3144)

$4.49

$

In Stock, Qty 20+

0

56

Cub Cadet 712-0375

Hex Cent. L-Nut 3/8-16 Thd.

$4.49

$

In Stock, Qty 6

0

57

Cub Cadet 736-0255

Bell-Wash. .50" I.D. x 1.14" O.D.

$4.99

$

In Stock, only 3 left!

0

58

Cub Cadet 10619

Pivot Bar

$

$

Not available

59

Cub Cadet 738-0269

Shoulder Bolt (3/8-16 Thd.)

$

$

Not available

60

Cub Cadet 13407

Chute Door

Note: Color Code - 499

$

$

Not available

61

Cub Cadet 732-0346

Torsion Spring

$

$

Not available

62

Cub Cadet 712-0271

Hex Sems Nut 1/4-20 Thd.

$4.49

$

In Stock, Qty 20+

0

64

Cub Cadet 710-0167

Carriage Bolt 1/4-20 x .50" Lg.
(Superseded to 710-05177)

$4.99

$

In Stock, Qty 20+

0

65

Cub Cadet 738-0386

Hinge Pin .250" Dia. x 7.25" Lg.

$

$

Not available

67

Cub Cadet 712-0271

Hex Sems Nut 1/4-20 Thd.

$4.49

$

In Stock, Qty 20+

0

68

Cub Cadet 710-0258

Hex Bolt 1/4-20 x .62" Lg.
(Superseded to 710-0751)

$3.99

$

In Stock, Qty 20+

0

69

Cub Cadet 731-0449

Rear Flap Ass'y.

$

$

Not available

72

Cub Cadet 12322

Height Adjuster Ass'y. Comp. - R.H.

$

$

Not available

75

Cub Cadet 12296

Handle Mount Brkt. Ass'y. - R.H.
(Superseded to 12296B-0637)

$

$

Not available

76

Cub Cadet 710-0776

Hex Wash. Hd. Self-Tap Scr. 1/4-20 x .62" Lg.
(Superseded to 710-0896)

$4.49

$

In Stock, Qty 20+

0

77

Cub Cadet 714-0104

Hairpin Cotter 5/16" Dia.

$4.49

$

In Stock, Qty 20+

0

78

Cub Cadet 726-0100

Push Cap 3/8" Rod

$4.49

$

In Stock, Qty 20+

0

79

Cub Cadet 731-0430

Plastic Roller

$

$

Not available

80

Cub Cadet 736-0142

Fl-Wash. .281" I.D. x .50" O.D. x .063

$4.99

$

In Stock, Qty 20+

0

?81

Cub Cadet 14012

Grass Catcher - Hitch Brkt.

Note: Color Code - 499

$

$

Not available

82

Cub Cadet 710-0703

Carriage Bolt 1/4-20 x .75" Lg.

$4.49

$

In Stock, Qty 20+

0

83

Cub Cadet 712-0267

Hex Nut 5/16-18 Thd.
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

84

Cub Cadet 736-0119

L-Wash. 5/16" I.D.
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

85

Cub Cadet 13435

Cam Lever - Grip Ass'y.

$

$

Not available

86

Cub Cadet 738-0140

Shld. Bolt .427" Dia. x .180" Lg.

$5.99

$

In Stock, Qty 15

0

87

Cub Cadet 13924

Grass Catcher Lower Frame Ass'y.

$

$

Not available

88

Cub Cadet 749-0512

Grass Catcher Upper Frame

$

$

Not available

89

Cub Cadet 764-0191

Grass Bag

$

$

Not available

90

Cub Cadet 718-0145

Grip

$

$

Currently unavailable

91

Cub Cadet 712-0107

Hex Cent. L-Nut 1/4-20 Thd.
(Superseded to 912-0107)

$4.99

$

In Stock, only 1 left!

0

92

Cub Cadet 07919

Scalp Plate
(Superseded to 07919B-0637)

$

$

Not available
